PC-100 manual se
2/2/05
3:12 PM
Page 1

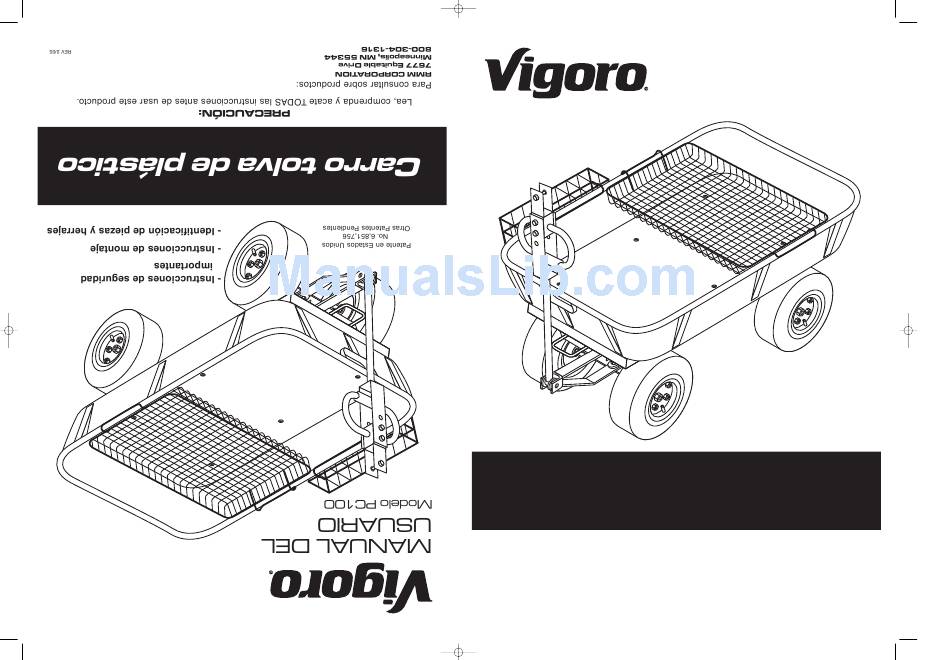

OWNER'S
MANUAL
Model PC100
U.S. Patent No. 6,851,756
Other Patents Pending
Plastic Dump Cart
CAUTION:
Read, understand and follow ALL instructions before using this product
For product inquiries:
RMM CORPORATION
7677 Equitable Drive
Minneapolis, MN 55344
800-304-1316
• Important Safety Instructions
• Assembly Instructions
• Parts and Hardware Identification
REV 2/05
Advertisement
Summary of Contents for Vigoro PC100
- Page 1 PC-100 manual se 2/2/05 3:12 PM Page 1 OWNER’S MANUAL Model PC100 • Important Safety Instructions U.S. Patent No. 6,851,756 • Assembly Instructions Other Patents Pending • Parts and Hardware Identification Plastic Dump Cart CAUTION: Read, understand and follow ALL instructions before using this product...
-
Page 2: Important Safety Instructions
PC-100 manual se 2/2/05 3:12 PM Page 3 IMPORTANT SAFETY INSTRUCTIONS 1. READ ALL INSTRUCTIONS CAREFULLY BEFORE USE. If you do not understand these instructions, need clarification or further explanation, please call our toll free answer line for assistance at 1-800-304-1316. 2. - Page 3 PC-100 manual se 2/2/05 3:12 PM Page 5 STEP 3 Attach the completed frame support assembly from the previous steps to the plastic bed. Align all of the holes in the frame support assembly and the bed, and attach using (6) 8 x 30mm bolts, 8mm washers, and 8mm lock nuts.
- Page 4 PC-100 manual se 2/2/05 3:12 PM Page 7 USING THE DUMPING FEATURE To operate the dumping feature, pull the dumping release handle outward to release the plastic bed from the locking mechanism. Lift on the bed handle to rotate the cart upward into the dumping position.
- Page 5 PC-100 manual se 2/2/05 3:12 PM Page 9 EXPLODED DRAWING FOR ASSEMBLY PARTS (8) Large Accessory Tray - 1 (1) Plastic Bed - 1 (9) Small Accessory Rack - 1 (2) 13” x 5” Pneumatic Wheels - 4 (3) Frame Support - 1 (4) Front Support Assembly - 1 (5) Rear Support Assembly - 1 (6) Handle - 1...
- Page 6 PC-100 manual se 2/2/05 3:12 PM Page 11 PARTS AND HARDWARE IDENTIFICATION HARDWARE PACKAGE (10) 8 X 20mm Frame Support Bolts - 6 (11) 8 X 50mm Bolts - 6 (12) 8 X 60mm Bolt - 1 (13) 8mm Washers - 13 (14) 8mm Lock Nuts - 13 (15) 6mm Shoulder Bolts - 2 (16) 6mm Washers - 2...
