Summary of Contents for Mamod SL1K

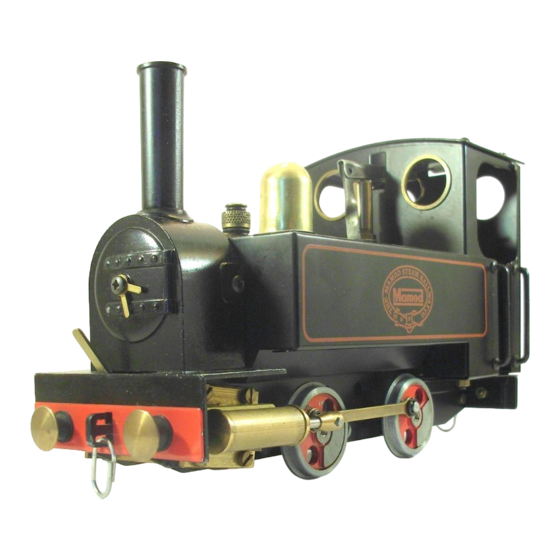

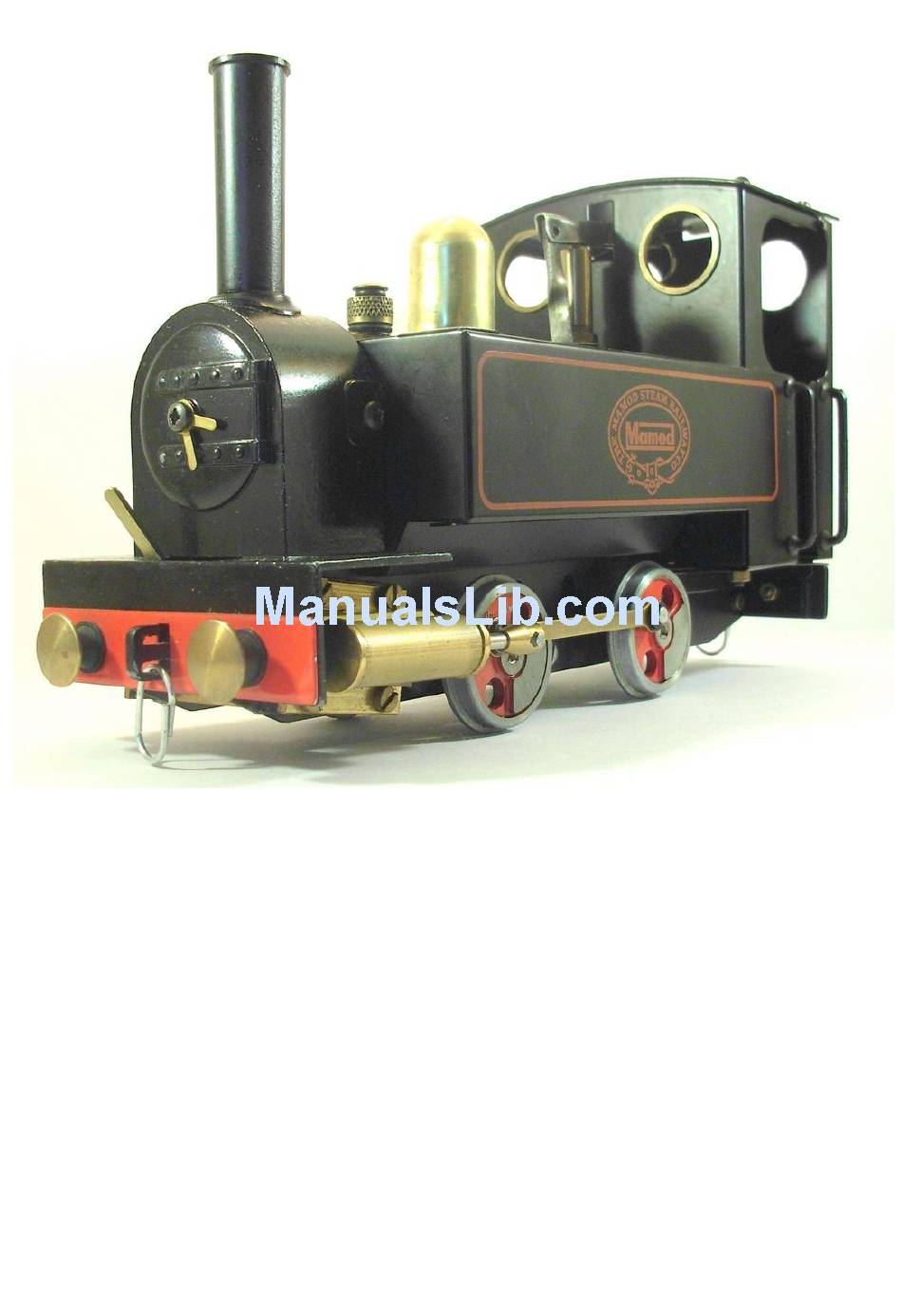

- Page 1 Mamod SL1K Locomotive Assembly Instructions...
- Page 2 LOCOMOTIVE ASSEMBLY INSTRUCTIONS To ensure ease of construction reference to these instructions are essential. All the major parts are in the front of the box and the small components are in polythene bags. Numbers on the bags refer to items on the drawings. When constructing for ‘Gauge 1’...
-
Page 3: Tank Assembly
- 2 – Take valve assembly and secure to main frame front using 4 long screws ( item 28 ) and locating to front cylinder assembly holes. When done check that both front and rear cylinder screws are tight. WHEEL AND CONNECTING LINK ASSEMBLY Place 1 black washer ( item 20 ) over each leading and trailing crank pin on wheels, then place connecting link ( item 21 ) over pins, place 4 more black washers ( item 20 ) on top and secure in position with 4 circlips ( item 22 ). -
Page 4: Final Assembly
- 3 – Take combustion chamber ( item 33 ) and insert between side tanks and secure to cab with 2 ( item 6 ) screws and 2 ( item 26 ) nuts to bottom fixing tags. Next slide boiler into combustion ensuring that the side tanks lugs nest into the slot between the boiler and front casting and whistle lever locates into cab. - Page 5 - 4 – Fit ‘O’ ring ( item 13 ) over pipe in boiler and locate bronze spring ( item 29 ) on top of ‘O’ ring. Place grey fibre washer ( item 50 ) over dome bush thread ( item 30 ) and screw into boiler, with spanner or adjustable, do tighten BUT DO NOT OVERTIGHTEN.
- Page 6 - 5 – SMALL PLASTIC BAGS FOR SL1K LOCOMOTIVE KIT Bag 1 Item 24 & 25 4 x Buffers and 4 x Buffer stock. Bag 2 Item 41, 46 & 23 8 x 5BA Full nuts, 4 x Grab rails & 2 x coupling links.
- Page 7 - 6 – /Continued on page 7...
