Summary of Contents for Seiki SM28UTR

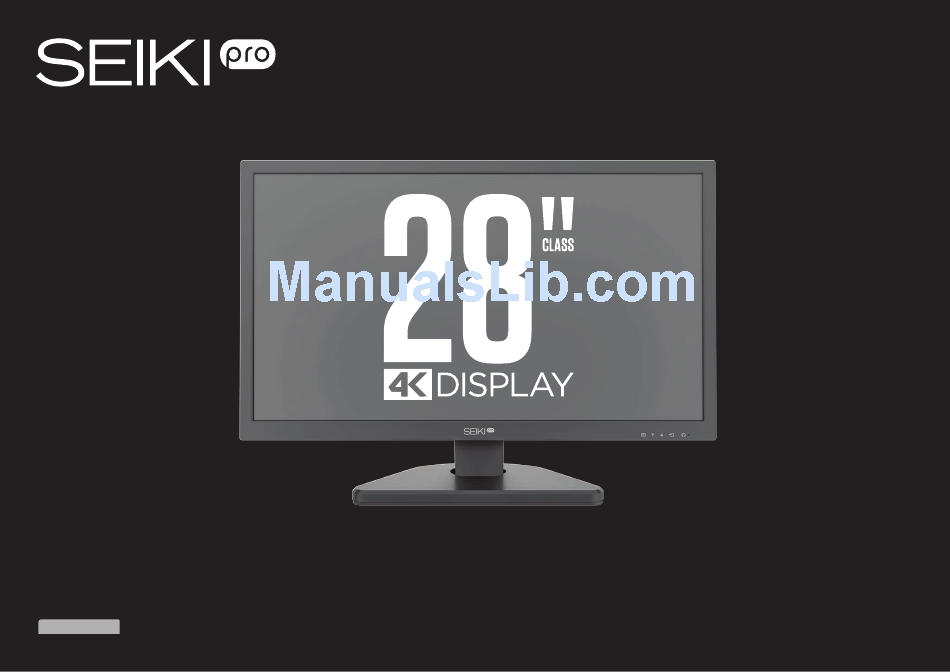

- Page 1 USER MANUAL SEIKI.com SM28UTR...
-
Page 2: Table Of Contents
Contents BEFORE USING THE PRODUCT Cleaning Securing the Installation Space Correct Posture to Use the Product SAFETY INFORMATION Symbols Electrical Safety Installation Safety PREPARATIONS What’s Included Installation CONNECTIONS Before Connecting Connecting PC INITIAL SETUP Before Using the Monitor OSD MENU SETTINGS SOURCE LANGUAGE PICTURE... -
Page 3: Before Using The Product
Before Using the Product Cleaning Exercise care when cleaning as the panel and exterior of advanced LEDs are easily scratched. Take the following steps when cleaning. 1. Power off the monitor and computer. 2. Disconnect the power cord from the monitor. Hold the power cable by the plug and do not touch the cable with wet hands. -
Page 4: Securing The Installation Space
Before Using the Product Securing the Installation Space Ensure some space around the product for ventilation. An internal temperature rise may cause fire and damage to the product. Be sure to allow the amount of space as shown below or greater when installing the product. The exterior may differ depending on the product. -
Page 5: Correct Posture To Use The Product
Before Using the Product Correct Posture to Use the Product • Straighten your back. • Allow a distance of 45 to 50 cm between your eyes and the screen, and look slightly downward at the screen. • Keep your eyes directly in front of the screen. •... -
Page 6: Safety Information
Safety Information Caution: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL. Symbols This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product. -
Page 7: Electrical Safety
• The product may become damaged by an electric shock. Warning Do not use the power cord for products other than authorized products supplied by Seiki. • An electric shock or fire may result. Do not use a damaged power cord or plug, or a loose power socket. -
Page 8: Installation Safety
• Be sure to consult Seiki Customer Service Center before installation if Do not install the product in a vehicle or a place exposed to dust, you want to install the product at such a place. - Page 9 • If water or any foreign substance enters the product, be sure to power • An electric shock or fire may result. off the product, remove the power cord, and contact Seiki Customer Service Center. Do not let children hang from the product or climb on top of it.
- Page 10 Safety Information Exercise caution when adjusting the product angle or stand height. Caution • Otherwise, children’s fingers or hands may become stuck and injured. • Tilting the product excessively may cause it to fall and result in personal Leaving the screen fixed on a stationary image for an extended period injury.
-
Page 11: Preparations
• The appearance of the components may differ from the image shown. Display Panel Base Stand USER MANUAL QUICK SETUP GUIDE 002-BBF-SEIKI © Copyright 2015 SEIKI, LLC SM28UTR SEIKI.com All rights reserved. Quick Setup Guide User Manual Disc Power Cord • Components may vary depending on the country. -
Page 12: Installation
Preparations Installation Attaching the Stand • Before assembling the product, place the product down on a flat and stable surface. When inserting the stand,aim the Fasten the connecting screw at Push the assembled stand into groove directly to the convex the bottom of the stand base. - Page 13 Preparations Adjusting the Screen • Adjust the screen to the best height, angle and direction. Move the screen up and The screen can lean backward Turn the screen 45°to the left down 11cm. 15°, lean forward 5°. or 45°to the right. Move the screen up to the top, and lean backward to the maximum angle, then rotate the screen 90°to the right.
- Page 14 Preparations Removing the Stand • If you already fasten the 2 screws on the back of the mounting plate, be sure to loosen them first. • Before removing the product, place the product down on a flat and stable surface. Toggle the lever on the stand, Loosen the connecting screw at Clockwise rotate the stand and...
-
Page 15: Connections 15
Connections Before Connecting Connection Using the DVI Cable • Before connecting a source device, read the user manual provided with it. The number and locations of ports on source devices may differ from device to device. • Do not connect the power cable until all other connections are completed. - Page 16 Connections Connection Using the HDMI Cable Connection Using the DisplayPort (DP) Cable HDMI HDMI 1. Connect the DP cable to the port on the back of the 1. Connect the HDMI cable to the HDMI 1 ，HDMI 2 HDMI 3 port product and the port on the PC.
-
Page 17: Connecting The Power
Connections Connecting the Power Connecting to Headphones or Audio In • Connect the power cable on the rear of the product. Plug in the power cable to the power socket. LINE OUT AC Outlet AUDIO IN HDMI HDMI AC IN 1. -
Page 18: Initial Setup
Initial Setup Before Using the Monitor Connect external equipments properly. Insert the power plug, and switch ON the main power switch on the back. Power On/Off • Touch the on the front of the monitor. The power indicator light will turn blue when the Monitor is ON. Menu Button Function Adjusting OSD menu settings by controlling menu buttons on the front of the monitor. -
Page 19: Osd Menu Settings
OSD Menu Settings SOURCE Touch the to enter SOURCE mode, then touch the again to enter and use the to select among different input signals. AUTO Touch the to display the On Screen Display menu. Touch the again to enter the input source list. HDMI 1 HDMI 2/MHL Touch the... - Page 20 OSD Menu Settings LANGUAGE To allow users to choose from available languages. Touch the to display the On Screen Display menu. Touch the to select LANGUAGE. Touch the again to enter the language setting. Touch the to select your desired setting and touch the confirm.
-
Page 21: Picture
OSD Menu Settings PICTURE Manually adjust the Brightness, Contrast, Sharpness, Black equalize and Picture Format. Touch the to display the On Screen Display menu. Touch the to select PICTURE. Touch the again to enter the picture setting. Touch the to select your desired setting and touch the enter. -
Page 22: Color
OSD Menu Settings COLOR To select the color to adjust Color Temperature and User Define. Touch the to display the On Screen Display menu. Touch the to select COLOR. Touch the again to enter the color setting. Touch the to select your desired setting and touch the enter. -
Page 23: Pip/Pbp
OSD Menu Settings PIP/PBP (This model doesn’t support PiP/PBP Function.) PiP/PBP allows you to watch two screens from different sources at the same time. (PiP is picture in picture; PBP is picture by picture) Touch the to display the On Screen Display menu. Touch the to select PiP/PBP. -
Page 24: Audio
OSD Menu Settings AUDIO To adjust the audio functions. Touch the to display the On Screen Display menu. Touch the to select AUDIO. Line-in Touch the again to enter the audio setting. Touch the to select your desired setting and touch the enter. -
Page 25: Setup
OSD Menu Settings SETUP To set up DisplayPort, Reset and Information. Touch the to display the On Screen Display menu. Touch the to select SETUP. Touch the again to enter the setup setting. Touch to select your desired setting and touch the enter. -
Page 26: Osd Setup
OSD Menu Settings OSD SETUP To manually adjust the Horizontal/Vertical OSD position, Transparency and OSD Time Out. Touch the to display the On Screen Display menu. Horizontal Position Touch the to select OSD SETUP. Vertical Position Touch the again to enter the OSD setting. Touch the to select your desired setting and touch the enter. -
Page 27: Specifications
Specifications General Model Name SM28UTR Size 28 Inches (71 cm) 620.93 mm (H) x 341.28 mm (V) Display area 24.44 Inches (H) x 13.34 Inches (V) Panel 0.16 mm (H) x 0.16 mm (V) Pixel Pitch 0.0063 Inches (H) x 0.0063 Inches (V) Brightness 300 Cd/M²... -
Page 28: Powersaver
Specifications PowerSaver The power-saving function of this product reduces power consumption by switching off the screen and changing the color of the power LED if the product is not used for a specified period of time. The power is not turned off in power-saving mode. To switch the screen back on, press any key on the keyboard or move the mouse. -
Page 29: Standard Signal Mode Table
• Check the frequency when you exchange a CDT monitor (connected to a PC) for an LED monitor. If the LED monitor does not support 85Hz, change the vertical frequency to 60Hz using the CDT monitor before you exchange it with the LED monitor. Model Name SM28UTR 30 ~ 134 kHz (DisplayPort) Horizontal Frequency... - Page 30 Specifications HDMI / DisplayPort Horizontal Frequency Vertical Frequency Pixel Clock Sync Polarity Resolution (kHz) (Hz) (MHz) (H/V) VESA, 640 x 480 31.469 59.940 25.175 MAC, 640 x 480 35.000 66.667 30.240 VESA, 640 x 480 37.861 72.809 31.500 VESA, 640 x 480 37.500 75.000 31.500...
-
Page 31: Limited Warranty
1. PARTS AND LABOR : For a period of one (1) year from date of original consumer purchase, if this Product or any functional part is determined by SEIKI, or a SEIKI authorized service provider, to be defective, at SEIKI’S... - Page 32 Service Hotline: 1-855-MY-SEIKI (1-855-697-3454) SEIKI.com © 2015 Seiki, LLC All rights reserved. Printed in China...
