Atlas BPI195-320 Specifications

FEATURES

• 320 CFM Unit Provides Exceptional Cooling for Rack-Mounted
Equipment.
• Sloped Case Design Angles Two Fans Upwards for Efficient
Circulation.
• Easy-To-Clean, Reusable Aluminum Mesh Filter Protects Equipment
from Dust and Other Airborne Particles.

GENERAL DESCRIPTION

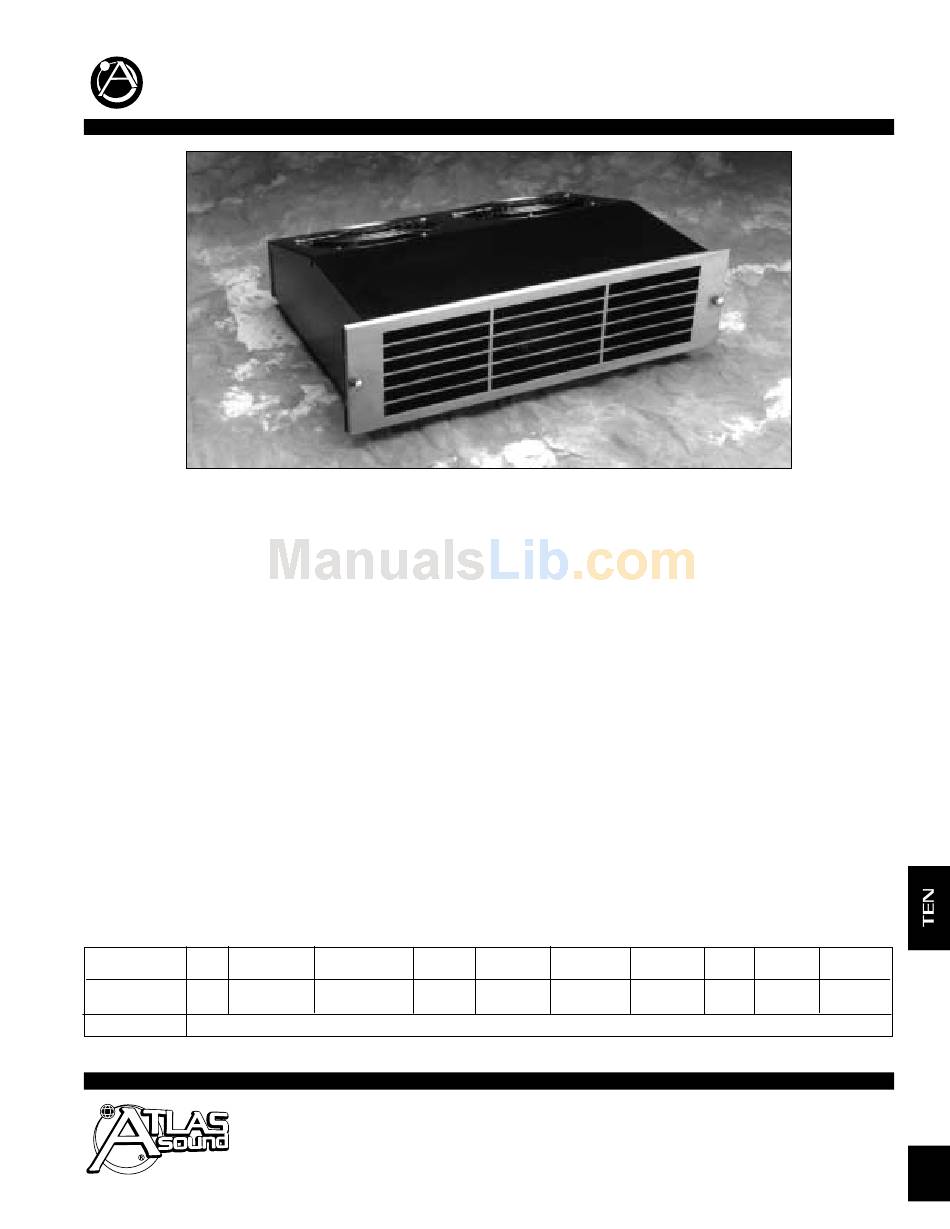

The Atlas Sound BP195-320 Blower provides exceptional cooling per-
formance for 19" racks and enclosures requiring ventilation for heat-
generating equipment. The unit contains dual inlet, twin fans for quiet
and efficient air handling. Fans operate at only 62 watts, 50/60Hz; .52
Line Amps @ 3350 RPM, to circulate air at 320 CFM (151 L/Sec).
The 7" tubeaxial fans are of a precision ball bearing design and are
pancake mounted to provide smooth, trouble-free performance. The
blower enclosure is 17 inches wide mounted to a 19-inch wide pol-
ished chrome face plate grille equipped with knurled captive fasteners
for easy filter cleaning. The permanent all-aluminum filter is corrugated
mesh in a one-piece frame which slides into an aluminum channel.
PANEL
MODEL RU SPACE
BP195-320 3
(133mm)
FLT195-320
1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A. / TELEPHONE: (800) 876-3333 / FAX (800) 765-3435
© 2001 Atlas Sound LP
19" W FILTERED INTAKE
RACK MOUNTED BLOWER
PANEL FAN
STYLE QTY
1 ⁄ "
5 Flush 2
4
⁄ "
3
( Thick)
8
Replacement / Spare Filter
Specifications subject to change without notice
Printed in U.S.A.

APPLICATIONS

Model BP195-320 is a powerful intake ventilation blower that is ideal
for mounting in the bottom of cabinets to provide direct cooling and air
circulation. The blower is equipped with a metal, washable filter which
protects equipment in manufacturing plants, dance clubs, warehouses,
distribution centers, and areas with high traffic volume.
The enclosure case design features a 15˚ top to rear slope from the
center of the cabinet for uniform air circulation throughout the enclo-
sure, has notched flanges on EIA Standard spacing. Grille area is
open for maximum air flow. The case is finished in textured black
baked epoxy and includes fan guards. The cord is a three wire, inter-
nally grounded 44 inch with molded plug, and is secured to the case
with a strain relief bushing. For replacement/spare filters order P/N:
FLT195-320.
CFM SPL VOLTS
'
TOTAL dBA @ 3 AC
320 59.5 115
000501
BP195-320
LINE
HZ WATTS AMPS
60 62 .52
SL10-1520
447
