Streaming Video Technology PZ0064-4CH User Manual

Mobile digital video recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

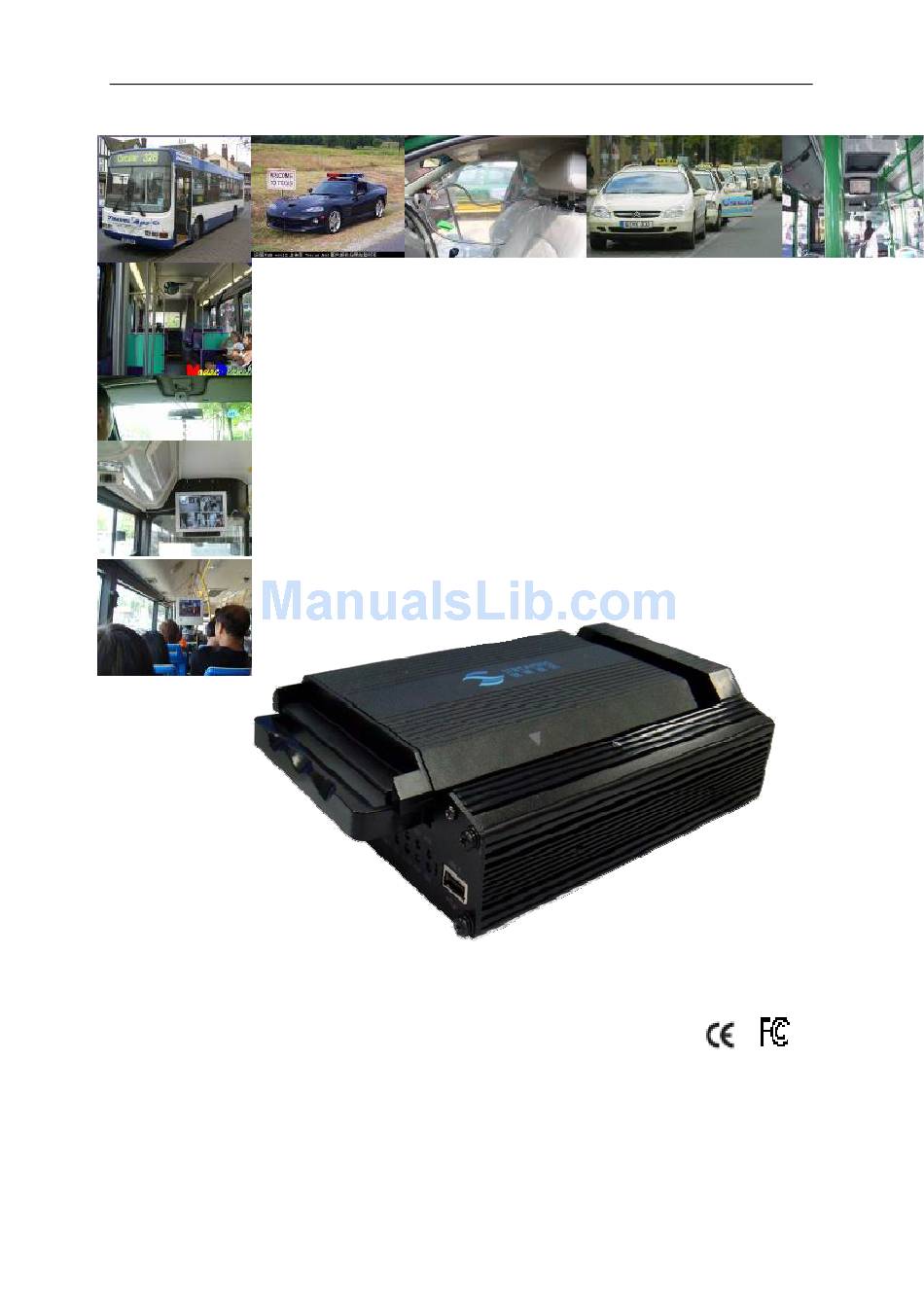

User Manual
for
PZ0064-4CH MDVR GUI
Mobile Digital Video Recorder
©Copyright 2010-2011, Streaming Video Technology (HK), Co., Ltd
All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PZ0064-4CH and is the answer not in the manual?

Questions and answers

Related Manuals for Streaming Video Technology PZ0064-4CH

Summary of Contents for Streaming Video Technology PZ0064-4CH

  • Page 1 User Manual PZ0064-4CH MDVR GUI Mobile Digital Video Recorder ©Copyright 2010-2011, Streaming Video Technology (HK), Co., Ltd All Rights Reserved...
  • Page 2 Under copyright laws, the content of this manual may not be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine- readable form, in whole or in part, without prior written consent of Streaming Video Technology (HK) Co., Ltd ©Copyright 2010-2011, Streaming Video Technology (HK), Co., Ltd www.securitycamera2000.com...

  • Page 3: Product Characteristics And Overview

    PZ0064 1 PRODUCT CHARACTERISTICS AND OVERVIEW 1.1 PRODUCT OVERVIEW STM-MDVR-X1 is a cost-effective and basic Mobile Digital Video Recorder specially designed for vehicle surveillance and local recording, combined with high-speed processor and embedded operating system. It’s based on advanced H.264 video compression and decompression technology VIDEO AND AUDIO MDVR FERATURES AND CAPABILITIES 4 channels for video input, 4CH D1 at 12fps/15fps continuous or priority video recording and live view display.

  • Page 4: Handheld Ir Remote Control

    PZ0064 2 HANDHELD IR REMOTE CONTROL Numeric Input Keys Use the numbers to input Values in the system setup Screen or switch through the channels in live and playback. Plus and Minus are used to increase setup values one by one. Navigation Arrows Use the ARROW keys to move between...

  • Page 5: Setup Menu Navigation

    PZ0064 HANDHELD IR CONTROL KEY FUNCTIONS: NUMERIC KEYPAD: [0-9] keys: During setup, number keys are used to input values. For viewing channels 1, 2, 3 and 4 use 1, 2, 3 and 4 on numeric keypad respectively. [+], [-] keys: During setup, plus and minus are used to select next or previous values. During real time view of individual camera, after you pressed key use plus and minus to make the color adjustments.
  • Page 6 PZ0064 Record Used to start the recording manually. Freezes playback to a single frame and can advance one frame at a PAUSE/STEP time. To advance the frame press Pause / Step to move frame by ▐► frame. Press EXIT to return to normal playback speed Starts/Resumes playback from any other mode (FF, RR, Frame by PLAY ►...

  • Page 7: Menu Tree

    PZ0064 3 MENU TREE Menu structure tree www.securitycamera2000.com...

  • Page 8: System Start-Up

    PZ0064 SYSTEM START UP After connecting the MDVR to a vehicle power supply turn on the vehicle ignition and the unit will automatically start recording. Power is normally supplied to the MDVR as long as the vehicle ignition is ON. “Display only view” of the cameras is immediately available to be viewed in quad view. SYSTEM LOGIN FOR SETUP X1 MDVR GUI is semi-transparent;...

  • Page 9: Menu Configuration

    PZ0064 DEVICE NO.: The unit ID of MDVR. You make the ID setting in the GUI and then the NO will display on screen automatically. PASSWORD: Enter the admin password or user password. User default password is 22222222, and Admin password is 88888888. OPERATOR PASSWORD CORRECT indicates permission is limited to video, sensor menu.

  • Page 10: All Files

    PZ0064 5.1 SEARCH 5.1.1 ALL FILES You can search all the video files including normal files, alarm files by record time and file type. Please highlight the option ALL FILES and then enter into following screen. FILE TYPE: The type of the file including alarm file and normal file. CHANNEL: Search the record files of each channel.
  • Page 11 PZ0064 TIME: The default setting is 00:00:00; this time is for the start time for recording. For example: If the date is 2009_04_14 and the time is 00:00:00, it indicated you want to search the entire video file from 00:00:00 to 23:59 on 14 , Apr, 2009.
  • Page 12 PZ0064 TOTAL: total quantity for the files that you selected for back up. No.: The file No. that is back up now. After successful backup, then the following screen will pop up. If you do not connect external storage device or the storage device is defective, then the system will display NO THUMB DRIVE.

  • Page 13: Event Files

    PZ0064 Please enter into the OPTION GUI and change the video type to be PAL manually and then the video file can be playback, otherwise, can not. 5.1.2 EVENT FILES Search for all the event files LOG, not video file. FILE TYPE: The type of the alarm file including I&O ALARM/ACCELERATION/SPPED/TEMP ALARM/VL ALARM DATE: MDVR system will display the current date automatically.
  • Page 14 PZ0064 SEL: For selecting the LOG for backup. Please arrow key on remote control to select the LOG file that need to back up and then √ will display. Please press 【REV.】to select all the files for backup or not. EVENT NAME: The name for the alarm such as alarm for video loss, alarm for over speed, low speed or high temperature, sensors and so on.
  • Page 15 PZ0064 5.2 SETUP Use ARROWS to select and press ENTER. The screen will show the menu as below: 5.2.1 SYSTEM www.securitycamera2000.com...
  • Page 16 PZ0064 A) DATE/TIME DATE FORMAT(US or Int’s): Press 【ENTER】to select different format MM/DD/YYYY, DD/MM/YYYY, YYYY-MM-DD TIME FORMAT: 12H or 24H, Press【ENTER】to select different format. TIME SYNC SOURCE: The system allow have the time synchronizing via by “GPS” . A: While selecting the “GPS”, the device must have GPS connection and GPS signal must be have well reception signal.
  • Page 17 PZ0064 ON/OFF TYPE: ignition or timer. A) IGNITION: for shut down delay function. For example: If you make the shut down delay time is 5 min, then MDVR will shut down after 5 min after the ignition off. B) TIMER : It will start up automatically at the time your setup.

  • Page 18: Register Info

    PZ0064 switch to the live view automatically. EVENT FILES AUTO-EXPORT (USB): Reserve Use For TIMER type, if the setting for boot up time is 6:00:00 and shut show time is 11:00:00. After the MDVR is OFF, reboot up the MDVR and MDVR will check the system for 5 min and then shut down again, you must enter into this menu to change the TYPE to be ignition.
  • Page 19 PZ0064 DEVICE: Please press 【ENTER】 to select the target device for format. There are 2 options: HDD and USB. Then press 【FORMAT】to format the storage device. After format success, it will restart automatically. www.securitycamera2000.com...
  • Page 20 PZ0064 E) UPGRADE Upgrade to new firmware or MCU. FIRMWARE: Upgrade the firmware. MCU: Upgrade the MCU. HOW TO UPGRADE THE FIRMWARE: Please create one folder named dvrupgrade in thumb drive and then copy the firmware upgrade file into this folder. Insert the thumb drive into the USB port on the front panel of MDVR.
  • Page 21 PZ0064 After upgrade success, it will restart automatically, as follow: Please do not cut off the power for MDVR or remove the thumb drive during firmware upgrade. Please check the firmware version after the MDVR reboot up and make sure that the firmware upgrade is completely successful.

  • Page 22: User Security

    PZ0064 F) USER SECURITY Setup the password for user and admin. PASSWORD ENABLE: To active this function or not. Selecting “ON” will require a password in order to access the setup menu. Selecting “OFF” will not require a password in order to access the setup menu.
  • Page 23 PZ0064 G) CONFIG Restore the default setting and export and import the MDVR configuration. EXPORT: Export the all configuration for the MDVR to another MDVR to make sure that two MDVR have the same setting. Please insert the external storage device to the USB port and then press 【EXPORT】, Then the configuration file will backup to external device.
  • Page 24 PZ0064 5.2.2 RECORD Setup the related configuration for Record A) OPTION Setup the basic parameters. VIDEO TYPE: PAL and NTSC optional. The default setting is NTSC RECORD MODE: Record mode, three modes as following: GENERAL: When MDVR is power supplied and start up, the MDVR will start to record automatically. TIMER: MDVR will start to record at defined time setting in the TIMER RECORD menu based on the schedule.
  • Page 25 PZ0064 NORMAL REC RATE: normal record rate, two option: NORMAL: MDVR will start to record according to the setup of RECORD SETTING. I FRAME: MDVR only record at I frame in order to take less space of hard drive. BUT when event is trigged, MDVR will record according to setup of RECORD SETTING.

  • Page 26: Osd Overlay

    PZ0064 B) OSD OVERLAY During Live view, press 【Enter】 on remote control to show MDVR working status on live view. DATE/TIME: Display date and time on OSD. ALARM: Display Alarm information on OSD. TEMPERATURE: Display the temperature on OSD FIRMWARE VERSION: Display the current firmware version GPS: Display the GPS working status;...

  • Page 27: Channel Setting

    PZ0064 C) CHANNEL SETTING Setup enables record function and live view for each channel. EN: Enable the record function. NAME: The name of the channel. For example, if you setup the name of CH1 is ABC, and you can see ABC three letters display on the live view (for channel 1) AUDIO: Active the audio record function LIVE: to display the live view...
  • Page 28 PZ0064 QUANLITY: Image quality, 8 levels optional, Level 1 is the best. Normal quality is the quality for normal record, and alarm quality is for alarm record. F) SCHEDULE Date: Press ENTER to change the period of time to control the recording schedule Single Day: Choose the name of a day to create a recording schedule Every Day:...
  • Page 29 PZ0064 5.2.3 EVENT A) SENSOR X1 support 6 sensors input. EN: Enable, to active this function NAME: Press ENTER on the Name field to display the soft keyboard. Enter the text name to identify the source of each Sensor connected to the unit. OSD: Input the numbers and Characters, they will be embedded into the alarm video files when alarms happen, www.securitycamera2000.com...
  • Page 30 PZ0064 and it will also display in live view, Please press【Enter】 into the soft keyboard. The label also identifies the type of event when doing a quick search using EVENT SEARCH option. SET: LOW (normal close) means high to low trigger alarm. HIGH (normal open) means low to high trigger alarm.

  • Page 31: Low Speed

    PZ0064 SOURCE: MDVR is capable of capturing vehicle speed via GPS antenna or Vehicle--speedometer. Browse between the settings of GPS or speedometer from the list. Please note that the GPS antenna should be connected to MDVR to receive satellite signals for speed. For more information on capturing speed from speedometer please contact local distributor for more technical support;...
  • Page 32 PZ0064 If the MDVR working temperature is higher than the setting for HIGH TEMP. , MDVR will alarm. If the MDVR working temperature is lower than the setting for LOW TEMP. , MDVR will alarm CAMERA Display the alarm information from camera. EN: The enable switch for video loss alarm.
  • Page 33 PZ0064 5.3 INFORMATION 5.3.1 SYSTEM Display the MCU version, firmware version, HDD status and SD card information. 1, NO HDD means No HDD installed or the HDD is defective and can not work. 2, NO FORMAT means HDD installed but not formatted. 3, showing the detailed information for HDD means HDD works fine.
  • Page 34 PZ0064 5.3.2 HISTORY The data for history information Press 【CLEAR】to delete all the current data. www.securitycamera2000.com...
