- Page 1 Instruction Guide for LL916 Underwater Speaker with AC203E Circuit Master LUBELL LABS INC. 21 NORTH STANWOOD ROAD COLUMBUS, OHIO 43209 U.S.A. (614) 235-6740...

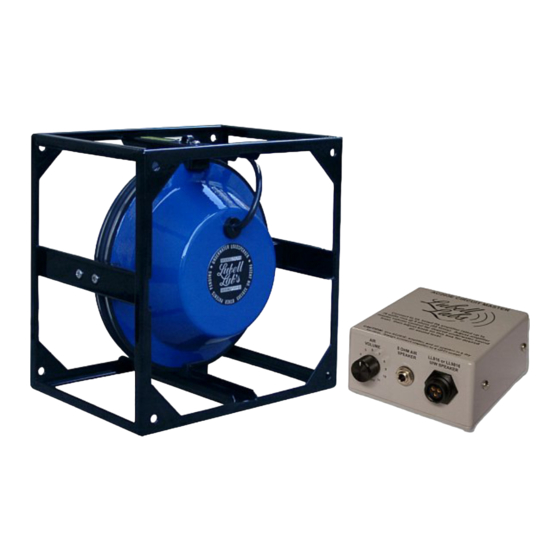

- Page 2 LL916 UNDERWATER SPEAKER & AC203E TRANSFORMER BOX The Lubell Labs Model LL916C3 underwater speaker with AC203E inline audio isolation transformer box (Circuit Master) was designed to meet the need for a quality, high output underwater speaker selling at a reasonable price. Its patented broadband high-output design easily fills large pools with pleasing, wide range sound.
- Page 3 Dimensions: LL916 Speaker ....9.280” OD x 5.630” axial length Cage(HWD) ....10.750” x 10.750” x 7.750”...
- Page 4 Aim the air speaker diagonally across the water towards the bleachers to provide sound to the pool surface, deck, and bleacher area. Connect the air speaker to the Lubell AC203E jack using the optional 25' H14-25LN2 Rapco speaker cable.
- Page 5 midway (0) position; control to 0; AC203E Circuit Master Amplifier volume MASTER control to 5. LEVEL 7. To set sound levels in this step, you will need three lap or synchronized swimmers in the following locations: under the water, head above water, and in the bleachers. First turn the amplifier volume to 0 so no one gets blasted! Connect the Inter-M A120 amplifier’s MASTER...
- Page 6 Only the patented Lubell underwater speaker can offer these qualities. Some current applications: Swimming & Scuba Instruction...
- Page 7 During this warranty period, the obligation of Lubell Labs is limited to repairing or replacing, as Lubell Labs may elect, any part or parts of such product which after examination by Lubell Labs discloses to be defective in material and/or workmanship.
