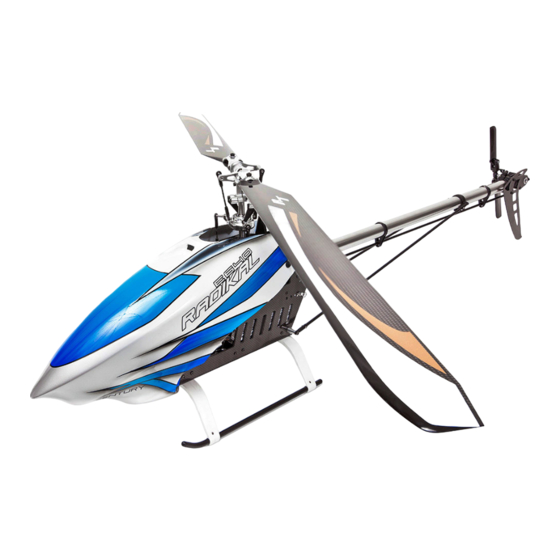

Radikal E640 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Kit Features:
103T Main gear, 11T Motor pinion gear
4.5:1 Tail gear ratio
Designed for power systems up to 12S Li-Po
Carbon fiber frames for ultra-rigid and compact design
Push/Pull CCPM control system
Triple bearing supported 10mm hardened main shaft
120 degree dual race ball bearing metal swashplate
Stainless steel damper mounted bearing torque tube for high efficiency
Dual race ball bearing with thrust bearing supported tail blade grips
© 2012 Century Helicopter Products - All rights reserved.

Specifications:

Main Rotor Blade Diameter: 57.3 in /
145.5 cm (640 mm Blades)
Tail Rotor Blade Diameter: 10.25 in /
26.0 cm (92 mm Blades)
Length: 49 in / 124.50 cm
Height: 13.7 in / 34.80 cm
Width: 4.5 in / 11.45 cm
Version 1.01

Advertisement

loading

Summary of Contents for Radikal E640

  • Page 1: Specifications

    Kit Features: Specifications: 103T Main gear, 11T Motor pinion gear Main Rotor Blade Diameter: 57.3 in / 4.5:1 Tail gear ratio 145.5 cm (640 mm Blades) Designed for power systems up to 12S Li-Po Tail Rotor Blade Diameter: 10.25 in / Carbon fiber frames for ultra-rigid and compact design 26.0 cm (92 mm Blades) Push/Pull CCPM control system...

  • Page 2: Thank You

    INTRODUCTION Radikal E640 Thank You Thank you for purchasing this new class of helicopters. By incorporating the use of blade sizes up to 640mm allowing 700 class flight characteristics in a smaller, you’ve made the right choice by going for an economical yet extremely high performance helicopter.

  • Page 3: Warranty Period

    REQUIRED/RECOMMENDED ITEMS Radikal E640 GYRO 6 CHANNEL RECEIVER SERVOS X (MINIMUM) CN2050 CN2034A PADDLE GAUGE 6 CHANNEL BALL LINK PLIERS CCPM TRANSMITTER (MINIMUM) SLOW & RECEIVER BATTERY MEDIUM CA DREMEL TOOL GLUE OR SIMILAR LI-PO CHARGER CN2017 HEX DRIVERS 1.5, 2.0, 2.5, 3.0, 4.0, 5.0...
  • Page 4 Radikal E640 AMA RULES & REGULATIONS General 1. Model aircraft will not be flown: (a) In a careless or reckless manner. (b) At a location where model aircraft activities are prohibited. 2. Model aircraft pilots will: (a) Yield the right of way to all man carrying aircraft.
  • Page 5 Radikal E640 HEAD ASSEMBLY (FLYBAR VERSION) Do not open all the bags prior to starting assembly. Open the bags step by step as you go through this BAG 1 instruction manual. The components are bagged to make assembly easier. The next few pages will per- tain to the assembly of the head.
  • Page 6 Radikal E640 HEAD ASSEMBLY (FLYBAR VERSION) BAG 1 16 17 Notice the direction of the blade grips as well as the direction of the flybar control arm. Ensure lubricant is applied to the thrust bearings. Be careful when taking the thrust bearings out of the blade grips. The radial bear- THRUST BEARING INSTALLATION GUIDE ings (part #4) should stay within the grips.
  • Page 7 Radikal E640 HEAD ASSEMBLY (FLYBAR VERSION) BAG 1 Do not over-tighten! M3X8CS Description M3X22CS Part # CNM3LOCK M3 Locknut(M3螺母) M3 CNM3LOCK M3x8 Cap Screws(杯头螺丝) CNM3X8CS 10mm Main Shaft(主轴) HW5053 CNM3x3SS CNM3x3SS M3x3 Socket Head Set Screw(无头内六角螺丝) Aluminum Washout Guide(剪型臂导柱 ) CNE556-2 M3x22 Cap Screws(杯头螺丝)
  • Page 8 HEAD ASSEMBLY (FLYBAR VERSION) Radikal E640 BAG 1 Hint: To ensure this pin does out, periodically check it between flights. You also can apply a tiny drop of CA to either side of the pin. CNLR1022SP Description Part # CNLR1003 3X5X0.5 Flat Washer(平面垫片)
  • Page 9 LINKAGE RODS (FLYBAR VERSION) Radikal E640 BAG 1 NOTICE SIZE OF HOLES ON BALL LINKS THE SIDE WITH THE SMALLER HOLE SHOULD FACE OUTWARDS The linkage rods come pre-built. Even 51,5 though they are pre-built, you will need to verify their lengths. The diagram...
  • Page 10 HEAD ASSEMBLY (FLYBARLESS) Radikal E640 The flybarless head comes pre-assembled BAG 1 however, it is only assembled as an ex- ample of how it should be assembled. The entire head will need to be taken apart and medium thread lock is required on all metal to metal parts.
  • Page 11 HEAD ASSEMBLY (FLYBARLESS) Radikal E640 BAG 1 The follower arms already come pre-assembled. DO NOT try to remove the bearings as they are factory installed. M3X22CS CNM3x16BHCS Description Part # CNBB0830 M3x22 Cap Screws(杯头螺丝) CNM3X22SCS M3x12 Cap Screws(杯头螺丝) CNM3X12CS M3x5x3 HW6205 M3x3 Socket Head Set Screw (无头内六角螺丝)
  • Page 12 HEAD ASSEMBLY (FLYBARLESS) Radikal E640 BAG 1 Although the swashplate comes assembled with the steel balls already installed, it is impor- tant to check they all have thread lock applied. CNLR1011 M3 L=18MM CNLR1023SP Description Part # M3 Ball Link L=18MM(M3 球头螺丝) CNLR1021 M3 Ball Link(M3 球头螺丝)
  • Page 13 HEAD ASSEMBLY (FLYBARLESS) Radikal E640 BAG 1 The linkage rods come pre-built. Even though they are pre-built, you will need to verify their lengths. The diagram with lengths are drawn at a true to life scale, therefore you can lay your linkages on the diagram to find the correct measurements.
  • Page 14 MOTOR MOUNT ASSEMBLY Radikal E640 BAG 2 The motor plate comes with mount- ing points for 25mm & 30mm bolt patterns. The M3 inserts should be used if the motor being used uses M3 bolts. INCLUDED Optional slant cut heli-...
  • Page 15 MAIN SHAFT BEARING BLOCKS & ELEVATOR ARM Radikal E640 BAG 2 & 4 The bearings #6 & #8 are already factory installed. Please be sure to apply thread- lock to the the M3x6 button head screw (#5). Hint: The A-Arm already comes assem- bled.
  • Page 16 MAIN FRAME ASSEMBLY Radikal E640 BAG 2 & 3 It is best to start this process by doing one side at a time. Assemble the motor mount and elevator arm on to the frames. Notice part #8 and the direction the flanged bear- ing is facing as well as the battery tray guides.
  • Page 17 MAIN FRAME ASSEMBLY Radikal E640 BAG 2 Hint: The rudder control bell crank assembly (Part # 1 through 8) should be loosely attached to the frame. This part will need to be removed at a later time in order to install the tailboom as- sembly to the frame.

  • Page 18: Landing Gear Assembly

    LANDING GEAR ASSEMBLY Radikal E640 BAG 5 Hint: Some thick CA glue or expoxy should be applied to the end caps on the skids to ensure they do not fall out during operation. Description Part # M3 CNM3LOCK HI5122 Landing Struts(脚架) M3x8x1 Flat Washer(平面垫片)

  • Page 19: Servo Installation

    SERVO INSTALLATION Radikal E640 BAG 2 & 3 The diagram does not show the servos being installed with servo grommets which are usu- ally included with all servos. It is recommended you run the servo grommets to prolong the life of the servos.
  • Page 20 PUSHROD LENGTHS Radikal E640 BAG 2 & 7 The linkage rods come pre-built. Even though they are pre-built, you will need to verify their lengths. The diagram with lengths are drawn at a true to life scale with the exception of the tail control rod, there- fore you can lay your linkages on the diagram to find the correct measurements.
  • Page 21 TRANSMISSION GEAR BOX Radikal E640 BAG 4 When installing the bearings, be sure they fit into their prospective grooves on the transmission case. Do not forget to install part #8 & #10 (set screws) to hold the pins in place.

  • Page 22: Tailboom Assembly

    Radikal E640 TAILBOOM ASSEMBLY BAG 4 & 7 DO NOT overtighten! Part # Description CNM3X8ST M3X8 Self Tapping Screw (割尾自攻螺丝) CNM3LOCK M3 Locknut(M3 螺母) CNM3x14BHCS M3x14 Button Head Screw(圆头内六角螺丝) HI6068A Horizontal Fin Mount( 水平翼固定座) CNM3x14BHCS HI6106B Zip Tie(束带 ) Adjustable Tail Guides( 尾拉杆固定座 )
  • Page 23 Radikal E640 TORQUE TUBE INSTALLATION BAG 7 Hint: The torque tube comes pre-assembled and in- stalled into the tailboom. To assist in removal for in- spection of the torque tube, use a little bit of rubbing alcohol and pour a little bit within the tailboom which will loosen the rubber bearing retainer.
  • Page 24 TAIL GEARBOX Radikal E640 BAG 4 To prolong the life of the gears they should be lubricated with a grease similar to Molykote EM-30L grease that is safe on plastics. Part # Description M3 Locknut(M3 螺母) CNM3LOCK Tail Gear Box(后齿轮箱)
  • Page 25 TAIL BLADE GRIPS Radikal E640 BAG 4 The tail assembly comes assembled for your example only. It is ne- cesssary to disassemble the tail blade grips to apply thrust bearing grease to the thrust bearings. It is also important to remove the set screw from the tail rotor hub and apply medium threadlock to this set screw.

  • Page 26: Main Gear Assembly

    MAIN GEAR ASSEMBLY Radikal E640 BAG 2 For the roller bearings, we recommend a very light oil. The oil MUSTNOT attack/break down plastic as this could damage the cage in the one-way bearing. Prior to applying oil, make sure to clean the roller bearings with a cotton swab making sure there is no debris in the bearings.
  • Page 27 INSTALLING MAIN GEAR AND HEAD Radikal E640 BAG 2 & 3 CNM3x8BHCS CNM4X4SS CNM2.5x8CS Ø3x23.7 10x18x1 10x13x1 Description Part # HI5003 Anti-Rotation Bracket( Ａ 臂滑座) CNM3x8BHCS Button Head Cap Screw( 圆头内六角螺丝)M3x8 HW6054B Mast Stopper( 主轴限位块) CNM2.5X8CS Cap Screw(杯头内六角螺丝)M2.5x8 Spacer(铜垫片)10x18x1 HW6057DS CNM4X4SS Set Screw(无头内六角螺丝)M4x...
  • Page 28 INSTALLING TAILBOOM ASSEMBLY Radikal E640 BAG 2 & 7 Description Part # M3 CNM3LOCK CNM3x8BHCS Button Head Cap Screw( 圆头内六角螺丝)M3x8 CNM3x8BHCS CNM3X30CS M3x30 Cap Screws( 杯头螺丝) HW6202BS Aluminum Post( 铝柱) M3X30CS M3 Locknut(M3 螺母) CNM3LOCK Page 28...
  • Page 29 Radikal E640 BATTERY TRAY ASSEMBLY BAG 6 Use the provided hook and loop material to secure the batteries onto the tray. Once you’ve stuck the hook and loop material to the batteries, use the provided straps to strap the battery to the tray.
  • Page 30 ELECTRONICS MOUNTING Radikal E640 INCLUDED Part # Description NOT INCLUDED Gyro(佗螺仪) NOT INCLUDED Gyro Isolation Foam( 防震垫片) NOT INCLUDED Hook & Loop Strap( 束带) ESC (调速器) NOT INCLUDED Receiver(接收机) NOT INCLUDED Page 30...
  • Page 31 When working with fiberglass, ensure you do not inhale the fiberglass dust when sanding or removing material. Part # Description HI6130E E640 Painted Canopy(机头) CNM3x6ST M3x6 Phillips Tapping Screws( 尖尾螺丝) CNM3X6PST HI3129C Canopy Bracket(机头固定座) CN2210A Canopy Grommet(橡皮环)
  • Page 32 Description Part # CNM4LOCK CNM4X27SCS Cap Screw(杯头内六角螺丝 )M4X27 NOT INCLUDED Rotorblades( 螺旋桨) CNM4LOCK M4 Locknut(M4 螺母) Congratulations on finishing the build of the Radikal E640 helicopter. Please follow your instruction manuals on setting up your transmitter and electronics. Page 32...
  • Page 33 PERSONAL BUILD NOTES Radikal E640 Page 33...
  • Page 34 PERSONAL BUILD NOTES Radikal E640 Page 34...
  • Page 35 PERSONAL BUILD NOTES Radikal E640 Page 35...
  • Page 36 1740-C Junction Ave. San Jose, CA. 95112 U.S.A. www.centuryheli.com...
