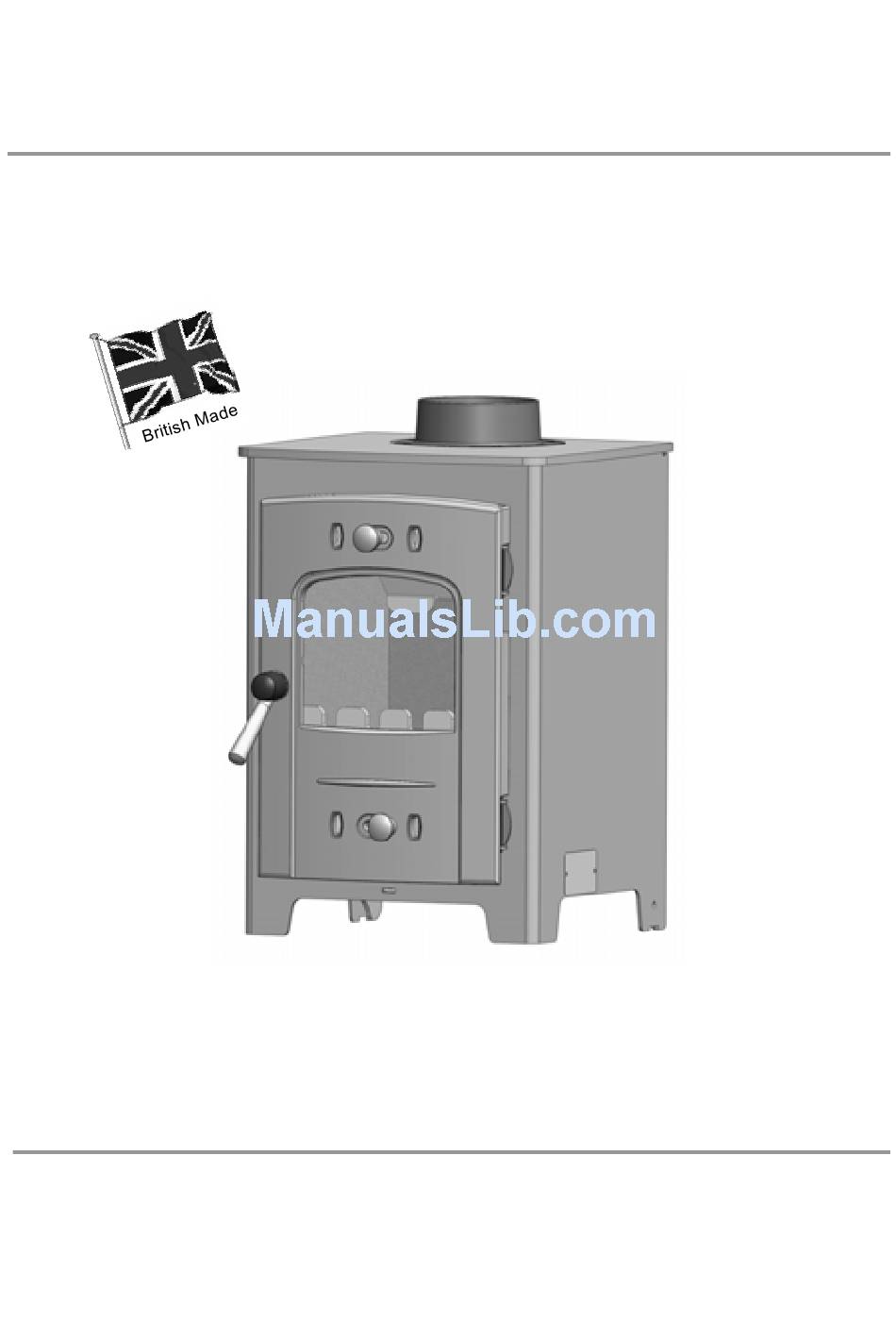

- Page 1 Operating & Installation Manual Multifuel Stoves The AX Multifuel Stove Range PLEASE RETAIN THIS GUIDE FOR FUTURE REFERENCE Rev 03 BK132 August 2011 Part No. AFS1574 AX1M - S2 AX2M - S2...
-
Page 2: Table Of Contents
Contents Page No. INTRODUCTION Warning Notice Safety Notices INSTALLATION Fitting The Flue Outlet & Hotplate Technical data Fitting the grate Firebox Liner Panels Final Check OPERATION Air wash control Primary air control Multipurpose operating tool / Ash pan MAINTENANCE Cleaning the stove Summer Storage Adjusting the Door Hinges Fuel retainer... -
Page 3: Warning Notice
APPROVAL FROM YOUR LOCAL AUTHORITY OR THE INSTALLATION WORK MUST BE CARRIED OUT THROUGH A GOVERNMENT APPROVED COMPETENT PERSONS SCHEME SUCH AS OPERATED BY HETAS. IF IN DOUBT, CONTACT HETAS LIMITED TELEPHONE NUMBER : 0845 634 5626 www.hetas.co.uk THIS STOVE MUST NOT BE CONNECTED... -
Page 4: Introduction
INTRODUCTION SAFETY FITTING THE FLUE OUTLET AND HOT PLATE A fireguard conforming to BS 8423:2002 should be used in the presence of children The flue outlet spigot is found packed inside the and old or infirm people. appliance . The hot plate (blanking plate) is Please note, this appliance should be used supplied fitted to the top opening and is removed by turning anti-clockwise (as is the flue outlet). -
Page 5: Technical Data
TECHNICAL DATA TECHNICAL DATA Multifuel Multifuel Room Heater 1 - 4 1 - 5 Only Output (kW) Height (mm) ‘A’ Width (mm) ‘B’ Depth (mm) ‘C’ Height to Centre of Rear Flue (mm) ‘D’ Depth from Back to 93.5 93.5 Centre of Flue (mm) ‘E’... -
Page 6: Fitting The Grate
INSTALLATION FITTING THE GRATE Note : The grate bars are factory assembled, however during transit, they may have been dislodged. Please see the instructions below on grate assembly. Grate The grates in the AX1 / 2 stoves, comprise of a series of 5 cast iron grate bars, seated on a pair of combs. -
Page 7: Firebox Liner Panels
INSTALLATION FIREBOX LINER PANELS The AX range of stoves use firebox liner panels to the sides and back. The throat plate sits on top of the sides and rear panels. These should come fitted to your stove, if however they are not, proceed as follows to fit them. -
Page 8: Final Check
We strongly advise that installation should only be carried out by a qualified Solid Fuel Heating Engineer, covered by the HETAS scheme , as installation by non-qualified persons may affect the stove operational safety and the product guarantee. -
Page 9: Air Wash Control
OPERATING INSTRUCTIONS AIR INLET CONTROLS AIR WASH SYSTEM The AX range of stoves have two air inlet The air wash has an internal sliding plate with controls. slots, housed in a cover plate, and is located inside The primary air inlet providing under draught to the the fire door. -
Page 10: Multipurpose Operating Tool / Ash Pan
OPERATING INSTRUCTIONS MULTI PURPOSE OPERATING TOOL Your AX stove is supplied with a multi purpose operating tool, used for adjusting the air inlet control and the removal of the ash pan. (See Fig 10/10a) TO EMPTY THE ASH PAN The AX range of stoves are supplied with a unique ash pan. -
Page 11: Cleaning The Stove
SERVICE & MAINTENANCE be cleaned prior to lighting the appliance after a ANNUAL MAINTENANCE prolonged shut down period. It is important that your appliance is regularly DOOR GLASS serviced in accordance with these instructions. This should be carried out at least annually by a The door glass should remain clear during normal qualified person and should consist of the burning. -
Page 12: Summer Storage
SERVICE & MAINTENANCE SUMMER STORAGE / NON Please Note : USAGE There is no adjustment to the door lock / catch assembly. Please ensure that your stove is left clean and moving components are well lubricated for the summer months (during periods of prolonged non use). -
Page 13: Ax1 Spare Parts Diagram
SERVICE & MAINTENANCE AX1 Spare Parts... -
Page 14: Ax2 Spare Parts Diagram
SERVICE & MAINTENANCE AX2 Spare Parts... -
Page 15: Guarantee
GUARANTEE Your AX range stove carries a guarantee against defects of manufacture and faulty workmanship for a period of 12 months from date of purchase. This does not apply to items which would be subject to fair wear and tear. Fire box liner panels, Fuel retainer, Throat plate, Door rope, Door glass and gaskets are not covered by the guarantee. -
Page 16: Final Factory Check
Assembled By Throat Plate Air Wash …………………………. Checked By Ash Pan Operating Tool Stove Mitten Operating & Installation Manual Arada Ltd The Fire Works Weycroft Avenue Axminster Devon EX13 5HU United Kingdom Tel: +44(0)1297 35700 Fax: +44(0)1297 35900 www.arada.uk.com BK132...
