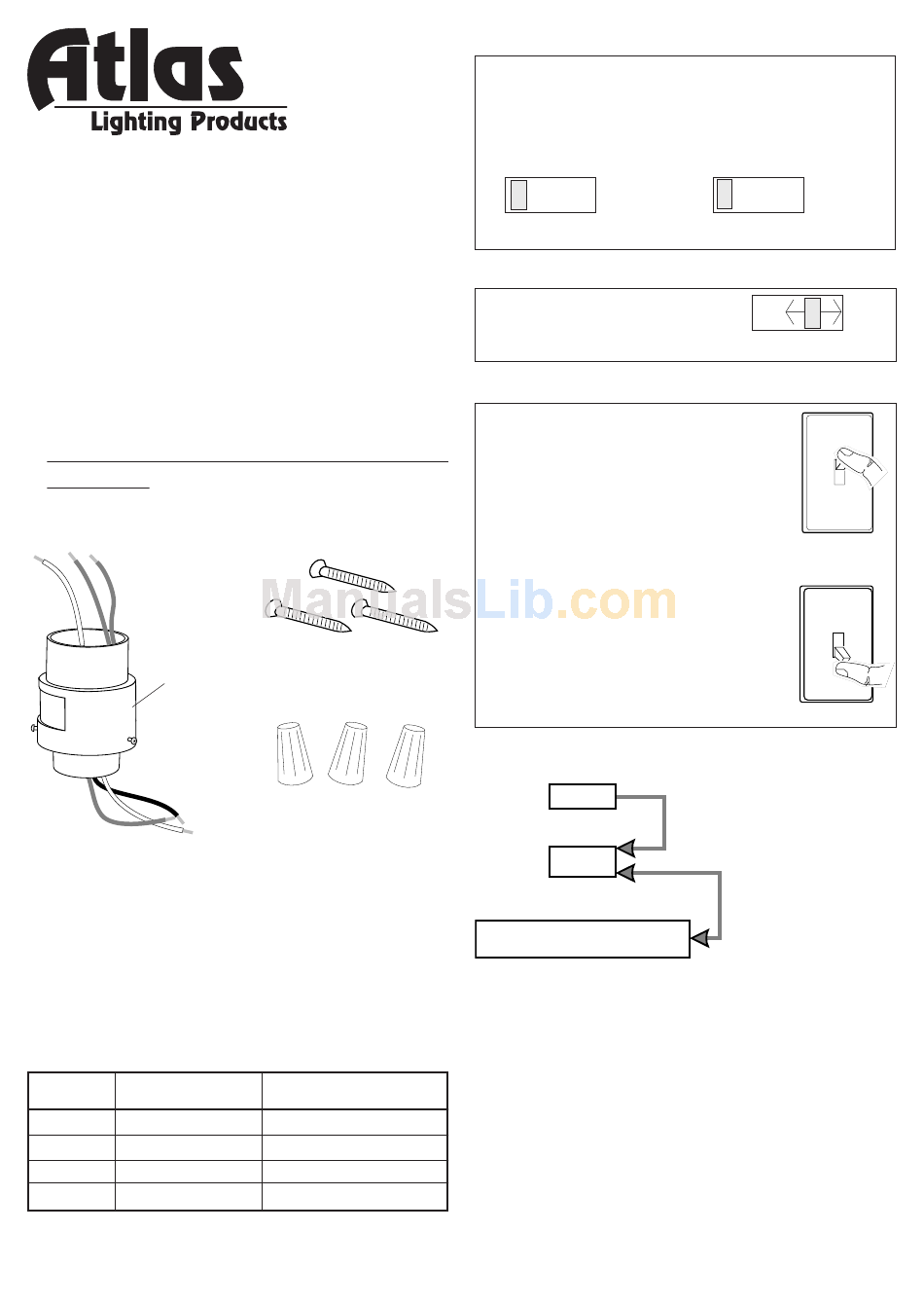

Atlas Lighting Products GUARDIAN PLMS User Manual

GUARDIAN
Model PLMS

Features

• Light comes on when motion is detected.
• Automatically controls existing post light.
• Dual Light Level.
• Photocell keeps the light off during day-
light hours.
This package includes:
Post Light
Adapter

Requirements

• The Light Control requires 120 volts AC.
• If you want to use Manual Override, the
control must be wired through a switch.
• Some codes require installation by a
qualified electrician.

OPERATION

Mode: On-Time
Test 5 Sec
Auto 1, 5, or 20 Min
Manual To Dawn*
Accent 3,6 Hr, to Dawn
* resets to Auto Mode at dawn.
© 2003 Atlas Lighting Products, Inc.
PRO ™
P S
OST ENTRY
3 Screws
3 Wire Connectors
Works: Day Night
x x
x
x
x
Put ON-TIME switch on the sensor bottom to
TEST and the Dual Light Level (ACCENT)
switch OFF.
ON-TIME
TEST 1 5 20
Set ON-TIME switch to
1, 5, or 20 minutes.
MANUAL MODE
Manual mode only works at
night because daylight re-
turns the sensor to AUTO.
Flip the light switch off for one
second then back on to toggle
between AUTO and MANUAL
MODE.
Manual mode works only with
the ON-TIME switch in the 1,
5, or 20 position.

Mode Switching Summary

TEST
AUTO
MANUAL MODE
* If you get confused while switching modes,
turn the power off for one minute, then back
on. After the calibration time the control will
be in the AUTO mode.
Dual Light Level Control
Light comes on half bright for selected time
after dusk (Off, 3 hr., 6 hr., until dawn). If
motion is sensed, the light turns on full bright
for the ON-TIME (1, 5, or 20 minutes) then
returns to dim mode.
TEST
ACCENT
Off 3 6 Dusk to Dawn
AUTO
TEST 1 5 20 MIN
1 Second
OFF then ...
... back on.
ON-TIME Switch at
1, 5, or 20 minutes
Flip light switch
off for 1 second
then on
