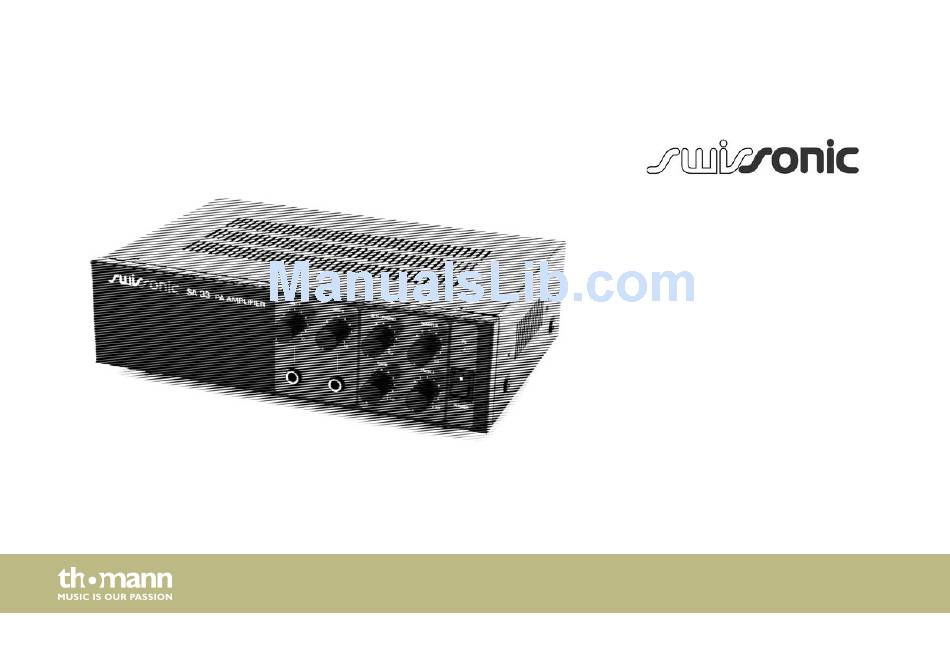

- Page 1 SA 33 mixer amplifier user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 04.09.2015, ID: 277393...
-
Page 3: Table Of Contents
Table of contents General notes............................... 4 Safety instructions............................. 6 Features............................... 12 Installation and starting up........................ 13 4.1 Pin assignment..........................14 4.2 Screw terminal bar........................... 16 Connections and operating elements................... 18 Technical specifications........................23 Cleaning............................... 25 Protecting the environment......................26 SA 33... -
Page 4: General Notes
General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to other users, be sure that they also receive this manual. - Page 5 This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – danger zone. SA 33...
-
Page 6: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used for amplification, mixing and playback of signals from musical instruments and microphones. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 7 They could swallow the pieces and choke! Never let children unattended use electrical devices. DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. SA 33...
- Page 8 Safety instructions DANGER! Electric shock caused by high voltages at the power amplifier output The output voltages of modern high-performance amplifiers may result in death or serious injury. Never touch the bare ends of loudspeaker cables when the amplifier is on. DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐...
- Page 9 NOTICE! Risk of fire Do not cover the device nor any ventilation slots. Do not place the device near any direct heat source. Keep the device away from naked flames. SA 33...
- Page 10 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker.
- Page 11 Pay attention to the polarity marking! To disconnect the bat‐ tery, unscrew the cables on the battery first, then on the terminals of the device. Also pay attention to the safety instructions of the battery manufacturer. SA 33...
-
Page 12: Features
Features Features Two front panel microphone inputs AUX/PHONO input Input for an external preamp Output for an external power amp Screw terminals for the connection of speakers and off-grid voltage supply mixer amplifier... -
Page 13: Installation And Starting Up
Establish all connections as long as the unit is switched off. Use the shortest possible high- quality cables for all connections. SA 33... -
Page 14: Pin Assignment
Installation and starting up 4.1 Pin assignment Phone sockets for signal inputs Drawings and tables indicate the pin assignment of 1/4" phone plugs to be used. Unbalanced wiring of a TS plug: Signal Ground, shielding mixer amplifier... - Page 15 Installation and starting up Unbalanced wiring of a TRS plug: Signal 2, 3 Ground, shielding Balanced wiring of a TRS plug: Positive signal (+) Negative signal (–) Ground, shielding SA 33...
-
Page 16: Screw Terminal Bar
Installation and starting up 4.2 Screw terminal bar All speakers and the battery for the off-grid voltage supply are connected via a screw terminal bar on the rear panel of the unit. First, remove the cover of the screw terminal using a suitable screwdriver. Loosen the terminal screws required (see wiring diagram) and attach the desired cables with the screwdriver. - Page 17 Installation and starting up Finally, check all cable connections for tightness and replace the cover of the screw terminal on the unit. SA 33...
-
Page 18: Connections And Operating Elements
Connections and operating elements Connections and operating elements Front panel mixer amplifier... - Page 19 Volume control for the AUX/PHONO input on the rear panel of the unit. 4 MASTER Volume control for the signal output of the mixer amplifier. 5 PL LED Lights up when the device is switched on and operational. 6 Mains switch to turn the device on and off. SA 33...
- Page 20 Connections and operating elements 7 TREBLE Control to increase or attenuate the high frequencies. Turn this knob from the middle position clockwise or counter- clockwise to increase or attenuate the high frequencies by up to ± 10 dB. 8 BASS Control to increase or attenuate the low frequencies.
- Page 21 Connections and operating elements Rear panel SA 33...
- Page 22 Connections and operating elements 9 Operating voltage selector (115 V or 230 V, factory preset). 10 Indication of the factory preset operating voltage of the device (115 V or 230 V). 11 AUX — PHONO Signal level selector for the AUX/PHONO input. 12 AUX/PHONO RCA input sockets to connect an external audio device.
-
Page 23: Technical Specifications
MIC: –50 dB (unbalanced) AUX: –20 dB PHONO: –50 dB Tone stack Treble: ±10 dB, 10 kHz Bass: ±10 dB, 100 Hz £ 0,5 % Signal-to-noise ratio MIC: ³ 65 dB AUX: ³ 75 dB PHONO: ³ 55 dB SA 33... - Page 24 Technical specifications Output impedance COM, 4 Ω Output voltage COM, 25 V, 70 V, 100 V Operating voltage supply AC 115/230 V , 50/60 Hz DC 12 V Power consumption 60 W (mains operation) 45 W (battery operation) Dimensions (W × H × D) 280 mm ×...
-
Page 25: Cleaning
The fan grids of the device must be cleaned on a regular basis to remove dust and dirt. Before cleaning, switch off the device and disconnect AC-powered devices from the mains. Use a lint- free damp cloth for cleaning. Never use solvents or alcohol for cleaning. SA 33... -
Page 26: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
