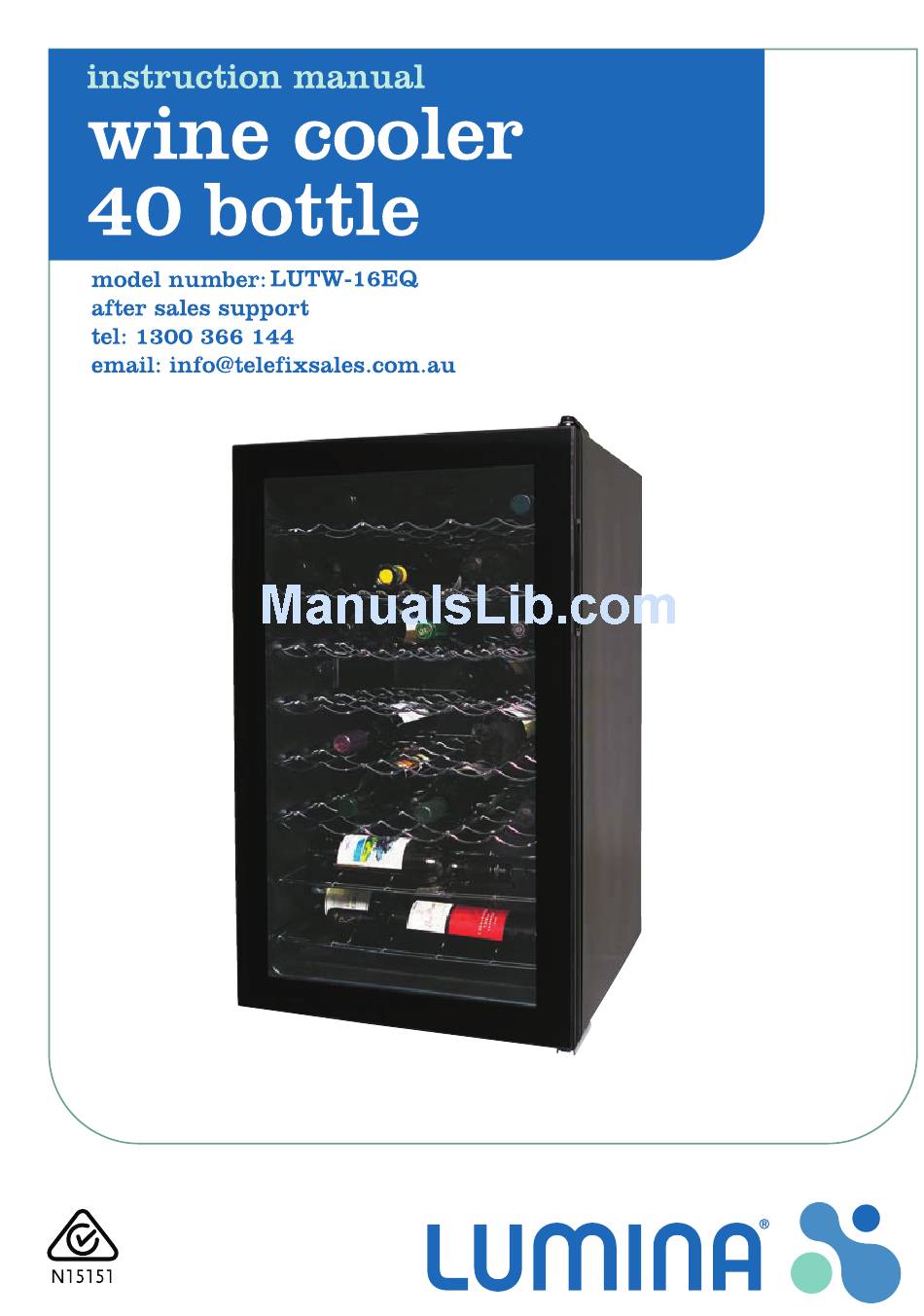

Lumina LUTW-16EQ Instruction Manual
  1. Manuals
  2. Brands
  3. Lumina Manuals
  4. Wine Cooler
  5. LUTW-16EQ
  6. Instruction manual

Lumina LUTW-16EQ Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUTW-16EQ and is the answer not in the manual?

Questions and answers

Summary of Contents for Lumina LUTW-16EQ

  • Page 3: Important Safeguides

    IMPORTANT SAFEGUIDES Before the refrigerator is used, it must be properly positioned and installed as described in this manual. To reduce the risk of fire, electric shock or injury when using the refrigerator, fol- low basic precautions, including the following: •...
  • Page 4 PARTS & FEATURES 1. Countertop 2. Digital Display 3. Glass Door 4. Chrome Shelves (6) 5. Chrome Rack (2) 6. Adjustable Leg After sales support TEL: 1300 366 144...

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electrical shock, or injury when using your Wine/Beverage Cooler, follow these basic precautions: To reduce the risk of fire, electrical shock, or WARNING injury when using your Wine/Beverage Cooler, • Read all instructions before using the Wine/Beverage Cooler. follow these basic precautions: •...
  • Page 6 Electrical Connection   W a r ni ng Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized technician. This unit should be properly grounded for your safety. The power cord of this unit is equipped with a three-prong plug which mates with standard three prong wall outlets to minimise the possibility of electrical shock.
  • Page 7 FIGURE 1 FIGURE 2 Remove the upper hinge cover (1). Remove the three screws (2) that hold the upper door hinge (3). Lift the door and place it on a padded surface to prevent scratching. Remove the three screws (6) that hold the lower door hinge (5). Remove the hold cover (7) and transfer it to the same location on the opposite side.
  • Page 8 OPERATING YOUR WINE/BEVERAGE COOLER Setting the Temperature Control You can adjust the temperature by pressing the SET button. Each press increase 1ºC (1 ºF), periodically. The temperature range is 7 ºC~18 ºC (45 º F ~65 º F). The default temperature is 7 ºC (45 º F) Champagne: SPARKLING 7 ºC - 9 ºC 45ºF-47ºF...

  • Page 9: Care And Maintenance

    CARE AND MAINTENANCE Cleaning Your Wine/Beverage Cooler • Unplug the Wine/Beverage Cooler, and remove all items including shelves and racks. • Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a 250mL of water. •...
  • Page 10 PROBLEMS WITH YOUR WINE/BEVERAGE COOLER? You can solve many common Wine/Beverage Cooler problems easily, saving you the cost of a possible ser- vice call. Try the suggestions below to see if you can solve the problem before calling the service agent. Wine/Beverage Cooler does not operate.
  • Page 11 WIRING DIAGRAM After sales support TEL: 1300 366 144...
  • Page 12 11/07 Wine Cooler-40 bottle Model: LUTW-16EQ Climate Class Foaming Components Net Volume 126 Litres Protection Class Voltage 220-240V,50Hz Input Power 130W Lamp Power 1.1W Current 0.9A Refrigerant R134a 45g Dimensions(H×D×W) 840×550×495mm Serial No. Made in China...
  • Page 13 Warranty Details Product Name WINE COOLER-40 BOTTLE Brand Name LUMINA Product Number 2339 Model Number LUTW-16EQ Serial Number Name Address Email Daytime Tel No Date of purchase We recommend that you attach your product receipt, showing the date of purchase, to this Warranty Card and keep for your reference.
