Summary of Contents for EURO EID14GSA

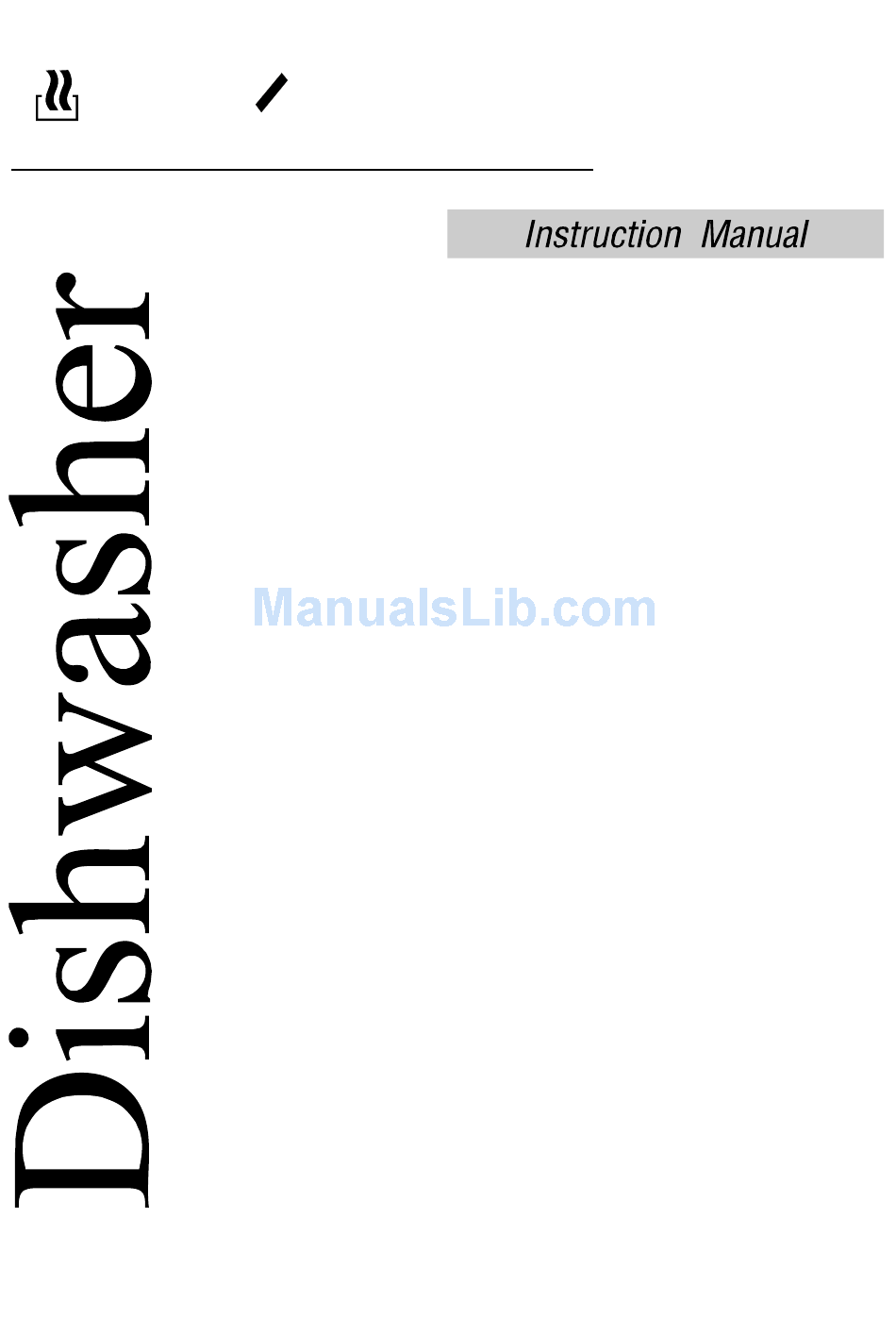

- Page 1 EID14GSA...
- Page 2 For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Open the door, p ress the On/Off button to switch on the appliance. Compartment With each wash cycle. Compartment Fill the detergent dispenser For programmes with pre-wash only. (Follow the user instructions!) Mechanical indicator Check the rinse aid level...
-
Page 3: Table Of Contents
Dear Customer, Please carefully read this manual before using the dishwasher, it will help you to use and maintain the Control Panel...........2 dishwasher properly. Dishwasher Features........2 Keep it to refer to it at a later date. Pass it on to any subsequent owner of the appliance. A、Fill the Rinse Aid Dispenser......3 This manual contains sections on safety Instructions, B、Function of Detergent .........4... - Page 4 WARNING! When using your dishwasher, follow the precautions listed below: This appliance must be grounded. In the event of a Improper connection of the equipment-grounding malfunction or breakdown, grounding will reduce conductor can result in the risk of an electric shock. the risk of anelectric shock by providing a path of Check with a qualified electrician or servi ce least resistance of electric current.
-
Page 5: Control Panel
To get the best performance from your dishwasher, read all operating instructions before using it for the first time. 2 3 4 5 Display window: Program remaining time, delay time, running indicator, Program indicator, rinse aid indicator, Error codes, etc. Program button: To select one of the six programs. -
Page 6: A、Fill The Rinse Aid Dispenser
Before using your dishwasher for the first time: Fill the rinse aid dispenser Fill in detergent Rinse Aid Dispenser The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. -
Page 7: B、Function Of Detergent
Adjusting Rinse Aid Dispenser The rinse aid dispenser has six scales . Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free. -
Page 8: Amount Of Detergent To Use
Amount of Detergent to Use Detergent powder Detergent tablet If the lid is close d: press rele ase button. T he lid will spring open. Always a dd the d ete rgent just before starting each wash cycle. Only use branded detergent aid for dishwasher. Dishwasher deterge nt is corrosive! Take care to keep it out of reach of children. -
Page 9: Attention Before Or After Loading The Dishwasher Baskets
For best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery baskets may vary from your model. Attention before or after Loading the Dishwasher Baskets Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. -
Page 10: How To Adjust The Upper Basket
Flip down cup shelves. Place glasses upside down with stems resting in the “U” of the shelves. The s helves will fit for di fferent cups or glasses when put them in lower & higher position. As shown in the following figures. Loading the Lower Basket We recommend that you place large items which are most difficult to clean into the lower basket: pots, pans, lids, serving dishes and bowls, as shown in the figure to the right. -
Page 11: Lower Basket With Extra Rack
Additionally, if there are much more c utlery just like folks and knives need to be washed, setting the optional extra rack can help you enlarge the capacity of lower basket. The right Figure shows a typical load for the lower basket with extra rack. -
Page 12: Cutlery Basket
The whole silverware basket is made up of two different baskets, two small baskets and a larger basket According to your requirement, you can remove the small baskets, as following. Step 1: Turn A to each side. You can judge whether it is in position by your feeling. Step 2: Take the small basket away in the direction ,as the picture showing. -
Page 13: Possible Causes
For washing in the dishwasher the following cutlery/dishes Are not suitable Are of limited suitability Some types of gl asses can become Cutlery w ith wooden, horn china or dull after a large number of washes mother-of-pearl handles Plastic items that are not heat resistant Sil ver and aluminum parts have a Older cutlery with glued parts that are not tendency to discolour during washi ng... -
Page 14: Wash Cycle Table
Means: need to fill rinse into the Rinse-Aid Dispenser. For all soiled loads, such ℃ Pre-wash(40 ) as pots, pans, casserole ℃ Autowash(50-60 ) dishes and dishes that have 5/27.5g Auto Rinse 11~14.5 1.1~1.4 been sitting with dried food ℃ Rinse (70 ) on them for a while. -
Page 15: Turning On The Appliance
Draw out the lower and up per b asket, load the dishes and push them back. It is commended to lo ad the lower bask et first, then the upper one (s ee the sectio n entitled “ ” Loading the Dishwasher ). “... -
Page 16: Filtering System
The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter, a flat (Main filter) And a microfilter (Fine filter). -
Page 17: Caring For The Dishwasher
Remarks: - Inspect the filters for blo cking after e very time the dishwa sher has been used. - By unscrewing the coarse filter, you can remove the filter system. Remove any foo d remna nts and clean the filters unde r running wa ter. The entire filter assembly should be cleaned once a week. -
Page 18: Installation Preparation
After Every Wash When not in Use for a LongTime It is recommend that you run a was h cy cle with the After every wash, turn off the water supply to the dishwasher empty an d the n remove the plug from the appliance and leave the door slightly open so that socket, turn off the wa ter supply and leave the door of moisture and odours are not trapped inside. -
Page 19: Aesthetic Panel's Dimensions And Installation
【Figure1】 90 ° 90 ° Cabinet dimensions Less than 5mm between the top 820mm of dishwasher and 580mm cabinet and the Electrical, drain and water supply line outer door aligned entrances to cabinet. Space between cabinet bottom and floor 600 mm 【Figure2】... - Page 20 Install the hook on the aesthetic wooden panel and put the hook into the slot of the outer door of dishwasher(see figure 4a). After positioning of the panel , fix the panel onto the outer door by screws and bolts(See figure 4b) . Hop hook 【Figure4a】...
-
Page 21: Tension Adjustment Of The Door Spring
Tension adjustment of the door spring ● The door springs are set at the factory to the proper tension for the outer door. If aesthetic wooden panel are installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable(see figure 5). -
Page 22: Dishwasher Installation Steps
Dishwasher installation steps ● Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer to the template for positioning of the brackets. Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to tighten the left and right door springs. - Page 23 Dishwasher must be level for proper dish rack operation and wash performance. Place level on door and rack track inside the tub as shown to check that the dishwasher is level. level the dishwasher by adjusting the four leveling legs individually. When level the dishwasher, pl s pay attention not to let the dishwasher tip over.
-
Page 24: Water Connection
Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. -
Page 25: Before Calling For Service
Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher Make sure the dishwasher is turned on and the door is Power supply is not turned on closed securely. -
Page 26: Error Codes
The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table ". Not enough detergent Use more detergent, or change your detergent. was dispensed. -
Page 27: Technical Information
Height : 820mm(adjustable+60mm) Width : 595mm Depth : 560mm Voltage connected Load : see rating label Water pressure: 0.04-1.0MPa Hot water connection : max 60 ℃ Power supply: see rating label Capacity: Place settings...
