Unique UGP-72 LD1 Owner's Manual

Semi-automatic portable dc washing machine

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

SEMI-AUTOMATIC PORTABLE

DC WASHING

MACHINE

UGP-72 LD1

OWNER'S GUIDE

serial number:

Table of Contents

Need help?

Do you have a question about the UGP-72 LD1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Unique UGP-72 LD1

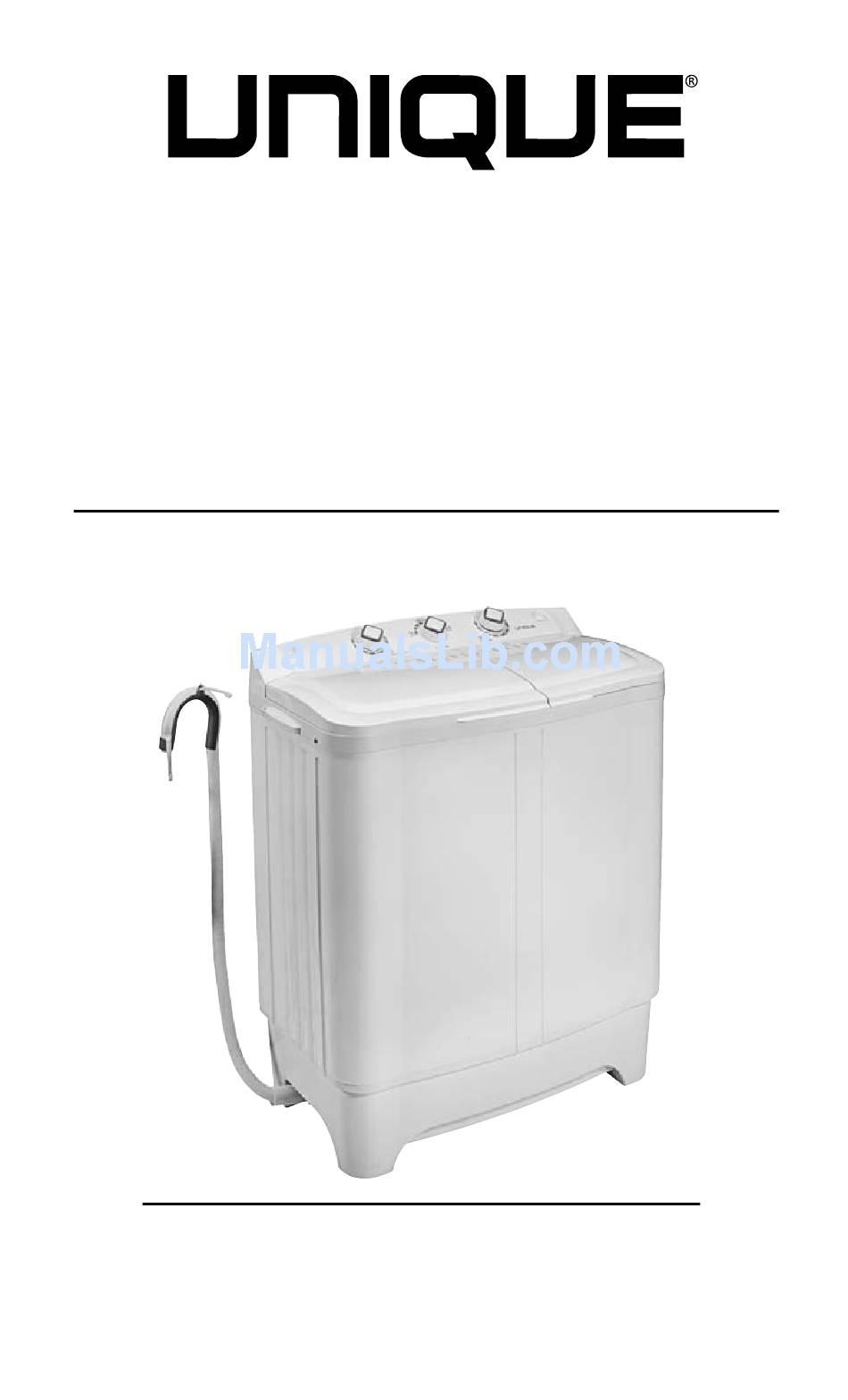

Page 1 SEMI-AUTOMATIC PORTABLE DC WASHING MACHINE UGP-72 LD1 OWNER’S GUIDE serial number:...
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction Before using the machine - parts list Important safety notes Using your washing machine Maintenance Winterization Troubleshooting Typical battery configuration Appliance information - manual copy Appliance information - remote copy Technical specifications Contact us Limited warranty...
Page 3: Introduction
Keep these instructions for future reference. Congratulations! You have purchased one of the most efficient laun- dry appliances available on the market today. The Unique portable DC washer is designed to provide years of efficient trouble-free operation.
Page 4: Parts List
BEFORE USING THE MACHINE parts list spinner cap alligator clips flexible hose AC/DC plug (optional for on-grid use) wheeled base (optional) PART PART NAME PART PART NAME Wash timer Spinner gap Wash & drain selector Base frame Water inlet Pulsator Spin tub frame Filter Spin timer...
Page 5: Important Safety Notes
Your safety is of paramount importance. If you are unsure about any of these meanings or warnings, contact your local product dealer or Unique Off-Grid Appliances for assistance. PRIOR TO INSTALLATION: At delivery, please check that the washing machine is complete and has not been damaged during transport.
Page 6: Using Your Washing Machine
USING YOUR WASHING MACHINE • Do not wash laundry soaked with gasoline or organic solvents. INSTALLATION • Place the washing machine on level, solid ground. • FOR ON-GRID USE: Plug the power supply cord to a grounded power outlet. • FOR OFF-GRID USE: Attach the 24V DC power cord to a 24V DC power supply.
Page 7 USING YOUR WASHING MACHINE continued WASH/RINSE/SPIN TIMES & DETERGENT MEASUREMENTS WEIGHT OF DRY LAUNDRY FABRIC MATERIAL WATER LEVEL Less than 3.6 kg / 8 lbs Cotton, linen Low water level More than 3.6 kg / 8 lbs Cotton, linen High water level Silk, polyester HIgh water level blends, nylon...
Page 8: Maintenance
MAINTENANCE IMPORTANT: Always unplug the power supply cord before moving the washing machine or performing any maintenance. CLEANING THE FILTER There will be lint left behind in the overflow filter and in the lint filter after each wash cycle. Over flow These filters need to be cleaned after every drain...
Page 9: Winterization
WINTERIZATION The washing machine must be drained prior to storage in cold areas during the winter months. Any water left in the unit could freeze and potentially damage the machine, hoses or connections. To drain the washing machine, move it to a location where it can drain out safely (outside or over a floor drain, for example).
Page 10: Troubleshooting
TROUBLE SHOOTING Before contacting a service technician, your local product dealer or Unique Off-Grid Appliances, please check the following points. If you contact a technician to repair a fault listed below, or to repair a fault caused by misuse, abuse, or faulty installation, a charge will be made even if the appliance is under warranty.
Page 11: Typical Battery Configuration
TROUBLE SHOOTING continued There is an • Are there any loose articles (for example: loose abnormal sound change, keys, etc...) in the spinner tub? Remove any and/or loud articles that are not laundry. vibration while • The washing machine is not level. Ensure the washing spinning machine placed on a level, solid surface.
Page 12: Appliance Information - Manual Copy
APPLIANCE INFORMATION (manual copy - keep with your records) To make care and servicing of your portable DC washing machine easy and ef- ficient, please record the following information for future reference: Model: Serial Number: Purchased From: Date Purchased: NOTES...
Page 13: Appliance Information - Remote Copy
NOTES cut along dotted line to detatch - keep with your appliance APPLIANCE INFORMATION (remote copy - keep with your appliance) To make care and servicing of your portable DC washing machine easy and ef- ficient, please record the following information for future reference: Model: Serial Number: Purchased From:...
Page 14: Technical Specifications
TECHNICAL SPECIFICATIONS MODEL UGP-72 LD1 CAPACITY washer 18 lbs / 8.0 kg CAPACITY spinner 13.2 lbs / 6.0 kg OPERATION DC 24V DIMENSIONS H 35” x W 31.5” x D 18.7” (unboxed) H 88.9 cm x W 80 cm x D 47.5 cm WEIGHT 50 lbs./23 kg...
Page 15: Contact Us
This Warranty is made only to the first purchaser (”original purchaser”) who acquires this washing machine for his/ her own use and will be honored by Unique Gas Products Ltd. and by the Seller. Purchaser must retain their receipt as proof of purchase date.
