DEVA DB44 Maintenance And Operation Instruction Manual

Compact fm radio monitoring receiver and basic modulation analyzer
Hide thumbs Also See for DB44:
Table of Contents

Advertisement

Quick Links

Download this manual

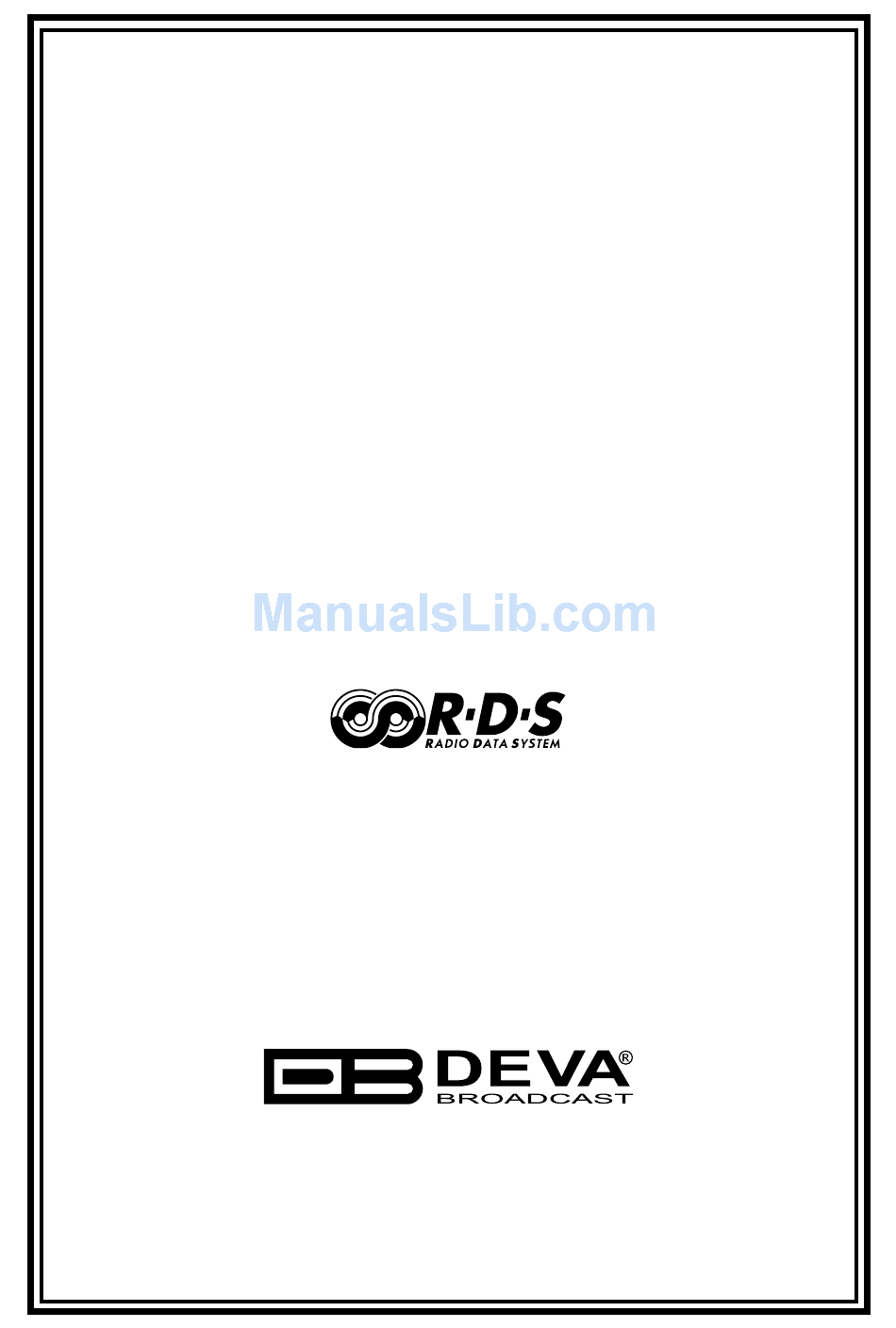

MAINTENANCE AND OPERATION
INSTRUCTION MANUAL
DB44
Compact FM Radio Monitoring Receiver
and Basic Modulation Analyzer
Publish Date: 17-Jun-2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DB44 and is the answer not in the manual?

Questions and answers

Related Manuals for DEVA DB44

Summary of Contents for DEVA DB44

  • Page 1 MAINTENANCE AND OPERATION INSTRUCTION MANUAL DB44 Compact FM Radio Monitoring Receiver and Basic Modulation Analyzer Publish Date: 17-Jun-2016...

  • Page 2: Table Of Contents

    SNMP Settings ..........................12 Management Settings ........................12 Channel Presets Default Settings ....................13 How to reset the DB44 to its factory defaults without having access to the WEB Interface? Safety Precautions ..........................15 Panel Indicators and Appointments ....................16 Front View .............................
  • Page 3 THIS PAGE IS INTENTIONALLY LEFT BLANK...

  • Page 4: Introduction

    For us there is no stage when we deem that we have reached the most satisfactory level in our work. Our engineers are in constant pursuit of new ideas and technologies to be captured in DEVA solutions. Simultaneously, a strict control is being exercised at each step of any new development.

  • Page 5: Typographic Conventions

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Typographic conventions This manual uses the following typographic conventions: Style Used for NOTE Important notes and recommendations Example Used when example text is cited 0 dB Menu element value “Menu”...

  • Page 6: General Information

    E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com General Information Compact, Robust, Reliable and Clever - This is just a small part of all the benefits of our DB44 FM Radio Monitoring Receiver and Basic Modulation Analyzer. Based on the latest technology, the DB44 core is DSP based digital design for 24/7/365 operation.

  • Page 7: Product Features

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Product Features • Fully DSP based core • Built-in Oscilloscope allowing Left, Right and MPX display • MPX Power measurement with data history •...

  • Page 8: Technical Specifications

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com TECHNICAL SPECIFICATIONS RF INPUT Frequency Range 87.0 to 108.0 MHz, Frequency Agile Step Increment 50 kHz Antenna Input 50Ω, BNC Connector, 10 dBµV sensitivity Internal Attenuator 0, 10, 20 and 30dB, auto Dynamic Range...
  • Page 9 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com RDS DATA DECODING Standards European RDS CENELEC; United States RBDS NRSC Error Correction & Counting AF Decoding CT (Time/Date) PI, PTY, DI, MS TA/TP RT (Radio Text) PS (Program Service name)

  • Page 10: Block Diagram

    A simplified block diagram of DB44 is shown below Because of the all-digital, minimalist-discrete-component nature of device circuitry, we have not provided schematic diagrams of the DB44 in this Manual. Please, note that: NO USER-SERVICEABLE COMPONENTS INSIDE. REFER ALL SERVICING TO QUALIFIED TECHNICAL PERSONNEL.

  • Page 11: Factory Default Settings

    E-mail 1 blank E-mail 2 Sender blank Server blank Port AUDIO Stream Port 5000 Name DB44 - FM Radio Monitoring Tool Quality 128 kbps GSM MODEM Number 1 blank Number 2 blank Number 3 blank Number 4 blank Baudrate...

  • Page 12: Snmp Settings

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com SNMP SETTINGS Agent Enabled Agent ID Agent Port Read Community DEVA44 Write Community DEVA44 Manager IP 192.168.1.1 Manager Port MANAGEMENT SETTINGS Attenuator Auto De-emphasis...

  • Page 13: Channel Presets Default Settings

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com CHANNEL PRESETS DEFAULT SETTINGS Parameter CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 Scheduling Disabled Disabled Disabled Disabled Disabled Disabled...

  • Page 14: How To Reset The Db44 To Its Factory Defaults Without Having Access To The Web Interface

    RESET button on Rear panel (labeled in red on the picture), press and hold it. Afterwards, connect the power supply cable to the unit and keep the RESET button hold until the POWER led starts blinking. Release the RESET button and wait for DB44 to reboot with the factory default settings.

  • Page 15: Safety Precautions

    DEVA Broadcast Ltd. declines all responsibility if any one of the safety rules given herein is not observed. DEVA Broadcast Ltd. declines all responsibility if the end-user resells the product.

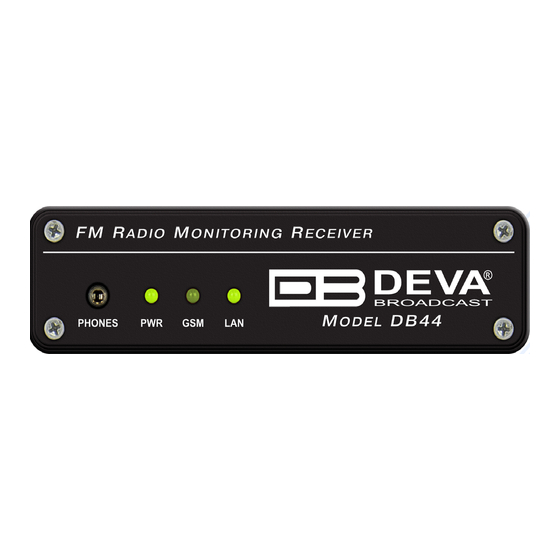

  • Page 16: Panel Indicators And Appointments

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Panel Indicators and Appointments FRONT VIEW 1 - Phones Output - Audio signal from the tuned frequency. 2 - Power LED Indicator 3 - GSM LED Indicator.

  • Page 17: Rear View

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com REAR VIEW POWER 12V / 2A ANTENNA MAX 120 dBµV MODEM 1 - Power Supply (12V, 2A); 2 - Antenna Input - BNC connector for FM Antenna; 3 - GSM Modem Connector - DB-15 male;...

  • Page 18: Getting Started

    Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Getting Started For the normal operation of DB44, you will need the following conditions: - Standard Ethernet 10/100M connection; - Correct assigned Network configuration and device settings; To provide all these conditions please, follow the instructions below.

  • Page 19: Network Settings

    • Press <ENTER>. If you do not know the IP address you can access DB44 by using UPnP discovery in local networks (see “UPnP and DB44 discovery in Local Networks” on page 43). ATTENTION: Depending on Internet Protocol Settings, assigned IP address may not be visible outside your local network, thus device may be accessed only within that network.

  • Page 20: Login

    Upon Login the DB44 Logger will stop and will start again automatically after Logout. DB44 serves only one user at a time, thus Username and Password will be requested when connecting. Default values are user and pass. Enter your credentials and press Login button to continue to Main screen.

  • Page 21: Device Control Interface

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Device Control Interface Control interface is visually divided into three parts: - Top – Navigational Menu; - Middle – specific contextual readings; - Bottom –...

  • Page 22: Main Screen

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com MAIN SCREEN The main page shows meters for RF level, measured multipath level, baseband modulation (positive and negative peaks), audio levels, PILOT and RDS/RBDS levels. - 22 -...

  • Page 23: Rds/Rbds Screen

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com RDS/RBDS SCREEN One of our core competencies lies in the RDS/RBDS. The RDS/RBDS page is very comprehensive, with a display of the RadioText (RTA and RTB), basic RDS/RBDS fields and a table of all decoded RDS/RBDS groups with a percentage measurement based on the overall RDS/ RBDS data stream or group count.

  • Page 24: Oda Screen

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com ODA SCREEN If the selected station transmits RadioText+ (RT+) or TMC – here will be displayed the information from the supported ODA Groups. A BER Indicator with graphics is placed at the right bottom part of the screen, showing 60 sec history of the BER quantities.

  • Page 25: Fm Graph Screen

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com FM GRAPH SCREEN The FM graph is a multi-colored plot of MPX, Pilot, Left and Right audio levels. These mandatory parameters are represented in the time slice of 2 minutes, ensuring reading at a glimpse all significant parameters of the analog signal.

  • Page 26: Mpx Screen

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com MPX SCREEN The MPX page shows the baseband MPX deviation as a function of deviation in kHz over the observation period. The graph immediately shows modulation density. There is also a rolling 30-minute graph of the MPX power with average indicator, measured in dBr.

  • Page 27: Spectrum Analyzer Screen

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com SPECTRUM ANALYZER SCREEN The spectrum analyzer tab is a very useful feature: It is a MPX and audio spectrum display. Initially it shows the MPX from 0-65kHz so that the readings of the currently selected source (composite MPX or stereo Left/Right) to be clearly visible.

  • Page 28: Scope Screen

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com SCOPE SCREEN SCOPE screen represents the signals participating in the process of demodulating and stereo decoding over time. In order for the signal source to be changed, the corresponding button on the right-side of the graph should be pressed.

  • Page 29: Bandscan Screen

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com BANDSCAN SCREEN This Screen evaluates FM broadcast band congestion by sweeping the tuner across the FM band, logging every carrier and generating a spectrum display of carrier level vs. frequency. In order for the Band scan process to be initiated, press the Start button and wait for the process to complete.

  • Page 30: Status Screen

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com STATUS SCREEN The status tab shows the alarm status of each parameter of the preset frequencies, along with the basic device and network status (IP address, MAC, etc.). The Channel parameters (RF, MPX, Pilot etc.) have several conditions: - In range –...

  • Page 31: Log Screen

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com LOG SCREEN This screen shows the Device Log, which shows the last 100 important events. Selecting/ deselecting the corresponding check-boxes will filter the events by type. - 31 -...

  • Page 32: Settings Screen

    When the DHCP client is activated, all assigned values will be shown in the relevant fields of the “Status Screen”. If due to any reason, the DHCP procedure cannot be completed, DB44 will use AutoIP and will generate an IP Address. - 32 -...
  • Page 33 Once all needed settings are applied, use Test button to generate a test notification, which upon success will be received by the SNMP Manager. Press the ‘Download’ button to download the latest available DB44 SNMP MIB file. NOTE: The MIB file may vary from one firmware revision to another. Downloading this file from the device guarantees that you have the proper MIB file.

  • Page 34: Channel Settings Screen

    E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Channel Settings Screen DB44 could monitor up to 6 user-defined channels. Every Channel consists of a group of settings (explained in details below), which are used when monitoring and alerting. Each preset has its own page where it is being configured. Measurement windows can be set for each of the six parameters: RF level, Left and Right audio levels, MPX (baseband) deviation, Pilot and RDS/RBDS deviation.
  • Page 35 A click on the label (left or above) will enable/disable the entire column/row. To ensure early notification in case of a potential or actual problem, the DB44 provides two- stage alarm notifications. - Stage 1 – Warning for a potential problem. It has a narrower range;...

  • Page 36: Alarm / Warning Triggers Defined

    E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com ALARM / WARNING TRIGGERS DEFINED After collecting all the data the DB44 DSP core compares the values measured with the predefined by the user threshold levels for all the channels monitored. In case that any parameter is out of its limits or a potential problem has been detected, the device will initiate the sending of alarm/warning notification via the alarm type selected.
  • Page 37 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Every time an observation event takes place, the Alarm/Warning Trigger’s State of the channel refreshes (if necessary). For example: Let’s suppose that the Alarm/Warning Trigger is in Idle state. Note, that an alarm is not triggered immediately when a parameter level passes over threshold (above High Threshold or under Low Threshold).

  • Page 38: Alarm Notifications

    E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com ALARM NOTIFICATIONS Alarm/Warning Notifications (E-mail, SMS, SNMP trap) consist of DB44 Alias (see “Main Settings Screen” on page 32), date and time of Alarm/Warning triggered, channel number, frequency and information for Alarm/Warning activation or deactivation. The basic signal parameters are evaluated and included as well.

  • Page 39: Management Screen

    E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com MANAGEMENT SCREEN RF Attenuator Indicates the Antenna Input Attenuator’s setting. Attenuation level can be selected by pressing on the preferred value. When AUTO is selected, DB44 will adjust automatically the Attenuator’s position. De-emphasis Indicates currently selected de-emphasis.
  • Page 40 Pressing Reboot button will initiate a ‘hardware reset’ as if you have switched off and on the device. The previously applied/saved settings will not be deleted. Factory Defaults DB44 could be restored to Factory Defaults from its non-volatile memory. The procedure is quite simple - Press the ‘Restore Button’ and confirm the procedure. WARNING: Before returning DB44 to its factory defaults, all remote users should be informed that they may cease to communicate with the device.

  • Page 41: External Gsm Modem Settings

    If the installation is proper, the GSM Modem will immediately startup. This will be noticed by the fast blinking of the ‘GSM’ Led on the DB44’s front panel. The status of the GSM Modem will also be exposed on ”Status Screen”. Few seconds are usually necessary for the GSM Modem to initialize and to register into the GSM Network.
  • Page 42 Decimal symbol must be “.” (dot) If DB44 receives an authorized ‘Status Request’ command, after a short interval (about 5 seconds), in which DB44 has to retune and collect summarized data, the Caller will receive a SMS response. For Example: STATUS: 27.09.2011 09:08:34...

  • Page 43: Upnp And Db44 Discovery In Local Networks

    E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com UPnP and DB44 discovery in Local Networks DB44 implements UPnP which lets you easily find it in your local network. For this purpose your system should have UPnP enabled (see “UPnP Activation” on page 44). To discover the device follow the next steps: •...

  • Page 44: Upnp Activation

    65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com UPnP Activation NOTE: The following explanations apply to Windows XP SP2 or SP3! If you use another operating system, please contact your system administrator. Open “My Network Places”.

  • Page 45: Warranty Terms And Conditions

    A. Equipment will not be accepted for Warranty or other repair without a Return Authorization (RA) number issued by DEVA Broadcast Ltd. prior to its return. An RA number may be obtained by calling the factory. The number should be prominently marked on the outside of the shipping carton.

  • Page 46: Product Registration Card

    Your signature* *Signing this warranty registration form you are stating that all the information provided to DEVA Broadcast Ltd. are truth and correct. DEVA Broadcast Ltd. declines any responsibility for the provided information that could result in an immediate loss of warranty for the above specified product(s).
