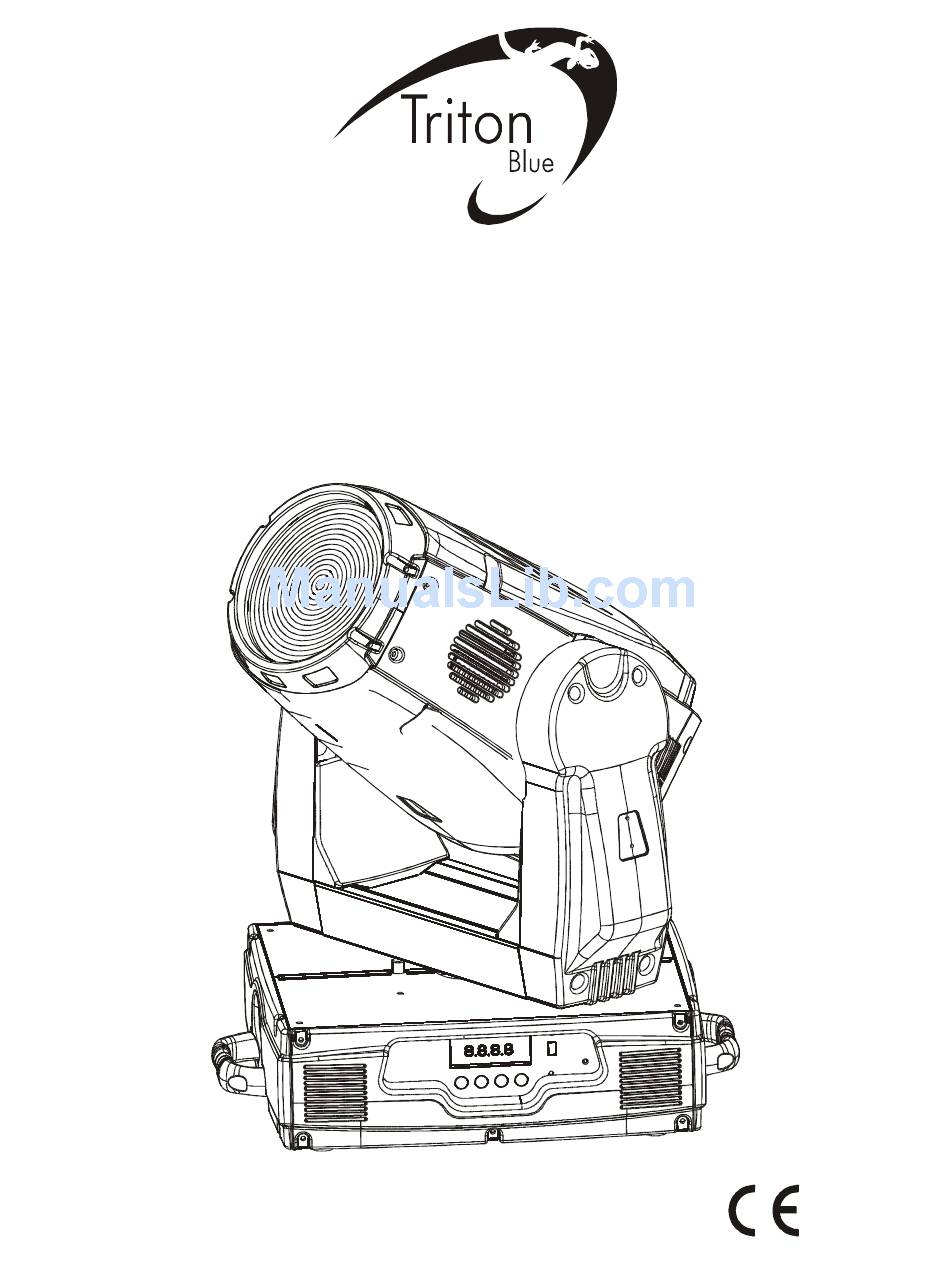

PROFESSIONAL MOVING HEAD USER'S MANUAL
V575W
KEEP THIS MANUAL FOR FUTURE NEEDS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V575W and is the answer not in the manual?

Questions and answers

Related Manuals for Triton V575W

Summary of Contents for Triton V575W

  • Page 1 PROFESSIONAL MOVING HEAD USER’S MANUAL V575W KEEP THIS MANUAL FOR FUTURE NEEDS...
  • Page 2 For your own safety, please read this user manual carefully before installing the device. Every person involved with the installation, operation and maintenance of this device has to: -be qualified -follow carefully the instructions of this manual INTRODUCTION: Thank you for having chosen this professional moving head. You will see you have acquired a powerful and versatile device.

  • Page 3: Safety Instructions

    OVERVIEW (1) Head (2) Lens (3) Yoke (4) Ventilation fan (5) Control Board (6) Base (7) Carrying handle (8) LCD-Display (9) Mode/Esc-button (10) Up-button (11) Down-button (12) Enter-button (13) Microphone (14) Update-socket (15) Ventilation grille (16) Housing screw (17) Lamp system (18) 3-PIN DMX output socket (19) 3-PIN DMX input socket (20) Fuse...

  • Page 4: General Guidelines

    If the device has been exposed to temperature changes due to environmental changes, do not switch it on immediately. The arising condensation could damage the device. Leave the device switched off until it has reached room temperature. This device falls under protection-class I. Therefore it is essential that the device be earthed. The electric connection must carry out by qualified person.

  • Page 5: Installation Instructions

    Always fix the fixture with an appropriate safety cable if you use the quick lock cam in hanging up the fixture, please make sure the 4 quick lock fasteners turned in the quick lock holes correctly. Operate the device only after having familiarized with its functions. Do not permit operation by persons not qualified for operating the device.

  • Page 6: Mounting The Device

    1) Unscrew the 4 screws A, B，C and D on the bottom of the housing, holding the plate where the lamp is underneath. 2) Gently pull the socket holder using the knob in the middle. 3) Carefully insert the lamp into the socket. Please remember there is only one way to insert the lamp. Gently slide the lamp and its lamp holder back into place and fasten the 4 screws.
  • Page 7 The effect should be installed outside areas where persons may reach it, walk by or be seated. Overhead mounting requires extensive experience, including amongst others calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the device.

  • Page 8: Dmx-512 Control Connection

    DMX-512 control connection Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving head together through serial linking. The cable needed should be two core, screened cable with XLR input and output connectors.

  • Page 9: Control Board

    display located on the base of the device. You can set the same starting address for all fixtures or a group of fixtures, or make different address for each fixture individually. If you set the same address, all the units will start to “listen” to the same control signal from the same channel number.
  • Page 10 Status Settings Add. via DMX Address via DMX ON/OFF Auto run if no DMX No DMX Status Close/Hold/Auto/Music Pan Reverse ON/OFF Pan Reverse movement Tilt Reverse ON/OFF Tilt Reverse movement Fine Resolution ON/OFF Fine resolution switch Pan Degree 630/540 Pan Degree Select Feedback ON/OFF Movement Feedback switch...

  • Page 11: Function Mode

    Input By Outside manual scenes edit Rec. Controller XX~XX Automat. scenes rec Function Mode DMX address setting With this function, you can adjust the desired DMX-address via the Control Board. • Select “Set DMX address” via the encoder. • Press the encoder, adjust the DMX address by turning the encoder. •...

  • Page 12: Software Version

    Base Temp With this function you can display the temperature in the projector base (near LCD-display) in Celsius. Head Temp With this function you can display the temperature on the display board of the base (near CMY-filter) in Celsius. Software version With this function, you can display the software version of the device.

  • Page 13: Status Setting

    lamp shut off. Lamp off at temp. With this function you can set the inside temperature at which the projector will automatically switch the lamp off. Turn the encoder to select the maximum inside temperature between 60° C and 159° C. Inside temperatures below 90° C are not critical.

  • Page 14: Reset Functions

    Fan Voltage With this function, you can select fan voltage for high or low, the default is low Attention: The model is not recommended when ambient temperature is higher than 15 Celsius degree. Fans Control With this function, you can set the speed of the running fans. The selections have Auto、high and low. Display settings Shut off time With this function you can shut off the LCD display after 2 to 59 minutes.

  • Page 15: Edit Program

    Edit program Select program With this function, you can select the program for the Program Run. Edit program With this function, you can edit the internal programs. Edit scenes With this function, you can edit the scenes of the internal programs. Auto scenes rec.
  • Page 16 program is to be sent. Selection “Part 1” means, that the Slave unit runs the same program as the master units. • Press the Enter button to confirm. • Press the Mode/Esc button in order to return to the main menu. 4.

  • Page 17: Instructions On Use

    INSTRUCTIONS ON USE: DMX channel´s functions and their values (16 DMX channels): Channel 1 - Color Wheel : 0-13 Open / white 14-27 28-41 Blue 42-55 Green 56-69 Light yellow 70-83 Rose 84-97 UV filter 98-111 CTO filter 112-127 CTB filter 128-187 Forwards rainbow effect from fast to slow 188-195 No rotation 196-255 Backwards rainbow effect from slow to fast...
  • Page 18 194-255 Backwards rainbow effect from slow to fast Channel 9 – Stepless Zoom 0-255 Zoom adjustment from small to big Channel 10 - Shutter, strobe: 0-31 Shutter closed 32-63 No function (shutter open) 64-95 Strobe effect slow to fast 96-127 No function (shutter open) 128-159 Pulse-effect in sequences 160-191 No function (shutter open)
  • Page 19 20-39 Color change to any position 40-59 Lamp on 60-79 Lamp switch off 80-84 All motor reset 85-87 Scan motor reset 88-90 Colors motor reset 91-93 No function 94-96 Shutter & Dimmer motor reset 97-99 Other motor reset 100-119 Internal program 1 (scene1~8 of EEPROM) 120-139 Internal program 2 (scene9~16 of EEPROM) 140-159 Internal program 3 (scene17~24 of EEPROM) 160-179 Internal program 4 (scene25~32 of EEPROM)

  • Page 20: Cleaning And Maintenance

    PCB). The magenta color wheel is not located in the default position after the reset. Yellow color wheel Er (Yellow color wheel- error) This message will appear after the reset of the fixture if the magnetic-indexing circuit malfunction (sensor failed or magnet missing) or the stepping-motor is defective (or its driving IC on the main PCB).

  • Page 21: Technical Specifications

    TECHNICAL SPECIFICATIONS Power supply: □100VAC,50Hz;□120VAC, 50Hz;□208VAC, 50Hz;□220VAC,50Hz; □230VAC,50Hz;□240VAC, 50Hz; □100VAC,60Hz;□120VAC,60Hz; □208VAC, 60Hz;□220VAC,60Hz;□230VAC,60Hz;□240VAC,60Hz; Power consumption: max. 950W Lamp: Philips MSR GOLD 575 SA/2 DE Packing dimensions: 71X45.5X55cm Net weight: 36KGS Gross weight: 41.5KGS Remark: errors and omissions for every information given in this manual excepted. All information is subject to change without prior notice.
