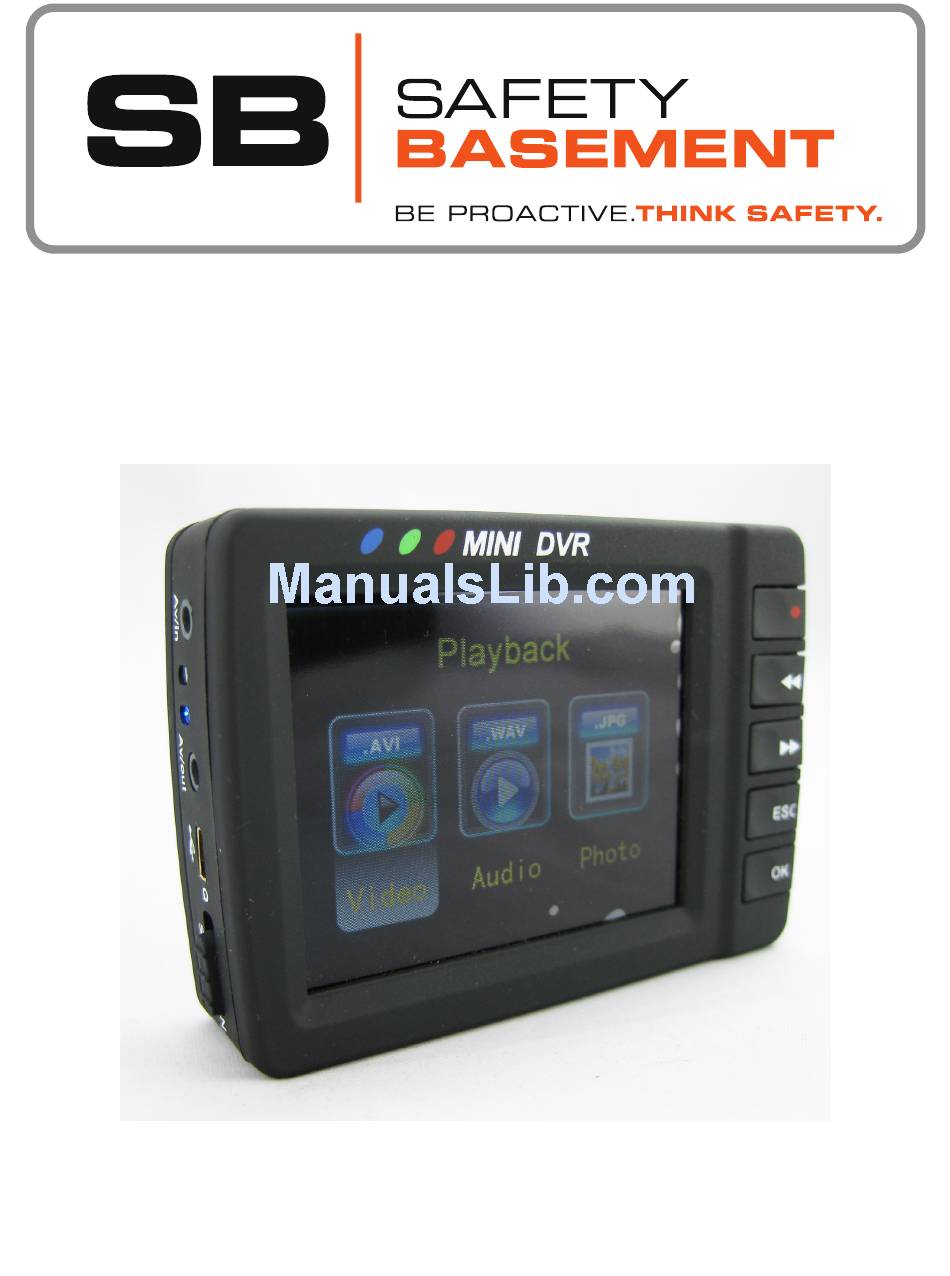

INSTRUCTION MANUAL
Kingfisher Micro DVR w/ Button Cam
SB-MSDVR660
Revised: March 15, 2013
Thank you for purchasing from SafetyBasement.com! We appreciate
your business.
We made this simple manual to help you enjoy your new product as
quickly and easily as possible.
Be sure to check the TECH SUPPORT tab on your product page at
SafetyBasement.com for the latest available manual.

Advertisement

Table of Contents
loading

Related Manuals for Safety Basement SB-MSDVR660

Summary of Contents for Safety Basement SB-MSDVR660

  • Page 1 INSTRUCTION MANUAL Kingfisher Micro DVR w/ Button Cam SB-MSDVR660 Revised: March 15, 2013 Thank you for purchasing from SafetyBasement.com! We appreciate your business. We made this simple manual to help you enjoy your new product as quickly and easily as possible.

  • Page 2: Product Reference

    PRODUCT MANUAL Kingfisher Micro DVR : SB-MSDVR660 PRODUCT REFERENCE Camera Port Red Status Light Blue Status Light Video Out Q / N Switch Power Button SD Card Slot Speaker (up to 32GB) Page 2 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524...
  • Page 3 PRODUCT MANUAL Kingfisher Micro DVR : SB-MSDVR660 PRODUCT REFERENCE Video Cable Camera USB Cable (RCA jacks to TV) (to PC or Charger) Power Off / Lock Power On / Unlock Page 3 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524...
  • Page 4 PRODUCT MANUAL Kingfisher Micro DVR : SB-MSDVR660 BEFORE FIRST USE - SD CARD The Kingfisher Micro DVR needs a Micro SD card installed for proper operation. It will accept a Micro SD card of up to 32 GB in size.
  • Page 5 PRODUCT MANUAL Kingfisher Micro DVR : SB-MSDVR660 BEFORE FIRST USE - FILES Your Kingfisher Micro DVR does not need any files to work properly with your Windows or Mac PC. Please see notes at the end of this manual for optional software to playback your video and audio files.
  • Page 6 PRODUCT MANUAL Kingfisher Micro DVR : SB-MSDVR660 SETTINGS The Kingfisher Micro DVR can be set to work best for your needs using the settings options in the menu. This section will review all the settings available. 1. Your DVR should be fully charged.

  • Page 7: System Time Setting

    PRODUCT MANUAL Kingfisher Micro DVR : SB-MSDVR660 SETTINGS SYSTEM TIME SETTING The first setting to adjust is the System Time Setting. You will use the ARROW buttons to move between different menu items, and also to adjust settings. 1. Highlight the System Time Setting option.

  • Page 8: Record Time

    PRODUCT MANUAL Kingfisher Micro DVR : SB-MSDVR660 SETTINGS NOTE: SWITCH SETTING, the Q SWITCH and REMOTE CONTROL use will be address later in this manual. Continue to RECORD TIME. RECORD TIME Highlight Record Time and press OK to see your options.

  • Page 9: Storage Info

    PRODUCT MANUAL Kingfisher Micro DVR : SB-MSDVR660 SETTINGS STORAGE INFO Use this option to see how much storage space is available on your SD Card. Highlight the SD Card option, press OK. The next screen will show the total space on your SD card, space used, and remaining space.
  • Page 10 PRODUCT MANUAL Kingfisher Micro DVR : SB-MSDVR660 SETTINGS OVERWRITE ENABLE This option is also known as LOOPING. When ON, as your SD card fills, your older files will be erased to make room for new files. If OFF, when your SD card is full, your DVR willl NOT record until you replace the card or delete files from the existing card via your PC or via the PLAYBACK menu.
  • Page 11 PRODUCT MANUAL Kingfisher Micro DVR : SB-MSDVR660 SETTINGS VIBRATE SETTING As you have noticed, the DVR has a strong vibration. It will vibrate during powering On and Off, and also to alert you of issues, such as a missing SD card or lack of video signal You may wish to turn this off at times.

  • Page 12: Display Setting

    PRODUCT MANUAL Kingfisher Micro DVR : SB-MSDVR660 SETTINGS DISPLAY SETTING You may choose to display these screens and videos on a 1. Connect the Video Cable to the Video OUT port on your DVR. 2. Connect the other end of the cable, the RCA connectors, to the Yellow, Red and White connections on your TV.
  • Page 13 PRODUCT MANUAL Kingfisher Micro DVR : SB-MSDVR660 SETTINGS DEFAULT To return the DVR to factory specifications, erasing all your settings, choose this option. This option should not be necessary in normal use of your product. Needs notes about Q switch Page 13 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524...
  • Page 14 PRODUCT MANUAL Kingfisher Micro DVR : SB-MSDVR660 RECORDING SETTINGS - RESOLUTION To set the Recording Resolution and Frame Rate, you need to be in Recording Stand By Mode. Assuming you are still in the System Settings Menu, Press ESC to return to the MENU screen.
  • Page 15 PRODUCT MANUAL Kingfisher Micro DVR : SB-MSDVR660 RECORDING SETTINGS - RESOLUTION Press OK. You will now see the available options for Resolution and Frame Rate, or Frames Per Second. A standard setting would be 640x480 and 30 FPS. 1. First, use the Arrow Keys to higlight the resolution you want.
  • Page 16 PRODUCT MANUAL Kingfisher Micro DVR : SB-MSDVR660 MANUAL RECORDING - VIDEO 1. To record video manually, choose the Video Record option from the Menu. Note: your DVR is automatically in Video Record mode when you first turn it on, so it may not be necessary to enter the menu.
  • Page 17 PRODUCT MANUAL Kingfisher Micro DVR : SB-MSDVR660 MANUAL RECORDING - AUDIO 1. To record audio manually, choose the Audio Record option from the Menu. 2. The LCD will now show a counter. 3. To start Recording Audio, press the Record Button. The counter will start counting.

  • Page 18: Deleting A File

    PRODUCT MANUAL Kingfisher Micro DVR : SB-MSDVR660 PLAYBACK You can playback your video and audio files on your DVR using the built-in player. 1. From the Menu, choose the Playback option. 2. Select Video or Audio playback. You will not use Photo Playback on this device.
  • Page 19 PRODUCT MANUAL Kingfisher Micro DVR : SB-MSDVR660 THE Q-SWITCH AND REMOTE Your DVR has available special settings that work with the Q-Switch on the side of the DVR, and with the Remote Control. Up to this point, we have worked with the Q-Switch in the N position.
  • Page 20 PRODUCT MANUAL Kingfisher Micro DVR : SB-MSDVR660 Q-SWITCH SETTINGS Note: The Q-Switch overrides all other buttons when used. Push up the Q-Switch to the Q position to activate the setting you choose in this menu. To return to normal use, push the Q-Switch down to the N position.

  • Page 21: Remote Control Settings

    PRODUCT MANUAL Kingfisher Micro DVR : SB-MSDVR660 REMOTE CONTROL SETTINGS Power Off “Lock” Power On “Unlock” The Remote Control is a remote starter. Your DVR must be OFF for the remote to work properly. Press the UNLOCK button to start your DVR.

  • Page 22: Connecting To Pc / Mac

    PRODUCT MANUAL Kingfisher Micro DVR : SB-MSDVR660 CONNECTING TO PC / MAC 1. Be sure that your DVR is OFF. 2. Conect the small end of the USB cable to your DVR. 3. Connect the other end of the USB cable to your PC. The DVR red status light will appear, as your battery will charge from the USB port.
  • Page 23 PRODUCT MANUAL Kingfisher Micro DVR : SB-MSDVR660 SUGGESTED SOFTWARE Your Windows PC or Mac has built-in software that will play most of the files created by devices like yours. However, if you are having problems playing your files, or need more options, please download and try these programs.
