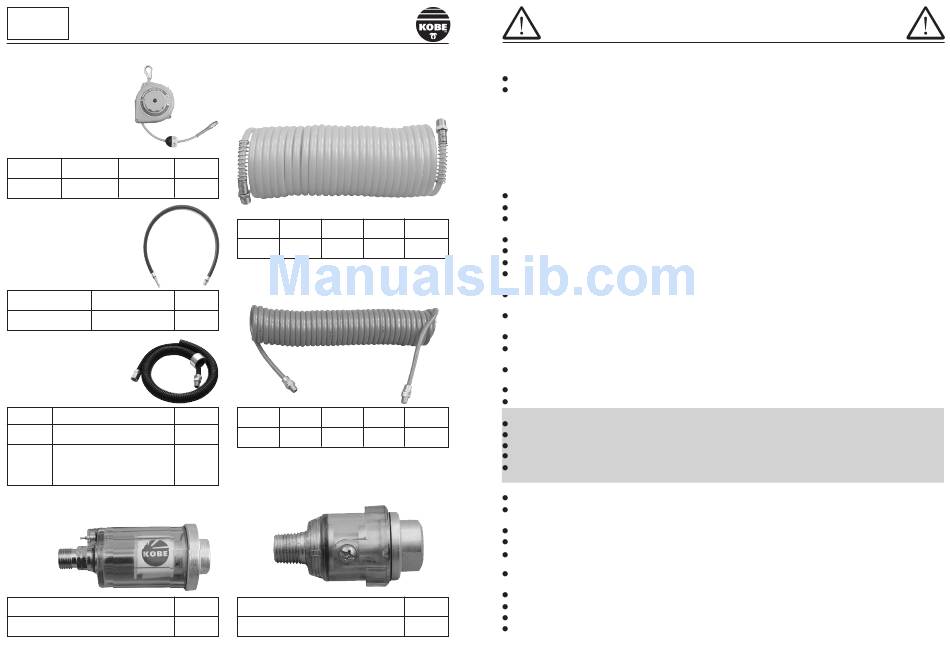

KOBE
KOBE AIRLINE ACCESSORIES
I N D U S T R I A L
AIR TOOLS
RETRACTABLE AIR HOSE
BALANCER
With adjustable
tension return. Retracts when
the air tool is released leaving
the work place clear of
unwanted lengths of air hose.
Ideally suited for in-line
production. With spring
loaded safety clip for
overhead fixing.
Max Tool Bore x Order Code
Rating
Weight Length KBE-280
1.5kg 6.35 x 700mm 100PSI -1000K
WHIP HOSE AND ADAPTOR
Used to supply air between the
air tool and supply point. Uses
standard couplings. Prevents
vibration damage to couplings
and the tool user. Quick
release coupling.
Overall Order Code
Thread
Length KBE-280
1/ 4 " NPT 650mm -1360K
EXHAUST HOSE ASSEMBLY deflects
the tool exhaust away from the
immediate work area and helps to
reduce sound levels. Suitable
for Kobe air tools. Thread size
1/ 4 " NPT. Overall length 80cm.
Exhaust Suitable for Order Code
Diameter Kobe Air Tool models KBE-298
GES2506L, GDA2206L, FDG090,
20mm -5421S
FDG115, FDG180m & FDG180e.
DP2210, DPR1810, DP513, DPR813,
DAR1510, DS4510L, SH120,
25mm -5420S
SP1825K, GD2206L, GD22LK,
FPD500, FPD375, FCT003 & X-GD16.
WATER SEPARATOR continuously removes
moisture from the air supply helping to prevent
corrosion to the internal components of the air
tool. The spring
valve allows
immediate
draining of
reservoir
without
any down time.
Order Code
Description
KBE-280
1/ 4 BSP Water Separator -1900K
10
HEAVY DUTY NYLON AIR HOSE recoils to a
fraction of its working length when not in use
leaving the workplace clear of entanglement
hazards. Solid brass couplings with 360 ° swivel
and spring protectors allow use in any direction.
Outside Normal Order Code
Connector Diameter Length
Rating KBE-280
BSPT 6mm 7.5m 250PSI -1140K
1/ 4
-1300K
3/ 8 BSPT 9.5mm 7.5m 150PSI
HI-FLEX POLYURETHANE AIR HOSE with brass 360 °
swivel couplings, ideal for use in awkward access
areas. Recoils to a fraction of its working length leaving
the workpiece clear of entanglement hazards.
Outside Normal Order Code
Connector Diameter Length
Rating KBE-280
8mm 7.5m 150PSI -1160K
1/ 4 BSPT
BSPT 9.5mm 7.5m 150PSI -1320K
3/ 8
MINI OILER feeds oil directly into the airline ensuring
your air tool is well lubricated at all times preventing
corrosion. The clear body reservoir allows immediate
inspection of the oil level. All brass construction.
Order Code
Description
KBE-280
1/ 4 BSP Mini Oiler -1400K
SAFETY INSTRUCTIONS
AIR PRESSURE
Air under pressure can cause severe injury.
Always check for damaged or loose hoses and fittings. Whipping hoses can cause serious injury.
Never direct air at yourself or anyone else.
LUBRICANTS
Mineral oils (Hydraulic fluid) used as lubricants are not considered hazardous to health under normal
conditions. First aid measures however should be taken if:
Ingested - Wash out
Contact with eyes - Thoroughly flush eyes with clean water for 5 to 10 minutes and seek medical
advice.
Contact with skin - Wash area with soap and water. Remove effected clothing and wash. If irritation
persists, seek medical advice.
Other - Seek medical advice immediately
Always wear gloves and goggles when dealing with lubricants.
Always extinguish using a foam or dry powder fire extinguisher. Never use water.
Never allow lubricants to contaminate rivers, water ways or drains.
ELECTROCUTION, FIRE OR EXPLOSION
Always be aware of hidden cables and pipes.
Never work near flammable materials or in a combustible atmosphere.
Never allow sparks to fall on cleaning rags.
Never make contact with electric power sources as this tool is not insulated.
GENERAL OPERATING HAZARDS
Always ensure that all accessories are rated to the "Free" speed of the tool and intact before fitting or
using.
Always ensure all users are physically able and competent to handle the size, weight and power of the
tools and have received appropriate training to perform the task.
Always be aware of the tool rundown time. Control the tool as if it were under power.
Always ensure the tool is kept in a good working condition. Do not use the tool if any parts are missing
or damaged.
Always make sure that the labels on the air tool are kept legible, indicating the model number, serial
number, rpm and any warnings. If not, reorder and replace (See page 8).
Never modify the tool or accessories and only use it for the task for which it has been designed.
Never force or apply excessive pressure, let the tool do the work for you.
SPECIFIC OPERATING HAZARDS
Always check that the sanding sheet is totally attached on to the backing pad.
Always ensure the spanner has been completely removed before starting the Orbital Sander.
Always remove foreign objects such as nails and screws from the work before commencing sanding.
Never continue to use worn, torn or heavily clogged sanding sheets.
Never fit an abrasive to the tool that is not designed to be used with it. This may cause serious injury or
death.
WORKPLACE HAZARDS
Always comply with Health & Safety regulations.
Always be aware of excess hose around the work place. Slip/Trip/Fall is a major cause of serious injury
or death.
Always maintain a balanced body position and secure footing.
Always use a vice or clamping device to hold the work piece firmly in place.
Never carry the tool with your fingers on the throttle lever.
AIR SUPPLY AND CONNECTION HAZARDS
Always shut off air supply, drain hose of air pressure and disconnect tools from air supply when not in
use, before changing accessories or when making repairs.
Always install lock pins when universal twist couplings are used.
Never use quick disconnect couplings at tool. See instructions for suggested air supply.
Never exceed the maximum air pressure of 6.2bar (90psi).
Never carry the tool by the air hose.
Continued
