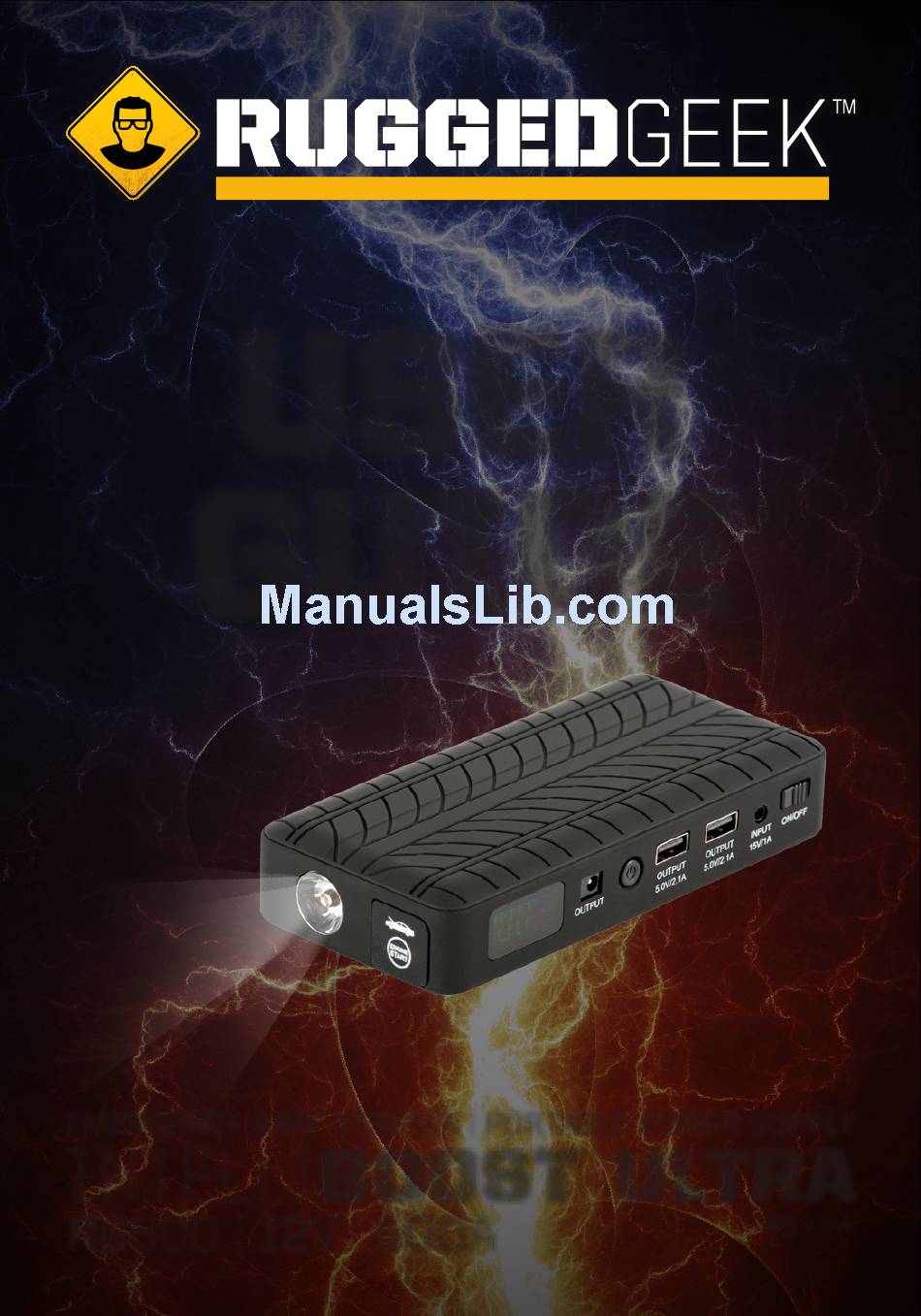

- Page 1 WWW.RUGGEDGEEK.COM USER GUIDE EMERGENCY JUMP STARTER | PORTABLE POWER SUPPLY INTELLIBOOST ULTRA ™ RG500 | 12V | 500A REV 1.04E...
- Page 2 IMPORTANT IN ORDER TO ENSURE A FULL CHARGE, BE SURE TO CHARGE THE RG500 WITH THE POWER SWITCH IN THE “ON” POSITION. THE RG500 IS AN EMERGENCY TOOL AND, AS SUCH, SHOULD BE KEPT FULLY CHARGED IN CASE OF EMERGENCY.
-
Page 3: Table Of Contents
TABLE OF CONTENTS WELCOME .................1 PACKAGE CONTENTS............2 PRODUCT FEATURES ............3 JUMPSTARTING A VEHICLE ..........4 CHARGING USB DEVICES ..........5 CHARGING LAPTOP COMPUTERS ........6 USING THE LED FLASHLIGHT ...........7 CHARGING THE RG500 ............8 TROUBLESHOOTING ............9 SPECIFICATIONS ...............10 SAFETY INFORMATION .............11 WARRANTY &... -
Page 4: Welcome
WELCOME Welcome your RUGGED GEEK ™ INTELLIBOOST ULTRA RG500 Emergency Jump ™ Starter and Personal Power Supply. Your next generation Lithium Ion Jump Starter features class-leading construction, exclusive INTELLIBOOST cables and a unique design ™ perfected in North America for the ultimate in safety and convenience. -
Page 5: Package Contents
PACKAGE CONTENTS (1) INTELLIGENT JUMP STARTER | PORTABLE POWER SUPPLY & INTELLIBOOST JUMPER CABLES (8) LAPTOP CHARGING TIPS (1) WALL CHARGER (1) LAPTOP CHARGING CABLE (1) CAR CHARGER (1) 4-IN-1 USB CABLE PAGE 2... -
Page 6: Product Features

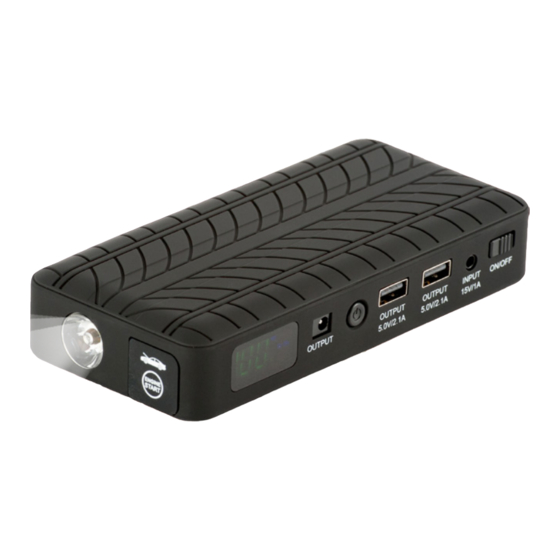

PRODUCT FEATURES LED FLASHLIGHT JUMPSTARTER OUTPUT LCD SCREEN LAPTOP OUTPUT CIRCLE BUTTON 5.0V/2.1A USB OUTPUTS 15V/1A INPUT POWER SWITCH PAGE 3... -
Page 7: Jumpstarting A Vehicle
JUMPSTARTING A VEHICLE Step 1: Make sure that your RG500 has at least a 60% charge. The higher the charge level, the more available boosting power. Step 2: Lift the rubber cover and plug the INTELLIBOOST cables into the RG500. Step 3: Connect the Red Clamp to the positive “+”... -
Page 8: Charging Usb Devices
CHARGING USB DEVICES Step 1: Locate the 4-in-1 USB cable or any other USB charging cable designed for your device. Step 2: Plug the USB charging cable into one of the (2) USB charging ports “OUTPUT 5.0V/2.1A” on the RG500. Step 3: Plug the other end of the 4-in-1 USB cable into the device in need of charging. -
Page 9: Charging Laptop Computers
CHARGING LAPTOP COMPUTERS Step 1: Locate the suitable connector for your laptop and secure it to the end of the laptop charging cable. Be sure to confirm the charging/output voltage required by consulting the owners manual or original charging cable for your laptop if you are unsure. -
Page 10: Using The Led Flashlight
USING THE LED FLASHLIGHT Step 1: Switch the RG500 to “ON” (A), then press and hold the “CIRCLE” button (B) for (3) seconds and the flashlight will turn on. Release button once light is on. Step 2: With the flashlight on, press the “CIRCLE” button (B) to switch to SOS mode and again to switch to Strobe mode. -
Page 11: Charging The Rg500
CHARGING THE RG500 FOR FIRST TIME CHARGING, PLEASE BE SURE TO FOLLOW THE ADVICE PROVIDED ON THE OPENING PAGE OF THIS MANUAL. IN ORDER TO ENSURE A FULL CHARGE, BE SURE TO CHARGE THE RG500 WITH THE POWER SWITCH IN THE “ON” POSITION. Step 1: Switch the RG500 to “ON”... -
Page 12: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION The INTELLIBOOST cables won’t The INTELLIBOOST cables have Reset the INTELLIBOOST cables stop beeping and I can’t get it detected an error. by unplugging them from the to boost my vehicle. RG500 disconnect cables from the battery you were attempting to boost. -
Page 13: Specifications
SPECIFICATIONS BATTERY TYPE: LITHIUM ION BATTERY CAPACITY: 14,000 mAh @ 3.7v / 51.8 wh BATTERY CYCLE LIFE: 1000+ LED LIFE: 100,000 HOURS PEAK CURRENT RATING: 500A OPERATING TEMPERATURE: -22°F (-30°C°) — +122°F (+50°C) INPUT (CHARGING) VOLTAGE: 15V, 1A OUTPUT VOLTAGE (JUMP STARTER): 12V OUTPUT VOLTAGE (USB): 2 @ 5V, 2.1A OUTPUT VOLTAGE (LAPTOP): 12V/16V/19V, 2A/3.5A/3.5A SIZE (L x W x H): 6.3”... -
Page 14: Safety Information
Only charge the battery in accordance with the user instructions supplied with the RG500 using only the included chargers or those approved by Rugged Geek. Do not attempt to disassemble the RG500 charger or force open the built-in battery because this may result in electric shock. -
Page 15: Warranty & Support
WARRANTY & SUPPORT Rugged Geek (“RG”) warrants that its RG500 (“The Product”) will be free from defects in material and workmanship for a period of twelve (12) months from the date of purchase (the “”Warranty Period””). For defects reported during the Warranty Period, RG will, at its discretion, and subject to RG’s technical support analysis, either repair or replace any Product sold by RG that contains such a defect. - Page 16 TO CHECK OUT OUR OTHER COOL PRODUCTS, OR FOR ADDITIONAL PRODUCT USAGE INFORMATION AND VIDEOS, PLEASE VISIT: W W W . R U G G E D G E E K . C O M...
