Summary of Contents for MT OLYMPUS ODIN 2K

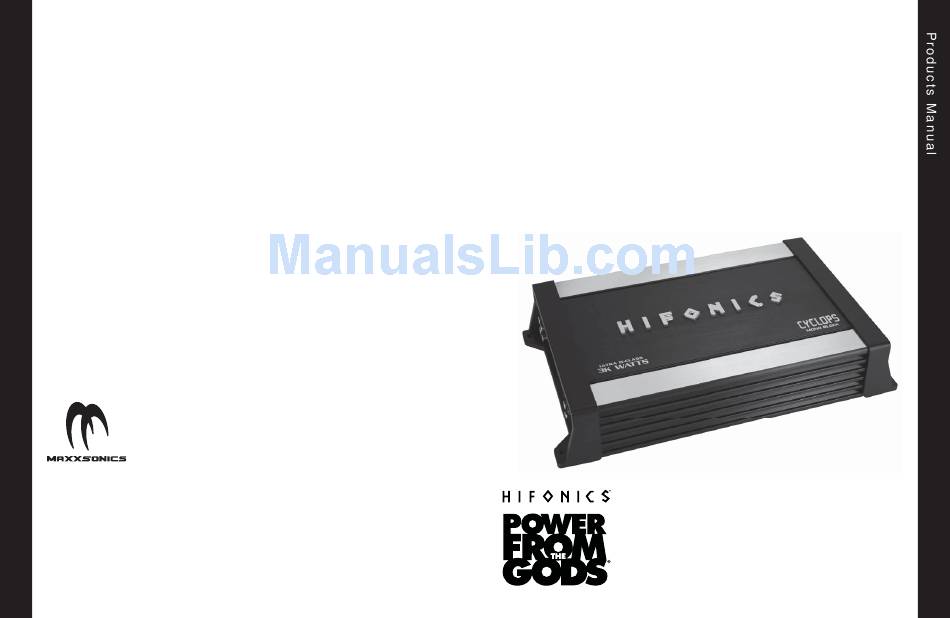

- Page 1 MT OLYMPUS AMPLIFIERS ODIN 2K & CYCLOPS 3K Maxxsonics® USA Inc. maxxsonics.com 1290 Ensell Road Lake Zurich Illinois 60047 USA Phone: 847-540-7700 FAXX: 847-540-9776 ©2014 Maxxsonics USA, Inc. All Rights Reserved Specifi cations And Designs Are Subject To Change Without Notice.
- Page 2 HIFONICS MT. OLYMPUS HIGH PERFORMANCE AMPLIFIERS The MT OLYMPUS Series products have been designed to a very high level of performance, with features unavailable in any other product. All of the amplifi ers have variable crossovers built in, with added touches such as subsonic fi...
- Page 3 Chassis Ground - Never use factory screws or bolts to electrically ground amplifi ers. Use a short » (less than 18”) 0-gauge wire for Cyclops 3K or a 4-gauge wire for Odin 2K with a ring terminal or grounding distribution block. Remove paint and secure amplifi er grounds directly to the chassis of the vehicle.
- Page 4 MT OLYMPUS series amplifi ers require at least 4 gauge power wire. In a Maxxsonics dealer from where it was purchased. A photo copy of the original receipt must accompany the multi-amplifi...
- Page 5 NOTE: This Matrix is a general rule of thumb. Please refer to the manufacturers specifi c requirements. THD & Noise % <0.1 <0.1 MT OLYMPUS specifi cations can be found on page 20. Variable Input Level Control 0.2V-9.0V 0.2V-9.0V Input Impedence 47kΩ...
- Page 6 Mt. Olympus is a unique series of amplifi ers regarding channel stability and design. X-Over with 8.5 volt line driver. FEATURES: NOTE: THIS MANUAL FEATURES THE AMPLIFIERS ODIN 2K AND CYCLOPS 3K ONLY » Direct sub-in receivers with sub-outs 0 - 12dB bass boost »...
- Page 7 MST (MASTER): Factory setting for the switch location when using the amp alone is always set to MST. Also used when linking a pair of either the ODIN 2K or CYCLOPS 3K amplifi ers. When in MST position, a single RCA can be connected to the MASTER OUT RCA receptacle to provide signal to the SLAVE INPUT on the SLAVE amplifi...
- Page 8 HDBR will give more bass impact to your best high quality digital media or your lowest quality recordings or Route a power cable (4-gauge for Odin 2K / 0-gauge for Cyclops 3K) directly to the vehicle battery with worst radio station reception.
- Page 9 A ticking or whine that changes with engine RPM: ODIN 2K, CYCLOPS 3K This problem could be caused by radiation pickup of RCA cables too near to a fuel pump or a distributor, for instance. Relocate cables to resolve this issue.
- Page 10 If an amplifi er fuse blows continually, with only +12 volt, ground and remote leads connected, the Route two power cables (4-gauge for Odin 2K / 0-gauge for Cyclops 3K) directly to the vehicle battery amplifi er may be faulty.
- Page 11 Linking two amps for single or dual subwoofer application E. TROUBLESHOOTING A SYSTEM Amplifi ers are stable to 2-OHMS when linked The key to fi nding the problem in a misbehaving sound system is to isolate parts of that system in a logical fashion to track down the fault.
- Page 12 Bass Frequency value being the center. Boost: ODIN 2K & CYCLOPS 3K This setting adjusts the amount of boost on the selected Bass Frequency and Bandwidth. This setting is variable from 0-10dB.
