- Page 1 MPS-150 e-drum set assembly instructions...
- Page 2 Musikhaus Thomann Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 27.04.2015, ID: 360221...
- Page 3 Table of contents Table of contents Safety instructions.......................................... 4 Scope of delivery..........................................5 Assembly.............................................. 6 Protecting the environment....................................10 MPS-150...
-
Page 4: Safety Instructions
Safety instructions Safety instructions DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices. -
Page 5: Scope Of Delivery

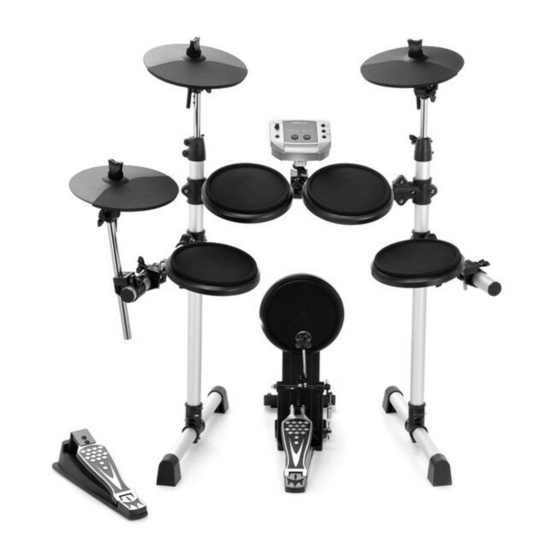

Scope of delivery Scope of delivery Before you assemble your kit, make sure the contents of package is complete according to the following list. e-drum set Millenium MPS-150 e-drum module Millenium MPS-150 Rack with pad brackets Hi-hat controller Bass drum pedal (complete) -
Page 6: Assembly
Assembly Assembly Overview Loosen the screws of each terminal before sticking the pipes together. Mount the various elements in the specified sequence. The positions of the pads, cymbals, etc. are shown in the illustration below. e-drum set... - Page 7 Put the brackets for Crash, Ride and Hi-hat pad into the provided fastening clamps at the rack. Attach the brackets using the mounting screws at the desired height. Loosen the locating screws at the joints of the brackets and turn the brackets into the desired playing positions. Then retighten the locating screws firmly. MPS-150...
- Page 8 Assembly Mounting pads on the rack Attach the supplied L-pieces to the pads. Tighten the wing nuts on the pads by hand first. Then slide the plastic ends of the L-pieces up to the stop into the designated clamps on the rack. Align the pads on the rack to meet your needs and tighten the wing nuts of the pad brackets and the bolts of the pad clamps on the rack firmly and evenly.
- Page 9 Setting up and wiring Set up the rack, the pads and the cymbals according to your needs. Finally, position the drum pedal and the Hi-hat controller in front of the rack and connect all trigger cables to the drum module. MPS-150...
-
Page 10: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging material For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 12 Musikhaus Thomann · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
