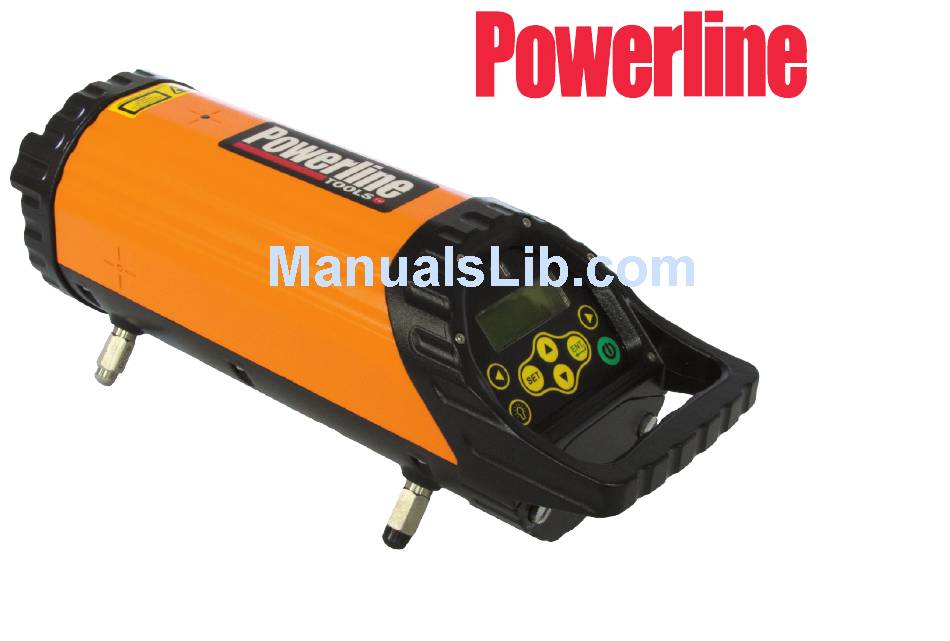

- Page 1 APLG Green Pipe Laser INSTRUCTION MANUAL...
- Page 3 SAFETY Please read this instruction manual before operating this product. Please store this instruction manual in the carry case for future reference. CAUTION: Class 3 Laser Product Do not stare directly into the laser beam from apertures. Do not disassemble the instrument or attempt to perform any internal servicing as this will void your warranty.
-
Page 4: Item Checklist
Please ensure the following items are included with your laser. If anything is missing please contact your retailer. Target Target Pipe Laser Remote Remote control 4x Sets of 2x Adjustable Powerline APLG interchangeable feet laser targets Carry case Charger Rechargeable Car charger Alkaline... -
Page 5: Product Overview
PRODUCT OVERVIEW Laser port LCD Display Control panel 4x Interchangeable feet Battery pack... -
Page 6: Control Panel
CONTROL PANEL LCD Display Positive grade adjustment Dot left Dot right Enter LCD backlight Power Grade mode Negative grade adjustment... -
Page 7: Remote Control Panel
REMOTE CONTROL PANEL LED light Speaker Pipe Laser Remote Dot left Dot right Power LCD backlight... - Page 8 USING YOUR LASER Power Supply ‣ The Powerline APL pipe laser is supplied with a rechargeable Ni-MH battery pack that is located in the base of the unit. An alkaline battery pack is also supplied with four D batteries. ‣ It is recommended that the battery pack be completely charged before use.
- Page 9 Setting Up ‣ Select a place as close as practical to the work site. Ensure the location is clear of traffic. ‣ Place the laser onto a level surface. Use the bubble vial on the LCD screen to level the unit. Operation ‣...
- Page 10 Tilt Alarm The unit may be levelled by using the bubble vial displayed on the LCD screen. See diagram below: Flashing arrow indicates the left side of the laser is beyond the levelling range. Laser is tilted left. Laser is level. Laser is tilted right.
- Page 11 If the unit is tilted too far forward or backward an alarm will sound indicating adjustment is required. A diagram will also appear on the LCD screen as in the example below: Lower the handle side Raise the handle side...
- Page 12 Setting Up Grades ‣ To create slopes and grades enter into grade mode by pressing the grade mode (set) button. +00.000% will be displayed on the screen. ‣ To set a grade press the negative grade adjustment or positive grade adjustment button to adjust the percentage required.
-
Page 13: Care And Maintenance
‣ Whenever possible, store the instrument in a dry, shady location. ‣ The APLG should be calibrated every 6 months, if ongoing accurate levelling is required or an impact has occurred. ‣ The operator should check the APLG for accuracy before precision levelling is attempted. -
Page 14: Warranty
WARRANTY The Powerline APLG comes with a 3 year manufacturers warranty. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. -
Page 15: Specifications
SPECIFICATIONS Specifications Powerline APLG Product code 50025G Warranty 3 Years Accuracy ±1mm at 20m Range 300m Grade range -20% +40% Laser class 3 Green Battery life 20 hours Battery type 4x C (sealed pack) IP rating Weight (kg) 4.65 Dimensions (mm) - Page 16 www.spoton.com.au...
