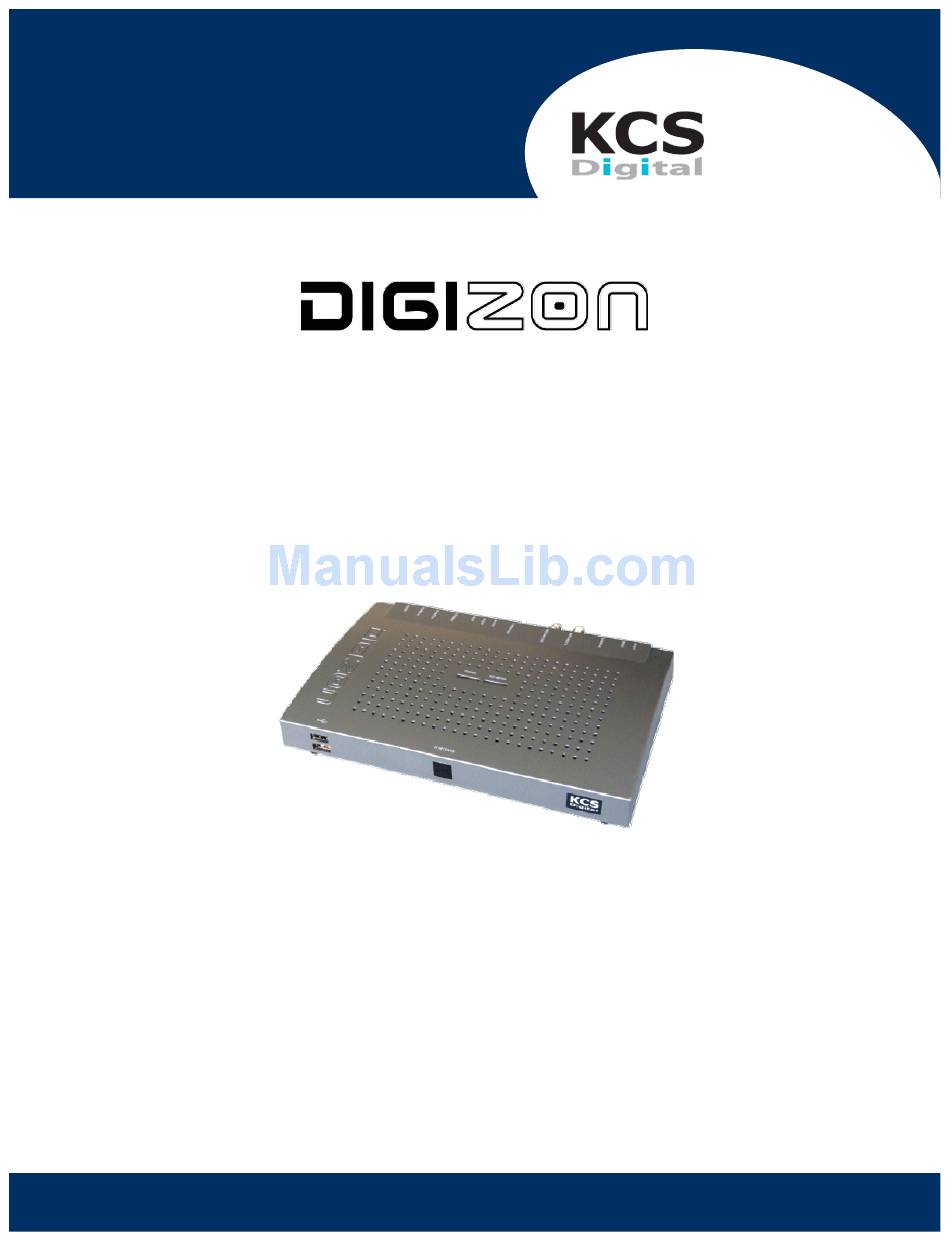

User Manual

Models：DIGIZON-101A
DIGIZON-102A
DIGIZON-103A
Version：1.0.100ENG
Published：March 2007
www.KCSDigital.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIGIZON-102A and is the answer not in the manual?

Questions and answers

Summary of Contents for KCS DIGIZON-102A

  • Page 1: User Manual

    User Manual Models：DIGIZON-101A DIGIZON-102A DIGIZON-103A Version：1.0.100ENG Published：March 2007...

  • Page 2: Table Of Contents

    www.KCSDigital.com TABLE OF CONTENT …………… Chapter 1 Introduction Page 02 …………… Chapter 2 Hardware Connection Page 05 …………… Chapter 3 Software Installation Page 06 …………… Chapter 4 Player & Control Panel Page 14 …………… Chapter 5 Surveillance and Video Conference Page 18 ……………...

  • Page 3: Chapter 1 Introduction

    www.KCSDigital.com Chapter 1 Introduction 1.1 WELCOME Thank you for your purchasing on DIGIZON. For the first installation, please fully understand entire content and description also please set-up in a DIGIZON environment, otherwise it may encounter an unsuccessful operation. We will guide you through the installation setup program process in Installation Wizard. 1.2 CHECKLIST A.

  • Page 4: Function Overview

    www.KCSDigital.com B. System Requirement Windows ME, 2000, XP (with DirectX 9.0c or above) CPU: Pentium 4, 1.2 GHz or above ( MMX, SSE and SSE2 support) Memory: 256MB or above Display Card: DirectX compatible Sound Card: DirectX compatible Recommended 1024x768 resolution setting: 32-bits Color bit AP/Router...
  • Page 5 www.KCSDigital.com devices. Only 900MB storage required for one hour DVD quality video. ( for details please see chapter 6) 1.3.5 Network HD (for DIGIZON Pro ONLY) You can simply access personal USB 2.0 external HD on internet, remotely download, upload, search and manage files from outside. ( for details please see chapter 7)

  • Page 6: Chapter 2 Hardware Connection

    www.KCSDigital.com Chapter 2 Hardware Connection Note: 1. S-Video input/output is assigned as the AV IN 2/AV OUT 2。. 2. IR emitter must be pointed to the IR signal receiving window of the video device. 3. USB HD or any other external storage devices are for DIGIZON Pro only.

  • Page 7: Chapter 3 Software Installation

    www.KCSDigital.com Chapter 3 Software Installation 3.1 Player Installation 3.1.1 Power on the router/AP and DIGIZON. 3.1.2 Make sure the Ethernet cable is well connected. 3.1.3 Insert the installation CD and installation will start automatically. If not, please double click the icon named “ Setup” in the root directory. 3.1.4 Follow the introductions till installation finished.
  • Page 8 www.KCSDigital.com 3.2.2 Connect to DIGIZON 3.2.2.1 Click “ Connect” 3.2.2.2 Enter DIGIZON ID which is labeled at the bottom of DIGIZON box and password (null as default). 3.2.2.3 It takes a few minutes to setup the connection configuration.
  • Page 9 www.KCSDigital.com 3.2.2.4 When successful connection, user takes option(s) as needed. 3.2.2.5 If error occurred, check DIGIZON ID first and try again. 3.2.2.6 In case the router/Hub with DHCP disabled, please change PC’ s IP address to 192.168.1.xx (the same subnet with DIGIZON) and reconnect.
  • Page 10 www.KCSDigital.com 3.2.3 Network Setting 3.2.3.1 For internet and wireless connection setting, please take this step. 3.2.3.2 Internet settings  Assign IP and DNS address if the static IP and DNS server assigned.  For PPPoE users, enter ID and password, if the connection is not dialed up from router.
  • Page 11 www.KCSDigital.com 3.2.4 TV Channel Scan 3.2.4.1 For the user whose TV source is from cable or antenna, please take this step. Choose the region from the list or “ Full Frequency Scan” , if none 3.2.4.2 available. Select TV color system when “ Full Frequency Scan” selected.
  • Page 12 www.KCSDigital.com 3.2.4.4 It takes 5 to 10 minutes to scan. Click “ Close” when finish. 3.2.4.5 3.2.5 Remote Controller Setting 3.2.5.1 Point the remote controller of the video device to DIGIZON IR receiving window. Enter video device name and click “ Next” to continue. 3.2.5.2...
  • Page 13 www.KCSDigital.com 3.2.5.3 Follow the instructions to learn key by key. 3.2.5.4 You can assign 3 often use keys to button A, B, and C. 3.2.5.5 If learning failed, please retry or cancel to skip. Click “ Finish” and “ Close” to end. 3.2.5.6...
  • Page 14 www.KCSDigital.com Click “ Exit” to finish the setup. You can change the settings in the “ advanced” in 3.2.6 the player whenever you need.

  • Page 15: Chapter 4 Player & Control Panel

    www.KCSDigital.com Chapter 4 Player and Control Panel 4.1 Before connection Open/Close Panel Version 4.1.1 Click to connect to DIGIZON. 4.1.2 Enter DIGIZON ID (remote user) or select IP address (local user). 4.1.3 Enter password (null as default), and click “ OK” .
  • Page 16 www.KCSDigital.com 4.2 While connecting Drag to move Minimize Full Screen Close Volume status DIGIZON ID (source) Bandwidth...
  • Page 17 www.KCSDigital.com 4.3 Buttons Connect to DIGIZON Disconnect from DIGIZON Select the video source TV channel setting, see 4.4 Numeric pad ( last choice; enter) Volume control Channel control Pause, while playing Mute Instant recording* (see chapter 6) Schedule recording*(see chapter 6) Video file management*(see chapter 7) Advanced Setup (see chapter 8) For external AV devices use, button A,...
  • Page 18 www.KCSDigital.com 4.4 Channel setting 4.4.1 When TV sourced from cable or antenna, you can name, enable, or disable for each channel. 4.4.2 Click 4.4.3 Select the channel from the list. 4.4.4 Enter channel name (in 22 characters). 4.4.5 Enable/disable the channel. The disabled channel is still on the list, and you can enable it whenever you need.

  • Page 19: Chapter 5 Surveillance And Video Conference

    www.KCSDigital.com Chapter 5 Live Video Applications 5.1 Surveillance 5.1.1 Connect camera (analog) to AV IN 1 (or AV IN 2) 5.1.2 Start the player and choose video source AV1 (or AV2). 5.1.3 Control volume if there is an audio input. 5.1.4.Properly select NTSC/PAL in “...

  • Page 20: Chapter 6 Recording

    www.KCSDigital.com Chapter 6 Recording 6.1 Recording is for DIGIZON Pro only. 6.2 Connect USB 2.0 external storage device to DIGIZON USB port. (FAT 32 supported, NTFS for read only) 6.3 Reboot (power off and on) DIGIZON and start player. 6.4 Instant recording 6.4.1 Click 6.4.2 Select the resolution for recording video.
  • Page 21 www.KCSDigital.com 6.5 Schedule recording 6.5.1 Click . 6.5.2 Add a new recording task. 6.5.3 Select video source and channel (for CATV, if your TV sourced from set top box, switch the channel before recording) 6.5.4 Define recording daily or weekly. When weekly recording, select days as wish. 6.5.5 Define start date, time, and duration.

  • Page 22: Chapter 7 Video Manager

    www.KCSDigital.com Chapter 7 Video Manager 7.1 Video Manager is for DIGIZON Pro only 7.2 Connect USB 2.0 external storage device to DIGIZON USB port. (FAT 32 supported, NTFS for read only) 7.3 Reboot (power off and on) DIGIZON and start player 7.4 Click 7.5 Buttons 7.5.1...
  • Page 23 www.KCSDigital.com 7.6.6 Exit from video manager. 7.7 Edit 7.7.1 Cut the selected file and you can paste where you wish. 7.7.2 Paste file from clipboard.
  • Page 24 www.KCSDigital.com 7.8 View 7.8.1 Search the file or directory. Enter the criteria to search. 7.8.2 Reload and refresh the display. 7.9 Enter the description for selected file. 7.10 Click “ Close” to finish.

  • Page 25: Chapter 8 Advanced Setup

    www.KCSDigital.com Chapter 8 Advanced Setup 8.1 Click 8.2 Preference 8.2.1 Set the comfortable brightness and contract. 8.2.2 Video/Audio (The settings recommended) Bandwidth Resolution Frame rate Audio (kbit/s) 1 M kbps~ 512 kbps~ 250 kbps ~ 64 kbps ~ QCIF...

  • Page 26: Change Password

    www.KCSDigital.com 8.3 Change password 8.3.1 Enter current password, null as default. 8.3.2 Enter new password and retype to confirm. 8.3.3 The new password will be effective after rebooting. 8.4 Clock setting 8.4.1 Set date, time, and time zone for DIGIZON. 8.4.2 It must be the local time of DIGIZON.

  • Page 27: Wireless Network

    www.KCSDigital.com 8.5 Network setting 8.5.1 The settings are for remote use through internet. 8.5.2 Assign the IP and DNS address for DIGIZON, if necessary. 8.6 Wireless network 8.6.1 Wireless connection is available for DIGIZON plus and DIGIZON Pro. 8.6.2 Check “ Activation” on. 8.6.3 Select the AP (Access Point) from the list.
  • Page 28 www.KCSDigital.com 8.7 Scan channels 8.7.1 Select the region where DIGIZON locates. If none available, please select “ Full Frequency Scan” . 8.7.2 Click “ Start Scanning” to start. 8.7.3 It takes 5~10 minutes. When scanning, please stop any operation. 8.7.4 This function is for cable TV only.

  • Page 29: Chapter 9 Trouble Shooting

    www.KCSDigital.com Chapter 9 Trouble Shooting 9.1 How to setup the IP of PC/Laptop installed DIGIZON player? 9 . 1 . 1 C l i c k “ S t a r t U p ” a n d c l i c k “ N e t w o r k N e i g h b o r ” 9 .
  • Page 30 www.KCSDigital.com 9.3 How to connect DIGIZON with HUB not AP/Router? 9.3.1Please prepare with a public IP for DIGIZON network setting 9.3.2Access DIGIZON Player => Advanced => Network Setting 9.3.3 9.4 Video lags or audio sounds not smooth? The video and audio quality depends on the bandwidth, refer to 8.2.2 9.5 Only audio, but no video? 9.5.1 Install DirectX 9C or above version,...

  • Page 31: Contact Information

    9.14.1 The color system (NTSC/PAL) of the video source must be correctly defined in DIGIZON. 9.14.2 Refer to chapter 5 to set the color system. Contact Information KCS Digital 8F, No.69-8, Sec.2, Chung Cheng E. Rd., Tamshui Town, Taipei County, Taiwan TEL：+886-2-77030980 FAX：+886-2-77030981 http://www.KCSDigital.com © Copyright 2007 by KCS Digital. All rights reserved...
