Ansel 5009/DWP1000-Series Quick Installation Manual

Dongle-sized wireless print server
Hide thumbs

Advertisement

Quick Links

Download this manual

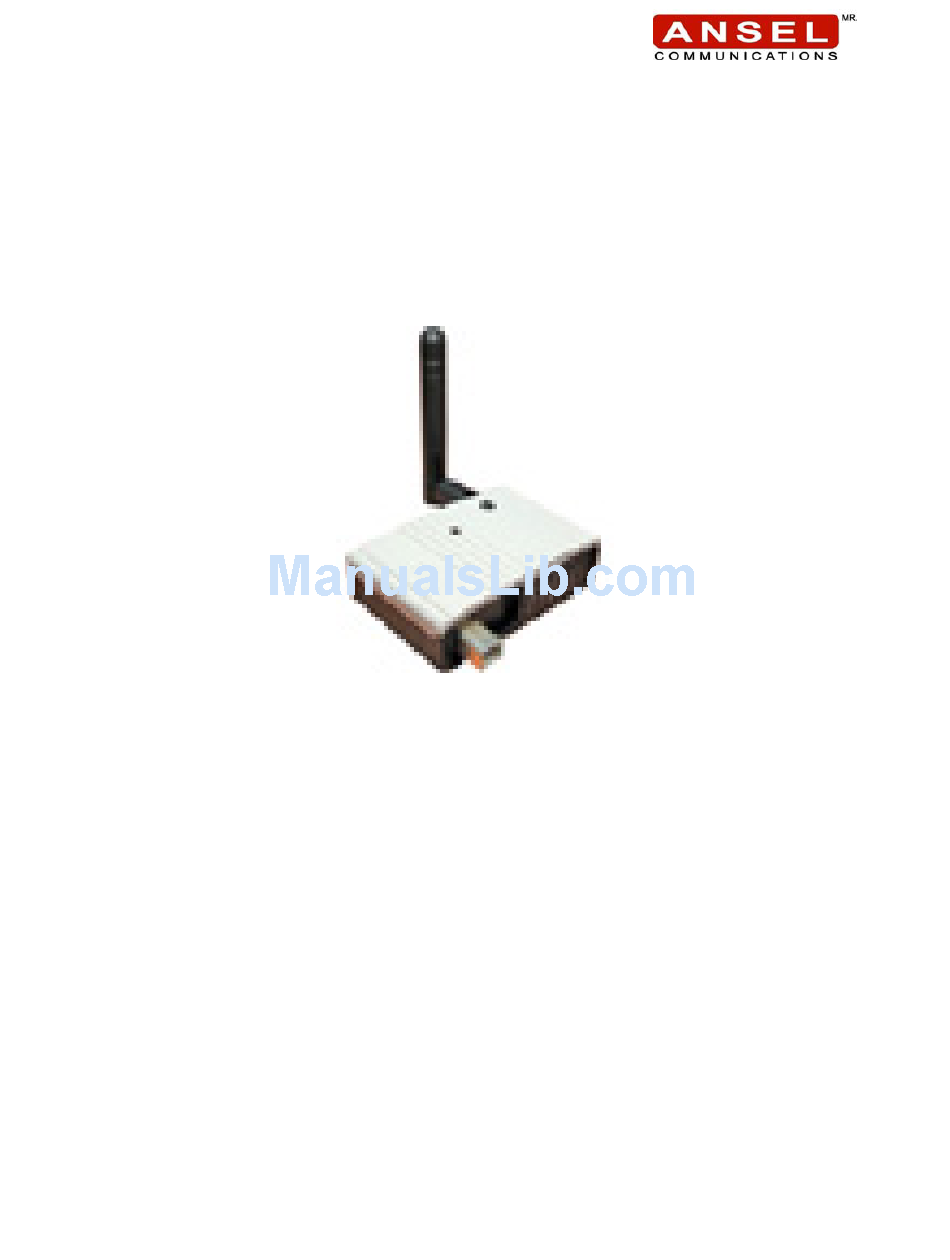

Dongle-sized Wireless Print Server
ANSEL Model: 5009

Quick Installation Guide

DWP1000
(For Alpha Engineering Sample only)
V0.2
Notice: Current alpha sample is running for the printer
compatibility test now.
It still has some unexpected issues need to be fixed by the
upcoming firmware. So that, we strongly recommend you to keep
the factory default in this sample when you start to evaluate it.
Your kindly reply is very helpful for us to fine-tune our product.
We'll update the new test firmware continually.
Sorry for any inconvenience.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5009/DWP1000-Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Ansel 5009/DWP1000-Series

  • Page 1: Quick Installation Guide

    Dongle-sized Wireless Print Server ANSEL Model: 5009 Quick Installation Guide DWP1000 (For Alpha Engineering Sample only) V0.2 Notice: Current alpha sample is running for the printer compatibility test now. It still has some unexpected issues need to be fixed by the upcoming firmware.

  • Page 2: Default Settings

    Default Settings: • Wireless Mode: Ad-Hoc (Peer-to-Peer) • Channel: 6 • SSID: DWP1000-xxxx (xxxx is the last 4 digits of wireless print server’s MAC address) • IP Address: 192.168.0.10 • Subnet Mask: 255.255.255.0 • Gateway: 192.168.0.254 • Username: admin • Password: 0000 Ad-hoc (Peer-to-Peer) Mode Hardware Installation: 1.
  • Page 3 Wireless Print Server Configuration (Wireless Ad-Hoc Mode): 1. Please specify a proper IP address for your wireless adapter, e.g.192.168.0.101. 2. Find the wireless print server by Windows Zero Configuration or vendor utility of wireless adapter. Then click Connect.
  • Page 4 3. Click start -> Printers and Faxes. 4. Highlight your newly installed printer. Right-click, select Properties.
  • Page 5 5. Click Ports -> Add Port. 6. Click Standard TCP/IP Port -> New Port.
  • Page 6 7. Click Next. 8. Input the IP address of wireless print server (default IP address is 192.168.0.10, and then click Next.
  • Page 7 9. Select Customer, and then click Settings. 10. Select LPR, input lp1 as the Queue Name. Click OK.
  • Page 8 11. Click Next. 12. Click Finish.
  • Page 9 13. Click Close. 14. Click Apply to finish the configuration.
  • Page 10 15. Now you can try to print a test page. Click General -> Print Test Page.
  • Page 11 How to change the default settings of wireless print server? 1. Enter the wireless print server’s IP address in the Address field of Web browser. Press Enter. Input the admin/0000 as the default Username/Password. 2. Now you can change the IP address and wireless settings (e.g. wireless infrastructure mode) if necessary for your current wireless network.
  • Page 12 2. Unplug the power adapter; insert a paper clip into the opening next to the jack. 3. Press the button and hold it. 4. Plug the power adapter. 5. Wait for five seconds, and then release it. All contents are subject to change without prior notice. ANSEL Model: 5009/DWP1000...
