Summary of Contents for Commercial Electric PBC-350

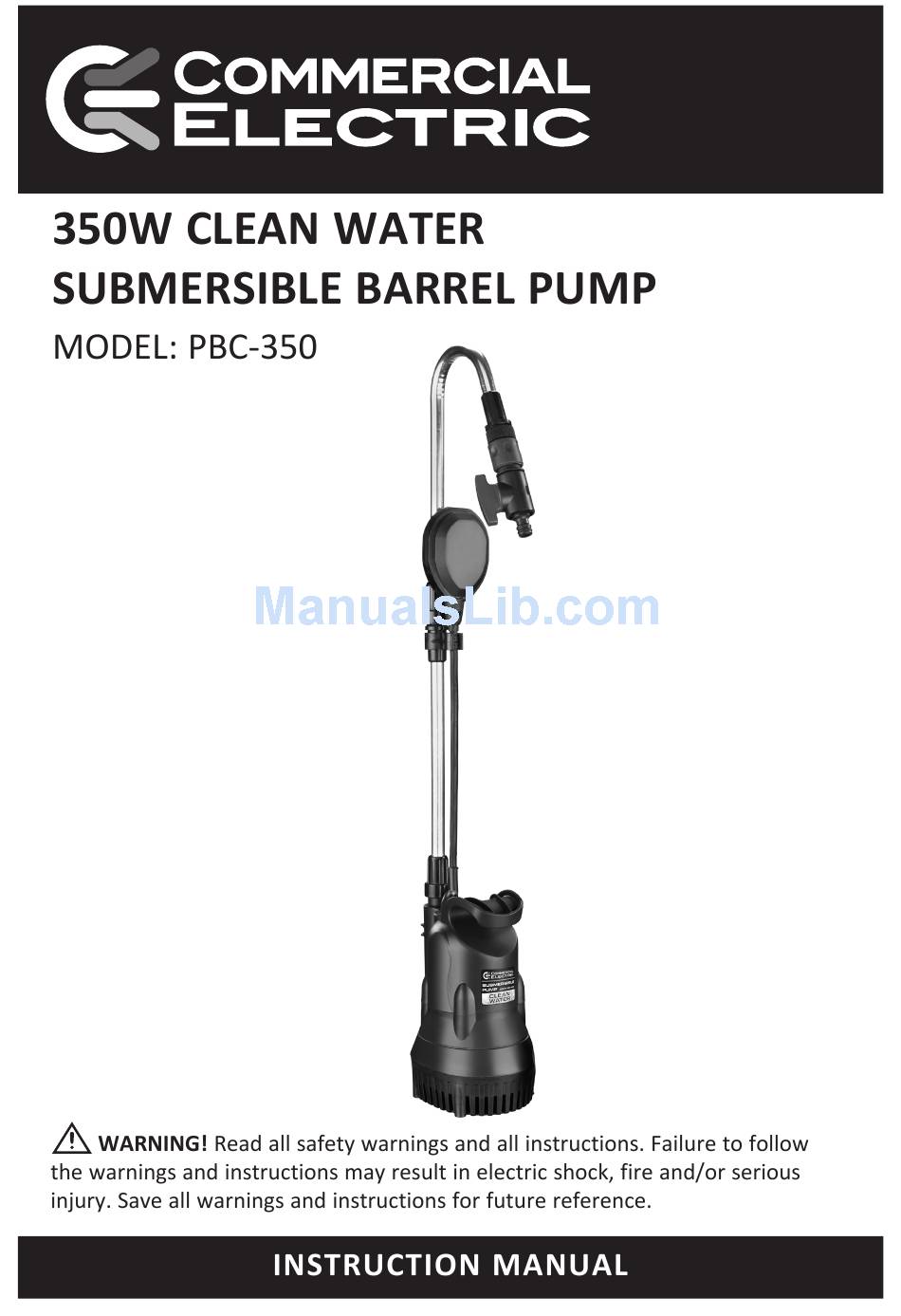

- Page 1 0212...
-
Page 2: Introduction

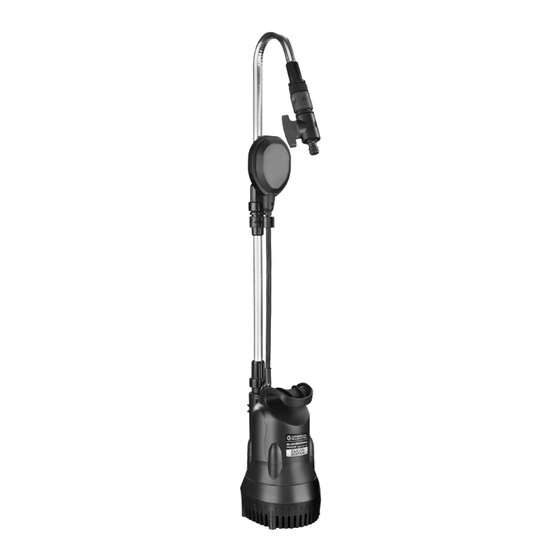

INTRODUCTION Congratulations on purchasing the Commercial Electric 350W Clean Water Submersible Barrel Pump. We aim to provide quality products at an affordable price. Before using, it is most important that you read and follow the instructions in this manual, even if you feel you are quite familiar with this type of product. -
Page 3: Know Your Product
KNOW YOUR PRODUCT 1. Handle 2. Pump Housing 3. Outlet pipe lower section 4. Outlet pipe upper section (elbow) 5. Tap connector (assembly) 6. Tap adaptor 7. Suction Base 8. Float Switch 9. Float Switch Adjustor 10. Float Switch Cable 11. -
Page 4: Table Of Contents
TABLE OF CONTENTS INTRODUCTION…………………………………………………. ……………… SPECIFICATIONS …………………………….…………………………………. KNOW YOUR PRODUCT ………………………………………………………. ELECTRICAL SAFETY……………………………………………….…………. GENERAL SAFETY INSTRUCTIONS…………………………………………. ADDITIONAL SAFETY INSTRUCTIONS FOR PUMPS……………………… PACK CONTENTS ………………………………………………………………. PREPARATION …………………………………………………………………… SET-UP & INSTALLATION………………………………………………………. OPERATION………………………………………………………………………. HINTS WHEN USING THE PUMP……………………………………………… MAINTENANCE ………………………………………..………………………… SPARE PARTS……………………………………………………………………. TROUBLESHOOTING…………………………………………………………… DESCRIPTION OF SYMBOLS………………………………………………….. -
Page 5: Electrical Safety
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Commercial Electric tools are interchangeable for Australia and New Zealand. - Page 6 GENERAL SAFETY INSTRUCTIONS (cont.) c) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the pump. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a pump outdoors, use an extension cord suitable for outdoor use.
-
Page 7: Additional Safety Instructions For Pumps
• Before using the water pump, always inspect it visually. Do not use the pump if it is cracked and/or damaged. If the water pump is damaged, contact Commercial Electric customer service. • The water pump has a built-in thermal protection overload switch. The water pump stops if an overload occurs. -
Page 8: Pack Contents
PACK CONTENTS 1 x Clean water submersible barrel pump (PBC-350) 1 x Tap adaptor 1 x outlet pipe upper section (elbow) 2 x rubber seals 1 x outlet pipe lower section 1 x cord restraint 1x Tap connection 1 x Instruction manual PREPARATION WARNING! This product is intended for pumping water in a home domestic application. -
Page 9: Set-Up & Installation
SET-UP & INSTALLATION 1. Fit the rubber seals into the thread of the Outlet pipe lower section (3) Fig. 3 and Outlet pipe upper section (4) (Fig. 3). Note: If the rubbers seals are not fitted the Outlet pipe lower section (3) or Outlet pipe upper section (4) correctly this could result in a leak coming from ether the upper and/or lower outlet pipes. -
Page 10: Operation
SET-UP & INSTALLATION (cont.) Adjusting the float switch Automatic & Manual mode: Fig. 9 Fig.10 1. The pump has a pre-set float switch (8). To change the setting and use the pump in Manual mode, reduce or increase the length of the float switch cable (10) by inserting it in the float switch adjustors (9) on the rear of the pump (Fig. -
Page 11: Hints When Using The Pump
Allow to dry thoroughly before storing. When required replacement filters can be purchased from the Special Orders desk at your local Bunning's store. Power Cable For all submersible pumps, a H07RN-F cable is required to be fitted. Contact Commercial Electric customer service for replacement cable. SPARE PARTS Limited spare parts are available subject to availability. -
Page 12: Troubleshooting
The thermal overload protection Wait for the motor to cool and it will is activated automatically start operation The motor is damaged Contact Commercial Electric customer service The pump does not The suction base is Clean the suction base of any... - Page 13 The fluid contains particles Ensure the pump is not being used thicker than 0.5mm with particles thicker than 0.5mm The motor is faulty or damaged Contact Commercial Electric customer service The temperature of the fluid is Ensure that maximum permissible too high water temperature (35°C) is not...
-
Page 14: Description Of Symbols
DESCRIPTION OF SYMBOLS Volts Hertz Alternating current Watts /min Revolutions or No load speed reciprocation per minute Horse power ˚C Degrees Celsius p/hr Per hour Pressure rating (kilopascals) Pressure rating Litres Insulation class Polyvinyl chloride Regulator compliance mark IPX8 Ingress protection from water Warning Read instruction manual CARING FOR THE ENVIRONMENT... -
Page 15: Warranty
• or alterations. • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. Commercial Electric Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175...
