Front Panel
1
15

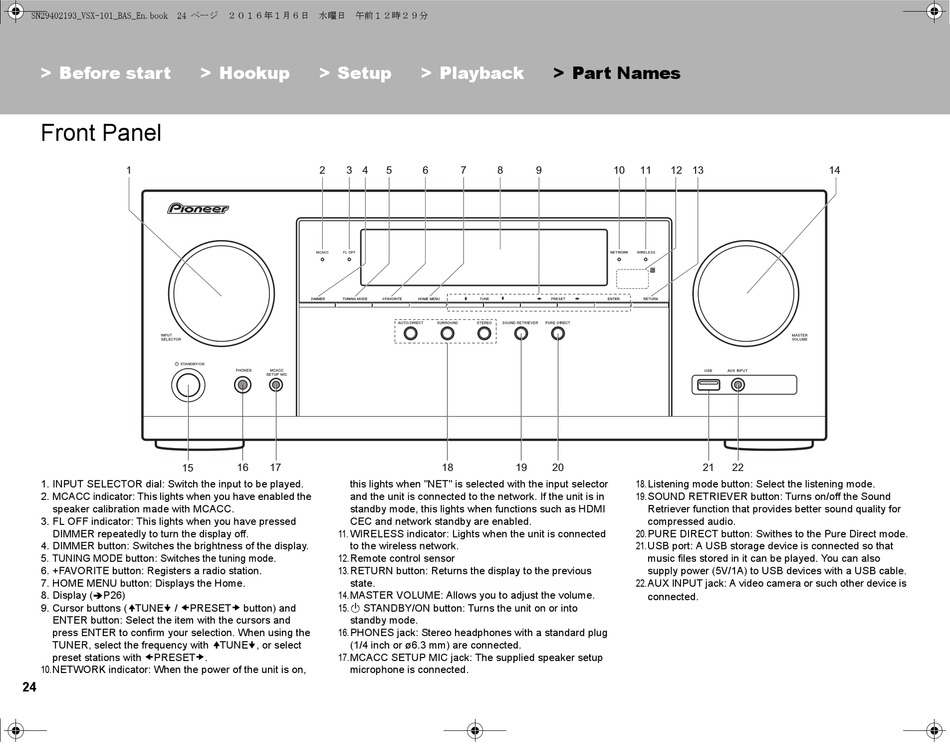

1. INPUT SELECTOR dial: Switch the input to be played.
2. MCACC indicator: This lights when you have enabled the
speaker calibration made with MCACC.
3. FL OFF indicator: This lights when you have pressed
DIMMER repeatedly to turn the display off.
4. DIMMER button: Switches the brightness of the display.
5. TUNING MODE button: Switches the tuning mode.
6. +FAVORITE button: Registers a radio station.
7. HOME MENU button: Displays the Home.
8. Display ( P26)
9. Cursor buttons ( TUNE
/ PRESET
ENTER button: Select the item with the cursors and
press ENTER to confirm your selection. When using the
TUNER, select the frequency with
preset stations with PRESET .
10.NETWORK indicator: When the power of the unit is on,
24
> Setup
2
3
4
5
16
17
this lights when "NET" is selected with the input selector
and the unit is connected to the network. If the unit is in
standby mode, this lights when functions such as HDMI
CEC and network standby are enabled.
11. WIRELESS indicator: Lights when the unit is connected
to the wireless network.
12.Remote control sensor
13.RETURN button: Returns the display to the previous
state.
14.MASTER VOLUME: Allows you to adjust the volume.
button) and
15.Í STANDBY/ON button: Turns the unit on or into
standby mode.
16.PHONES jack: Stereo headphones with a standard plug
TUNE , or select
(1/4 inch or ø6.3 mm) are connected.
17.MCACC SETUP MIC jack: The supplied speaker setup
microphone is connected.
> Playback
> Part Names
6
7
8
9
18
19
20
10
11
12 13
21
22
18. Listening mode button: Select the listening mode.
19. SOUND RETRIEVER button: Turns on/off the Sound
Retriever function that provides better sound quality for
compressed audio.
20. PURE DIRECT button: Swithes to the Pure Direct mode.
21. USB port: A USB storage device is connected so that
music files stored in it can be played. You can also
supply power (5V/1A) to USB devices with a USB cable.
22. AUX INPUT jack: A video camera or such other device is
connected.
