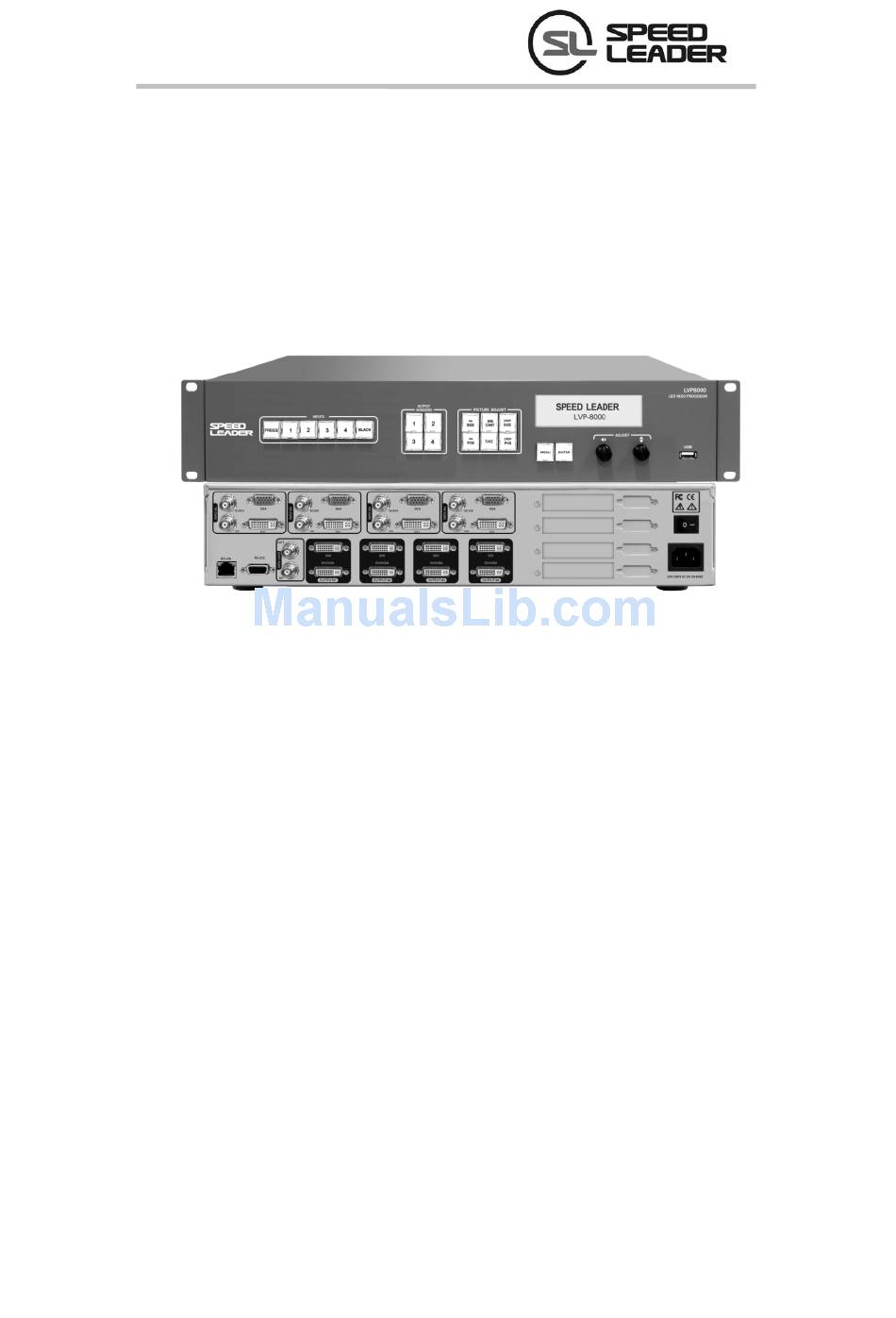

Page 1 SHENZHEN SPEEDLEADER TECHNOLOGY User Manual LVP8000 Splicing Processor ...
Page 2: Safety Instructions
About the Manual Without the written permission of the company, it is forbidden for any company or individual to imitate, copy, or transcribe part or all of the contents of the manual.
Page 3 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor This symbol warns the user that there is the hazardous voltage exposed inside the equipment and there is the electric shock hazard. This equipment must be connected with ground wire. This equipment needs a rated power voltage. Ensure that the input voltage error should be between - 10% and +10%.
Page 4: Table Of Contents
Contents Overview ..........................4 Application ........................... 5 Installation ........................... 7 Install LED Sending Card ....................7 Install LVP8000 ......................8 Rear Panel ........................9 Operation Interface………………………………………………………………………. 13 Menu System ......................………..17 Menu System Overview ....................17 Enter the Menu ......................18 Automatic Menu ......................
Page 5 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor Preview and Seamless Switching .................. 36 Set Fade Time and Preview Switching Mode ..............38 Adjust Output Window Position ..................38 Crop Size and Position of Output Window ..............39 Brightness and Contrast of Output Window ..............41 Save and Recall of the Preset..................
Page 6: Overview
Overview LVP8000 is a powerful four-channel splicing processor, which can support four independent video processors, 4×4 channel hybrid matrix and 4096×2304 high-resolution picture output. For a single processor, it can splice a maximum of 10240 × 960 or 4096 ×...
Page 7: Application
SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor Users can define seamless switching of any channel. Users can choose two outputs and set them as Preview and program, by which seamless switching can be perfectly achieved. LVP-8000 is easier to use with powerful functions and humanist design. If users touch the keystroke and menu system, they can complete the complicated settings.
Page 8 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor Figure 1-1 Application of LVP-8000 Splicing Processor LVP-8000 with various input and output interfaces, can access VGA and DVI signals of the desktop computer, VGA and HDMI signal of the laptop, SDI signal of high-definition camera, DV and DVD video signal.
Page 9: Installation
SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor Installation Install LED Sending card 1. Remove the chassis cover, get rid of the chassis bezel and install fixed double-screw bolt in the correspondence position in order to load the corresponding brand sending card. ...
Page 10: Install Lvp8000
SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor 5V power supply Figure 2-2 Install LED Sending Card Install LVP-8000 The user can choose whether to install LVP-8000 to the rack or flight case. LVP-8000 has a standard 2U chassis, with the size of 8.8cm (Height) x 44cm (Width) x 33CM (Depth).
Page 11: Rear Panel
SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor Figure 2-3 Install LVP8000 Rear Panel Figure 2-4 Connection Terminals of LVP-8000 Rear Panel ① # 1 ~ # 4 channel video input Page 9 of 56...
Page 12 VGA input - DB15 SDI input - BNC VID input - BNC Figure 2-5 LVP8000 Channel # 1 Input Interface ②③ Communication Interface ② TCP / IP interface, using RJ-45 terminal, is reserved for the communication interface. ③ RS-232 interface, using DB9 terminal, when it is connected by computer’s RS-232 or console, resolution adjustment, channel selection, splicing mode, and pre-installation can be operated on LVP8000.
Page 13 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor Video output includes OUTPUT # 1 ~ OUTPUT # 4 channels, and each channel has two DVI interface, which can output two-channel DVI signal and the DVI / VGA interface can output DVI and VGA by using DVI-VGA adapter. These two interface output has the same video screen and resolution, and the resolution can be changed.
Page 14 ⑥ ⑦ AC power connector and AC switch LVP8000 provides a standard power, with the input power of 100 ~ 240VAC, 50Hz or 60Hz, at the same time, the ground wire of the power supply must be grounded to avoid equipment damage or the electric shock to human body.
Page 15: Operation Interface
SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor Operation Interface All the control and instruction of splicing processor are set on the front panel (see Figure 3-1). These keys provide yellow and green background lights, which indicate the current input selection and functional operation. A 240×64 LCD window indicates the current state of the splicing processor, such as menu selection, data status, and other parameters.
Page 16 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor keypad. LVP-8000 will record every input video data, such as, output window position, size, brightness, interception mode. ③ BLACK key Black screen output key: if the key is pressed, the current channel will get black screen output, and the key flashes yellow light.
Page 17 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor WIN SIZE-output window size: when selecting the output window, the user should press the WIN SIZE key to enter the settings, and using the knob, the user can adjust the size of the output window.
Page 18 : horizontal adjustment knob; : vertical adjustment knob: which can adjust menu options and parameters, or adjust the size and position of the output window. ⑨ USB interface The USB communications interface for LVP8000 or provide 5VDC/500mA power supply. Page 16 of 56...
Page 19: Menu System
Menu System Menu System Overview LVP8000 has a convenient menu system; Figure 4-1 shows the default display menu after electrifying LVP8000. The user can observe the current corresponding input information source and other important information by default menu cycle.
Page 20: Enter The Menu
SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor Figure 4-1 System Menu Flowchart There are four keys to operate the menu and change the parameters: MENU: press this key to activate the main menu, and after entering the main menu, press the MENU key to return to upper step of the menu.
Page 21: Automatic Menu
SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor AUTO INPUT OUTPUT SPLICE FUNC PRESET SYSTEM Figure 4-2 The First Layer Submenu AUTO The function of LVP-8000 AUTO Menu is to classify and replace the user’s data and resume one or more user’s parameters to the factory default state. Figure 4-3 expands the sub-menu and parameters which can be set in AUTO Menu.
Page 22: Input Menu
Example: When selecting output # 1, type crop & window , and press the ENTER key in Auto submenu, LVP8000 will automatically reset the crop and window size, position, the input information source and other related data of output # 1 to the default state.
Page 23 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor INPUT #1、#2、#3、#4 Input Source knob adjustment:DVI、VGA、VID、SDI knob adjustment:0～64～127 Brightness knob adjustment:0～64～127 Contrast knob adjustment:0～64～127 Color knob adjustment:red, green, blue：0～255 Amplitude ...
Page 24: Output Menu
SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor Source-Information source matches along with input channel. After selecting input channel (for example, # 3-channel is selected), the user should change input source and connect the channel with information source. Every source has its own brightness, contrast, color saturation, RGB amplitude, RGB cut off and Gamma.
Page 25: Splice Menu
Tip: after modifying the output resolution, window size, window position, crop size, crop position in LVP8000 will reset to the default state. If the output resolution previously saved by the user in the pre-setting stage is different from the current output resolution, this presetting will be not sued.
Page 26 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor SPLICE Output #1～#4 Output #1 Corresponding 1～4 key in OUTPUT knob adjustment，equal splicing , unequal Splice splicing, splicing closing H splice unit : V splice unit: ...
Page 27 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor Output - according to the needs, user can choose output channels # 1 ~ # 4, and the corresponding keys are key 1～4 in OUTPUT WINDOWS key area. If you want to change the channel, you can press key 1～4 in OUTPUT WINDOWS key area.
Page 28: Function Menu
SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor Unequal splice. H Total size: total horizontal pixels of video wall. V Total size: total vertical pixels of video wall. H splice pos: horizontal starting pixels displayed by current output.
Page 29 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor Preview switch: LVP-8000 can take any two channel outputs as a preview and program output, between which the switching is seamless exchange. The switching mode is swap and stay. The user can operate it by press TAKE key in PICTURE ADJUST key area. ...
Page 30: Advanced Menu
SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor TAKE Preview Display Screen Display Wall ...
Page 31 GENLOCK TYPE has three types, free run, V Lock and EXT Sync. Free run is for single LVP8000 setting. When using multi- LVP8000 for splicing, the synchronization mode should be V Lock. When input source is external synchronization signal (usually field synchronization signal), it can be connected with external synchronization input, then the synchronization mode should be EXT Sync.
Page 32: Preset Menu
Preset menu is used to save and recall scene mode. According to souce and recall, the user can quickly rebuild scene parameters, and eliminate repetitive and complex settings. Saving LVP8000 presetting is to save the preset data for all channels. When oeculling the presetting, the user can transfer it to the output selectively.
Page 33: System Menu
SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor 1 ~ # 4. The user can still press 1, 2, 3, 4 key in the key area of ENTER key + INPUT key for a quick call. Save: the user can save the current output window, the source, the picture color and other parameters as the preset.
Page 34: Operation
SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor Language: the user can set the Chinese or English for the entire menu system including default circulating menu, System Version: the user can check the software and hardware version of the device. Factory reset –...
Page 35: Output Resolution Setting
SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor Steps: in the default menu, first enter the factory resetting menu in the system menu (shown in Figure 5-1), and then press ENTER to reset. Output Resolution Setting There are two steps for setting the resolution: firstly the user should choose an appropriate resolution and then precisely adjust each output resolution.
Page 36: Select The Input
SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor Because the output resolution on the each interface is different, LVP-8000 # 1 to # 4 output resolution can modify by itself, which can be realized by operating the relevant key. ① ② ...
Page 37 DVI, VGA, VID and SDI. 2. Selecting Input LVP8000 has four output channels, and each channel can select any one from 1 to 4 in INPUTS key area, which is similar to matrix, and each information source can output to one or more interfaces, which is very flexible to use.
Page 38: Preview And Seamless Switching
Preview and Seamless Switching LVP8000 has a user-defined preview function. The defined preview and program can be switched seamlessly. For operation, the user should first enter preview switch state, set the corresponding relation between preview and program and then press the TAKE key.
Page 39 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor ② ①③ ② preview：output #4 program：output #1 fade time： 1.5S Figure 5-6 Preview and Seamless Switching Operation Flowchart Steps: ①...
Page 40: Set Fade Time And Preview Switching Mode
SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor Set Fade Time and Preview Switching Mode There are tow ways for controlling switching mode: fade time and preview switching mode. Preview switching mode has two kinds: swap and stay. Fade time can be set from 0 to 5 seconds, as shown in the following chart.
Page 41: Crop Size And Position Of Output Window
SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor ① ② ② ③ Output #1 window ：horizontal starting point vertical starting point：： Figure 5-8 Adjust Output Window Position Operation Flowchart Steps: ① Select 1 to 4 key in OUTPUT WINDOWS key area, at this time, the key which is pressed will show yellow light.
Page 42 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor 1. Adjust the crop Size of Input Window ① ② ③ Output #1 Crop H size： 1024<100%> V size： 768<100%> Figure 5-9 Adjust Output Window Position Operation Flowchart Steps: ① Select 1 to 4 key in OUTPUT WINDOWS key area, at this time, the key which is pressed will show yellow light.
Page 43: Brightness And Contrast Of Output Window
SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor ① ② ③ Output #1 interception ：horizontal starting point vertical starting point： Figure 5-10 Adjust Output Window Position Operation Flowchart Steps: ① Select 1 to 4 key in OUTPUT WINDOWS key area, at this time, the key which is pressed will show yellow light.
Page 44 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor According to the actual conditions, the user may need to adjust the brightness and contrast. The brightness and contrast of four-channel of LVP8000 can be adjusted independently. The adjustment method is as follows. ① ② ...
Page 45: Save And Recall Of The Preset
SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor Save and Recall of the Preset 1. Save of the Preset The user should enter the system menu for saving the preset. The saved preset data are the current input source, output picture size and position and splicing state. The operation is shown in Figure 5-12, to enter the preset save menu.
Page 46 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor Menu Recall of the Preset System Preset Main Menu Recall Default Menu ENTER MENU ENTER +ENTER Output #1～#4 ★1～9 Choose ★1～10 Choose: output channel ...
Page 47: Splicing Setting And Application
SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor Figure 5-14 Shortcut Key Combination Transfer Operation Flowchart Steps: Press the ENTER key and 1 to 4 key in the INPUTS key area, at the same time, the user can recall four-group preset.
Page 48 LVP8000 ...
Page 49 Select LVP-8000 output resolution of 1280x1024, and adjust OUT # 1 to # 4 resolutions as 1270x896. (4) Select input Choose every channel of LVP8000 and select the same input source for the four outputs. (5) Set the LVP-8000 Splicing Menu ...
Page 50 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor Output #3 Output #4 Splice：Equal Splice:Equal H Splice Unit：2 H Splice Unit：2 V Splice Unit：2 V Splice Unit：2 Splice Pos： 3 Splice Pos： 4 Note: the splicing position in the splicing setting should make appropriate change according to different output connections.
Page 51 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor OUTPUT#1 Sending card OUTPUT#2 Sending card LED Video Wall OUTPUT#3 OUTPUT#4 LVP-8000 Figure 5-15 LVP-8000 Unequal Splicing Connection Diagram Steps: (1) Connection Connect LVP-8000, two LED sending cards and two parts LED video wall. OUTPUT#1and OUTPUT#2 of LVP-8000 are separately connected to the LED sending card, and LED sending card is connected to each part of the splicing wall by CAT5.
Page 52 Select LVP-8000 output resolution of 1280x1024, and adjust resolution of OUT # 1 as 1152x1024 and resolution of OUT#2 as 960x1024. (4) Select input Choose every channel of LVP8000 and select the same input source for OUTPUT#1and OU’TPUT#2. (5) Set the LVP-8000 Splicing Menu...
Page 53: Specifications
SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor Specifications DVI video input Number Connector DVI-I DVI1.0，HDMI1.3 downward compatibility Standard Resolution VESA standard，PC to 1920x1200，HD to 1080p VGA video input Number Connector DB15 R、 G、 B、 Hsync、 Vsync:0 to1Vpp±3dB (0.7V Video+0.3v Sync ) Standard 75 ohm black level：300mV Sync-tip：0V...
Page 54 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor Resolution 480i,576i 3G-SDI video input Optional Number Connector Standard SD-SDI，HD-SDI，3G-SDI 1080p 60/50/30/25/24/25(PsF)/24(PsF) 720p 60/50/25/24 Resolution 1080i 1035i 625/525 line DVI video output Number Connector DVI-I Standard DVI standard ：DVI1.0 800×600@60Hz 1680×1050@60Hz 1024×768@60Hz 1920×1080@60Hz Resolution 1280×1024@60Hz...
Page 55 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor 1600×1200@60Hz 1920×1080@50Hz 1280×720@50Hz VGA video output Number Connector DVI-I outlet VGA standard：R、G、B、Hsync、Vsync:0 to1Vpp±3dB (0.7V Video+0.3v Sync ) Standard 75 ohm black level：300mV Sync-tip：0V 800×600@60Hz 1680×1050@60Hz 1024×768@60Hz 1920×1080@60Hz 1280×1024@60Hz 1920×1200@60Hz Resolution 1366×768@60Hz 2048×1152@60Hz 1440×900@60Hz 2560×960@60Hz 1600×1200@60Hz...
Page 56 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor Power Supply 100VAC – 240VAC 50/60Hz Power 100W consumption Working -10°C～45°C temperature Storage 10%～90% humidity Specifications subject to change without prior notice. Page 54 of 56...
Page 57: Trouble Clearing
SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor Trouble Clearing In the process of installing or using, problems may be encountered. The user can try to clear the trouble by the following steps. If you still cannot solve the problem, you can contact the local dealer.
Page 58 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor I n d u s t r y S a l e s a n d S e r v i c e H o t l i n e : 4 0 0 - 6 2 8 6 - 9 5 9 深...
