Tait TMAA 10-02 Installation Instructions

Introduction
The TMAA10-02 handset provides the user with
privacy and also improves the audio quality in noisy
environments. The handset uses a dynamic microphone
capsule, therefore control heads must support dynamic
microphone operation. For example, TMAA02-06
(support kit for dynamic microphones) must be fitted to
TMAC20-0T.
When your radio receives a call and the handset is
mounted in its locking cradle, the radio unmutes and
you can hear the call from your radio's internal speaker
and from any connected remote speaker.
If you remove the handset from its cradle when you
receive a call, the radio unmutes and you can hear the call
from your radio's internal speaker, from any connected
remote speaker and from the handset earpiece.
Using private handset mode, the radios internal and external speakers are muted and
the call can only be heard from the handset earpiece.
Installation
Installing the TMAA02-06 Support Kit for Dynamic Microphones
Install this kit if necessary – refer to the TMAA02-06 installation instructions provided
with the TMAA02-06 kit.
Handset Wiring
The circled numbers in the following instructions refer to items in the diagram on the
following page.
1. Drill a hole in the chosen mounting surface for the radio to handset cord and pass
the cord through the hole.
2. Prepare the radio to handset cord, as follows.
Cut the radio to handset cord to the required length.
Strip away about 60mm (2 inches) of the cable outer sheath on the end without
a connector.
Cut off the exposed orange, red, black and bare wires.
Strip about 6mm (0.2 inches) of the coating off each of the five remaining wires.
402-00009-01
TMAA10-02 Handset Installation Instructions

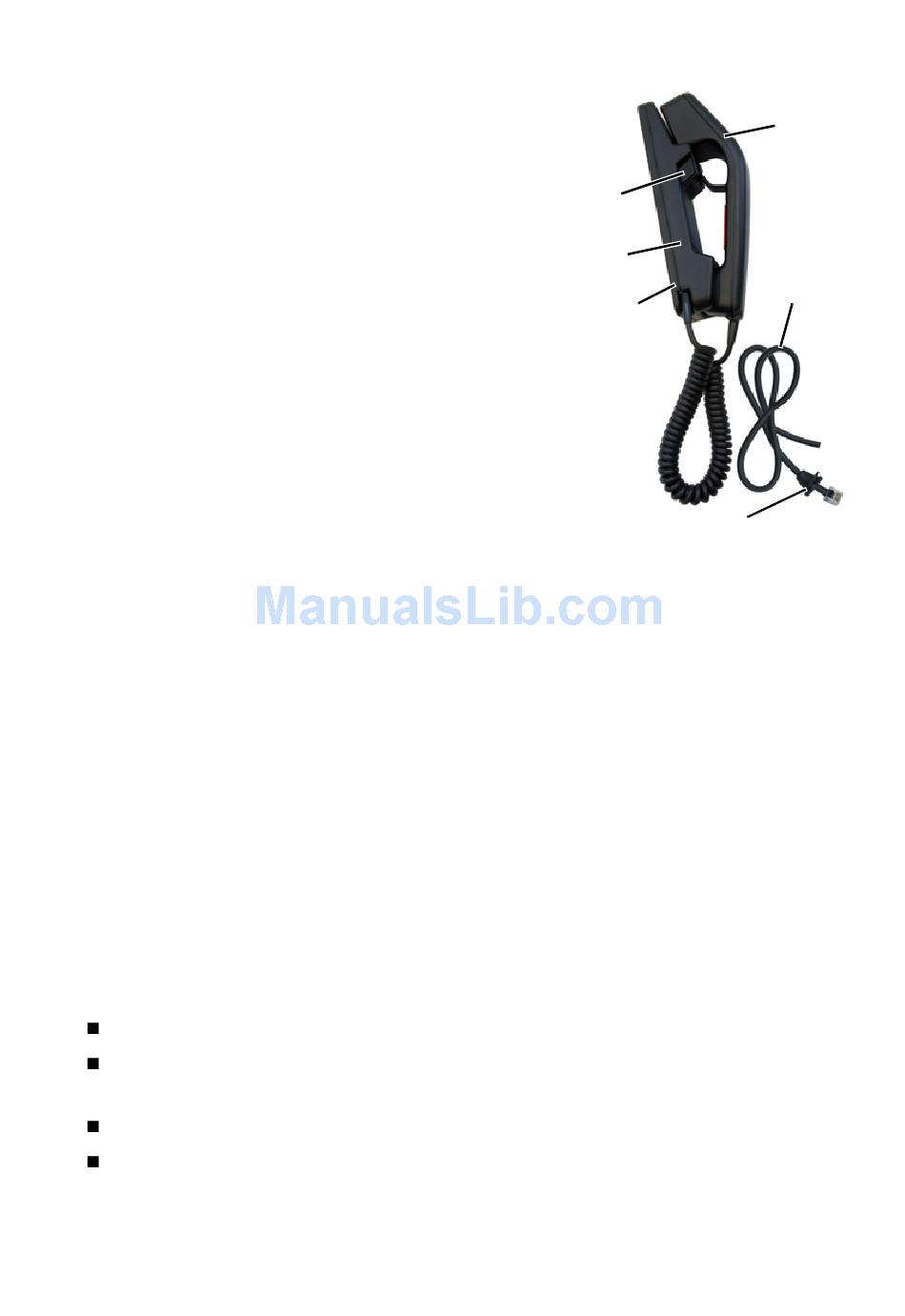

push-
button
locking
cradle
mounting
plate
grommet
handset
radio to
handset cord
Page 1
