Summary of Contents for DELSOL DSSB1D

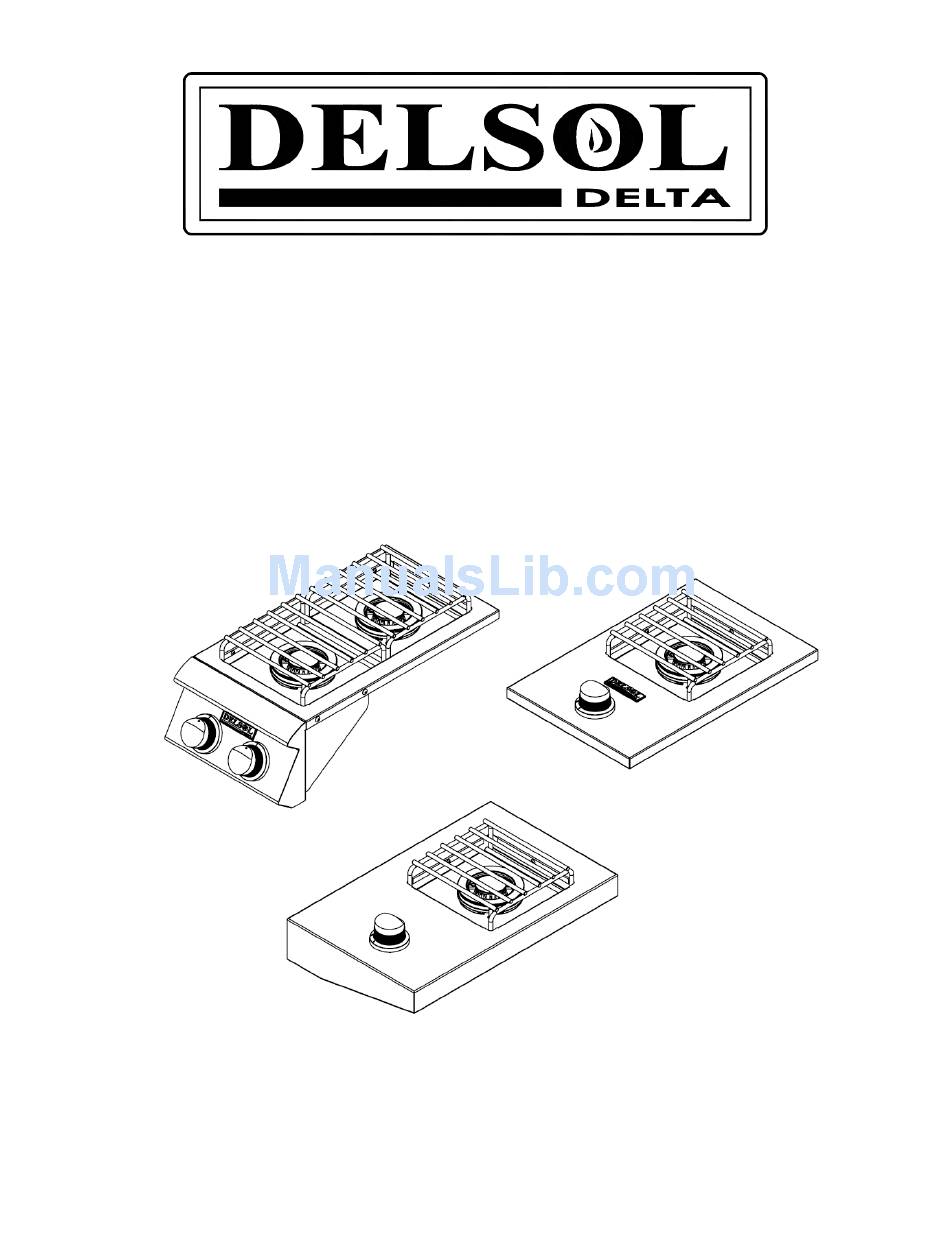

- Page 1 DELSOL S URNER INSTALLATION, USE & CARE MANUAL MODEL: DSSB1D DSSB2 DSSB1F PN 18917B 10/15...
- Page 2 This manual gives you easy to follow instructions for installing, operating and maintaining your DELSOL product. We recommend reading this manual carefully before your first use to ensure safety, proper care and operation. Keep this manual in a safe place for future reference.
-
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION WARNING! Read this manual carefully and completely before using your side burner to ensure proper operation, proper installation, proper servicing and to reduce the risk of fire, burn hazard and/ or other injury. D A N G E R D A N G E R S’il y a une odeur de gaz: If you smell gas:... -
Page 4: General Safety Requirements
9. Check flexible hoses for cuts and wear that may affect the safety before each use. 10. Never use the side burner in a windy area. 11. The pressure regulator and hose assembly supplied with the DELSOL Side Burner must be used. Replacement pressure regulators and hose assemblies must be those specified by DELSOL. - Page 5 GAS SAFETY REQUIREMENTS Each appliance is set and tested at the factory for the type of gas supply to be used. Identify the type of gas, either Natural Gas or LP gas and make sure that the marking on the data plate (rating plate) matches the gas being supplied to the side burner.
-
Page 6: Lp Gas Hook-Up
LP GAS HOOK-UP DELSOL side burner for the use of LP gas comes equipped with its own regulator, which MUST NOT be removed. Install the factory-supplied hose and regulator assembly as shown. ” flare end of the hose to the side burner coupling using a ¾” open wrench. Do Connect the ”... - Page 7 ALWAYS CHECK FOR LEAKS AFTER CHANGING THE LP CYLINDER. (Page 6) THE HIGH PRESSURE LP REGULATOR (SOLD SEPARATELY) MUST BE USED WITHOUT ALTERATION. DELSOL side burners for the use of LP gas Typical Freestanding side burner gas hookup comes equipped with its own regulator, which MUST NOT be removed.
-
Page 8: Natural Gas Installation
NATURAL GAS INSTALLATION The installation must conform with local codes or, in the absence of local codes, with either the national Fuel Gas Code, ANSI Z223.1/NFPA 54, or CAN/CGA-B149.1, Natural Gas Installation Code or CAN/CGA-B149.2, Propane Installation Code. 1. This gas appliance and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at the test pressures in excess of 1/2 psi (3.5 kPa). - Page 9 Do not use any replacement regulator other than that specified by DELSOL. Use only pipe sealants that are approved for use with Natural and LP gases. An installer-supplied gas...
-
Page 10: Leak Test
Check to ensure that flexible hoses do not have any cuts and wear that may affect the safety before each use. Only the factory supplied hose and regulator must be used. Use only replacement regulator and hose assemblies specified by DELSOL. LEAK TEST 1) Prepare a leak testing solution of sudsy water by mixing in a spray bottle with half liquid soap and half water. -
Page 11: Locating The Side Burner
– DELSOL S LOCATING THE SIDE BURNER IDE BURNER This gas appliance is designed and certified for outdoor use only. Do not locate this side burner under overhead combustible surfaces. Do not operate the side burner inside a building, garage, recreation vehicle or any enclosed area. When choosing an area, consider exposure to wind, proximity to traffic paths and length of gas supply line. -
Page 12: Cutout Dimensions
– DELSOL SIDE BURNER CUT-OUT DIMENSIONS... -
Page 13: Operating Instructions
OPERATING INSTRUCTIONS BEFORE LIGHTING THE SIDE BURNER DO NOT ATTEMPT TO LIGHT THE SIDE BURNER IF YOU SMELL GAS. WARNING! IT IS CRITICAL THAT THE BURNERS ARE PROPERLY INSTALLED WITH THEIR ORIFICES. If not properly installed, it could lead to fire, potential damage to your side burner, bodily injury or death. -
Page 14: Cleaning And Maintenance
CLEANING & MAINTENANCE STAINLESS STEEL The DELSOL Side Burner is made of all welded stainless steel. It is non-rusting and non- magnetic. Never clean the stainless steel when it is hot. After the initial use, certain areas of the side burner may discolor. This is a normal discoloration caused by the intense heat given off by the burners. - Page 15 EXPLODED VIEW – DSSB1D...
- Page 16 SERVICE PARTS LIST – DSSB1D Number Part Number Description QTY. S23175 TOP COVER, 1 BURNER. S13908 GRATE, 9 X 9 S13197 DELSOL KNOB S13215 KNOB BEZEL S13196 DELSOL LOGO S13376 UPPER BURNER S13377 LOWER BURNER S16000 WIRE, IGNITER, 10" S12677 3/8 FLARE ½...
- Page 17 EXPLODED VIEW – DSSB2...
- Page 18 3/8 FLARE ½ FIP 90 DEG ELBOW COUPLING S15351 REGULATOR NG/LP S12618 ½ CLOSE NPT NIPPLE S12757 PIPE MANIFOLD SIDE BURNER, DOUBLE S23165Y FRONT PANEL S13197 DELSOL KNOB S13215 KNOB BEZEL S13196 DELSOL LOGO S15150 BURNER VALVE WITH FLAME THROWER S16000 WIRE, IGNITER, 10" S16001 WIRE, IGNITER, 15"...
- Page 19 EXPLODED VIEW – DSSB1F...
- Page 20 S23175 TOP COVER, 1 BURNER S13908 GRATE, 9 X 9 S13376 UPPER BURNER S13377 LOWER BURNER S13197 DELSOL KNOB S13215 KNOB BEZEL S23174 MANIFOLD MOUNTING BRACKET 3/8 X 10” FLEX TUBING W/ BRASS FLARE NUTS S12418 S12758 MANIFOLD PIPE, SINGLE...
- Page 21 This warranty does not apply to commercial use, or to products with altered or removed serial numbers. DELSOL shall not be liable for incidental, consequential, special or contingent damages resulting from its breach of this written warranty or any implied warranty.
-
Page 22: How To Obtain Service
HOW TO OBTAIN SERVICE For service, please contact your DELSOL dealer or call DELSOL direct at (800) 789-2206 or (562) 802-3488 or fax (562) 802-3391 Mailing address: DELSOL Grill 13259 East 166 Street Cerritos, CA 90703 Please provide: Model number ... - Page 23 Here Place Postage Here Customer Service ATTN: Warranty Department 13259 East 166 Street Cerritos, CA 90703 Fax no. (562) 802-3391...
