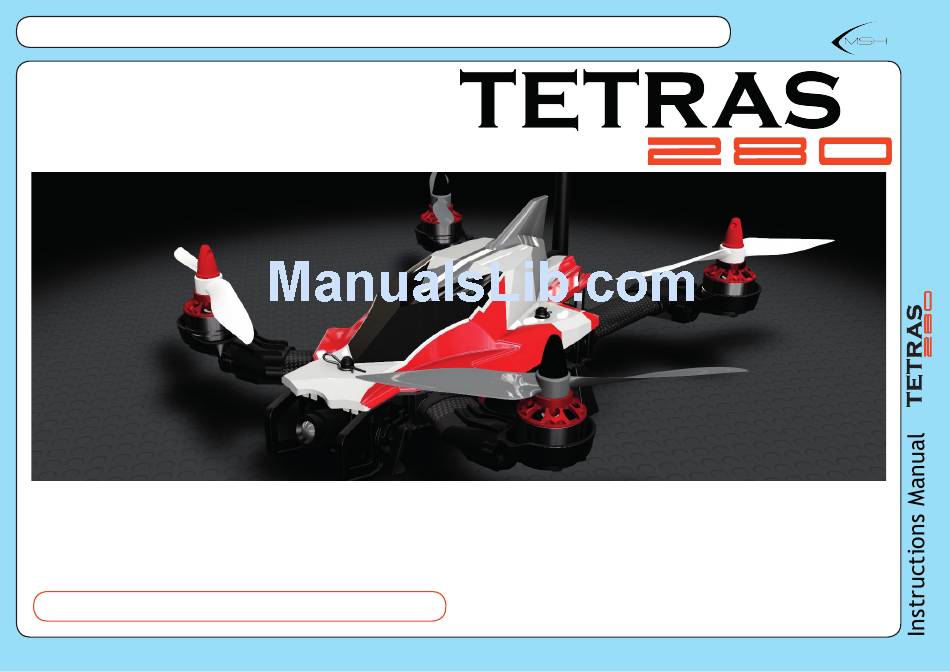

MSHELI TETRAS 280 Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Instructions Manual
Diagonal (motor to motor)................ 280mm
Motor available size...... up to 22xx
Propeller available size.... 5"- 6"
Overall height.... 100mm (including Canopy)
Release 1.0
Battery compartment size.... 110 x 40 (up to 4s 2200mah)
Always check on www.msheli.com for a more recent version of this manual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TETRAS 280 and is the answer not in the manual?

Questions and answers

Summary of Contents for MSHELI TETRAS 280

  • Page 1 Motor available size..up to 22xx Propeller available size..5”- 6” Overall height..100mm (including Canopy) Release 1.0 Battery compartment size..110 x 40 (up to 4s 2200mah) Always check on www.msheli.com for a more recent version of this manual...

  • Page 2: Tools Required For Assembly

    Novice R/C pilots should always seek advice from experienced pilots to obtain hints with assembly and for pre-fight adjustments. Note that a badly assembled or insuffciently adjusted of model is a safety hazard! MSHeli Srl In the beginning, novice R/C pilots should always be assisted by an experienced pilot Italy...
  • Page 3 PCB spec Flight controller Camera pads connections Integrated Video TX pads Buzzer module...
  • Page 4 PCB spec Integrated LC lters 5V BEC ESC pads Leds...
  • Page 5 Instructions Manual NOT INCLUDED Motor mount plastic ART. MSHQ28008 Hex screw M2x4 ART. MSHQ28020...
  • Page 6 Instructions Manual ESC 4 ESC 2 ESC 1 - ESC 3...
  • Page 7 Instructions Manual ESC 4 ESC 2 Front arm ART. MSHQ28009...
  • Page 8 Instructions Manual ESC 4 M2x6 Self tapping screw ART. MSHQ28021 ART. MSHQ28008 Do not fully thighten yet...
  • Page 9 Instructions Manual ESC 2 M2x6 Self tapping screw ART. MSHQ28021 ART. MSHQ28008 Do not fully thighten yet...
  • Page 10 Instructions Manual ESC 1 Rear arm ART. MSHQ28010...
  • Page 11 Instructions Manual ESC 3...
  • Page 12 Instructions Manual ESC 3 Do not fully thighten yet M2x6 Self tapping screw ART. MSHQ28021 ART. MSHQ28008...
  • Page 13 Instructions Manual ESC 1 Do not fully thighten yet M2x6 Self tapping screw ART. MSHQ28021 ART. MSHQ28008...
  • Page 14 Instructions Manual M2x6 Self tapping screw ART. MSHQ28021...
  • Page 15 Instructions Manual...
  • Page 16 Instructions Manual Canopy support ART. MSHQ28006 M2x6 Self tapping screw ART. MSHQ28021 ART. MSHQ28006...
  • Page 17 Instructions Manual Ball bearing 2x5x2,5 flanged ART. MSHQ28005 Camera support set ART. MSHQ28005 NOT INCLUDED M2x8 Self tapping screw ART. MSHQ28022 ART. MSHQ28005 M2x6 Self tapping screw ART. MSHQ28021 ART. MSHQ28005...
  • Page 18 Instructions Manual M2x6 Self tapping screw ART. MSHQ28021 ART. MSHQ28005 Carbon camera roll bar ART. MSHQ28005 Plastic camera bracket ART. MSHQ28005...
  • Page 19 Instructions Manual M2x8 Self tapping screw ART. MSHQ28022 ART. MSHQ28005...
  • Page 20 Instructions Manual M2x8 Self tapping screw ART. MSHQ28022 ART. MSHQ28005 Do not fully thighten yet Do not overtighten. Do not overtighten.
  • Page 21 Instructions Manual Frame spacers ART. MSHQ28017 Hex screw M2x4 ART. MSHQ28020 ART. MSHQ28017...
  • Page 22 Instructions Manual Carbon frame ART. MSHQ28004 M2x6 Self tapping screw ART. MSHQ28021...
  • Page 23 Instructions Manual M2x8 Self tapping screw ART. MSHQ28003 ART. MSHQ28022 Legs set ART. MSHQ28003...
  • Page 24 Instructions Manual Hex screw M2x4 ART. MSHQ28020 ART. MSHQ28017 M2x8 Self tapping screw ART. MSHQ28022 ART. MSHQ28005...
  • Page 25 Instructions Manual Foam canopy rings ART. MSH280023...
  • Page 26 Instructions Manual Control unit support ART.MSHQ28018 M2x4 ART. MSHQ28018 ART. MSHQ28020...
  • Page 27 Instructions Manual Hex screw M2x4 ART. MSHQ28020 ART. MSHQ28018 NOT INCLUDED...
  • Page 28 Instructions Manual Canoply clip ART.MSHQ28007 Canopy ART.MSHQ28013 Red ART.MSHQ28014 Yellow ART.MSHQ28015 Orange ART.MSHQ28016 Clear...
  • Page 29 Instructions Manual - Rx and video Tx NOT INCLUDED...
  • Page 30 Instructions Manual - Camera and flight controller ESC cables ART.MSHQ28019...
  • Page 31 Instructions Manual - Battery NOT INCLUDED Velcro strap ART.MSHQ28011...
  • Page 32 Instructions Manual - Led setup...
  • Page 33 Instructions Manual Tighten completely Tighten completely 0° motor inclination 10° motor inclination...
  • Page 34 Instructions Manual NOT INCLUDED Be careful ! please check your setup before installing propellers.
  • Page 35 Instructions Manual - Servo camera mount kit - Optional Canoply clip ART.MSHQ28002 Ball M2x4.8 ART.MSHQ28002 ART. MSH41009 M2 Nut ART.MSHQ28002 ART. MSH41119 Hex screw M2x4 ART.MSHQ28002 ART. MSHQ28020 NOT INCLUDED...
  • Page 36 Instructions Manual - Servo camera mount kit - Optional Ball M2x4.8 ART.MSHQ28002 ART. MSH41009...
  • Page 37 Instructions Manual MSHeli s.r.l. Uboldo (VA) ITALY...
