Hercules Prophetview 920 Pro User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

© 2003 Guillemot Corporation S.A., rue du Chêne Héleuc, 56910 Carentoir, France (414 196 758 R.C.S. Rennes)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Prophetview 920 Pro and is the answer not in the manual?

Questions and answers

Summary of Contents for Hercules Prophetview 920 Pro

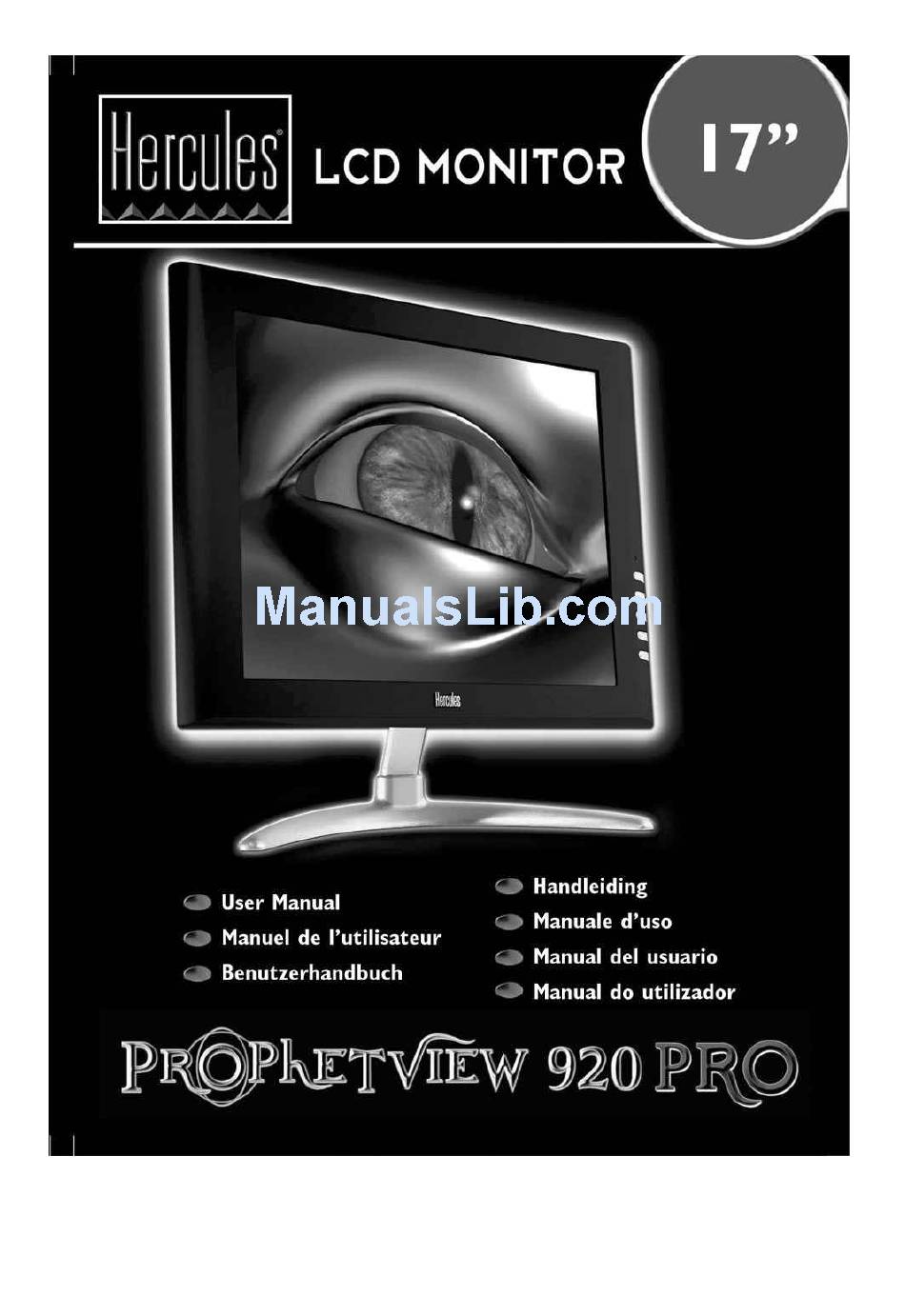

  • Page 1 © 2003 Guillemot Corporation S.A., rue du Chêne Héleuc, 56910 Carentoir, France (414 196 758 R.C.S. Rennes)

  • Page 5: Table Of Contents

    CONTENTS FEATURES ........................2 RECOMMENDED USE ...................... 3 CONNECTING YOUR PROPHETVIEW 920 PRO TO A PC..........4 DRIVER INSTALLATION....................5 4.1. Driver installation for Windows 98................5 4.2. Driver installation for Windows Millennium ..............5 4.3. Driver installation for Windows 2000................6 4.4.

  • Page 6: Features

    The HERCULES Prophetview 920 Pro is a high quality, 17-inch TFT-LCD (Thin Film Transistor – Liquid Crystal Display) monitor that works in conjunction with VGA graphics boards. Your Prophetview 920 Pro offers a large display area and is suitable for use as a 19-inch class monitor, at a recommended resolution of 1280x1024 pixels.

  • Page 7: Recommended Use

    For optimum performance, please note the following when setting up and using your Prophetview 920 Pro: Do not open up your Prophetview 920 Pro. Opening or removing the cover may expose you to dangerous shock hazards or other risks. Warning: warranty is void if the monitor has been opened.

  • Page 8: Connecting Your Prophetview 920 Pro To A Pc

    3. CONNECTING YOUR PROPHETVIEW 920 PRO TO A PC Remove your Prophetview 920 Pro from its packaging along with the various different elements required for installation: TFT-LCD monitor AC power adapter Power cord Installation CD-ROM - Switch off your computer.

  • Page 9: Driver Installation

    4. DRIVER INSTALLATION 4.1. Driver installation for Windows 98 Windows will display an Add New Hardware Wizard dialog box informing you that the system has found a Plug and Play Monitor. - Insert the installation CD-ROM into your CD-ROM drive. - Click on Next.

  • Page 10: Driver Installation For Windows 2000

    The wizard will then prompt you to designate an optional search location. - Enable the CD-ROM drives option. - Insert the installation CD-ROM into your CD-ROM drive. If the Prophetview 920 Pro installation menu appears: - Close it by clicking on . - Click on Next.

  • Page 11: Driver Installation For Windows Xp

    The drivers will be installed automatically after a few seconds. If the drivers are not installed automatically: - Click on Next. If the Prophetview 920 Pro installation menu appears: - Close it by clicking on . Windows may display a Hardware Installation warning.

  • Page 12: Osd Menu Functions

    5. OSD MENU FUNCTIONS 5.1. OSD buttons The OSD menu allows you to apply customized settings to your display. The OSD buttons have the following functions: Default function Auto-adjust. OSD function Selects OSD icon above. Default function Displays the OSD main menu. OSD function Selects OSD icon below.

  • Page 13: Main Menu

    5.4. Main menu Press the button to display the OSD main menu. The OSD menu automatically saves any changes and disappears if no button is pressed within 10 seconds. Adjusts brightness. Adjusts screen contrast. Adjusts the horizontal image position. Adjusts the vertical image position. Adjusts the focus of the display.
  • Page 14 High temperatures mean cool colors (blue, green, purple), whereas low temperatures mean warm colors (red, yellow, orange). Four settings are available: USER (customized adjustment of the options), 9300K (screen image is bluish), 6500K (screen image is reddish) and OFFICE (optimized display for office use).

  • Page 15: Hardware Options

    6.2. Wall mounting Your Prophetview 920 Pro can be attached to a wall or an articulated arm to free up desk space (only 28mm deep). - Switch off your computer and Prophetview 920 Pro and disconnect the power cords.

  • Page 16: Technical Specifications

    7. TECHNICAL SPECIFICATIONS LCD MODULE Size: 17” (43.2cm) Display type: Color TFT LCD Active Matrix Number of pixels: 1280x1024 Color depth: 16.2 million colors Pixel pitch: 0.264x0.264mm Brightness: 250Cd/m Contrast ratio: 430:1 Response time: 20ms Backlight unit: 4 CCFL lamps CABINET Color: Black fashionable design...

  • Page 17: Troubleshooting

    - Use the OSD menu to increase or decrease HORIZONTAL and VERTICAL POSITION. - Make sure that your system’s display settings are compatible with your Prophetview 920 Pro. (Please refer to your graphics board or operating system manuals to change the resolution or refresh rate.)

  • Page 18: Technical Support

    Hercules product support, who will indicate the procedure to follow. In the event that, following diagnosis, Hercules product support asks you to return the product, a return authorization number will be provided. This number must be displayed on your return package, which must be sent with delivery prepaid.

  • Page 19: Declaration Of Conformity

    Hercules Technologies reserves the right to terminate this license in the event of failure to comply with any of the terms or conditions laid out in the present Agreement. On termination, all copies of the Software shall immediately be returned to Hercules Technologies; the purchaser remaining liable for any and all resulting damages.
  • Page 20 16/16 – User Manual...
