Quick & Easy to use
Full 1080P Playback
Network Connection
UserManual
Network

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kaiser Baas K1000

Summary of Contents for Kaiser Baas K1000

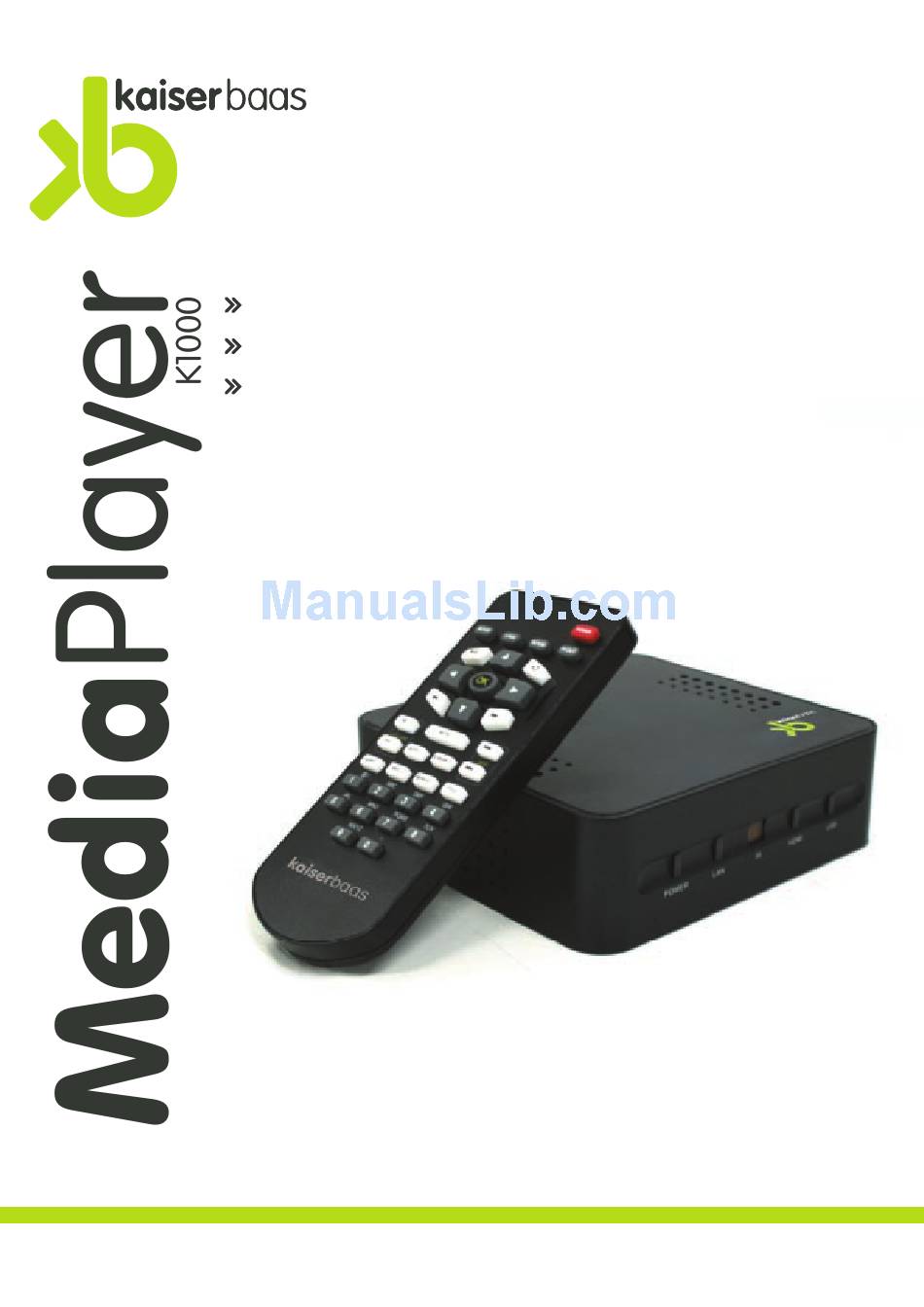

  • Page 1 Quick & Easy to use Full 1080P Playback Network Connection UserManual Network...

  • Page 2: Table Of Contents

    MediaPlayer K1000 Contents Product Features Safety Precautions Product Specifications Descriptions/ Contents Assembling Remote Control Part Descriptions 9-10 Remote Controller 11-13 Physical Connections USB Host Connection 15-18 Network Connection setup 98/ME 18-22 Network Connection setup 2000 22-26 Network Connection setup XP...

  • Page 3: Product Features

    1. Product Features HD Playback (including MKV) The K1000 can playback high definition video (up to 1920 x 1080p) and HD still images. High definition file formats such as .TR, .TP, .TRP, .ASF, .VOB and .MKV are supported. It also supports standard definition video codecs such as MPEG 1-2-4, DivX and Xvid.

  • Page 4: Safety Precautions

    Fire During the use of the product, if you detect smoke or an unusual smell, turn off the product and disconnect the adapter immediately, and request Assistance from Kaiser Baas Children / Do not let children or infants touch the product. This may cause an injury or damage to the product.

  • Page 5: Product Specifications

    MediaPlayer K1000 3. Product Specifications Specification MPEG-1, MPEG -2, MPEG-4, WMV9(MP@HL) , MPEG-2 HD TS MPEG -4 ASP L5(Without GMC), DVD -VIDEO AND Superbit DVD H.264(BP@L3, MP@4.0, HP@L4.0), VC -1(MP@HL, AP@L3) Video MKV(H.264+AAC+1080p, H.264+AC3+1080p, H.264+MP3+1080p, Codec Xvid+AAC+1080p, Xvid+A C3+1080p, Xvid+MP3+1080p, Dvix5+AAC+1080p, Dvix5+AC3+1080p, Dvix5+MP3+1080p) DivX Video (3.11, 4.x, 5.x) XviD(except GMC...

  • Page 6: Descriptions/ Contents

    MediaPlayer K1000 4. Descriptions & Product Contents Product Packing List K1000 Remote Controller A/V Cable Power Adapter User Guide UserManual...

  • Page 7: Assembling Remote Control

    MediaPlayer K1000 4-1. Assembling Remote Control At the bottom of the Remote control there is a battery bracket. Pull out the battery bracket in the direction shown here. Keep the battery bracket side with ‘+’ top. Insert a new Battery in the bracket, ‘+’ side up.

  • Page 8: Part Descriptions

    MediaPlayer K1000 4-2. Part Descriptions Product part Function Description Power Input Connect the provided AC adapter to this DC IN Terminal (DC 5.5V/3A) Terminal An external HDD, ODD, memory stick etc. can be connected USB HOST Port to this port The product can be connected to a digital TV with a HDMI cable.

  • Page 9: Remote Controller

    MediaPlayer K1000 5. Remote Controller UserManual...

  • Page 10: Remote Controller

    MediaPlayer K1000 5-1. Remote Controller Specification for Remote control Power Turn on or Turn off power S etup Enter into Setup menu, or finishing setting up. Lang Choose the language you want Adjusts the brightness, contrast, and colour. It selects a picture property Picture according to the following order.

  • Page 11: Physical Connections

    MediaPlayer K1000 6. Physical Connections Power adapter connection P lease connect power adapter to K1000 MediaPlayer DC jack. Picture in the right table is for your reference. Note: Only use the power adapte r provided with the product. 6-1. Connection with Ordinary (Composite) TV Output Connect Player and your TV using the yellow video cable.

  • Page 12: Connection With Hdmi Output

    Connect the MediaPlayer and your TV with HDMI cable, Turn on the MediaPlayer and your TV. Please confirm your TV is on HDMI mode, then set the K1000 to HDMI mode by pressing the “TV out” button of the remote controller several times until the picture appears. The HDMI light on the front of the unit should be illuminated 6-3.

  • Page 13: Connection With Coaxial Output

    When you have a multi channel decoder/amplifier with coaxial input, you can enjoy 5.1CH high quality sound through a coaxial cable. The illustration above shows how to connect with a coaxial cable. You will need to set the K1000 to digital output in the setup menu. 6-5. Connection with Optical output When you have a multi channel Decoder /amplifier with optical input, you can enjoy 5.1CH...

  • Page 14: Usb Host Connection

    K1000 7. USB Host Port connection 7-1 Connect External Storage or USB Device Locate ‘USB HOST’ port on rear of K1000 and connect your USB device. (USB Flash drive, external hard drive etc.) 7-2 USB Disk setup -Power on K1000 and Television -When the Main Menu appears, choose the ‘...

  • Page 15: Network Connection Setup 98/Me

    Connection using a HUB (or internet Router) For the connection to a hub or internet router, use a direct cable, Connect the LAN port of the K1000 to a LAN port of the hub or Internet router using a LAN cable.
  • Page 16 MediaPlayer K1000 8. Network based data sharing with a PC 8-2. Data Sharing setup for Windows 98/ME [1]. Select a folder you want to share and select “Sharing” menu using the mouse right button [2]. Check “Sharing” and type “[Share Name]. Example: “my movie”...
  • Page 17 MediaPlayer K1000 8-2. Data Sharing setup for Windows 98/ME [3]. If the folder is shared, you will see a hand mark on the folder icon. My Movie [4]. Go to “Control Panel > Network” and , among the displayed items, select “ TCP/IP > LAN card name ”...

  • Page 18: Network Connection Setup 2000

    MediaPlayer K1000 8-2. Data Sharing setup for Windows 98/ME [6]. Configure K1000’s network environment. After pressing “SETUP” buttom, select “IP SETUP” among the “NETWORK” setup items and IP address and subnet mask. Example. IP Address : 192.168.1.10 / Subnet Mask : 255.255.255.0 After finishing the setup, save the setup value by pressing the “Setup”...
  • Page 19 MediaPlayer K1000 [3]. In the above screen, click on “Permissions” and check an account exists. If there isn’t one add one by clicking on “Add” button. WARNING Set permissions to Read - Allow [4]. If the folder is shared, you will see a hand mark on the fol der icon.
  • Page 20 [7]. Go to “Control Panel > Network and Dial up Connections”. Select “Local Area Connection” and open its property window by using the mouse right button and selecting “Properties”. If there are more than two “Local Area Connections”, select the LAN card WARNING that is connected to the MediaPlayer K1000. UserManual...
  • Page 21 MediaPlayer K1000 [8]. Among the displayed items, double -click “Internet Protocol(TCP/IP)”. [9]. After checking “Use the following IP address ”, E nter your IP address and subnet mask. Then click on “OK”. Example: IP address :192.168.1.3 / Subnet Mask: 255.255.255.0 If your PC already has “Obtain IP address automatically”...

  • Page 22: Network Connection Setup Xp

    MediaPlayer K1000 [10]. Configure MediaPlayer K1000’s network environment. After pressing “Setup” Button, select items and set this to manual setup. Then enter your IP address and subnet mask. Example. IP Address : 192.168.1.10 Subnet Mask: 255.255.255.0 After finishing the setup , save the setup value by pressing the setup button once again.
  • Page 23 MediaPlayer K1000 8-3. Data Sharing setup for Windows XP WARNING “Share Name ” should be less than 12 Letters [3]. If the folder is shared, you will see a hand mark on the folder icon MY Movie [4]. Go to “Control Panel > Administrative Tools > Computer Management > Local Users and Group ”...
  • Page 24 If you cannot see the “Network connections”, click on “Switch to Classic View” on the upper left corner WARNING If there are more than two “Local Area Connections”, Select one for the LAN card that is connected to the MediaPlayer K1000. UserManual...
  • Page 25 MediaPlayer K1000 8-3. Data Sharing setup for Windows XP [7]. Among the displayed items, double -click “Internet Protocol (TCP/IP)” After checking “Specify an IP address” enter your IP address and subnet mask. Then click on “OK”. Example. IP address: 192.168.1.3 Subnet Mask: 255.255.255.0.
  • Page 26 8-3. Data Sharing setup for Windows XP After selecting off, click on “ OK ”. [8]. Configure MediaPlayer K1000’s network environment. After pressing “Setup” button, select “IP SETUP” among the “NETWORK” setup items and set this to manual Setup. Then enter your IP address and subnet mask.

  • Page 27: Network Connection Setup Vista

    MediaPlayer K1000 8-4. Data Sharing setup for Windows Vista Before running the driver , make the system default as following. Press ‘Windows icon ’ and go to ‘My Computer” Then choose ‘ Network ’ On the window that opens choose ‘Network and Sharing Centre’ on the top bar.
  • Page 28 MediaPlayer K1000 8-4. Data Sharing setup for Windows Vista 3)When the window appears input the following settings: Network discovery: on File sharing: on Public folder sharing: on 4) Open the ‘Windows’ icon in the bottom left and go to ‘Control Panel’...
  • Page 29 MediaPlayer K1000 8-4. Data Sharing setup for Windows Vista Choose ‘power options’ from the list . Click ‘ Choose when to turn off the display’ , on the left of the window Enter the page then set the default power management setting as following: Choose screen turn off time, click ‘...
  • Page 30 MediaPlayer K1000 8-4. Data Sharing setup for Windows Vista 4). Set registry value with thefollowing steps. Click on the ‘Windows’ icon. In the search bar at the bottom enter ‘Regedit’. When the program appears double click on it. click ‘ HKEY_LOCAL_MACHINE ’ click ‘ SYSTEM ’, ’Currentcontrolsetting’,’Control’...
  • Page 31 MediaPlayer K1000 8-4. Data Sharing setup for Windows Vista Find LSA folder, double click the ‘ LMcompatiblitylevel’ and set the value as ‘3’ After the above settings, make sure there are no share folders on your computer, then Run the driver.
  • Page 32 MediaPlayer K1000 8-4. Data Sharing setup for Windows Vista When following page appears 1) Double click the driver. Click ‘ Add to share’ , and Click ‘ Update’ then hit ‘Close”. UserManual...
  • Page 33 MediaPlayer K1000 8-4. Data Sharing setup for Windows Vista 2) Power managements settings. Enter into the control panel, Enter ‘Power options’ in Classic page, click ‘ Choose when to turn off the display’ then set as following. ‘Turn off the display time: never.’...
  • Page 34 MediaPlayer K1000 8-4. Data Sharing setup for Windows Vista 4) Setting the Registry value to ‘1’ Enter the Registry as described before ‘Windows’ Enter ‘ Regedit’ in Search bar. Click ‘HKEY_LOCAL_MACHINE’ ‘ SYSTEM ’ , ‘controlsetting’ ,’control’ , ‘LSA’ double click the ‘ LMcompatiblitylevel ’ and change the value from ‘3’ to ‘ 1 ’...

  • Page 35: Player's System Setting

    MediaPlayer K1000 9. MediaPlayer system setting If it is the first time you power on the player, the first image to appear should be the language choice menu, If this page doesn’t appear, or nothing shows up in 20 seconds after you power on your MediaPlayer, press the ‘TV OUT ’...
  • Page 36 9-3. Setup Systems 9-3-1 A/V(Audio / Video Setting) 1. Audio Out The K1000 has analog and digital audio output options. Choose analog output through 2Ch Stereo output or digital through HDMI, Optical or Coaxial. 2. Display Type You can choose among following options to find your desired TV Aspect Ratio >4:3 letterbox: This aspect ratio displays the content based on its horizontal length.
  • Page 37 MediaPlayer K1000 5. HDMI output setting When choosing HDMI, the following 5 resolutions are available: > 576i > 576p > 720p > 1080i > 1080p UserManual...
  • Page 38 MediaPlayer K1000 9-3-2. Miscellaneous (Misc). 1. Language You can choose Languages with this option. There are English, Italian, Spanish, Russian, French Deutsch, Czech, Portuguese, Korean and Simple Chinese 2. Subtitle Size Select a subtitle size from: Small, Big and None 3.
  • Page 39 MediaPlayer K1000 1. Wired ‘ >’ to choose ‘wired’ setting. You can set your Local network by ‘Auto ’ or by ‘Manual’. When ‘Auto ’, is chosen, player detects available local networks to get an IP assigned by the DHCP server and connects it automatically. If you want set LAN manually, you need give the player a fixed ‘IP ’...

  • Page 40: Movie Play

    MediaPlayer K1000 10. Movie Play MediaPlayer can play the following files: AVI, MPG, MPEG, DAT, VOB, TP, TRP, WMV, ISO etc, Playback order and method are determined by a selected repeat mode Buttons and Function for movie playback Remote Button...

  • Page 41: Music Play

    MediaPlayer K1000 11. Music Play During the music playback mode, you can search folder and files. Select a new file and press the “OK” button and the selected file will be played. Buttons and Function for music playback Remote Button...

  • Page 42: Photo Play

    MediaPlayer K1000 12. Photo Play To play a continual slideshow of your picture files select the picture that you want to play first then press the ‘PLAY’ button. Pressing the ‘OK’ button will only display the picture file you have selected.

  • Page 43: Virtual Dvd

    The K1000 media player can play raw DVD files you have copied onto your external hard drive. The K1000 can play virtual DVDs as if playing the DVD on a DVD player. All DVD menus and content are fully intact. This is a great way of preventing damage to your original discs or watch a TV series that has multiple discs without disc swapping.

  • Page 44: Firmware Update

    2. Copy the latest firmware to an external storage device. 3. After copying has finished, connect the external storage to the MediaPlayer K1000, Find the firmware file by navigating the “USB Disk” menu. Select the file and run it by pressing “OK”.

  • Page 45: Troubleshooting

    Q: While playing a movie there is no audio output A: It depends on which audio connection you are using on the K1000 media player. If you are using the HDMI connection the audio will be output through this connection and audio playback will play through the speakers on the TV set.
  • Page 46 For information on New Products and Support visit: www.kaiserbaas.com...
