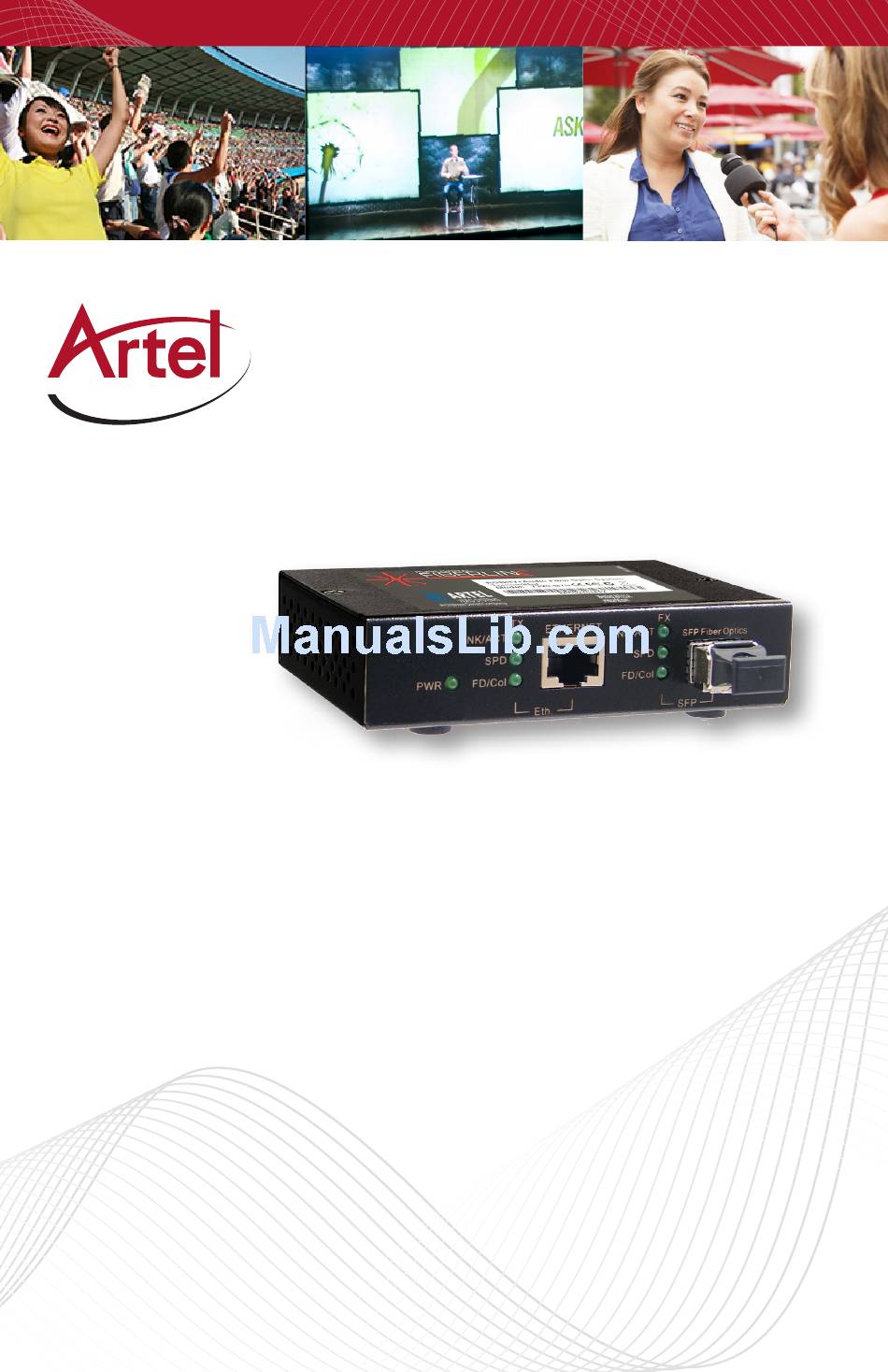

- Page 1 MANUAL FiberLink 5100 Series 10/100/1000 Base-T Ethernet over one or two single mode or multimode fibers. Installation and Operations Manual WWW.ARTEL.COM...
-
Page 2: Table Of Contents
Accessories and Related Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 FiberLink 5100 Series User’s Manual... -
Page 3: Welcome
FiberLink 5100 Series Welcome Thank you for purchasing Artel Video Systems’ FiberLink 5100 Series . The 5100 Series is used to transmit 10/100/1000 Base-T Ethernet over one or two single mode or multimode fiber optic cores . The FiberLink 5100 Series automatically adapts to the highest level of perfor- mance supported by the device connected to the Ethernet port . -
Page 4: Technical Specifications
Operating Temperature Range 0 to +40º Celcius Operating and Storage Humidity 10% to 90% relative humidity (non-condensing) Weight 2 pounds Dimensions 4 .25” x 3 .14 “ x 1 .02” (108mm x 80mm x 26mm) FiberLink 5100 Series User’s Manual... -
Page 5: Operating Loss Budgets
*Distance specifications are approximate, based upon connecting a 5100 Transmitter to a 5100 Receiver, and are not guaranteed . Artel cannot estimate or guarantee operating loss budgets when the 5100 Series is used with other, non-FiberLink devices . Operating loss budget must not be exceeded . -
Page 6: Installation Instructions
FiberLink 5100 Series Installation Instructions The FiberLink 5100 Series of fiber optic transmission systems are ready for immediate use and do not require any special tools or equipment . However, an Optical Power Meter, such as the FiberLink 6615, can be useful in determining optical loss budgets during your systems design and maintenance . -
Page 7: Indicator Leds
FX LEDs Status Definition Link Optical fiber is linked Blink Optical fiber is active Speed is at 1Gbps Blink Speed is at 100Mbps Speed is at 10Mbps FD/COL Full-Duplex Blink Collision occured Half-Duplex FiberLink 5100 Series User’s Manual Page 7... -
Page 8: Operating Pointers
Customer Service Department for further assistance . If you suspect your problem is caused by the optics or the fiber optic cable, and you have an optical power meter, please take the appropriate measurements prior to contacting support . FiberLink 5100 Series User’s Manual... -
Page 9: Maintenance And Repairs
FiberLink 5100 Series Maintenance and Repairs The FiberLink 5100 Series has been manufactured using the latest semiconductor devices and techniques that electronic technology has to offer . They have been designed for long, reliable and trouble-free service and are not normally field repairable . -
Page 10: Accessories And Related Products
. FiberLink 6654 Dual Wavelength Single Mode Light Source The FiberLink Light Source offers a laser output at selectable wavelengths, allowing for convenient, on- site testing of fiber networks during construction and maintenance procedures . FiberLink 5100 Series User’s Manual... - Page 11 FiberLink 5100 Series FiberLink 5100 Series User’s Manual Page 11...
- Page 12 • Solutions for most video, audio, and data formats • Multimode and single mode versions • Designed and manufactured in the USA • Training and installation support available • 24x7x365 technical support available Artel Video Systems Corp. 5B Lyberty Way, Westford, MA 01886 USA T: 978-263-5775 F: 978-263-9755 All specifications subject to sales@artel.com...
