WE6 Windfoil Electric
6-ft Covered Walking Sprayer
Assembly, Parts and Operator's Manual
Rogers Sprayers Inc.
R o g e r s
S p r a y e r s
141 - 105th Street East
Saskatoon, SK S7N 1Z2
Canada
Version WE-1103
Toll Free 1-888-975-8294
I n c .
Phone: (306) 975-0500
Fax: (306) 975-0499
Email: info@rogerssprayers.com
Web: www.rogerssprayers.com
www.rogerssprayers.com
Advertisement
Table of Contents
Summary of Contents for Rogers WE6 Windfoil Electric

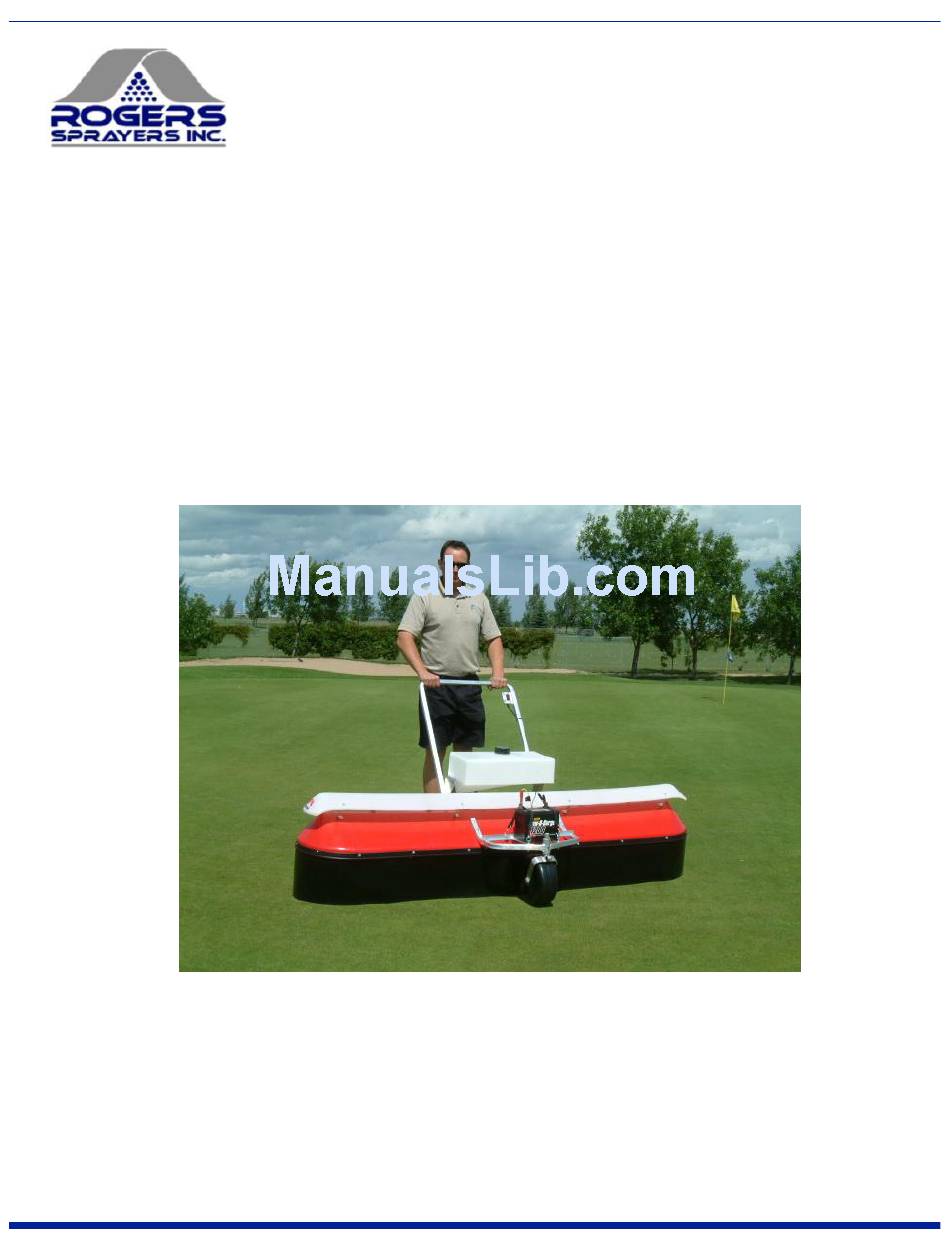

- Page 1 141 - 105th Street East Phone: (306) 975-0500 Saskatoon, SK S7N 1Z2 Fax: (306) 975-0499 Canada Email: info@rogerssprayers.com Web: www.rogerssprayers.com WE6 Windfoil Electric 6-ft Covered Walking Sprayer Assembly, Parts and Operator’s Manual Version WE-1103 Rogers Sprayers Inc. Toll Free 1-888-975-8294 www.rogerssprayers.com...
-
Page 2: Table Of Contents
Last Check ............................8 OPERATION ............................9 MAINTENANCE ............................9 DRAWINGS AND REPLACEMENT PARTS………………………………………………………………….10 Tow Hitch (optional)………………………………………………………………………………………..10 WE Frame Assembly ........................ ……11 Shroud Assembly…………………………………………………………………………………………..12 Flowmonitor Assembly........................13 Plumbing Assembly .........................14 Electrical Assembly .........................15 CE Declaration of Conformity……………………………………………………………………………16 Rogers Sprayers Inc. Toll Free 1-888-975-8294 www.rogerssprayers.com... -
Page 3: Safety
0.4 US gal/min (1.5 litres/min) . Only conventional 80° tips are recommended for the Windfoil WE series. Wider angle tips (110°) have a wider pattern than 80° and will hit the curtain at the ends of the boom and are not recommended. Rogers Sprayers Inc. Toll Free 1-888-975-8294 www.rogerssprayers.com... -
Page 4: Nozzles
Use clear water for all testing. Record the output from each nozzle. Replace nozzles that are more than 5% above or below the average reading, or has a visibly distorted pattern. Rogers Sprayers Inc. Toll Free 1-888-975-8294 www.rogerssprayers.com... -
Page 5: Application Rate Table, 12" Spacing
247.5 198.0 141.4 9.07 7.56 5.67 4.53 3.24 2.76 2.236 442.7 369.0 276.7 221.4 158.1 10.14 8.45 6.34 5.07 3.62 3.45 2.449 485.0 404.2 303.1 242.5 173.2 11.10 9.25 6.94 5.55 3.97 4.14 Rogers Sprayers Inc. Toll Free 1-888-975-8294 www.rogerssprayers.com... - Page 6 247.5 198.0 141.4 3702.60 3085.50 2314.13 1851.30 1322.36 9.76 2.236 442.7 369.0 276.7 221.4 158.1 4139.63 3449.69 2587.27 2069.82 1478.44 10.91 2.449 485.0 404.2 303.1 242.5 173.2 4534.74 3778.95 2834.21 2267.37 1619.55 11.95 Rogers Sprayers Inc. Toll Free 1-888-975-8294 www.rogerssprayers.com...
-
Page 7: General Maintenance
Whenever pesticides are changed, or before sprayer storage, clean sprayers thoroughly with a cleaning solution. The solution used depends on the chemical to be removed from the sprayer. Check the chemical label for cleaning instructions. Rogers Sprayers Inc. Toll Free 1-888-975-8294 www.rogerssprayers.com... -
Page 8: Sunshine
Thread one end of hose (1/2”FNPT) into bottom fitting on tank (if required). Insert other end into input on pump (left side), slide lock down to clamp into place. Set tank on brackets, studs in tank should line up with holes on brackets. Secure with ¼” nylock nuts. Rogers Sprayers Inc. Toll Free 1-888-975-8294 www.rogerssprayers.com... -
Page 9: Last Check
Avoid storage of your sprayer in direct sunlight for prolonged periods. Certain plastic parts on the Windfoil WE are not UV resistant. Keep the unit covered or stored indoors. Rogers Sprayers Inc. Toll Free 1-888-975-8294 www.rogerssprayers.com... -
Page 10: Drawings And Replacement Parts
28.8 105.1 47.7 146.8 66.6 71.4 32.4 113.1 51.3 154.8 70.2 Drawings and Replacement Parts See the following pages for a parts breakdown and accessories for your unit. Optional F111 Tow Hitch Assembly Rogers Sprayers Inc. Toll Free 1-888-975-8294 www.rogerssprayers.com... -
Page 11: We Frame Assembly
WE6 Frame Assembly Rogers Sprayers Inc. Toll Free 1-888-975-8294 www.rogerssprayers.com... -
Page 12: Shroud Assembly
Shroud Assembly Rogers Sprayers Inc. Toll Free 1-888-975-8294 www.rogerssprayers.com... -
Page 13: Flowmonitor Assembly
Flow Monitor Assembly (Part# 12728) Rogers Sprayers Inc. Toll Free 1-888-975-8294 www.rogerssprayers.com... -
Page 14: Plumbing Assembly
Plumbing Assembly Rogers Sprayers Inc. Toll Free 1-888-975-8294 www.rogerssprayers.com... -
Page 15: Electrical Assembly
Electrical Assembly Rogers Sprayers Inc. Toll Free 1-888-975-8294 www.rogerssprayers.com... -
Page 16: Ce Declaration Of Conformity
Rogers Sprayers Inc. Toll Free 1-888-975-8294 www.rogerssprayers.com... - Page 17 Rogers Spra yers Inc. 141 - 105th Street East Saskatoon, SK S7N 1Z2 Canada Phone: (306) 975-0500 Fax: (306) 975-0499 Email: info@rogerssprayers.com Web: www.rogerssprayers.com Rogers Sprayers Inc. Toll Free 1-888-975-8294 www.rogerssprayers.com...
