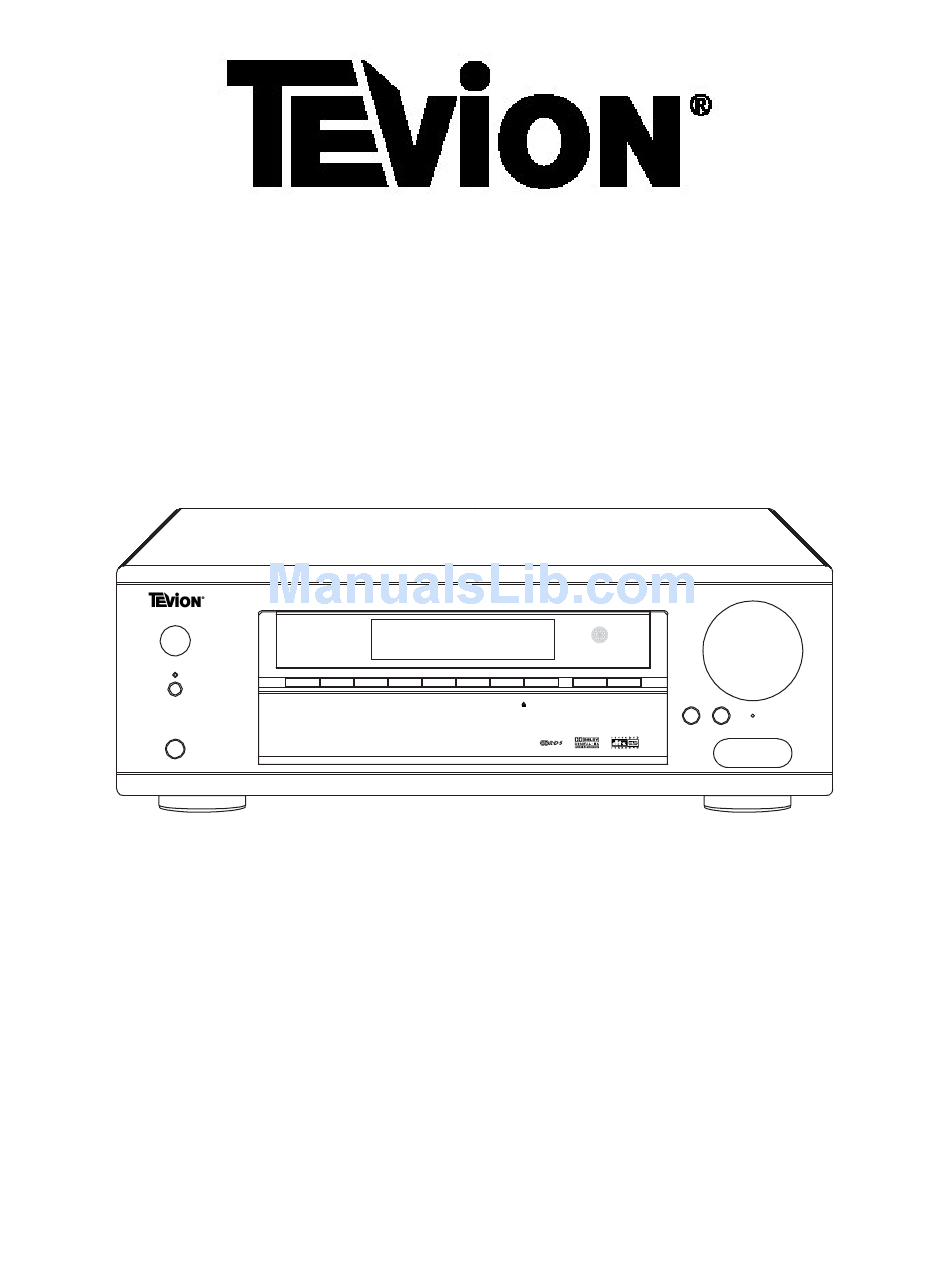

- Page 1 7.1 Channel Home Theatre Amplifier Users Manual MASTER VOLU ME DOLBY DIGITAL/DTS AV RECEIVER AVR-2005 POWER V IDEO 1 VIDE O 2 V IDEO 3 TUNER TAP E DIRECT IN DISPLAY INPUT MODE STAND BY BASS TREBLE P USH RESET VIDEO R A UDIO P HO NES...
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions………………………………………………………………………………………. I Important Safety Instruction………………………………………………………………………………………. 1 Before Use……………………………………………………………………………………………………………..3 Connection………………………………………………………………………………………………………….. 4 Antenna Connection……………………………………………………………………………………………… 4 Standard speaker setup for surround sound……………………………………………………………………. 5 Speaker connection……………………………………………………………………………………………….. 6 DVD player, Television (Monitor), etc. connection…………………………………………………………….. 7 Remote control unit……………………………………………………………………………………….………… 8 Front panel information…………………………………………………………………………………………,…. 9 Remote control information…………………………………………………………………………………………... -
Page 3: Important Safety Instructions
Important Safety Instructions " # $# % & " # $# % & " # $# % & " # $# % # . & & 0 & 1 # 1 " 3 & 1 # 1 & " # $# % & ! 6 7 ( 6 8 ) 6 9 : "... -
Page 4: Important Safety Instruction
IMPORTANT SAFETY INSTRUCTION CAUTION: READ THIS BEFORE OPERATING YOUR UNIT. 1. READ AND FOLLOW INSTRUCTIONS---All the safety and operation instructions should be read before the product is operated. Follow all operation instructions. 2. RETAIN INSTRUCTIONS---These safety and operation instructions should be retained for future reference. - Page 5 IMPORTANT SAFETY INSTRUCTION 12. CONTACT THE SERVICE DEPARTMENT SHOULD THE BELOW CONDITIONS EXIST— • When the power-supply cord or plug is damaged. • If liquid has been spilled, or objects have fallen into the product. • If the product has been exposed to rain or water. •...
-
Page 6: Before Use
BEFORE USE READ THIS BEFORE OPERATION BEFORE CONNECTION 1. Choose the installation location of your unit carefully. Caution Avoid placing it in direct sunlight or close to a source Turn off the power of all the equipment before making of heat. Also avoid locations subject to vibration and connections. -
Page 7: Connection
CONNECTION AM INDOOR LOOP ANTENNA FM INDOOR ANTENNA (included) To stand the antenna on a surface, fix the claw to the slot. If you live reasonably close to a transmitter and want to use the provided lead-type FM antenna, you will have to connect it direct to the “FM 75 ”... -
Page 8: Standard Speaker Setup For Surround Sound
CONNECTION Standard speaker setup for surround sound 1. TV or Screen 2. Front Left Speaker 3. Subwoofer 4. Center speaker 5. Front Right Speaker 6. Surround Left Speaker 7. Surround Right Speaker 8. Surround Back Left Speaker 9. Surround Back Right Speaker 10. -
Page 9: Speaker Connection
CONNECTION Connecting loudspeakers To avoid damaging the speakers with a sudden high-level signal, be sure to switch the power off before connecting the speakers. Check the impedance of your speakers. Connect speaker with an impedance of 8 ohms or more. The amplifier’s red speaker terminals are the + (positive) terminals and the black terminals are the –... -
Page 10: Dvd Player, Television (Monitor), Etc. Connection
CONNECTION Connecting video components When connecting video components such as DVD Audio connections: players, cable boxes, satellite receivers and televisions, Some video components are equipped with special digital you can use different types of cables depending on how audio outputs (i.e. DVD players). If your video the video component is equipped. -
Page 11: Remote Control Unit
REMOTE CONTROL UNIT By using the provided remote control unit, the receiver BATTERY INSTALLATION can be controlled from your listening position. To use the remote control unit, point it at the REMOTE SENSOR window of the receiver. Notes: Even if the remote control unit is operated within the effective range, remote control operation may not work if there are any obstacles between the unit and the remote control. -
Page 12: Front Panel Information
FRONT PANEL INFORMATION MASTER VOLUME DOLB Y DIGITAL /DT S AV RE CEI VE R AV R-20 0 5 P OW E R DV D VI DEO 1 VI DEO 2 VI DEO 3 TUNER TAPE DIRECT IN DISPLAY INPUT MODE STANDBY STATI ON B A S S... -
Page 13: Remote Control Information
REMOTE CONTROL INFORMATION MUTE POWER INPUT MODE TEST TONE MEMORY TUNER VIDEO 1 VIDEO 2 VIDEO 3 STATION TAPE TUNING TUNING BAND AUTO/ MANUAL ST/MONO DIRECT SELECT LFE TRIM VOLUME BASS TREBLE DELAY DYNAMIC TIME SETUP SURROUND SURROUND BACK MODE SUB ON/OFF... - Page 14 REMOTE CONTROL FUNCTION 1. Power Press this button to turn the unit into standby mode, push it again to turn off the unit. 2. Mute Press this button to mute the sound, push again to cancel the mute function. 3. Test Tone To balance speakers in Dolby Digital or Dolby Pro Logic modes.
-
Page 15: Rear Panel Information
REAR PANEL INFORMATION DVD-S IN V ID EO 1-S IN VIDEO-S OUT VI DE O D VD VI DE O 1 VI DE O 2 P r /Cr Pb /Cb OU C OA X. Manufactured under license from Digital Theater Systems, Inc. D VD IN U.S. -
Page 16: Basic Operation
BASIC OPERATION BASIC OPERATION 1 How to get PL IIx: After power on this unit P O W ER 1. Press the DOLBY PL IIx key on the front panel or on MA ST ER V O L UME D OLB Y DIGITA L/D T S AV RE CE IVER the remote. -
Page 17: Radio Operations
BASIC OPERATION K. DTS-ES Matrix 7.1 This format has the surround back channel matrix encoded and inserted into the left and right surround Manual Tuning channels so that at playback the output for the left, right, This is for selecting stations that cannot be tuned and back surround channels are decoded using a automatically (manual selection) high-precision matrix decoder. -
Page 18: Radio Data System
RADIO DATA SYSTEM RADIO DATA SYSTEM (RDS) d) RT (Radiotext) RDS is a method for the transmission of additional information from local Radio Stations. It can only be Press “DISPLAY” on the front panel until “RT” appears. operated in FM mode. For example, t h e name of the Some Text messages will be shown. -
Page 19: Video Operation
VIDEO OPERATIONS Playing Video sources M A STE R V O LUM E DO LB Y D I G I T A L / DT S A V R E C E I VE R POW E R VI D E O 1 VI D E O 2 VI D E O 3 TU NE R... -
Page 20: Delay Time & Dynamic Range Control
DELAY TIME & DYNAMIC RANGE CONTROL DELAY TIME DYNAMIC RANGE CONTROL The delay time can be individually set for the Dolby This button controls the compression range of a sound Digital/Dolby Pro Logic II modes using the DELAY track. If the compression is large (DRC = 4/4), the sound (CENTER/REAR) buttons. -
Page 21: Test Tone, Lfe Trimmer & Channel Select
TEST TONE, LFE TRIMMER AND CHANNEL SELECT. TEST TONE MUTE POWE R Speaker Level balance Adjustment INPU T MODE TEST TONE The test tone function is useful to adjust the relative MEMORY TUNER VIDEO 1 volume between speakers in DOLBY DIGITAL or VIDEO 2 VIDEO 3 DOLBY PRO LOGIC II mode. -
Page 22: Troubleshooting
TROUBLESHOOTING To determine any problem with your receiver, always check the most obvious possible causes first. If any problem still remains after your having checked the items below, contact the helpline details provided. Problem Probable Cause Suggestion Amplifier When listening to the music in stereo. Speakers are connected wrong. -
Page 23: Specifications
SPECIFICATIONS AUDIO SECTION Audio Power Output FRONT (L/R) 100W RMS x 2 (8 ohm, 1% THD) CENTER 100W RMS (8 ohm, 1% THD) SURR. (L/R) 100W RMS x 2 (8 ohm, 1% THD) SURR. BACK 100W RMS (8 ohm, 1% THD) Output Impedance FRONT (L/R) 8 ohm...
