※ご使用前にこの説明書を良くお読みになり十分に理解してください。
Before beginning assembly, please read these instructions thoroughly!

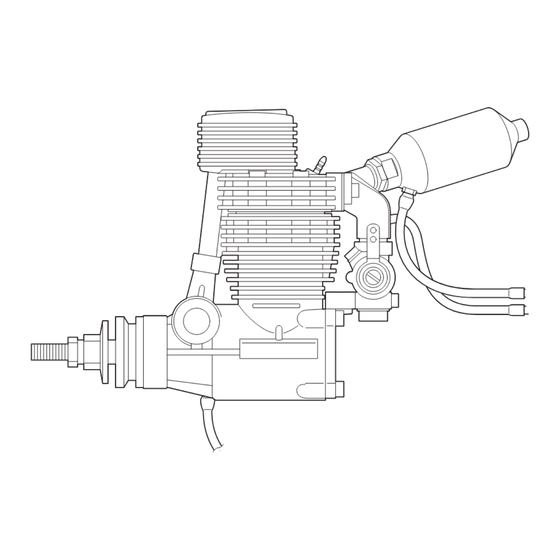

KYOSHO GX52F エンジン
KYOSHO GX52F ENGINE
安全のための注意事項
UNDER SAFETY PRECAUTIONS
※下記項目を守らないとケガのおそれがありますので注意してください。
Failure to follow these safety precautions may result in injury.
プロペラは確実にエンジンに取付けてください。
Fasten the propeller firmly to the engine.
ゴーグルなどで目を保護して、エンジンを始動してください。
Protect your eyes with googles etc, then start the engine.
エンジンを始動させるときは、周囲に人がいないか確認してからエンジンを始動させ、エンジンには絶対に人を近づけないでください。
Before starting the engine, make sure there are no people nearby, and do not allow people to get close to the engine.
エンジンを始動させるときは、プロペラに巻き込まれるものは絶対に近くに置かないでください。
When starting the engine, make sure there is nothing nearby that will get tangled up in the propeller.
エンジンを始動させるときは、プロペラの回転面から顔をはなし、安全のため手袋をして、スターターを使用します。
When starting the engine, keep face away from propeller, wear protective gloves, and then use the starter.
プロペラが回転したらプロペラの回転面から顔をはなし、プロペラには絶対にさわらないでください。
Once propeller is spinning, keep face away and never touch the spinning propeller.
ニードルの調整は、必ずプロペラの後ろから調整してください。
When adjusting the needle, always adjust from behind the propeller.
アイドル調整は、いったんエンジンを止めてからおこなってください。
When adjusting the idle setting, stop the engine first.
74251-XXXX
このエンジンは玩具ではありません!
This engine is not a toy.
1
THE FINEST RADIO CONTROL MODELS
取扱説明書
INSTRUCTION MANUAL
No.74251
R

Advertisement

loading
Need help?

Need help?

Do you have a question about the GX52F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kyosho GX52F

  • Page 1 ※ご使用前にこの説明書を良くお読みになり十分に理解してください。 Before beginning assembly, please read these instructions thoroughly! KYOSHO GX52F エンジン THE FINEST RADIO CONTROL MODELS KYOSHO GX52F ENGINE 取扱説明書 INSTRUCTION MANUAL No.74251 安全のための注意事項 このエンジンは玩具ではありません! UNDER SAFETY PRECAUTIONS This engine is not a toy. ※下記項目を守らないとケガのおそれがありますので注意してください。 Failure to follow these safety precautions may result in injury.
  • Page 2 エンジン名称 Engine Components マフラー Muffler プラグ Plug マニホールド Manifold 燃料入口 Fuel Intake ニードルバルブ Needle Valve プロペラワッシャー Propeller Washer バックプレート Back Plate マウント Mount クランクケース ドライブワッシャー Crank Case プロペラナット Drive Washer Propeller Nut 燃料パイプの配管 Fuel Tube Piping マフラープレッシャーと このパイプを配管する Pipe the muffler pressure to this pipe 燃料入り口とこのパイプ...
  • Page 3 エンジンの始動 目印 Engine Starting Mark 説明書本文を参考に燃料を入れます。 Refer to main instruction manual and add fuel. 閉める Close ニードルバルブを右に回転 (時計方向) させ、止まるとこ ろまで回します。 止まったところが全閉の位置です。 Rotate the needle valve right (clockwise) to its limit. 目印を基準に開けます。 This is referred to as closing the needle. Where it stops Open with mark as reference.
  • Page 4 ニードルの調整 スロットルが丸くなるまで Needle Adjustment 開けます。 Open until throttle becomes circular. エンジンが始動したらゆっくりとプロポのスロットルス ティックをハイに上げ、スロットルを全開にします。 (プロペラの回転に注意してください。) Once engine is running, slowly move the throttle control stick upwards so the throttle is fully open. (Be sure to keep everything clear of the propeller before moving throttle.) 次にニードルをゆっくりと閉めていくと回転が上がって...
  • Page 5 アイドル調整 Idle Setting Adjustment アイドル調整ネジは、プロポのスロットルスティック操作(スロー  ハイ) にエンジンの回転がスムーズに追いついてくるよう混合気を調整する機構です。 Idle setting aims to set the fuel/air mixture so the throttle stick control can deliver smooth acceleration from Slow to High. スローからハイにしたとき回転がもたついて、ブスブスして – ストップするときは、細い ドライバーで約10° ずつ閉めます。 これをくりかえしてスムーズに回転がつながるように調整します。 If the engine stutters and stalls when accelerating from slow to high, 閉める...
  • Page 6 エンジンが始動しない時のチェックポイント 対  策 症  状 原  因 燃料が燃料タンクに入っているか □ 入っていなければ燃料を給油する。 チェック スティックかスターター プラグが赤熱するかをチェック □ プラグを外し、ブースターコードをプラグに接 でエンジンを回しても 続、赤熱しない場合はプラグの断線か、バッテ 爆発しない リーの容量不足。 □ 燃料パイプが切れていないか、燃料タンクのチ 燃料も入っている、 プラグも赤熱しているのに爆発しない ューブ配管が正しいか、キャブレター、スロッ トルにゴミ等がつまっていないかチェックし燃 料がキャブレターに来ていることを確認する。 □ 約1/4回転閉める。 ニードルバルブの開けすぎ 爆発はするが、回転が続かない エンジン内部に燃料が入りすぎ □ プラグを外し、ニードルをいっぱいに閉め、空 回ししてエンジン内の燃料を出す。燃料を出し (これをオーバーチョークという) たらニードルを元の位置に戻す。 ニードルが開きすぎている □ あと1/4回転ニードルを閉める。 始動後、スロットルをハイに ブースターコードを外すと止まる プラグ、燃料が合わない □ プラグ、燃料を変えてみる。 プロポのエンジンコントロール...
  • Page 7: Exploded View

    分解図 EXPLODED VIEW パーツリスト PARTS LIST 品番 パーツ名 内容 (キーNo.と入数) 品番 パーツ名 内容 (キーNo.と入数) Part Names Quantity Part Names Quantity 74251 74251 52Fピストン、 シリンダーセット バックプレート 1 2 3 x 1 21 x 1 Back Plate 52F Piston & Cylinder Set 74251 74251 ピストンピン...
  • Page 8 THE FINEST RADIO CONTROL MODELS 京商ホームページ www.kyosho.com 京商株式会社 〒243-0034 神奈川県厚木市船子153 メーカー指定の純正部品を使用して ●ユ−ザ−相談室直通電話 046-229-4115   安全にR/Cを楽しみましょう。 お問い合わせは:月曜∼金曜(祝祭日を除く)10:00∼18:00 PRINTED IN JAPAN 10000703-1 70部 07.03...
