Summary of Contents for Homony HMN-080C
- Page 1 Installation and Operating Manual HMN-080C H M N - 0 8 0 B er 3 M in i Am pl ifi TO N E SE L R AN D O M VO LU M E U S B P O W E R...
-
Page 2: Table Of Contents
Table of Contents 1. SAFETY PRECAUTIONS ......................... 1 2. HANDALING PRECAUTIONS ......................... 4 3. INSTALLATION PRECAUTIONS ......................4 4. GENERAL DESCRIPTION ........................5 5. FEATURES ............................5 6. NOMENCLATURE AND FUNCTIONS ....................6 7. EXTERNAL CONFIGURATION AND CONNECTION ................8 8. - Page 3 1. Important Safeguards (1). Read instructions—Before the system is installed and operated all the safety instructions should be read (2). Retain instructions—For future reference the safety instructions and instructions for use should be retained. (3). Heed warnings—User should adhere all warnings on the unit and in the installation and operation instructions.
-
Page 4: About This Manual
If the unit does not run normally by following the instruction for use. Only adjust those controls that are covered by the instructions for use, because an improper adjustment of other controls may cause damage and will often require extensive work by a qualified technician to restore the units to their normal operation. ... -
Page 5: Handaling Precautions
Handling Precautions HMN-080C To clean, be sure to switch off the power supply to the unit first, then wipe with a dry cloth. When the unit gets very dirty, use a cloth damped in a neutral cleanser. Never use benzene, thinner or chemically-treated cleaning cloth because such volatile liquids could deform or discolor the unit. -
Page 6: General Description

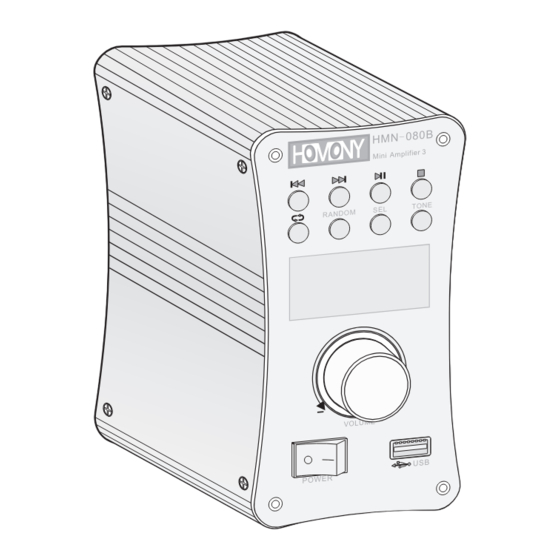

4. GENERAL DESCRIPTION HOMONY Mini amplifier [HMN-080C] offers outstanding audio performance and meets all kinds of customer uses. It is particularly suitable for small installations where there is a growing potential of product reliability and communication efficiency. 5. Features Digital Amplifier, 2*20W output at 8Ohm, 2*35W output at 4Ohm ■ ... -
Page 7: Nomenclature And Functions
6. Nomenclature and Functions Power Switch [POWER] [Front Panel] Turn on/off the power supply USB Socket [USB] HMN-080B Plug in memory disks which contain MP3 Mini Amplifier 3 format files RANDOM TONE Music source selector [SEL] Press to switch between sources. Default switch sequence: AUX1 - AUX2 - MP3 - Bluetooth Power Switch [POWER]... - Page 8 C o n n e c t t o t h e s u p p l i e d p o w e r c o r d t o t h i s s o c k e t . Voltage selector Switch the selector to 115V side, Input voltage must be 115V; Switch the selector to 230V side, Input voltage must be 230V. HMN-080C...
-
Page 9: External Configuration And Connection
Rated output power 80W DVD2 Made in China AUX2 AUX1 RANDOM TONE RIGHT 4-16Ω LEFT Rated input power 100W VOLUME 蓝牙 打开 Line fuse T2 5AL 250V 230V T5AL 250V 115V 已经配对的设备 POWER HOMONY 已连接 U Disk Smart Phone HMN-080C... -
Page 10: Display And Operation Interface
: 25 02dB 02dB AUX1 Interface LINE. . AUX2 BLUETOOTH : 2 5 : 25 0 2 d B 0 2 d B 02dB 02dB AUX2 Interface HMN-080C... - Page 11 Volume Interface (1) Rotate the volume knob to adjust the value of the output volume, LCD interface is shown as below: BLUETOOTH 02dB : 25 02dB 02dB (2) Press [TONE] key to switch between Treble and Bass, then rotate the volume knob to adjust the output treble/bass value.
-
Page 12: Remote Controller
4. Volume up Key 14. Model Switch Key Press to olume Press to switch between different play 5. Volume down key models. The switch sequence is: Single Press to turn down volume. play - Single Loop - Sequence play - HMN-080C... -
Page 13: Technical Specification
Power Source 240VAC ± 10% Power Consumption Max 75W 2 x 20W 8 Ω 2 x 30W Ω Output Power Input Sensitivity AUX 0.34V 80dB 32Kbps ~ 320Kbps Bluetooth Bluetooth V2.1 + EDR Specification Bluetooth wireless 10 Meters distance HMN-080C... -
Page 14: Caution Before Installation
Avoid the environment that get condensation of moisture,difference in temperature, or humidity Avoid locating in kitchen where get steam or lampblack Avoid locating the equipment at the unstable place Ground connection: The power plug must be ground connection before connect to the power . HMN-080C... - Page 15 Warning 1. Do not block the ventilation slots. 2. Do not install in locations exposed to rain, heavy dust, heavy moisture, heat radiation and strong vibration. 3. Ensure well earth connection. 4. Use AC outlet compatible to the powerplug of this equipment only.
