Summary of Contents for Datapath dL8
-

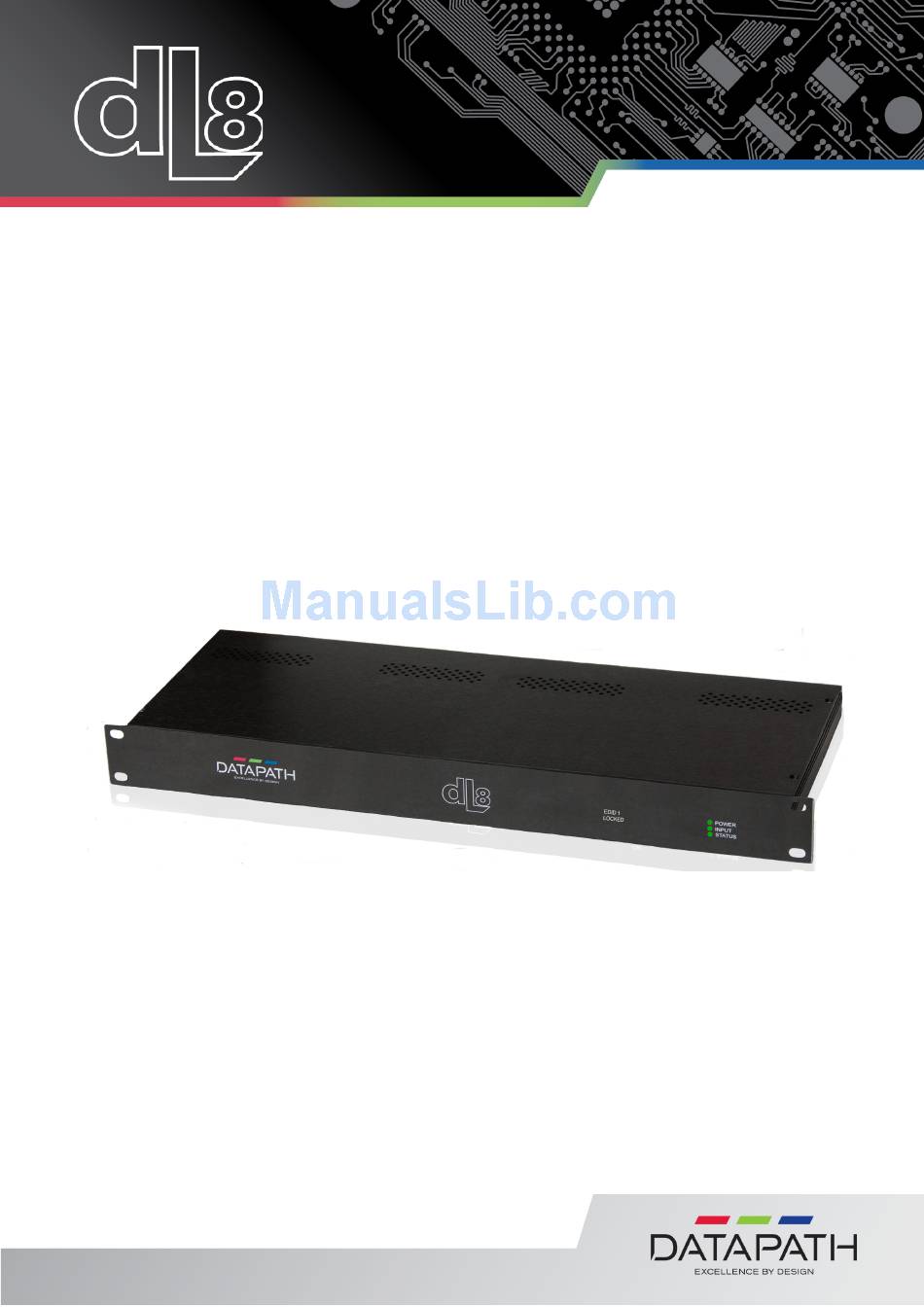

Page 1: Quick Start Guide
Quick Start Guide Version 01.00... -
Page 2: Safety Instructions
Temperature Equipment) es WEEE/AA0005ZR. If the Datapath dL8 is to be installed in a closed or multi-unit rack assembly, the installation should be such that the amount of air flow Instrucciones de seguridad para montaje en bastidor required for safe operation of the equipment is not compromised. The operating ambient temperature of the rack environment should be maintained below 35 degrees centigrade under all conditions. -
Page 3: Link) Connectors
(3840x2160 @ 30 Hz), can be delivered to up to eight outputs on separate DVI-D (Dual Link) connectors. This Quick Start Guide is designed to aid quick installation and set up of your new dL8, however should you experience any problems not covered in this guide please refer to your supplier. Step 1 Packing List –... -
Page 4: Front View
Step 2 Unpacking Inspect items for damage. Should any items show any signs of damage, report it immediately to your supplier. Retain packaging materials for future shipping requirements. Front View Fig.1 Rear View Fig.2 Top View Fig.3... -
Page 5: Getting Started
USB Socket The USB socket on the rear of the unit is used to connect the dL8 to a PC via a USB connection using the supplied USB Type A to Type B cable. Configuration of the dL8 is programmable via an application utility... -
Page 6: Operation Indicators
Flashing – Unit is operating over the normal operating temperature. Ensure the input fan vent is not blocked. When the dL8 device is connected to a PC by a USB cable, and the dL8 control application is active, then all three lights flash in turn to help to identify which unit is being controlled. - Page 7 Select Continue Anyway to complete the installation. The Datapath dL8 can now be connected to a suitable USB 2.0 port using the cable supplied. At this point the hardware will be detected by Windows® as a dL8, and a New Hardware wizard is displayed. Allow the wizard to search, and click on the recommended option to enable the previously installed driver to be associated with the new hardware.
-
Page 8: Connection Diagram
Specific devices connected to your PC can be selected using the Select Device.. command on the File Menu. The dL8’s will be listed by the USB Device or by a previously configured friendly name. - Page 9 To boost the equalization hardware click on the Settings button and the following dialog is displayed. Fig Fig. 9 Use the slider to compensate for the loss signal quality due to DVI cable lengths over 5 m. The equaliza- tion hardware can compensate for cables up to 20m in length. Fig.
- Page 10 Detect on the Screen Resolutions dialog box (Win- dows® 7) or by disconnecting the source from the dL8 and reconnecting. All modifications to the Input settings can be saved as part of a .dda file, removing the requirement to input the same settings again.
-
Page 11: Specification
Output Capabilities Supports up to 5m cables into standard DVI receiver(2) USB Connection Supports USB 2.0 for programming of input EDID parameters using Datapath dL Con- trol application Operating system support: Windows XP, Windows Server 2003, Windows Vista, Win- dows Server 2008, Windows 7 Power Requirements Universal power supply (100-240V).
