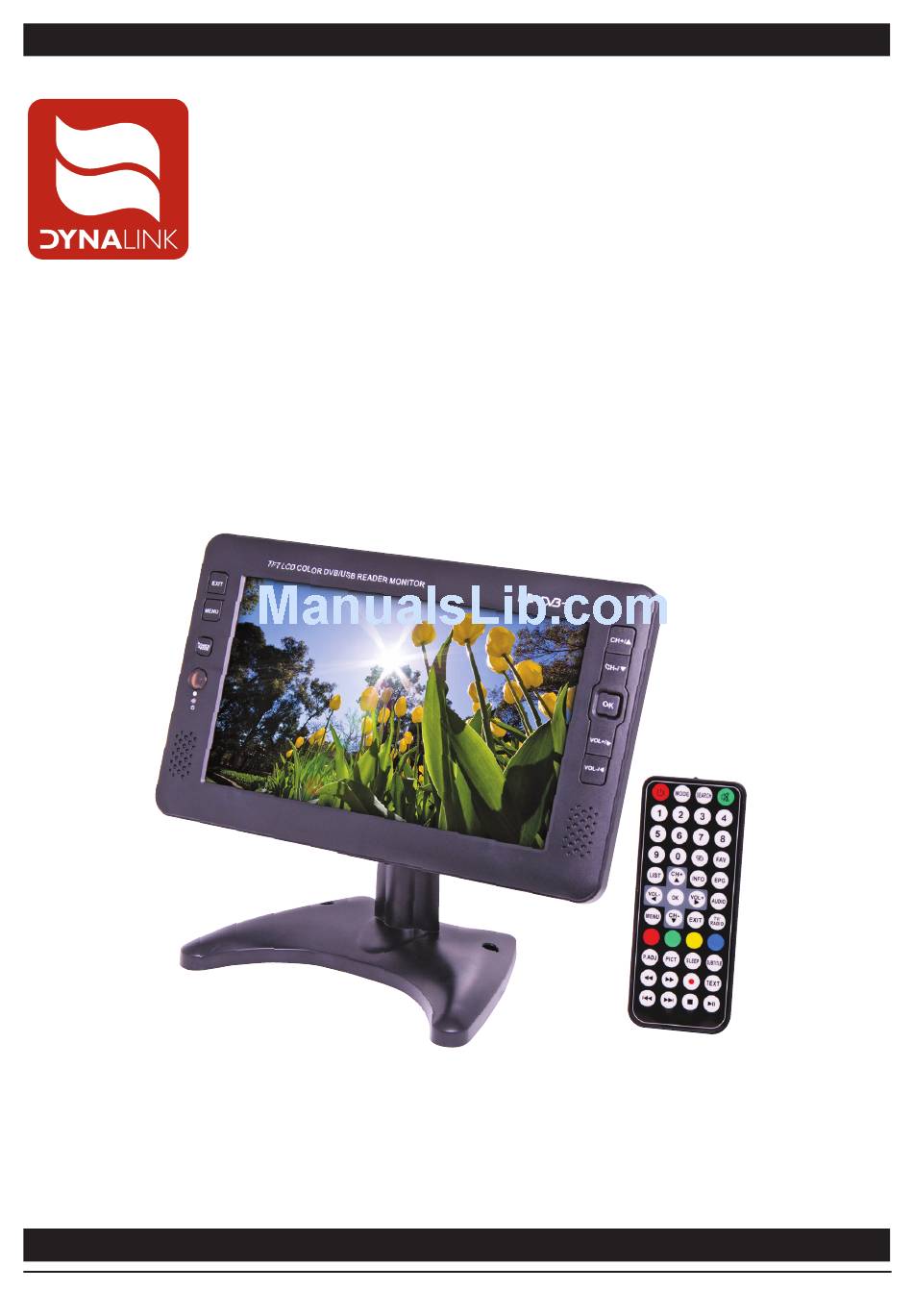

Page 1: Operating Instructions

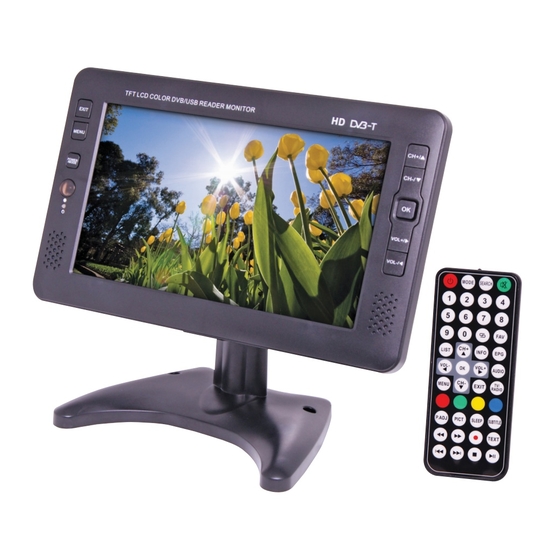

DYNALINK® S 8862A 9” LCD Digital Portable Television With HD Tuner S 8862A 9” LCD Digital Portable Television With HD Tuner. Operating Instructions Imported exclusively by Altronic Distributors Pty Ltd Revision 18/08/2014... -
Page 2: Table Of Contents
DYNALINK® S 8862A 9” LCD Digital Portable Television With HD Tuner TABLE OF CONTENTS 1. Precautions ................2 2. Features / Inside the Box ............3 3. TV Appearance ................. 4 4. Connection of Main Interfaces ........... 5 5. Battery Operation ..............6 6. -
Page 3: Features / Inside The Box
• Small magnetic base antenna with cable • Larger magnetic base antenna with cable • Remote control with C2025 type battery • Mounting Bracket for TV with adhesive plate S 8862A is supplied with a magnetic base car antenna with 1.2m lead. Page 3... -
Page 4: Tv Appearance
DYNALINK® S 8862A 9” LCD Digital Portable Television With HD Tuner 3. TV APPEARANCE FIGURE 1. Front Panel 1. Power / charge LED indicator 5. EXIT: Return button. Press to cancel a function or No light: Main switch is off – no TV operation with exit a menu or sub-menu. -
Page 5: Connection Of Main Interfaces
DYNALINK® S 8862A 9” LCD Digital Portable Television With HD Tuner FIGURE 2. Rear and Side Panel 1. Antenna input socket - PAL socket for external antenna. 2. Battery Cover – battery is not user removable. 3. Mounting bracket fixture slot 4. -
Page 6: Battery Operation
6. FIRST TIME SET UP After your device is connected to a power supply and switched on for the first time after purchase, the S 8862A will implement an ‘Installation Guide’ protocol. The following three options will appear: OSD LANGUAGE (English is default) COUNTRY (Set according to you location). -
Page 7: Description Of Remote Control Buttons
DYNALINK® S 8862A 9” LCD Digital Portable Television With HD Tuner 7. DESCRIPTION OF REMOTE CONTROL BUTTONS Some functions here listed are described in Section 4 1. STANDBY power: On / Off button 2. MODE: Press to switch between DTV/AV 3. -
Page 8: Dtv Main Operation - Menus
DYNALINK® S 8862A 9” LCD Digital Portable Television With HD Tuner 8. DTV MAIN OPERATION By pressing the MENU button on the Top Panel or the remote control, while in DTV mode, the user is presented on screen with several menu options: ‘PROGRAM’, ‘PICTURE’, ‘CHANNEL SEARCH’, ‘TIME’, ‘OPTION’, ‘SYSTEM’, ‘USB’. - Page 9 DYNALINK® S 8862A 9” LCD Digital Portable Television With HD Tuner 8.4 Time Time Offset: Use cursor controls to select ‘Auto’ or ‘Manual’. Choosing ‘Manual’ may be necessary if the ‘Auto’ setting is showing a time zone that does not correspond to your own. Choosing ‘Manual’ will cause the ‘Country Region’...
-
Page 10: Usb Flash Drive Operation - Menus
DYNALINK® S 8862A 9” LCD Digital Portable Television With HD Tuner 9. USB FLASH DRIVE: This TV, via the USB socket, is able to read and play many different file formats, as summarised in the chart below: It does not support DIVX3 video format and AC3... -
Page 11: Pvr Functions
DYNALINK® S 8862A 9” LCD Digital Portable Television With HD Tuner 9.3 Movie Configure: Allows you to set parameters controlling the Movie playback under the ‘Multimedia’ submenu. • Aspect Ratio: ‘Discard’ (default) or ‘Keep’ • Subtitle Specific: Sets the size of the subtitle font that appears on the bottom edge of every movie during playback. -
Page 12: Software Update
DYNALINK® S 8862A 9” LCD Digital Portable Television With HD Tuner 10.3 Timer Recording Press the EPG button on the remote control or select EPG from the Program menu. Press INFO to open the Booking List. Press the Red button to ADD a new booking for a recording event. Enter the required information according to the Event menu displayed and press OK to confirm the booking, or Exit to cancel it. -
Page 13: Troubleshooting
DYNALINK® S 8862A 9” LCD Digital Portable Television With HD Tuner 12. TROUBLESHOOTING Problem Possible Causes No Picture, No Sound Check to see that the AC adapter or car adapter is properly connected. Do not use an unauthorized power supply pack. -
Page 14: Specifications
DYNALINK® S 8862A 9” LCD Digital Portable Television With HD Tuner 13. SPECIFICATIONS LCD Screen LCD screen size: 9'' TFT LCD (17.8cm) 16:9 ratio Response time: R:10/ F:20 milliseconds Contrast ratio: 300:1 Resolution: 800(H) X RGB X 480(V) Viewing angle:... -
Page 15: Warranty Information
DYNALINK® S 8862A 9” LCD Digital Portable Television With HD Tuner 14. WARRANTY Altronic Distributors warrants this product for one year from date of purchase from Altronics or its resellers to the consumer. If this item is part of an installation or another product, please contact the installer or supplier for your warranty. - Page 16 DYNALINK® S 8862A 9” LCD Digital Portable Television With HD Tuner Distributed by: Altronic Distributors Pty. Ltd. Phone: 1300 780 999 Fax: 1300 790 999 Internet: www.altronics.com.au Page 16...
