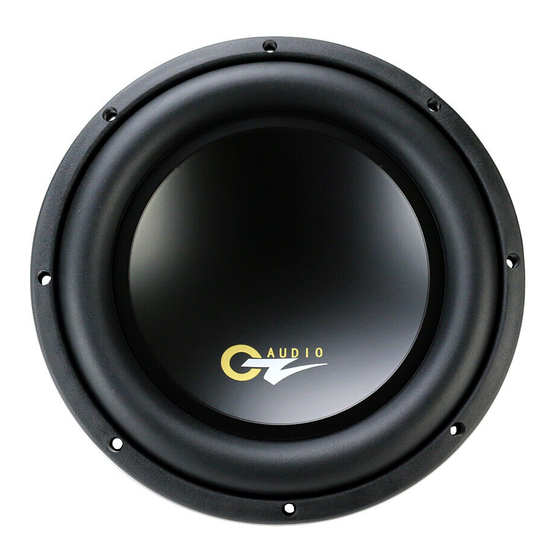

Summary of Contents for Oz Audio OzV-8.2S4
-
Page 2: Installation Guidelines
• Although the components used in Oz Audio exceed most international standards, speaker frames can be twisted by improper installation on uneven surfaces. This can occur when the surface is heavily padded or carpeted and the screws are unevenly or over tightened. - Page 3 Oz Audio Vector Series Subwoofer User Manual Advantages And Disadvantages of Most Popular Enclosure Designs COMMON ENCLOSURE TYPES In the car audio world there are 3 types of subwoofer enclosures commonly used; SEALED BOX (closed box), VENTED BOX (bass reflex) and SINGLE-VENTED BANDPASS ( 4th order ). No single design is superior because each has its own compromise in performance, power handling, and design complexity.
- Page 4 Oz Audio Vector Series Subwoofer User Manual Before You Begin - Determine Size In most vehicles, an 8” to 12” diameter subwoofer is likely to fit and provide excellent output when placed in a correctly sized enclosure. Be sure to review the subwoofer’s recommended enclosure volume before selecting or constructing a subwoofer enclosure.
- Page 5 Oz Audio Vector Series Subwoofer User Manual Sealed Enclosure Application All These enclosure recommendations have been calculated with the airspace inside and include the displacement of the driver motor assembly (and port in regards to ported enclosure types). NOTE: Recommendations for volumes and dimensions for all types of enclosures are intended for use with a single woofer.
- Page 6 Oz Audio Vector Series Subwoofer User Manual Speaker Connections In Series Or Parallel The diagram to the left shows two speakers connected in series. Assume that the positive lead from the power source connects to the left speaker's positive terminal, and that the lead connecting over to the speaker on the right also goes to that speaker's positive terminal.
- Page 7 Oz Audio Vector Series Subwoofer User Manual Examples Of Speaker Connections In Series Or Parallel...
- Page 8 Oz Audio Vector Series Subwoofer User Manual Examples Of Speaker Connections In Series Or Parallel...
- Page 9 Oz Audio Vector Series Subwoofer User Manual Oz Audio Subwoofer Dimension Guide Subwoofer 215 mm 200 mm 181 mm 110 mm 125 mm OzV-8.2S4 8.46 inches 7.87 inches 7.13 inches 4.33 inches 4.92 inches 260 mm 247 mm 232 mm...
- Page 10 Oz Audio 1572 W. San Bernardino Rd Covina, Ca 91722 Phone: 626 521-9980 Sales: 626 521-9984 Info@ozaudio.com...
