Xceed 7LI18VK Instruction Manual

7 piece cordless tool combination set
Hide thumbs
Table of Contents

Advertisement

Quick Links

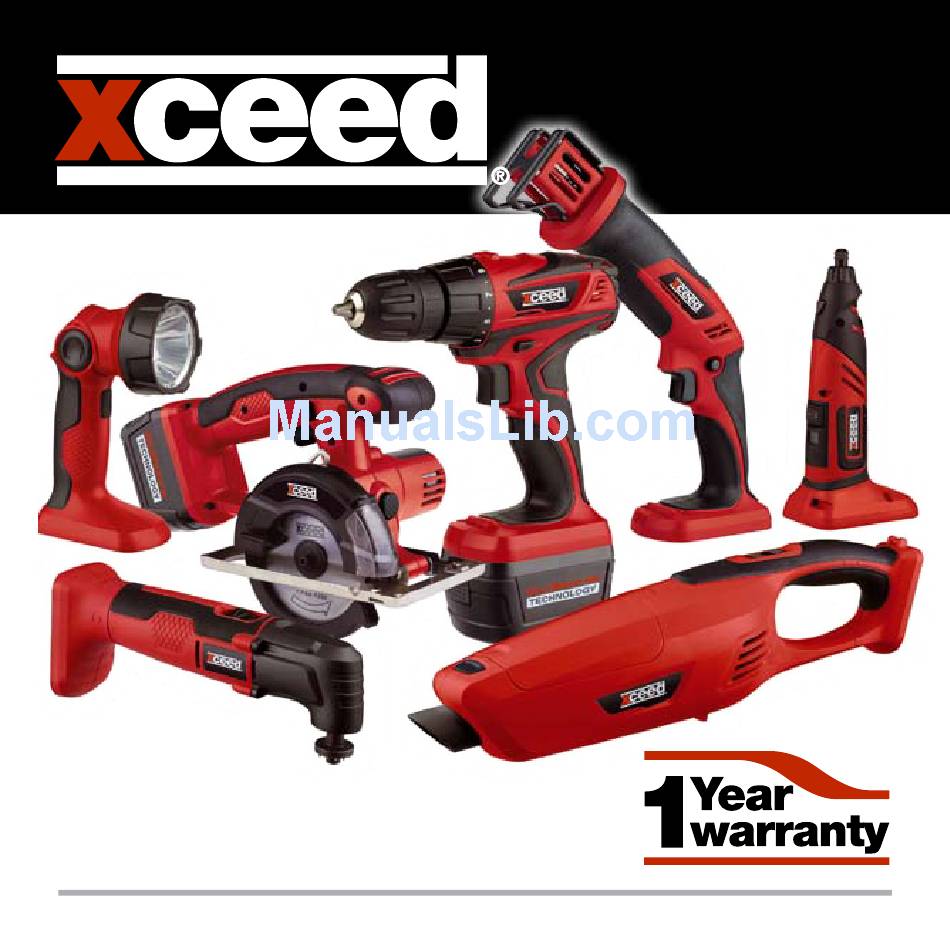

INSTRUCTION MANUAL
7LI18VK/254-8592
7 PIEcE
cordlEss Tool
combInaTIon sET

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7LI18VK and is the answer not in the manual?

Questions and answers

Related Manuals for Xceed 7LI18VK

Summary of Contents for Xceed 7LI18VK

  • Page 1 INSTRUCTION MANUAL 7LI18VK/254-8592 7 PIEcE cordlEss Tool combInaTIon sET...

  • Page 2: Table Of Contents

    Battery charging Switching on and off To obtain the best life for the battery Changing the Vacuum bag Safety features incorporated with ALL tools Maintenance using this battery pack XCEED 1 Year warranty Know your product: Drill Using the drill...

  • Page 3: Warranty

    Manual before using your new Xceed Power Tools. Take special care to heed the Cautions and Warnings. Conforms to relevant standards Your Xceed power tools has many features that will make for electromagnetic compatibility. your job faster and easier. Safety, performance, and dependability have been given top priority in the For safe operation read instruction manual.

  • Page 4: General Safety Rules

    General safety rules 3) Personal safety a) Stay alert, watch what you are doing and use WARNING. Read all safety warnings and all instructions. common sense when operating a power tool. Do not Failure to follow the warnings and instructions may result in use a power tool while you are tired or under the electric shock, fire and/or serious injury.

  • Page 5: Additional Safety Rules For Drills

    b) Do not use the power tool if the switch does not turn b) Recharge only with the charger specified by the it on and off. Any power tool that cannot be controlled manufacturer. A charger that is suitable for one type with the switch is dangerous and must be repaired.

  • Page 6: Additional Safety Rules For Circular Saws

    • Only use accessory bits in good condition. observe the accident prevention regulations in force in your area. The same applies for general rules of occupational • Before drilling or driving, check that there is sufficient health and safety. clearance for the drill bit under the workpiece. The manufacturer shall not be liable for any changes made •...
  • Page 7 guide. This improves the accuracy of cut and reduces saw blade in the kerf and check that saw teeth are the chance of blade binding. not engaged into the material. If saw blade is binding, it may walk up or kickback from the workpiece as the saw g.

  • Page 8: Additional Safety Rules For Reciprocating Saws

    operate automatically. nails and other foreign objects before beginning sawing. d. Always observe that the lower guard is covering the • Support the work properly. blade before placing saw down on bench or floor. Never reach over the blade to remove waste or off cuts. •...

  • Page 9: Additional Safety Rules For Rotary Tools

    After long working periods external metal parts and pressure. You will get better results and you will be taking • accessories could be hot. better care of your tool. Do not force the saw; let the tool do the work at a •...

  • Page 10: Additional Safety Rules For The Torch

    The manufacturer shall not be liable for any changes made Always wear eye protection. Any power tool can throw foreign to the tool nor for any damage resulting from such changes. objects into your eyes and cause permanent eye damage. ALWAYS wear safety goggles (not glasses) that comply with Even when the tool is used as prescribed it is not possible ANSI safety standard Z87.1.

  • Page 11: Additional Safety Rules For The Charger

    • Do not plug anything other than your XCEED tool into the WARNING:This machine is not suitable for picking up charger, as other objects may touch dangerous voltage Hazardous dust.

  • Page 12: Additional Safety Rules Related To The Battery Pack And Battery Safety

    NEVER CHARGE YOU LITHIUM ION BATTERY BELOW Take the tool or charger to your nearest Authorised Service OR ABOVE TEMPERATURES RECOMMENDED centre or phone and speak with an experienced XCEED OTHERWISE FIRE OR SERIOUS DAMAGE TO THE Customer Service Representative for assistance in these BATTERY PACK MAY OCCUR.

  • Page 13: When To Charge The Battery

    and Vehicles where the inside temperature can climb leaking battery. to dangerous levels in the direct sunlight and on high • Handle batteries with care to avoid shorting the battery temperature days. THINK BEFORE LEAVING YOUR with conducting materials, such as nails, screws, metal LITHIUM ION BATTERY PACK IN STORAGE.

  • Page 14: Know Your Product: Battery And Charger

    Know your product: Battery and Charger 1. Battery Pack 2. Battery Release Button 3. Charger Base 2 x 18V Lithium-ion Batteries are supplied for this 7 piece tool combination set. A battery is shown on all products within this instruction manual for demonstrative purposes only.

  • Page 15: Unpacking

    Due to modern mass production techniques, it is unlikely that in this manual. your XCEED Power Tool is faulty or that a part is missing. Another feature of the drill/battery pack is the low voltage If you find anything wrong, do not operate the tool until the cut out feature.

  • Page 16: Battery Charging

    Battery charging To obtain the best life for the battery IMPORTANT. Before plugging in the power supply from the Never allow the tool to completely drain the battery and the charger base (3) always ensure that the plug is switched come to a complete stand still before recharging.
  • Page 17 Temperature cut out Product Work light. The drill/driver in this kit is fitted with an LED work light. If the tool is constantly overloaded, or the tool is used constantly at maximum rating in high ambient conditions, The LED work light automatically comes on when the trigger the battery cells may over heat causing the battery pack to is pressed.

  • Page 18: Know Your Product: Drill

    Know your product: Drill Before using the Drill/Driver, familiarise yourself with all the operating features and safety requirements. This drill is mainly used for drilling in wood or metal sheet and screwdriving. Use the tool only for intended applications. All other applications are expressly ruled out.

  • Page 19: Using The Drill

    Using the drill Drilling uses the forward mode. The reverse mode is intended for the removal of screws and assisting to remove Trigger switch jammed drill bits. Use the forward/reverse switch (3) to select the direction Adjustable torque of rotation, then pull the trigger (2). This trigger switch is an This drill is equipped with 17 electronic variable speed control which enables the user to torque settings plus one drill...
  • Page 20 Inserting and removing bits • Use a suitable lubricant for the material you are working on, This drill has a keyless chuck, which means that a chuck key USE: FOR: is not needed to secure a bit in Steel the drill. Turpentine or paraffin Aluminium 1.

  • Page 21: Know Your Product: Oscillating Tool

    Know your product: Oscillating Tool Specifications Before using the Oscillating Tool, familiarise yourself with Tool Model #: XK18OT all the operating features and safety requirements. Voltage: 18Vdc When using the correct accessories the oscillating tool can be used, for cutting concrete, wood, metal, plastic and brick, Weight (with battery): 1.05 kg for scraping or removing grout from brick or tiles, and detail...

  • Page 22: Installing Accessories

    Installing accessories 4. When you have selected the location for the plunge Note: No accessories are supplied with this Oscillating tool. cutting blade, re-insert the For the purposes of describing the accessory installation, accessory clamp screw (6), the plunge cutting blade and sandpaper base is used. and retaining washer (5) WARNING: Remove the battery pack from oscillating tool and tigthen in a clockwise...

  • Page 23: Rotating Base

    Rotating Base Maintenance WARNING: When servicing, use only identical replacement The oscillating Tool has a 180° rotatable base. parts. The use of any other part may create a hazard or 1. While firmly holding the tool upright with one hand holding cause product damage.

  • Page 24: Know Your Product: Trim Saw

    Know your product: Trim Saw Specifications Before using the Trim saw, familiarise yourself with all the Tool Model #: XK18TS operating features and safety requirements. Voltage: 18Vdc This trim saw is designed for light and short-term use around the home and domestic applications. It is particularly No-load speed: 2,000 min-1 useful for trimming plywood and similar sheet material.

  • Page 25: Using Your Trim Saw

    Using your Trim Saw Tighten the depth adjustment locking knob (3). Making a cut Switching on and off Mark the line of cut on the workpiece. Adjust the depth of Attach the battery pack (1). cut as required. To switch on, press the lock off button (4) from either side, When making 90°...
  • Page 26 Using the parallel fence Remove the saw blade from the inner flange and pull it out. The parallel fence (10) allows Note, this is a close fit and lifting you to make parallel cuts in a the plastic lever of the rotating sheet of wood, all at the same blade guard (13) will help.
  • Page 27 Replace the outer flange. Note, the shaft is machined with two flats. These flats need to correspond with the flats on the outer flange, so turn the outer flange on the shaft until the flange drops FULLY on to the face of the saw blade. Fit the blade bolt and washer to the spindle and tighten firmly by pressing firmly on the spindle lock and rotating the blade bolt in a clockwise direction.

  • Page 28: Know Your Product: Reciprocating Saw

    Know your product: Reciprocating Saw Specifications Before using the Reciprocating Saw, familiarise yourself Tool Model #: XK18RS with all the operating features and safety requirements. Voltage: 18Vdc Use the tool only for the applications intended. All other applications are expressly ruled out Strokes per minute: 0–2000 SPM 1.

  • Page 29: Installing A Saw Blade

    Installing a saw blade Removing the blade Note: A saw blade is not supplied with this kit. The Caution: Always ensure the saw is switched OFF and following information is for instructional purposes only. the battery pack removed BEFORE attempting to fit or remove a blade, Making any adjustments or cleaning.

  • Page 30: Metal Cutting

    Metal cutting 4. Mark out the cutting line. 5. Press the lock-off button and squeeze the trigger. Metals such as sheet steel, pipe, steel rods, aluminium, brass and copper can be cut with your saw. Be careful 6. Wait until the saw has reached maximum speed. not to bend or twist the blade and do not force the cutting 7.

  • Page 31: Know Your Product: Rotary Tool

    Know your product: Rotary Tool Specifications Before using the Rotary Tool, familiarise yourself Tool Model #: XK18RT with all the operating features and safety requirements. Voltage: 18Vdc Use the tool only for the applications intended. All other Rotary Tool no-load speed: 8000–30,000 RPM applications are expressly ruled out.

  • Page 32: Switching On And Off

    Switching on and off If material is burning, reduce speed and also pressure on the tool. To Start the rotary tool Faster speeds are also suggested for grinding as slower 1. Attach the battery pack speeds have a tendency to clog the wheel. 2.
  • Page 33 5. To fit an accessory, after loosening the collet, slide the accessory spindle all the way into the collet chuck. While holding the spindle lock button down and engaged, finger tighten the collet nut. Then tighten the colt nut with the small wrench WARNING: Make sure that the accessory is inserted as far as possible.

  • Page 34: Know Your Product: Led Torch

    Know your product: LED Torch 1. Lamp head 2. Switch 3. Handle 4. Battery 5. Handstrap attachment loop 6. Handstrap attachment 7. Lamp head rotation button Tool Model #: XK18LT Voltage: 18Vdc Charger Model #: XK18L1CH Battery pack Model #: XK18LB Weight (with battery): 0.56kg...

  • Page 35: Switching On And Off

    Switching On and Off The lamp’s illumination is controlled only by pressing the power switch. 1. Press the power switch and the single LED will be turned on. 2. Press the power switch a second time the Single LED will be turned off. Swinging the lamp head Your LED work light has a swivel head that can be rotated to the...

  • Page 36: Know Your Product: Vacuum

    Know your product: Vacuum Tool Model #: XK182V Before using the Vacuum, familiarise yourself with all the Voltage: 18Vdc operating features and safety requirements. No load Speed: 12,000 RPM This vacuum is suitable for light to medium vacuuming Air speed: Low 6.5m/s - High 7.5m/s tasks in the workshop.

  • Page 37: Switching On And Off

    Switching on and off 3. Pull the Vacuum Bag support (7) towards you, and then push down the vacuum bag cover (8). The cover is now To Start the Vacuum removed and allows access to empty the vacuum bag. The vacuum bag (5) can be washed. Make sure the bag 1.

  • Page 38: Maintenance

    XCEED 1 YEAR WARRANTY caused by or substantially contributed to by other factors, 1. Our goods come with guarantees that cannot be or circumstances beyond our control, including (but not excluded under the Australian Consumer Law.
