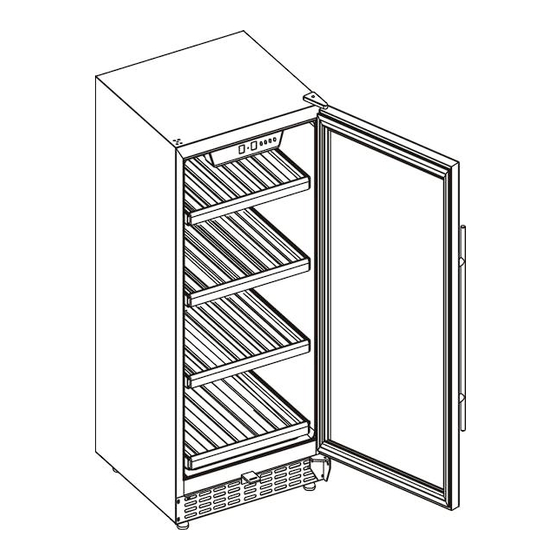

- Page 1 INSTRUCTION MANUAL HUSKY WINE COOLER MODEL: HUS-WC33S/HUS-WC33D HUS-WC66B/HUS-DC66B HUS-WC54S/HUS-WC54D/HUS-DC54 HUS-WC72S/HUS-WC72D HUS-WC128S/HUS-WC128D HUS-WC168S/HUS-WC168D/HUS-WC168T...
-
Page 2: Table Of Contents
CONTENTS Important Safety Notes ----------------------------------------------------3 Warnings ----------------------------------------- 4 Components -----------------------------------------------------------------5 Operation Instruction ---------------------------------------------------------9 Care and Maintenance -------------------------------------------------------13 Troubleshooting --------------------------------------------------------------14... -
Page 3: Important Safety Notes
Important Safety Notes: Always ensure you read the instructions before use Ensure the unit is placed in a safe, well ventilated, dry environment away from direct sunlight Do not use the wine cooler if it is damaged ... -
Page 4: Warnings
Warnings This Wine Cooler must be plugged into an earthed 220/240v 13amp socket (Europe and Australia) or a grounded 120v AC circuit (USA) Do not attempt to service or repair the item yourself If your refrigerator uses r600a refrigerant, please note this can be flammable or explosive. -
Page 5: Components
Components of Wine Coolers (Single Zone) 1.HUS-WC33S/HUS-WC54S/HUS-DC54/HUS-WC72S/HUS-WC128S/HU S-WC168S component diagram： ⑴ Control panel ⑵ Ventilation fan ⑶ Active carbon filter ⑷ Sensor ⑸ Full wooden shelf ⑹ Heater fan ⑺ Small wooden shelf ⑻ Ventilation base ⑼ Adjustable feet ⑽ Upper hinge ⑾... - Page 6 Components of Wine Coolers (Dual Zone) HUS-WC33D/HUS-WC54D/HUS-WC72D/HUS-WC128D/HUS-WC168D component diagram： ⑴ Control panel ⑵ Active carbon filter ⑶ Ventilation fan ⑷ Sensor ⑸ Full wooden shelf ⑹ Baffle plate ⑺ Heater fan ⑻ Sensor ⑼ Small wooden shelf ⑽ Ventilation base ⑾ Adjustable feet ⑿...
- Page 7 Components of Wine Coolers (Triple Zone) HUS-WC168T component diagram： ⑴ Control panel ⑵ Active carbon filter ⑶ Big wooden shelf ⑷ Sensor ⑸ Control panel ⑹ Middle ventilation fan ⑺ Big wooden shelf ⑻ Sensor ⑼ Baffle plate ⑽ Heater fan ⑾...
- Page 8 Components of Wine Coolers (Side by side) HUS-WC66B component diagram： ⑴ ⑵ ⑶ Left upper hinge Left control panel Large wooden shelf ⑷ ⑸ Left door with handle/gasket/lock Small wooden shelf ⑹ ⑺ ⑻ Left lower hinge Front vent Right upper hinge ⑼...
- Page 9 Installation Before Using Your Wine Cooler Remove the exterior and interior packing. Before connecting the Wine Cooler to the power source, let it stand upright for approximately 12 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
-
Page 10: Operation Instruction
9 - 11 ºC Dry / White 48 - 57 ºF 10 - 13 ºC Sparkling 40 - 47 ºF 5 - 8 ºC Wines Wines Wine Chiller Control Panel Model: HUS-WC33S / HUS-WC54S / HUS-WC72S / HUS-WC128S / HUS-WC168S/HUS-DC54/HUS-WC66B (Single Zone) - Page 11 Model: HUS-WC33D / HUS-WC54D / HUS-WC72D / HUS-WC128D / HUS-WC168D (Dual Zone) Middle and Bottom Zones: Model: HUS-WC-168T (Triple Zone) Top Zone: You can select temperature display setting from Fahrenheit or Celsius. Push the ºF/ºC button. Fahrenheit or Celsius degrees‟ indicator will appear in blue color on the temperature display window.
- Page 12 SETTING THE TEMPERATURE CONTROL (Dual Zone) First press the button, the display for the lower zone will flash. Follow the single zone procedure to set. Press again to set the Upper Zone and repeat procedure. NOTE: If the unit is unplugged or turned off, you must wait 3 to 5 minutes before restarting the unit.
- Page 13 ◎ Shelf Change Your Wine Cooler comes complete with telescopic pull out shelving. These shelves can be taken out completely by following these instructions: Firstly switch off the unit and empty the shelf. Press down the left lever on side of shelf at same time as pulling up lever on right hand side of shelf.
-
Page 14: Reversing The Door Swing Of Your Appliance
◎ Reversing the door swing of your appliance The unit is delivered to you with the door opening from the left side (hinge on right side). The door of this appliance is capable of opening from either the left or right side. -
Page 15: Care And Maintenance
5. Care and Maintenance Cleaning Your Wine Cooler Turn off the power, unplug the appliance. Wash the inside surfaces with warm water Wash the shelves with a mild detergent solution. Wash the outside of the cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth. -
Page 16: Troubleshooting
6. Troubleshooting TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE Wine Cooler does not operate. Not plugged in. The appliance is turned off. A blown fuse. Wine Cooler is not cold enough. Check the temperature control setting. Ensure product is away from heat sources. The door is opened too often. - Page 17 The Wine Cooler is noisy It is normal for some noise to come from a refrigerator. Any ratting noise may come from the refrigerant flow in the wine Cooler. As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your Wine Cooler.
