Summary of Contents for Shure KSM141
-

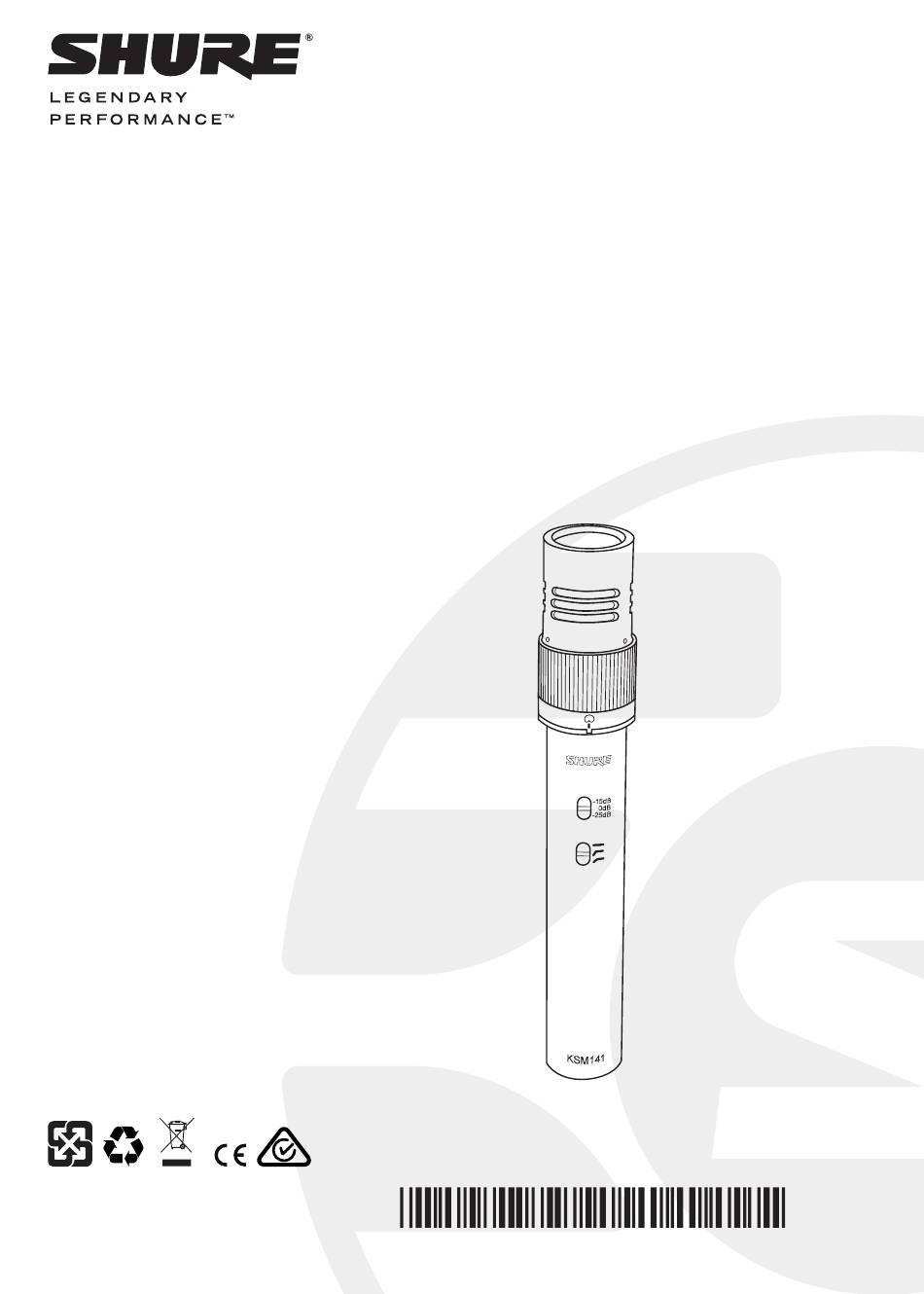

Page 1: User Guide
WIRED MICROPHONE KSM141 USER GUIDE Le Guide de l’Utilisateur Bedienungsanleitung Guia del Usuario Guida dell’Utente Manual do Usuário Руководство пользователя 取扱説明書 사용자 안내서 用户指南 © 2016 Shure Incorporated 27A12669 (Rev. 3) Printed in U.S.A. - Page 2 Trademark Notices: The circular S logo, the stylized Shure logo, and the word, “Shure” are registered trademarks of Shure Incorporated in the United States. “SHOCKSTOPPER” is a trademark of Shure Incorporated in the United States. “Mylar” is a registered trademark of E.I.
- Page 3 Over 85 years of audio experience has contributed to making this one of the finest microphones available. If you have any questions not answered in this guide, please contact Shure Applications Engineering at 847-600-8440, Monday through Friday, from 8:00 am to 4:30 pm, CST. In Europe, call 49-7262-92490.
-
Page 4: General Description
An ultra-thin, 24-karat gold- • No crossover distortion layered diaphragm and superior build quality make the KSM141 ideal for studio use, yet rugged enough for the • Superior common-mode rejection and suppression of most demanding live applications. -
Page 5: Power Requirements
Maximum SPL capability, output clipping level, and dynamic range vary with the input load impedance of the pream- plifier to which you connect the microphone. Shure recommends a minimum input load impedance of 1000 Ω. Most modern microphone preamplifiers meet this requirement. Higher impedance results in better performance for these... -
Page 6: Installation
Stereo microphone techniques give depth and spatial place- ment to sound sources for broadcasting, recording, or sound reinforcement applications. The Shure A27M allows you to mount two microphones on a single stand with a wide range of angles and vertical separations for a variety of coincident and closely-spaced stereo configurations. -
Page 7: Specifications
Specifications Low-Frequency Filter Switch Cartridge Type Flat, –6 dB/octave below 115 Hz, or –18 dB/octave below 80 Hz Electret Condenser Connector Polar Pattern Three-pin professional audio (XLR), male, balanced Cardioid, Omnidirectional (selectable) Polarity Frequency Response Positive pressure on diaphragm produces positive 20 to 20,000 Hz voltage on pin 2 with respect to pin 3 Output Impedance... -
Page 8: Optional Accessories
Note: KSM141/SL stereo only. Cardioid Certifications This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking. The CE Declaration of Conformity can be obtained from: www.shure. com/europe/compliance 60 cm Authorized European representative: Shure Europe GmbH Headquarters Europe, Middle East &...
