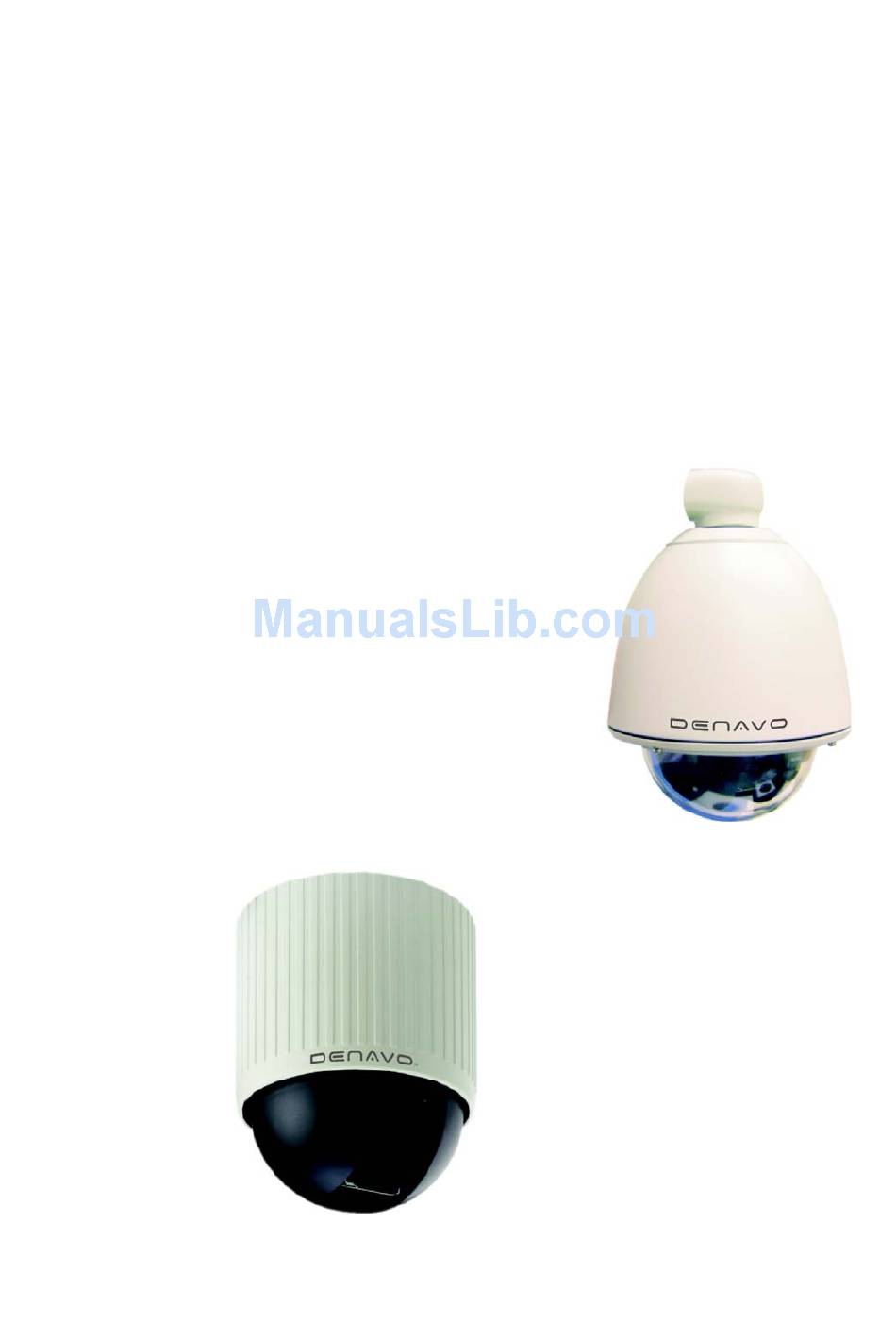

- Page 1 DENAVO ------------------------------------------------------ DHS 700 High Speed Dome Series ------------------------------------------------------ User Manual - 1 -...
- Page 2 Prologue This manual explains how to install and operate DHS-700 Series speed dome. Speed dome camera, named intelligent speed dome, high speed dome and quick dome, is an electromotor product with high accuracy which aggregates camera, pan tilt, decoder, zoom lens, and housing. Speed domes are separated into high speed dome, middle speed dome, low speed dome according to the speed.
- Page 3 CONTENTS Chapter 1 Introduction …………………………………………………04 Chapter 2 Setup…………………………………………………………08 Chapter 3 Installation……………………………………………………13 Chapter 4 Control Operation……………………………………………19 - 3 -...
-
Page 4: Chapter 1 Introduction
700 series speed dome is composed of camera dome, housing and various mounting. There are many types of camera dome with different characteristics, more than twenty kinds of housing and many selectable mountings. 3.Camera Index： Model DHS-700RX DHS-700SX DHS-701RX DHS-701SX DHS-702RX... - Page 5 4. Functions and Characteristics More than 10 kinds of aluminum housing, four colors (beige, white, black and green) are selectable. IP68 protection grade, workable under 10 meters water (please airproof the cable hole with silica adhesive). Chinese, English and Japanese title is selectable, time and date display are available. 8 speed grade, 360 continuous and endless pan movement, 180 tilt movement, 300 million steps per round, movement is very smooth.
- Page 6 6. Models Size Appearance SX Indoor speed dome (Ceiling) RX Indoor & Outdoor speed dome (Single aluminum cover) RX Outdoor speed dome (Double aluminum covers) All of the above aluminum housing can be choosing between these four colors, beige, white, black, green.
- Page 7 Bracket Size 6750-OEM 6750-RX/ZX 6750-CX 6750-SX Model Appearance Size RX,ZX Matching Wall mount Wall mount In-ceiling mount In-ceiling mount Remark 6750-Z 6750-A/6750-T 6750-WZ 6750-DL Model Appearance Size 6750-RX/ZX OEM;SX RX,SX 6750-OEM Matching Pole mount Corner mount Back Cover Pendant mount Remark 6750-DLC 6750-BLW...
-
Page 8: Chapter 2 Setup
Chapter 2 Setup 1. Protocol Setup The dome camera supports multi-protocol. Set the protocol via DIP switch (refer to the below diagram.). Please confirm if the protocol is correct before using. The SX Model's DIP switch is on the top of pan/tilt module, and the other Models' DIP switches are on Corresponding diagram of protocol and code(if 8 switches, the last two are vacant)：... - Page 9 1-64 Comparison diagram of code and switch - 9 -...
- Page 10 65-128 Comparison diagram of code and switch - 10 -...
- Page 11 129-192 Comparison diagram of code and switch - 11 -...
- Page 12 193-256 Comparison diagram of code and switch - 12 -...
-
Page 13: Chapter 3 Installation
Chapter 3 Installation Installation Preparation 1. Check the parts The parts in the carton (Deluxe) as follows: (Optional) Wrapping bag (OEM) AC24V Power Transformer Outdoor: Indoor: Housing (Appearance as per Model) 2. Other Accessories (optional) Keyboard, Infrared Controller, Matrix Controller, Bracket. Installation Ⅰ.Outdoor Speed Dome Installation Part 1 (Pan/Tilt Module and housing are packed in corporately) - Page 14 Cables connection diagram 1. Power cable: Connect the white and black wires to AC24V or DC30V power supply AC and DC are neither polarity. Connect the green wire to ground fully to release static electricity and lightning faradism. Don’t connect the GND to power. 2.
- Page 15 Ⅱ. Outdoor Speed Dome Installation Part 2 (The Pan/Tilt Module and housing are packed dividedly) Cable Connection diagram SL/AL/PLW/GLW/SLW BL/BLW Speed dome Installation 1. Connect the cables to the PC board, and then 2. Insert the 24pin plugs into socket and tight the turn over the PC board and tight the screws.
- Page 16 Indoor Speed Dome Installation Part 3 Indoor SX/CX series installation Cable connection diagram SX Series Pan/Tilt Module CX Series Pan/Tilt Module 1. Power: Connect AC24V power supply, connect to ground. 2. RS485 Cable: RS485 A and RS485 B wires are for controller. 3.
- Page 17 1. Install and fix stator onto the SX Pan/Tilt module 2. Push the XS bracket into ceiling and let the clips stretch out, screw the clips to tighten the bracket. 3. Set dome ID and protocol via DIP switches. 4. Connect cables as per cable connection diagram. Match the tabs, push and the Pan/Tilt Module into XS bracket and tighten the screws on the stator.
- Page 18 OEM Series Pan/Tilt Module for OEM housing and OEM bracket (IP68 Protection) Self Testing Please check the connections are correct before the power is switched on. The high speed will perform PTZ and lens self-testing for 10 seconds as soon as the power is on. - 18 -...
-
Page 19: Chapter 4 Control Operation
- 19 -... - Page 20 - 20 -...
- Page 21 - 21 -...
- Page 22 - 22 -...
- Page 23 There are two parts of symbols in speed dome. One part is from speed dome PCB, the other is from inside of camera. Different symbols have different characteristic. The symbols in some kind of camera are as following: Zoom Manual Zoom Manual zoom near end Manual zoom far end Back light compensation...
- Page 24 Ⅰ.Menu 1.1 Call preset 95 or "2+ON" to access the menu by keyboard or matrix controller. 1.2 In the main menu, move the joystick up or down to move the cursor to the desired the setting. Press "OPEN" or "→" on keyboard to confirm, "CLOSE" or "←" to exit, "NEAR" to increase value, "FAR" decrease value.
- Page 25 2.2.3.2 MANUAL APERTURE: Select it to set camera as manual aperture. 2.3 CAMERA 2.3.1 BALANCE: To set white balance 2.3.1.1 AUTO-WB: Select ON/OFF to open/close auto white balance. If the option is "ON" under 2.3.1.2, 2.3.1.3, .23.1.4, AUTO-WB will be set "OFF" automatically. 2.3.1.2 MANUAL-WB: To set manual white balance 2.3.1.2.1 R-SET.
- Page 26 2.4 MOTION: Set Auto Functions 2.4.1 AUTO CRUISE 2.4.1.1 CRUISE SET: To set cruise, up to 8 cruises and 24 presets each cruise. Press "NEAR/FAR" to increase/decrease cruise number, press "OPEN" to confirm. 2.4.1.1.1 Cruise interface NUM: Cruise No. PRESET: Input preset number to call the desired presets. Press "OPEN" to end setting and display "OFF"...
- Page 27 TYPE: PRESET/CRUISE/TRACK. Press” NEAR/FAR" to switch. NUMBER: PRESET/CRUISE/TRACK number ENTER: Confide clearing 2.4.7 DWELL TIME: Set the time in minute for auto back to preset 1. Value ranges from 1-99 minutes. Set the value 00, to cancel this function. For example, Dwell: 20, Preset 1 dwell time is set as 20 minutes.
- Page 28 Character Table 2.5.1.2 POSITION SET: 2.5.1.2.1 Set the main title position on the screen: move the joystick to change the desired title position. 2.5.2 TITLE DIS: Select "ON/OFF" to enable/disable title status display. 2.5.3 PRESET DIS: Select "ON/OFF" to enable/disable preset status display. When call preset, the screen displays "CALL PRESET X".
- Page 29 2.6.3 ALARM3: Set preset number. Call the preset automatically when the ALARM3 inputs. Set the value 000 to disable ALARM3 (Press NEAR/FAR to increase/decrease the Value). 2.6.4 ALARM4: Set preset number. Call the preset automatically when the ALARM4 inputs. Set 2.6.5 Press "1+OFF"...
