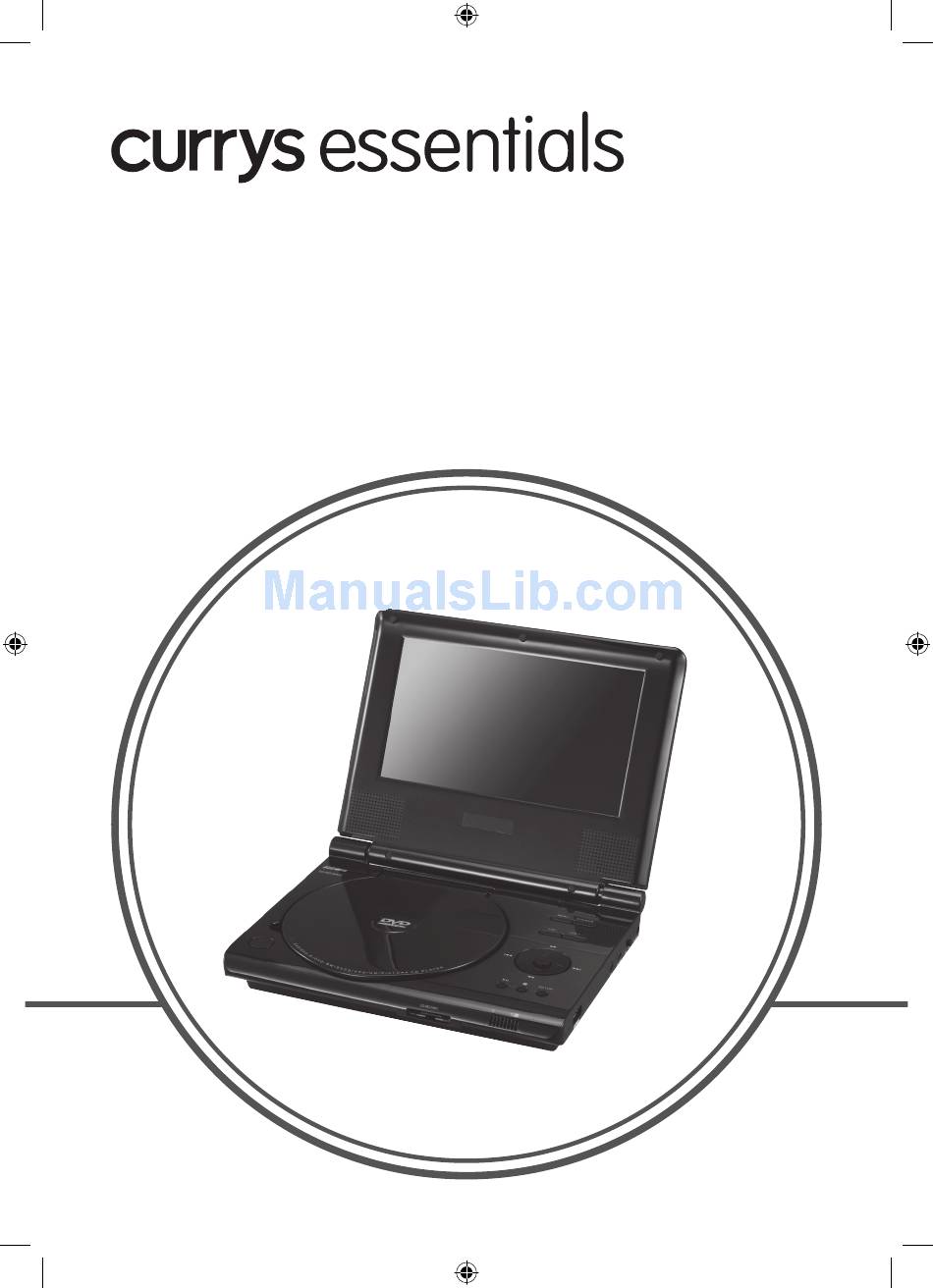

POR TABLE DVD PL AYER
IN ST R UC T ION MANUAL
C 7PD VD 10
C7PDVD10_IB_110218.indd 1
2/18/11 3:35 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C7PDVD10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Currys Essentials C7PDVD10

  • Page 1 POR TABLE DVD PL AYER IN ST R UC T ION MANUAL C 7PD VD 10 C7PDVD10_IB_110218.indd 1 2/18/11 3:35 PM...
  • Page 2 C7PDVD10_IB_110218.indd 2 2/18/11 3:35 PM...

  • Page 3: Table Of Contents

    Contents Unpacking ........................5 Product Overview ......................6 DVD Player ..............................6 Remote Control .............................7 Battery Installation for the Remote Control..................8 Remote Control Operation Range......................8 Power Supply ........................9 Using the Mains Adapter (for indoor use) ...................9 Using the Car Power Adapter (for in-car use) ..................9 Connections .......................
  • Page 4 Using a USB Flash Drive or and SD/MMC/MS Card ..........17 General Operation ............................ 17 Using the Language Setup Menu ................18 OSD Language ............................18 Subtitle / MPEG4 Subtitle / Audio / DVD Menu ................18 Using the Video Setup Menu ..................18 Aspect Ratio ..............................

  • Page 5: Unpacking

    Thank you for purchasing your new Currys Essentials Portable DVD Player. These operating instructions will help you use it properly and safely. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.

  • Page 6: Product Overview

    Product Overview DVD Player SD/MS/MMC 11 12 1. LCD Screen Open Button Press to open the disc door. 2. Speaker 9. SD/MS/MMC Port 3. Disc Door PLAY / PAUSE Button Push to close the disc door. Press to start playback or pause. 4.

  • Page 7: Remote Control

    Remote Control 9. ANGLE Button Switch between multiple camera angles when the DVD you are playing has been programmed with multiple camera angle. Press repeatedly to select the slide show mode in playing JPEG pictures. 10. AUDIO Button Select one of the audio sound tracks on a DVD (if more than one is available) or select the audio output mode on a CD.

  • Page 8: Battery Installation For The Remote Control

    Battery Installation for the Remote Control 1. Press and lift the back cover up to 2. Insert two AAA size batteries. Make open the battery compartment of the sure to match the (+) and (–) ends of remote control. the battery compartment. 3.

  • Page 9: Power Supply

    Power Supply Using the Mains Adapter (for indoor use) Right Side of DVD Player To Mains POWER AV OUT DC IN 9-12V Socket To DC IN 9V-12V Mains Adapter (included) Socket • Only use the included mains adapter. Do not use it with any other equipment. • When the unit is not going to be used for a long period of time, disconnect the mains adapter from the mains socket.

  • Page 10: Connections

    Connections Connecting a TV If your TV has audio/video inputs, you can connect the unit to your TV using a standard Audio / Video Cable. Right Side of DVD Player POWER AV OUT DC IN 9-12V To AV OUT Sockets Audio / Video Cable (not included) Watching a DVD on your TV 1.

  • Page 11: Compatible Disc Types

    Compatible Disc Types Disc Types Disc Logo Recorded Content DVD-VIDEO (Digital Versatile Disc) AUDIO + VIDEO DVD±RW (Audio/Video format or JPEG files) AUDIO + VIDEO + JPEG DVD+ReWritable DVD±R (DVD Recordable - Audio/Video AUDIO + VIDEO + JPEG format or JPEG files) DVD+R CD-R (CD Recordable - Audio/Video format or AUDIO + VIDEO + JPEG...

  • Page 12: Turning On The Dvd Player

    Turning On the DVD Player 1. Switch the ON/OFF button to ON on the side panel to turn the DVD player on. 2. The DVD logo (start-up picture) will appear on the screen. 3. After use, switch the ON/OFF button to OFF on the side panel to turn the DVD player off.

  • Page 13: Selecting Title / Chapter / Track (For Dvd)

    Selecting Title / Chapter / Time (for DVD) 1. Press the buttons to go to the previous or next title / chapter / time. 2. Press the SEARCH button to display the disc information text line for title / chapter / time .

  • Page 14: Repeat Play Mode

    Repeat Play Mode The repeat play options vary depending on the disc type. While playing a disc, press the REPEAT button repeatedly to choose a repeat option. For DVD • Repeat Chapter (currently playing chapter) • Repeat Title (currently playing title) • Off (Cancel) For CD • Repeat Single (currently playing file)

  • Page 15: Audio Selection

    Audio Selection For DVD Press the AUDIO button repeatedly to select different audio languages. For CD Press the AUDIO button repeatedly to select the available audio channels provided by the disc (Left, Right, Mix, Stereo). • If only one audio format is recorded on the DVD, the number does not change. • It takes about 2 seconds for playback to continue in the new audio format.

  • Page 16: Zoom Selection

    Zoom Selection This function allows you to enlarge or shrink the video image or picture on the screen. During playback, press the ZOOM button repeatedly to display the picture with different scales (2X size, 3X size, 4X size, Normal size). Adjusting the LCD Screen You can adjust the Brightness, Contrast and Colour of the LCD screen.

  • Page 17: Using A Usb Flash Drive Or And Sd/Mmc/Ms Card

    Using a USB Flash Drive or and SD/MS/MMC Card General Operation You can play or view data files (JPEG) from USB flash drives or SD/MS/MMC cards. 1. Connect the USB flash drive or SD/MS/MMC card directly to the USB port or SD/MS/ MMC port on the DVD player.

  • Page 18: Using The Language Setup Menu

    Using the Language Setup Menu 1. Press the SETUP button to display the system setup menu. Language Language Subtitle 2. Press the buttons to select Video MPEG4 subtitle Language and then press the Audio button. Audio DVD menu 3. Press the buttons to select Rating Language / Subtitle / MPEG4 subtitle...

  • Page 19: Aspect Ratio

    Aspect Ratio The picture shape can be adjusted to fit your screen and the format must be available on the playback disc. Otherwise, the TV display will not affect the picture during playback. The picture is reproduced in 4:3 format and a black band is displayed on either side of the picture.

  • Page 20: Using The Rating Setup Menu

    Using the Rating Setup Menu 1. Press the SETUP button to display the system setup menu. Parental control Language 2. Press the buttons to select Rating Set password Video and then press the button. Audio 3. Press the buttons to select Rating Parental control / Set password, and then press the ENTER button to...

  • Page 21: Set Password

    Set Password You need to enter your four-digit password to play a prohibited disc or if prompted for a password. 1. Use the 0-9 buttons to enter the four-digit password and then press the ENTER button to confirm. When doing this for the first time, enter the default password ‘1369’ . If you forget your old four-digit pass word, enter the default password ‘1369’...

  • Page 22: Maintenance

    Maintenance Handling Discs • Do not touch the playback side of the disc. • Do not attach paper or tape to the disc. Playback side Cleaning Discs • Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth.

  • Page 23: Hints And Tips

    Hints and Tips If a problem does occur, it may often be due to something very minor. The following table contains various tips. PROBLEM CAUSE / SOLUTION No power. • Ensure the car power adapter or the mains adapter is connected.
  • Page 24 PROBLEM CAUSE / SOLUTION The disc does not play. • There is no disc inside the unit (“No disc” appears on the screen). • Insert the disc correctly with the graphics facing up. • Clean the disc. • A non-valid disc has been inserted, or the disc region number does not match the region number of the unit.

  • Page 25: Specifications

    Specifications Model C7PDVD10 Electronical Parameters Power Requirements AC 100-240 V , 50/60 Hz Dimensions (Approx.) 200(L) x 157(W) x 40.3(H) mm Power Consumption <10W Weight (Approx.) 0.73 kg Operating Humidity 5 % to 90 % Video Out 1Vp-p (75Ω) Audio Out 1.4 Vrms (1 KHz, 0 dB)

  • Page 26: Safety Warnings

    Safety Warnings Ventilation • Read all the instructions carefully before using the unit and keep them for future • To prevent the risk of electric shock or reference. fire hazard due to overheating, ensure • Retain the manual. If you pass the unit that curtains and other materials do not onto a third party make sure to include this obstruct the ventilation vents.
  • Page 27 Batteries CAUTION • Batteries used in the remote control for this RISK OF ELECTRIC SHOCK unit are easily swallowed by young children DO NOT OPEN and this is dangerous. The lightning flash with arrowhead • Keep loose batteries away from young symbol, within an equilateral children and make sure that the battery triangle, is intended to alert the...
  • Page 28 NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Remote Control 1706-054009-08R Mains Adapter 5323-079515-02R Car Power Adapter 5338-081330-20R Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.
