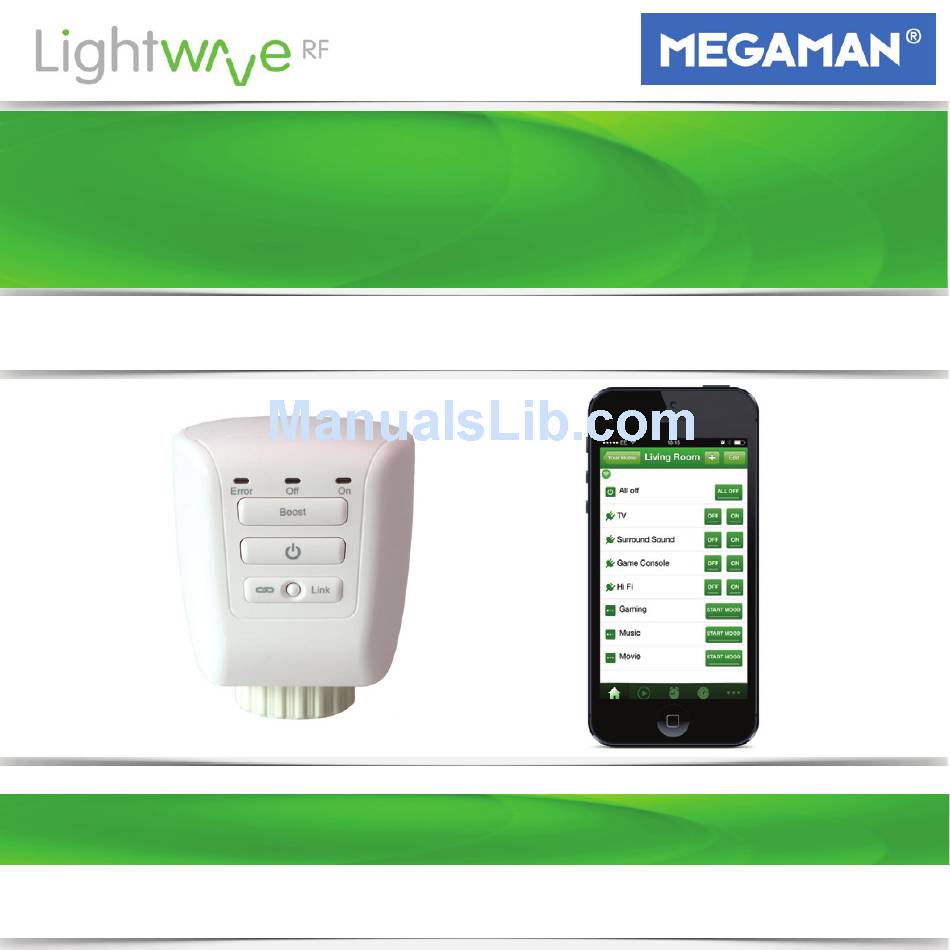

Radiator Valve (TRV)
Model No. JSJSLW922
Instruction Manual
Professional Series
www.lightwaverf.house
Version 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JSJSLW922 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lightwave JSJSLW922

  • Page 1 Radiator Valve (TRV) Model No. JSJSLW922 Instruction Manual Professional Series www.lightwaverf.house Version 2...
  • Page 2 Faraday Wharf Holt Street Birmingham B7 4BB Tel: +44 (0)121 250 3625 Email: enquiries@lightwaverf.com Model Number(s): JSJSLW922 Description: Thermostatic Radiator Valve Directives this equipment Complies with: 2006/95/EC The Low Voltage Directive N/A 2004/108/EEC The Electromagnetic Compatibility Directive 1999/5/EC R&TTE Directive...
  • Page 3: How Do I Get Started

    This usually straightforward and does not require tools; however, an adjustable spanner maybe useful if the valve is tightly screwed down. The ‘Lightwave Link’ and App is required to operate the LightwaveRF TRV remotely. Help video & further guidance For additional guidance, and to watch a video...
  • Page 4: Installation

    Installation Installation ‘O ’ LED. When ‘On’ LED. When illuminated the illuminated the TRV is opening. TRV is closing. Boost button. Standby button. Increases Turns radiator temperature for on/o . 1 hour. Linking button. Screw collar to Press to enter attach to radiator linking mode valve.
  • Page 5 Installation Attaching the TRV head to the valve • To attach the LightwaveRF TRV (head) you will need to ensure that Valve you have a suitable thermostatic valve Head fitted to your radiator (such as the one pictured) and unscrew the existing valve head.
  • Page 6 Quick Start Guide Installation There are 2 types of collar (type A, type B). If Type A fits the valve screw thread, this is the more desirable collar to use. It has 4 insert pin lengths options provided for the collar. The most suitable pin is the one that (when in the collar) replicates the length of the existing pin.
  • Page 7: Manual Operation

    The TRV is designed to achieve a set room temperature by controlling the flow of heat to the radiator. It is remotely controlled by the LightwaveRF Smartphone App and Web App (you will also need the Lightwave Link). The TRV automatically abides by the temperatures and schedules set from the App.
  • Page 8 Manual Operation The Standby button Pressing the ‘standby’ button on the TRV toggles between the fully open and fully closed positions. This will turn the radiator on or o by enabling or preventing the flow of hot water to it. When the ‘standby’ button is pressed, a green light will illuminate to indicate that the valve is opening, or an amber light will illuminate to indicate that...
  • Page 9 Manual Operation The Boost button Pressing the boost button on the TRV raises the target temperature a few degrees above the current room temperature for the duration of one hour. If the target temperature is already several degrees higher than the actual room temperature, then pressing boost will simply match this temperature.
  • Page 10: Device Setup

    Device Setup Linking the TRV to the Heating Remote or Magnetic Trigger If you intend to use a LightwaveRF Heating Remote or Magnetic Trigger to control the TRV directly then you will need to ‘link’ them. The TRV can be linked to other LightwaveRF heating devices using the following method.
  • Page 11: App Setup

    The TRVs can be linked to the App using the following method: Download the App and follow the in-App setup instructions to setup the Lightwave Link and App. Access the ‘heating page’ and follow the instructions regarding how to add a device. When prompted, press and release the ‘Link’...
  • Page 12 Using the App Using the Home Thermostat with the App IMPORTANT: For full instructions on how to use the Home Thermostat with the App or Web App follow the in-App help or visit www.lightwaverf.com. The main use of the Home Thermostat, if linked to the LightwaveRF App and Web App, is to be an accurate temperature reference.
  • Page 13 Add other Heating Devices Home Thermostat Boiler Switch Lightwave App (monitors house temp.) (turns boiler on/o ) (control any room from anywhere) Lounge Room Thermostat (controls several TRVs) Lightwave link Heating Remote (runs the show) (sets house temp.) Bedroom 2...
  • Page 14 Heating Scenarios 1. (Easy): Remote control of a single radiator Required: TRV, Heating Remote It is really comfortable and convenient to be able to have direct control over the room temperature without having to get up and alter the thermostat or boiler.
  • Page 15 2. (Advanced): ‘Wet’ zoned heating Required: TRVs, Lightwave Link, Boiler Switch, Home Thermostat With the LightwaveRF App and the Lightwave Link you can create an expandable zoned system that can take care of your entire home using TRVs that fit ‘wet’ radiators. Temperatures can be set for each room or ‘heating zone’, and heating can be planned week by week and room by room.
  • Page 16: Troubleshooting

    The TRV will not consistently operate remotely. Solution: The Remote/Thermostat/Lightwave Link may be encountering interference or may be at the edge of its reliable range of operation. First, ensure that there are no large pieces of metal or bodies of water in the path of the transmission.
  • Page 17 FAQs How do I know that the TRV will fit my radiator? The TRV is designed to fit the vast majortiy of thermostatic radiator valves. It also comes with adjustable adapter collars to cater for any exceptions, therefore it should fit any standard radiators. Is it legal for me to install a LightwaveRF TRV myself? Yes, LightwaveRF products are fully legal for you to install in your own home.
  • Page 18: Specification

    Technical Specification Specification RF frequency: 868 MHz FAQs Batteries: 2 x 1.5V (AA) Warranty: 2 year standard warranty...
  • Page 19 Version 2 2 Quadrant Park Mundells Welwyn Garden City Herts AL7 1FS 01707 386035 www.lightwaverf.house...
