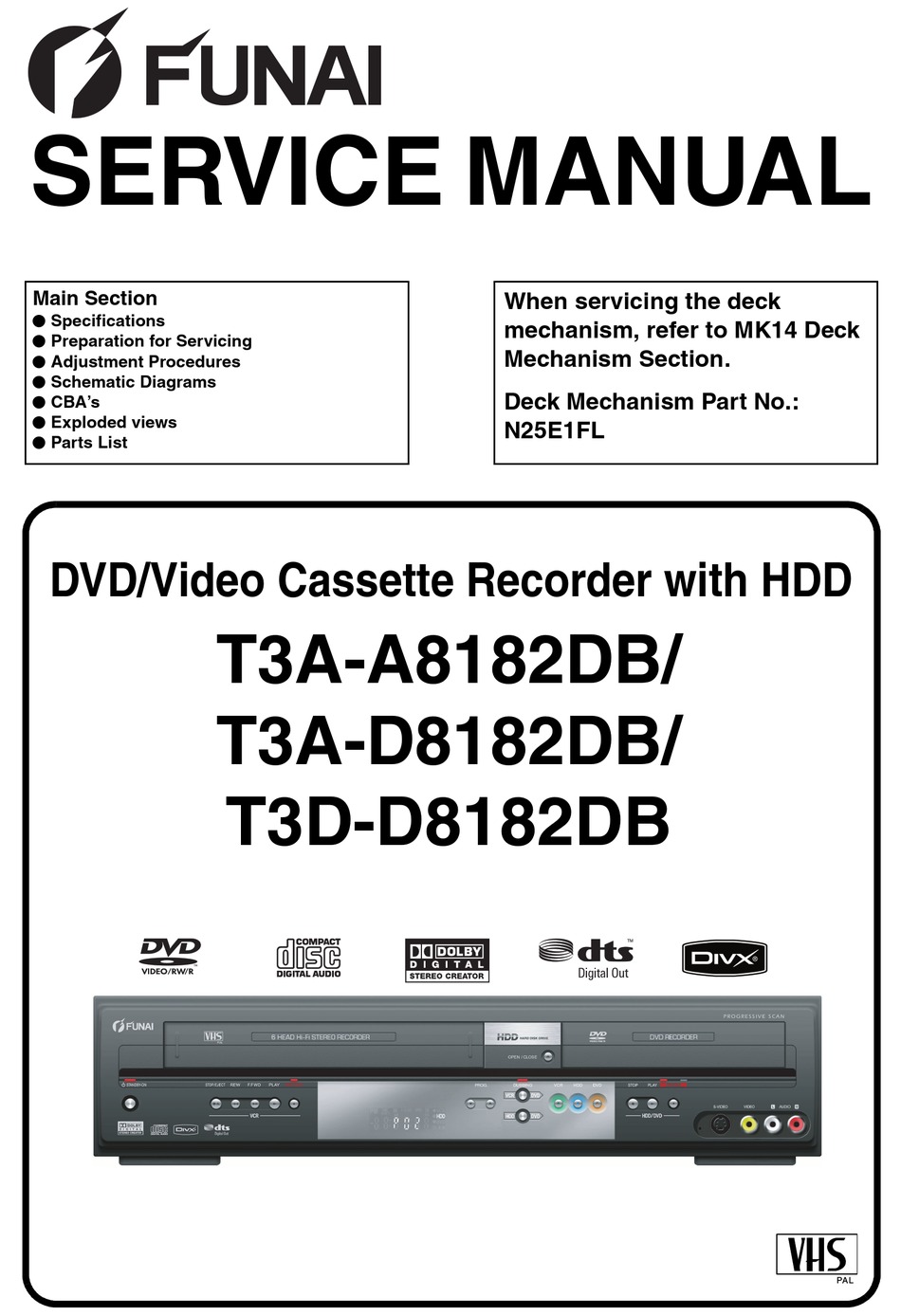

SERVICE MANUAL
Main Section
I Specifications
I Preparation for Servicing
I Adjustment Procedures
I Schematic Diagrams
I CBA's
I Exploded views
I Parts List

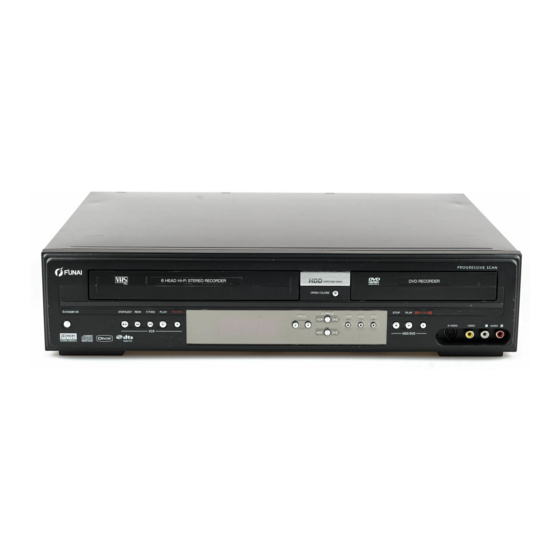

DVD/Video Cassette Recorder with HDD
T3A-A8182DB/
T3A-D8182DB/
T3D-D8182DB
When servicing the deck
mechanism, refer to MK14 Deck
Mechanism Section.
Deck Mechanism Part No.:
N25E1FL
PAL

Advertisement

Table of Contents
loading

Related Manuals for FUNAI T3A-A8182DB

Summary of Contents for FUNAI T3A-A8182DB

  • Page 1 I Specifications mechanism, refer to MK14 Deck I Preparation for Servicing Mechanism Section. I Adjustment Procedures I Schematic Diagrams Deck Mechanism Part No.: I CBA’s I Exploded views N25E1FL I Parts List DVD/Video Cassette Recorder with HDD T3A-A8182DB/ T3A-D8182DB/ T3D-D8182DB...

  • Page 2: Table Of Contents

    MAIN SECTION DVD/Video Cassette Recorder with HDD T3A-A8182DB/ T3A-D8182DB/ T3D-D8182DB Main Section I Specifications I Preparation for Servicing I Adjustment Procedures I Schematic Diagrams I CBA’s I Exploded Views I Parts List TABLE OF CONTENTS Specifications ................1-1-1 Laser Beam Safety Precautions .

  • Page 3: Specifications

    SPECIFICATIONS ITEM Specifications General Internal 3.5 inch HDD 250 GB Power consumption 60W (standby: 8.0W) Recording Recording format Video Recording format (DVD-RW only) Video format (DVD-RW, DVD-R) Recordable discs DVD-ReWritable DVD-Recordable Video recording format Sampling frequency 13.5MHz Compression format MPEG Audio recording format Sampling frequency 48kHz...

  • Page 4: Laser Beam Safety Precautions

    LASER BEAM SAFETY PRECAUTIONS This DVD player uses a pickup that emits a laser beam. Do not look directly at the laser beam coming from the pickup or allow it to strike against your skin. The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep your eyes at least 30 cm away from the pickup lens when the diode is turned on.

  • Page 5: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS Product Safety Notice K. When connecting or disconnecting the internal connectors, first, disconnect the AC plug from the Some electrical and mechanical parts have special AC outlet. safety-related characteristics which are often not evi- dent from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc.
  • Page 6 Safety Check after Servicing Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, Chassis or Secondary Conductor parts, and wires have been returned to their original positions. Afterwards, do the following tests and con- Primary Circuit firm the specified values to verify compliance with safety standards.

  • Page 7: Standard Notes For Servicing

    STANDARD NOTES FOR SERVICING Circuit Board Indications Pb (Lead) Free Solder 1. The output pin of the 3 pin Regulator ICs is When soldering, be sure to use the Pb free solder. indicated as shown. How to Remove / Install Flat Pack-IC Top View Bottom View 1.
  • Page 8 3. The flat pack-IC on the CBA is affixed with glue, so With Soldering Iron: be careful not to break or damage the foil of each 1. Using desoldering braid, remove the solder from pin or the solder lands under the IC when all pins of the flat pack-IC.
  • Page 9 With Iron Wire: 2. Installation 1. Using desoldering braid, remove the solder from 1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder the foil of each pin of the flat pack-IC on the CBA flux which is applied to all pins of the flat pack-IC, so you can install a replacement flat pack-IC more you can remove it easily.
  • Page 10 Instructions for Handling Semi- conductors Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work. 1. Ground for Human Body Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be charged on the body.

  • Page 11: Handling Precautions For Hdd

    HANDLING PRECAUTIONS FOR HDD CAUTION: 4. OTHERS a. Be careful so as not to do the followings. 1. SHOCK Otherwise, HDD might be damaged. a. Exposing HDD to shock may be the biggest - DO NOT disassemble HDD. damaging factor. Please note that HDD is easily - When handling HDD, be sure to hold both sides damaged even if dropped from any height.

  • Page 12: Preparation For Servicing

    PREPARATION FOR SERVICING How to Enter the Service Mode About Optical Sensors Caution: An optical sensor system is used for the Tape Start and End Sensors on this equipment. Carefully read and follow the instructions below. Otherwise the unit may operate erratically. What to do for preparation Insert a tape into the Deck Mechanism Assembly and press [VCR PLAY] button.

  • Page 13: Cabinet Disassembly Instructions

    CABINET DISASSEMBLY INSTRUCTIONS 1. Disassembly Flowchart REMOVAL This flowchart indicates the disassembly steps to gain REMOVE/*UNHOOK/ LOC. PART Fig. access to item(s) to be serviced. When reassembling, UNLOCK/RELEASE/ Note follow the steps in reverse order. Bend, route, and UNPLUG/DESOLDER dress the cables as they were originally. 4(S-7A), (S-7B), Earth Bracket Plate...
  • Page 14 Reference Notes 1. Locking Tabs (L-1) and (L-2) are fragile. Be careful (S-3B) not to break them. [3] Front Bracket 1-1. Remove Screw (S-2). (S-3B) 1-2. Release five Locking Tabs (L-1). (S-3A) 1-3. Release three Locking Tabs (L-2) and Front Support remove the Front Assembly.
  • Page 15 CN3002 [14] SW CBA CN3001 (S-7A) Desolder [9] ATA CBA [15] Front Jack CBA (S-14) (S-12) [7] HDD Unit CL1001 (S-7A) (S-13) HDD Rubber CN3001 [8] HDD Support [13] Power Supply HDD Rubber (S-8) (S-8) Insulation Sheet (S-7B) Fig. D6 [6] HDD Bracket (S-16) (S-15)
  • Page 16 Cylinder Assembly FE Head ACE Head Assembly SW507 LD-SW [17] Deck Assembly [18] AFV CBA [19] Power SW [18] AV CBA [17] Deck Assembly Cam Gear Hole (S-18) Shaft [18] AV CBA Desolder (S-19) Hole LD-SW [18] AV CBA Lead with blue stripe From FE Head...
  • Page 17 (S-20) [20] Deck Pedestal (S-20) [21] Front Bracket R [22] Bracket R (S-22) (S-21) Fig. D9 3. How to Eject Manually Note: When rotating the gear, be careful not to damage the gear. 1. Remove the Top Cover. 2. Rotate the gear in the direction of the arrow manually as shown below. View for A Rotate this gear in the direction of the arrow...

  • Page 18: Electrical Adjustment Instructions

    ELECTRICAL ADJUSTMENT INSTRUCTIONS General Note: "CBA" is an abbreviation for "Circuit Board Assembly." NOTE: Figure 1 1.Electrical adjustments are required after replacing circuit components and certain mechanical parts. It is important to do these adjustments only after EXT. Syncronize Trigger Point all repairs and replacements have been com- pleted.

  • Page 19: How To Self-Check And Initialize The Dvd/Vcr With Hdd

    HOW TO SELF-CHECK AND INITIALIZE THE DVD/VCR WITH HDD 1. Turn on the DVD/VCR with HDD recorder. 2. To put the DVD/VCR with HDD recorder into the HDD mode, press [HDD] on the remote control unit. 3. To put the DVD/VCR with HDD recorder into the self-check mode, after pressing [VARIABLE SKIP] button, press the [3], [6], and [9] buttons on the remote control in that order within three seconds.
  • Page 20 Table 2: Indication of DVD self-check (*7) INDICATION DESCRIPTION Connection of DVD is normal. NOT FOUND DVD drive cannot be found. FFC cable (connecting to CN401) between the DVD drive and the DVD/HDD Main CBA is CABLE ERROR not connected correctly. Table 3: Indication of HDD self-check (*8) INDICATION DESCRIPTION...

  • Page 21: Firmware Renewal Mode

    FIRMWARE RENEWAL MODE 1. Update Contents 4. Load the update disc. The TV screen will display Fig. c. Item Status - If the update disc contains only a single file, the update will initiate automatically when the disc is Update B/E FIRMWARE inserted.
  • Page 22 The status displayed in *2 is as shown below. 3. How to Verify the Firmware Version Display Status 1. Turn the power on and remove the disc in the tray. Loading F/W from Update Disc or EXECUTING writing to Flash memory 2.

  • Page 23: Function Indicator Symbols

    FUNCTION INDICATOR SYMBOLS < VCR Section > Note: When the power comes on again after that by pressing [STANDBY-ON] button, an error message is displayed on the TV screen as follows. When reel or capstan mechanism is not functioning When the drum is not working properly correctly 0:00:00 0:00:00...

  • Page 24: Block Diagrams

    BLOCK DIAGRAMS Servo/System Control Block Diagram E3B40BLS 1-12-1...
  • Page 25 Sub System Control Block Diagram E3B40BLSS 1-12-2...
  • Page 26 Digital Signal Process Block Diagram E3B40BLD 1-12-3...
  • Page 27 Video Selector Block Diagram E3B40BLVS 1-12-4...
  • Page 28 Video Block Diagram E3B40BLV 1-12-5...
  • Page 29 Audio Selector Block Diagram E3B40BLAS 1-12-6...
  • Page 30 Audio Block Diagram E3B40BLA 1-12-7...
  • Page 31 Hi-Fi Audio Selector Block Diagram E3B40BLH 1-12-8...
  • Page 32 Power Supply Block Diagram E3B40BLP 1-12-9...
  • Page 33 Sub Power Supply Block Diagram E3B40BLSP 1-12-10...

  • Page 34: Schematic Diagrams / Cba's And Test Points

    SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS Standard Notes WARNING Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc.
  • Page 35 LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES: 1. CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE. 2. CAUTION: Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F1001) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply.
  • Page 36 AV 1/9 Schematic Diagram < VCR Section > Comparison Chart of Models and Marks MODEL MARK T3A-A8182DB T3A-D8182DB T3D-D8182DB 1-13-3 E3B40SCAV1...
  • Page 37 AV 2/9 & Sensor Schematic Diagram < VCR Section > FL601 MATRIX CHART G7(GR7) G6(GR6) G5(GR5) G4(GR4) G3(GR3) G2(GR2) G1(GR1) (SG1) (SG2) (SG3) (S3) (SG4) (SG5) (S2) (SG6) (SG7) (S1) (SG8) P-SCAN (SG9) TIME P-SCAN SHIFT CD R 1-13-4 E3B40SCAV2...
  • Page 38 AV 3/9 Schematic Diagram < VCR Section > Comparison Chart of Models and Marks MODEL MARK T3A-A8182DB T3A-D8182DB T3D-D8182DB 1-13-5 E3B40SCAV3...
  • Page 39 AV 4/9 Schematic Diagram < VCR Section > 1-13-6 E3B40SCAV4...
  • Page 40 AV 5/9 & Power SW Schematic Diagram < VCR Section > *1 NOTE These components (IC1502, C1505) can be used in any models. However, you cannot mix components under Group A with the ones under Group B. You can choose either Group. The difference between Group A and Group B is shown below.
  • Page 41 AV 6/9 Schematic Diagram < VCR Section > 1-13-8 E3B40SCAV6...
  • Page 42 AV 7/9 Schematic Diagram < VCR Section > 1-13-9 E3B40SCAV7...
  • Page 43 AV 8/9 Schematic Diagram < VCR Section > E3B40SCAV8 1-13-10...
  • Page 44 AV 9/9 Schematic Diagram < VCR Section > E3B40SCAV9 1-13-11...
  • Page 45 Power Supply Schematic Diagram < VCR Section > CAUTION ! CAUTION ! NOTE: Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. The voltage for parts in hot circuit is measured using For continued protection against fire hazard, If Main Fuse (F1001) is blown , check to see that all components in the power supply hot GND as a common terminal.
  • Page 46 Front Jack & SW Schematic Diagram < VCR Section > E3B40SCFJ 1-13-13...
  • Page 47 Rear Jack Schematic Diagram < VCR Section > 1-13-14 E3B40SCRJ...
  • Page 48 AFV Schematic Diagram < VCR Section > ATA Schematic Diagram < DVD/HDD Section > Comparison Chart of Models and Marks MODEL MARK T3A-A8182DB T3A-D8182DB T3D-D8182DB E3B40SCAFV E3B40SCAT 1-13-15...
  • Page 49 DVD/HDD MAIN 1/5 Schematic Diagram < DVD/HDD Section > 2 NOTE: The order of pins shown in this diagram is different from that of actual IC101. IC101 is divided into five and shown as IC101 (1/5) ~ IC101 (5/5) in this DVD/HDD Main Schematic Diagram Section. 1-13-16 E3B40SCD1...
  • Page 50 DVD/HDD MAIN 2/5 Schematic Diagram < DVD/HDD Section > 2 NOTE: The order of pins shown in this diagram is different from that of actual IC101. IC101 is divided into five and shown as IC101 (1/5) ~ IC101 (5/5) in this DVD/HDD Main Schematic Diagram Section. 1-13-17 E3B40SCD2...
  • Page 51 DVD/HDD MAIN 3/5 Schematic Diagram < DVD/HDD Section > 2 NOTE: The order of pins shown in this diagram is different from that of actual IC101. IC101 is divided into five and shown as IC101 (1/5) ~ IC101 (5/5) in this DVD/HDD Main Schematic Diagram Section. 1-13-18 E3B40SCD3...
  • Page 52 DVD/HDD MAIN 4/5 Schematic Diagram < DVD/HDD Section > 2 NOTE: The order of pins shown in this diagram is different from that of actual IC101. IC101 is divided into five and shown as IC101 (1/5) ~ IC101 (5/5) in this DVD/HDD Main Schematic Diagram Section. 1-13-19 E3B40SCD4...
  • Page 53 DVD/HDD MAIN 5/5 Schematic Diagram < DVD/HDD Section > 2 NOTE: The order of pins shown in this diagram is different from that of actual IC101. IC101 is divided into five and shown as IC101 (1/5) ~ IC101 (5/5) in this DVD/HDD Main Schematic Diagram Section. 1-13-20 E3B40SCD5...
  • Page 54 AV CBA Top View Sensor CBA Top View TO SENSOR CBA (END-SENSOR) VR501 TP503 TP504 SW-POINT RF-SW BHF300F01012A TP301 C-PB BHF300F01012B J308 AV1-V-OUT TO SENSOR CBA (START-SENSOR) 1-13-21 BE3B00F01011A...
  • Page 55 AV CBA Bottom View PIN 56 OF IC301 PIN 30 OF IC1509 PIN 28 OF CN1502 PIN 26 OF CN1502 PIN 24 OF CN1502 PIN 22 OF CN1502 PIN 14 OF CN1502 WF10 PIN 28OF CN1503 1-13-22 BE3B00F01011A...
  • Page 56 Power Supply CBA Top View CAUTION ! Because a hot chassis ground is present in the power CAUTION ! supply circut, an isolation transformer must be used. For continued protection against fire hazard, Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. Also, in order to have the ability to increase the input replace only with the same type fuse.
  • Page 57 Power Supply CBA Bottom View Because a hot chassis ground is present in the power CAUTION ! CAUTION ! supply circut, an isolation transformer must be used. For continued protection against fire hazard, Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. Also, in order to have the ability to increase the input replace only with the same type fuse.
  • Page 58 Front Jack CBA Top View SW CBA Top View SW CBA Bottom View Front Jack CBA Bottom View BE3B00F01021B BE3B00F01021C 1-13-25...
  • Page 59 Rear Jack CBA Top View Rear Jack CBA Bottom View BE3B00F01021D Power SW CBA Top View Power SW CBA Bottom View ATA CBA Top View ATA CBA Bottom View BE3B00F01011B BE4340F01032 1-13-26...
  • Page 60 AFV CBA Top View AFV CBA Bottom View 1-13-27 BE6800F01091...

  • Page 61: Waveforms

    WAVEFORMS NOTE: Input: COLOR BAR SIGNAL (WITH 1KHz AUDIO SIGNAL) Pin 22 of CN1502 Pin 14 of CN1502 Pin 56 of IC301 V-OUT E-E 0.2V 20µs VIDEO-C 0.2V 20µs AUDIO(L)-OUT 0.5ms Pin 56 of IC301 UPPER Pin 30 of IC1509 Pin 28 of CN1503 TP504 WF10...
  • Page 62 WIRING DIAGRAMS Wiring 1/2 Diagram 1-15-1 E3B40WI1...

  • Page 63: Wiring Diagram

    Wiring 2/2 Diagram E3B40WI2 1-15-2...

  • Page 64: Ic Pin Function Descriptions

    Signal Mark Function Name Comparison Chart of Models and Marks Not Used Model Mark Not Used T3A-A8182DB Not Used T3A-D8182DB Recording Safety SW T3D-D8182DB REC-SAF- Detect (With Record IC501 ( SERVO / SYSTEM CONTROL ) tab=”L”/ With out Record tab=”H”)
  • Page 65 Signal Signal Mark Function Mark Function Name Name Not Used OUT C-POW-SW Capstan Power Switching Signal Drum Motor Phase/ IN D-PFG Frequency Generator Not Used AMPVREF Not Used V-Ref for CTL AMP Not Used AMPVREF V-Ref for CTL AMP Sub Micro Controller IN S-CS Interface Chip Select P80/C...
  • Page 66 IC612 ( VFD DRIVER ) Signal Function Name IN CLK Clock Input IN STB Serial Interface Strobe Not Used Ground Ground Power Supply OUT SG1 OUT SG2 OUT SG3 10 OUT SG4 Segment Output 11 OUT SG5 12 OUT SG6 13 OUT SG7 14 OUT SG8 Pull Down Level...

  • Page 67: Lead Identifications

    LEAD IDENTIFICATIONS KRA103M-AT/P 2SC2120-Y(TE2 F T) KTC2026-Y/P 2SK3798(Q) KRA104M-AT/P KTA-1266-GR-AT/P KRC103M-AT/P KTC3203-Y-AT/P KRC106M-AT/P KTC3198-(GR,Y)-AT/P KTA1267(GR,Y)-AT/P KTC3199-(BL,GR,Y)-AT/P RN1206 KTC3266-GR-AT/P RN2203(TE4 F T) KTC3266-GR(TE2 F) 2SA1015-GR(TE2 F T) 2SC1815-(BL,GR,Y)(TE2 F T) B C E G D S E C B E C B TLV1117I TO-220 2SA1020-Y(TE6 F M) PQ070XF01SZH...

  • Page 68: Exploded Views

    B-27 B-18 FRONT JACK CBA B-13 A-16 Front Assembly A-1X SW CBA B-12 POWER SUPPLY CBA L-16 A-10 L-18 A,B,C,D A,B,C B-20 X-27 Comparison Chart of FM1001 A-11 Models and Marks A-25 Model Mark T3A-A8182DB T3A-D8182DB T3D-D8182DB L-17 1-18-1 E3B40CEX...
  • Page 69 Packing [T3A-A8182DB] Lower Side Upper Side X-2B X-2C X-3B X-3C X-2A X-25 X-19 X-3A X-18 X-23 X-24 X-22 1-18-2 E3B40PEX...
  • Page 70 Packing [T3A-D8182DB/T3D-D8182DB] Lower Side Upper Side X-2A X-2B X-2C X-3D X-25 X-26 X-19 X-3C X-3B X-3A X-3J X-3G X-3I X-3F X-3H X-3E X-18 X-22 Comparison Chart of Models and Marks Model Mark T3A-D8182DB T3D-D8182DB 1-18-3 E3B40PEX...

  • Page 71: Mechanical Parts List

    Comparison Chart of Models and Marks L-3A SCREW B-TIGHT M3X8 BIND HEAD+ GBHB3080 Model Mark L-3B SCREW B-TIGHT M3X8 BIND HEAD+ GBHB3080 T3A-A8182DB L-3C SCREW B-TIGHT M3X8 BIND HEAD+ GBHB3080 T3A-D8182DB L-3D SCREW B-TIGHT M3X8 BIND HEAD+ GBHB3080 T3D-D8182DB L-4A...
  • Page 72 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. L-13A INCH SCREW 3.4X5 + or SAC3T050 X-25 SERVICE CENTER LIST HC2C0ED 0VMN03071D INCH SCREW 3.4X5 + SAF3T050 X-26 OWNERS MANUAL CD-ROM E3B43ED 1VM323772 L-13B INCH SCREW 3.4X5 + or SAC3T050 X-26 OWNERS MANUAL CD-ROM E3B44ED...

  • Page 73: Electrical Parts List

    Comparison Chart of Models and Marks C332 ELECTROLYTIC CAP . 100µF/16V M H7 CE1CMAVSL101 Model Mark C333 CHIP CERAMIC CAP .(1608) F Z 0.1µF/ CHD1JZ30F104 T3A-A8182DB C334 ELECTROLYTIC CAP . 1µF/50V M H7 CE1JMAVSL1R0 T3A-D8182DB C335 ELECTROLYTIC CAP . 100µF/6.3V H7 CE0KMAVSL101 T3D-D8182DB C336 CHIP CERAMIC CAP .
  • Page 74 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. C453 ELECTROLYTIC CAP . 22µF/10V M H7 CE1AMAVSL220 C531 CHIP CERAMIC CAP .(1608) B K 4700pF/ CHD1JK30B472 C454 CHIP CERAMIC CAP .(1608) F Z 0.1µF/ CHD1JZ30F104 C533 CHIP CERAMIC CAP .(1608) B K 0.047µF/ CHD1JK30B473 C455 CHIP CERAMIC CAP .(1608) F Z 0.1µF/...
  • Page 75 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. C1525 CHIP CERAMIC CAP .(1608) B K 0.1µF/ CHD1JK30B104 C1594 ELECTROLYTIC CAP . 0.47µF/50V M CE1JMASDLR47 C1595 ELECTROLYTIC CAP . 1µF/50V M CE1JMASDL1R0 C1529 CHIP CERAMIC CAP . B K 2200pF/50V CHD1JK30B222 C1596 ELECTROLYTIC CAP .
  • Page 76 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. C1655 CHIP CERAMIC CAP . B K 2200pF/50V CHD1JK30B222 RECTIFIER DIODE 1N4005 NDWZ001N4005 C1656 CHIP CERAMIC CAP . B K 2200pF/50V CHD1JK30B222 D1505 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133 C1657 CHIP CERAMIC CAP .(1608) F Z 0.1µF/ CHD1JZ30F104...
  • Page 77 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. ZENER DIODE DZ-11BSAT265 NDTA00DZ11BS IC451 IC HIFI LA72648M-MPB-E QSZBA0RSY033 D1536 ZENER DIODE MTZJT-7711A or QDTA00MTZJ11 IC501 IC SYSCON M3776AMCH-AG7GP QSZAB0RHT153 DIODE ZENER 11BSA-T26 or NDTA011BST26 IC612 VFD DRIVER/CONTROLLER IC PT6313- NSZBA0TG2007 S-TP(L) or ZENER DIODE DZ-11BSAT265...
  • Page 78 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. TRANSISTOR 2SA1015-GR(TE2 F T) QQS12SA1015F Q1528 TRANSISTOR KTC3199-Y-AT/P or NQSYKTC3199P Q403 TRANSISTOR KTC3203-Y-AT/P or NQSYKTC3203P TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F Q404 TRANSISTOR KTA-1266-GR-AT/P or...
  • Page 79 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. CHIP RES. 1/10W J 5.6k Ω or CHIP RES. 1/10W J 27k Ω or R303 RRXAJR5Z0562 R411 RRXAJR5Z0273 RES CHIP 1608 1/10W J 5.6k Ω RES CHIP 1608 1/10W J 27k Ω RRXA562YF002 RRXA273YF002 CHIP RES.
  • Page 80 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. CARBON RES. 1/6W G 1.5k Ω or CHIP RES. 1/10W J 1k Ω or R523 RCX6GATZ0152 R623 RRXAJR5Z0102 CARBON RES. 1/4W G 1.5k Ω RES CHIP 1608 1/10W J 1.0k Ω RCX4GATZ0152 RRXA102YF002 CHIP RES.
  • Page 81 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. RES CHIP 1608 1/10W J 15k Ω CHIP RES. 1/10W F 220 Ω or RRXA153YF002 R1610 RRXAFR5H2200 CHIP RES. 1/10W J 15k Ω or CHIP RES.(1608) 1/10W F 220 Ω or R1552 RRXAJR5Z0153 RRXAFR5Z2200...
  • Page 82 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. RES CHIP 1608 1/10W J 68k Ω CHIP RES. 1/10W F 13k Ω or RRXA683YF002 R1699 RRXAFR5H1302 CHIP RES. 1/10W F 100 Ω or CHIP RES. 1/10W F 13k Ω or R1654 RRXAFR5H1000 RRXAFR5Z1302...
  • Page 83 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. CARBON RES. 1/4W J 75 Ω RES CHIP 1608 1/10W J 47k Ω R1738 RCX4JATZ0750 RRXA473YF002 CARBON RES. 1/6W J 100 Ω or CHIP RES. 1/10W J 4.7k Ω or R1739 RCX6JATZ0101 R1781...
  • Page 84 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. XTAL 1K*044334EE FXC445LDS002 C1035 ELECTROLYTIC CAP . 3300µF/6.3V SL or CE0KMZADL332 X501 QUARTS CRYSTAL 12.000000MHz or FXD126LCHE01 ELECTROLYTIC CAP . 3300µF/6.3V SM CE0KMZPDL332 XTAL 12MHz 12.000MHz FXD126LDS002 C1036 CERAMIC CAP .
  • Page 85 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. DIODE 1N5397BD NDL1001N5397 SWITCHING DIODE 1N4148M NDTZ01N4148M D016 SCHOTTKY BARRIER DIODE SB340 or NDQZ000SB340 D1110 ZENER DIODE MTZJT-7724B or QDTB00MTZJ24 DIODE SCHOTTKY SB340 or NDLZ00SB340S DIODE ZENER 24BSB-T26 or NDTB024BST26 SCHOTTKY BARRIER DIODE SB340 NDWZ000SB340...
  • Page 86 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. DIODE 1N5397BD NDL1001N5397 TRANSISTOR KTC3199-GR-AT/P or NQS4KTC3199P D1137 SWITCHING DIODE 1SS400 TE61 or QD1Z001SS400 TRANSISTOR 2SC1815-Y(TE2 F T) or QQSY2SC1815F SWITCHING DIODE KDS160E-RTK/P ND1ZKDS160EP TRANSISTOR 2SC1815-GR(TE2 F T) QQS12SC1815F D1138 SWITCHING DIODE 1SS400 TE61 or...
  • Page 87 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. CHIP RES. 1/10W J 4.7k Ω or CHIP RES. 1/10W F 10 Ω or R1120 RRXAJR5Z0472 RRXAFR5Z10R0 RES CHIP 1608 1/10W J 4.7k Ω RES CHIP 1608 1/10W F 10 Ω RRXA472YF002 RTW10R0YF002 CARBON RES.
  • Page 88 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. D3008 ZENER DIODE MTZJT-776.2B or QDTB0MTZJ6R2 TACT SWITCH TC-1104(H=9.5) SST0101DNG01 DIODE ZENER 6V2BSB-T26 or NDTB6R2BST26 SW3006 TACT SWITCH SKQSAF001A or SST0101AL041 ZENER DIODE DZ-6.2BSBT265 NDTB0DZ6R2BS TACT SWITCH KSM0614B or SST0101HH013 D3009 ZENER DIODE MTZJT-776.2B or...
  • Page 89 Ref. No. Mark Description Part No. Ref. No. Mark Description Part No. RES CHIP 1608 1/10W J 1.0k Ω C2011 CHIP CERAMIC CAP .(1608) B K 1000pF/ CHD1JK30B102 RRXA102YF002 CHIP RES. 1/10W J 75 Ω or R2014 RRXAJR5Z0750 C2012 ELECTROLYTIC CAP . 1µF/50V M CE1JMASDL1R0 RES CHIP 1608 1/10W J 75 Ω...
  • Page 90 Ref. No. Mark Description Part No. RESISTORS CHIP RES. 1/10W J 1k Ω or RRXAJR5Z0102 RES CHIP 1608 1/10W J 1.0k Ω RRXA102YF002 CHIP RES. 1/10W J 120k Ω or RRXAJR5Z0124 RES CHIP 1608 1/10W J 120k Ω RRXA124YF002 CHIP RES.(1608) 1/10W 0 Ω or RRXAZR5Z0000 RES CHIP 1608 1/10W J 0 Ω...
  • Page 91 T3A-A8182DB/T3A-D8182DB/T3D-D8182DB E3B40/43/44ED 2007-05-30...
