WARRIOR Stoves WSDAID Manual

Multi-fuel stove
Hide thumbs
Table of Contents

Advertisement

Quick Links

WARRIOR Stoves Ltd.

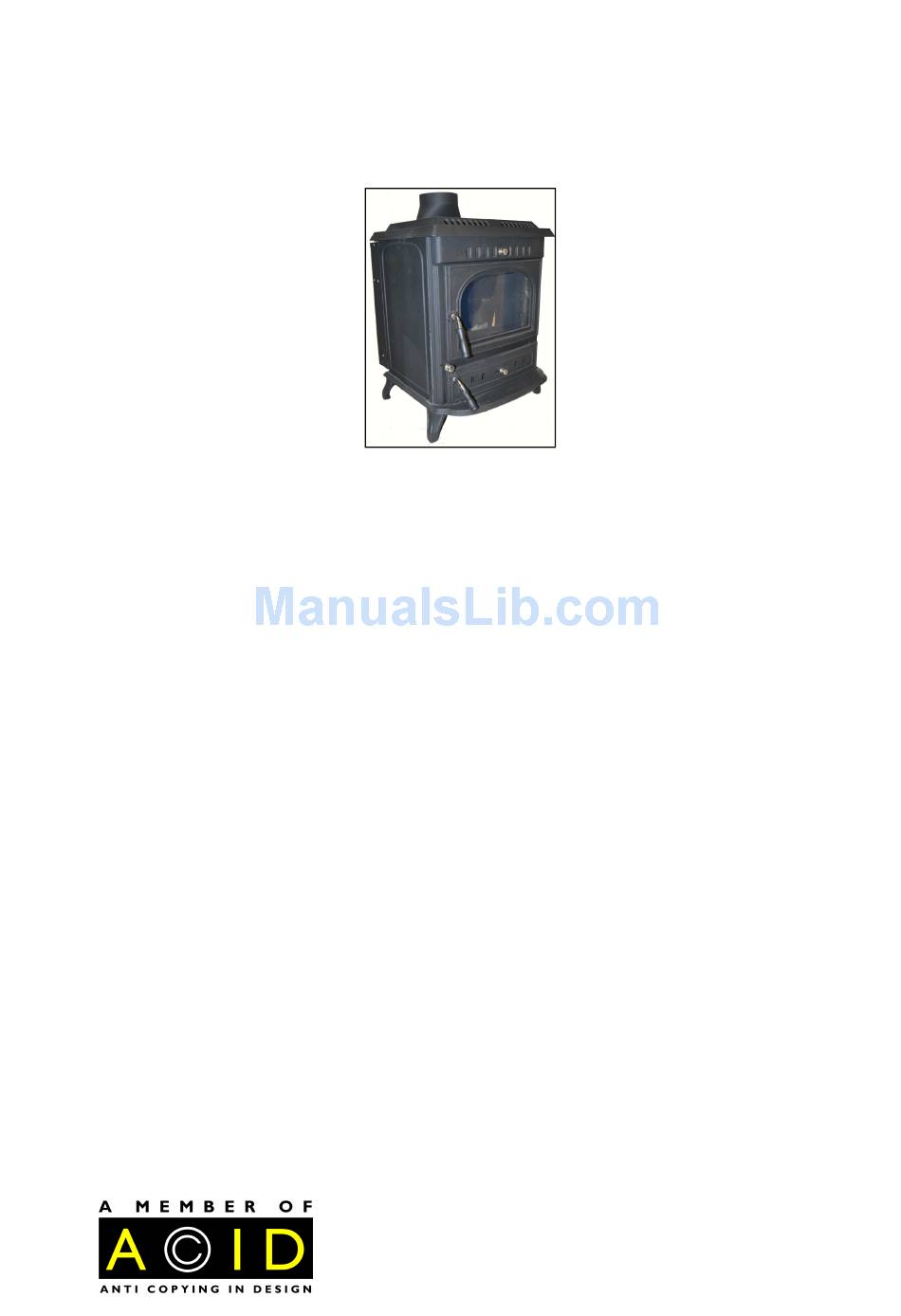

Manual for:Aidan Multi-Fuel Stove
Model no: WSDAID
Congratulations on your decision to own an advanced high quality and desirable Multi-Fuel
WARRIOR Stove. This Stove has been manufactured and designed in our factory from
premium grade materials to give you many years of excellent service when correctly
installed, operated and maintained. The main body is constructed from premium grade cast
iron, this is sand cast the traditional time honoured way by experts from freshly mined pig
iron. Cast Iron is the best material known for retaining and radiating heat, recycled scrap
iron is not used for any part of a WARRIOR Stove.
Please carefully and thoroughly read this manual prior to any installation or lighting of your
new stove.
If you have any questions regarding this stove which are not mentioned in this manual then
please contact the vendor of the stove or our head office, details below.
Please keep this manual for future reference. It has been produced for the WARRIOR
Stoves Aidan stove and may not be copied in whole, part or be used for any purpose apart
from which it is intended without express and written permission from a WARRIOR Stove
employee.
Manufactured by:
WARRIOR Stoves Ltd. (HEAD OFFICE)
Chapel Road
Tuckingmill
Camborne
Cornwall
UK. TR14 8QY
Tel: 01209 711115
Fax: 01209 612322
E-mail: info@warriorstoves.co.uk
Web: www.warriorstoves.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WSDAID and is the answer not in the manual?

Questions and answers

Related Manuals for WARRIOR Stoves WSDAID

Summary of Contents for WARRIOR Stoves WSDAID

  • Page 1 If you have any questions regarding this stove which are not mentioned in this manual then please contact the vendor of the stove or our head office, details below. Manufactured by: WARRIOR Stoves Ltd. (HEAD OFFICE) Chapel Road Tuckingmill Camborne Cornwall UK.

  • Page 2: Table Of Contents

    CONTENTS TECHNICAL DATA SAFETY STOVE LOCATION STOVE ASSEMBLY STOVE INSTALLATION. (Including Chimney Guidance) 5-12 STOVE OPERATION 13-16 STOVE AND CHIMNEY MAINTENANCE 17-18 TROUBLESHOOTING PARTS DIAGRAM LIST OF USEFUL ADDRESS’S INSTALLATION RECORD MAINTENANCE RECORD GUARANTEE OTHER PRODUCTS FROM WARRIOR STOVES LTD.

  • Page 3: Technical Data

    TECHNICAL DATA WARRIOR Stoves:Aidan WARRIOR Stoves Ltd. Model No:WSDAID Chapel Road, Tuckingmill Continuously rated Multi-Fuel Stove Camborne, Cornwall. Approved to EN13240 TR14 8QY. Top 800mm Height (mm) Minimum distance to Combustible surfaces. Side 450mm Width (mm) Rear 1200mm Depth (mm) N./A.

  • Page 4: Safety

    Most stove retailers will be able to assist in advising a competent person for installation. WARRIOR Stoves installation instructions cannot be taken as conforming to all standards in all areas and also cannot account for changes in legislation.

  • Page 5: Stove Location

    STOVE LOCATION The floor which the stove is to be located on must have an adequate load-bearing capacity. If the floor does not meet this requirement then suitable measures in accordance with building control regulations need to be taken. This stove has passed the requirements of building regulations so that it only requires a 12mm Thickness hearth.

  • Page 6: Stove Assembly

    STOVE ASSEMBLY Care should be taken when unpacking and assembling your stove. Stoves are heavy and therefore due consideration is required in lifting and moving into the final location. Where possible use a sack truck or trolley and obtain assistance rather than struggling or risking personal injury.

  • Page 7: Stove Installation

    STOVE INSTALLATION Prior to any installation being undertaken ensure that all intended work conforms to Building Regulations or Standards and any local laws including those referring to national and European Standards. The following are applicable: England & Wales > Building Regulations (2001) > Document J particularly relevant. Scotland >...
  • Page 8 Clay Flue Linings> BS EN 1457: 1999 • Factory Manufactured Metal Chimney> BS EN 1856-1: 2003 • Tested Linings approved by a Notified Body. Where applicable the Midtherm Flue Pipe available from WARRIOR Stoves dealers conforms to the above standards.
  • Page 9 Stove Installation Continued. All Installations: Place the stove carefully on its hearth and ensure it is stable and level. The spigot (male) end of the Connecting Flue Pipe must fit inside the stove outlet and be sealed with fire cement. The socket (female) end faces away from the stove.
  • Page 10 Stove Installation Continued. Some typical installations are shown as following: Sealed door to FLUE access chimney for sweeping & inspecting. The register plate must be 1.5mm thick rust resistant steel or heat resistant board. The Flue Pipe must be 3 times it’s diameter away from combustible materials.
  • Page 11 Multi-Fuel applications. The HT-Plus flue pipe manufactured by Midtherm is suitable and available from WARRIOR Stoves dealers. This flue pipe requires a minimum 50mm clearance from combustible materials and should not be joined in a wall or floor.
  • Page 12 At least 1800mm vertically above the weather surface and at least 2300mm horizontally from the weather surface. Upon completion of the installation the Chimney/Flue must be smoke tested prior to the stove being lit. Smoke pellets are available from your WARRIOR Stoves dealer. Following is a complete Smoke Test Guide:...
  • Page 13 Smoke Test Guide These are two Primary purposes for smoke testing, the first test is to discover any major defects which can cause leakage of fumes through a chimney or flue structure during normal operation. The second is to test the draw in the appliance. If in doubt about the condition of a chimney, especially when an old chimney is to be used after a long period of being unused, it is recommended to have it smoke tested.
  • Page 14 Stove Installation Continued. If smoke is seen establish the point of leakage and carry out remedial work to correct any faults. • After completing the remedial work repeat the testing procedure until no major leakage or fault is apparent. Remove the closures at the top and bottom of the chimney. Smoke Test 2: Appliance Draw Test •...

  • Page 15: Stove Operation

    Fire Guard conforming to BS 8423: 2002 should be fitted in place, these will be available from your WARRIOR Stoves retailer. This Stove should NOT be operated with the doors open.
  • Page 16 A flue damper may be put in-line in the flue pipe to assist the regulation of the flue draw, these will be available from your WARRIOR Stoves dealer. Fit in accordance with manufacturers fitting instructions. If any smoking does occur whilst the stove is burning then open the damper more fully.
  • Page 17 Stove Operation Continued. dangerous. Immediately after lighting close the fire door or doors. Once the fire has been established add more fuel to the fire bed and adjust the air controls according to your requirements. Fuel Types: Wood: All natural wood is suitable for burning on this stove, provided that it is well seasoned and has a moisture content below Twenty Percent.
  • Page 18 Purpose made Ash Carriers are available from your WARRIOR Stoves dealer that will assist in the safe removal and storage of ash until cold. Overnight Burning: This stove has been tested and approved as a continuously rated appliance when burning solid mineral fuel.

  • Page 19: Stove And Chimney Maintenance

    Damaged or broken parts should immediately be repaired or replaced with authorised spares, your WARRIOR Stoves dealer will be able to obtain these for you. The use of spare parts not supplied by WARRIOR Stoves may invalidate the stove guarantee.
  • Page 20 WARRIOR Stoves Dealer. If the glass ever breaks in your stove then it is quite easy to replace. Ensure that the replacement glass is the heat resistant variety which will be available from your WARRIOR Stoves dealer.

  • Page 21: Troubleshooting

    TROUBLESHOOTING If your WARRIOR Stove has been correctly installed, operated and maintained as outlined in this Manual then it should perform extremely well for a great number of years. Like most products the better it is looked after and the less it is abused then the longer it will last. Unless the stove is damaged or requires new parts or servicing it will invariably be an oversight during installation, poor fuel, extremities of location or adverse weather conditions.

  • Page 22: Parts Diagram

    PARTS DIAGRAM Top Plate Air Slide Knob 21 Grate Inner 31 Door Handle & Catch Top convection plate Inner Flue Outlet Top 22 Grate Outer 32 Door Handle Wooden Stove Rope Flue Blanking Plate Top 23 Grate Support Plate 33 Machine Screw M6X70 Bottom Convection plate Top Outlet Connecting Plate 24 Base Plate...

  • Page 23: List Of Useful Address's

    LIST OF USEFUL ADDRESS’S Midtherm Ltd Solid Fuel Association New Road 7 Swanwick Court Netherton Alfreton Dudley Derbyshire West Midlands DE55 7AS DY2 8SY T 0845 6014406 T 01384 458800 F 01773 834351 F 01384 458811 www.solidfuel.co.uk www.midtherm.co.uk sfa@solidfuel.co.uk sales@midtherm.co.uk Gastec CRE Ltd Solid Fuel Technology Institute Orchard Business Centre...
  • Page 24 LIST OF USEFUL ADDRESS’S Water Regulations Advisory Scheme, Teddington Appliance Controls Ltd Fern Close Holmbush Pen-Y-Fan Industrial Estate St Austell Oakdale Cornwall Gwent PL23 3HG NP11 3EH T 01726 222505 T 01495 248454 F 01726 222502 F 01495 249234 www.tedcon.com www.wras.co.uk info@tedcon.com info@wras.co.uk...

  • Page 25: Installation Record

    INSTALLATION RECORD This Installation Record helps you to ensure the hearth, Stove, and chimney/Flueway are satisfactory. If you have been directly engaged, copies should also be offered to the client and to the Building Control Body to show what you have done to comply with the requirements of part J.

  • Page 26: Maintenance Record

    MAINTENANCE RECORD Date Company Name & Registered Work Installation & Sign Name & Address Member of Conducted Chimney Safe Print Please kindly ensure this Maintenance Record is completed by the engineer every time work is completed on either the stove or the chimney.

  • Page 27: Guarantee

    WARRIOR Stoves will not be accountable for any loss, damage or injury resulting from your stove. Please also note that the Assembly, Installation and the Operation of this stove are not covered by the guarantee as they cannot possibly be governed by WARRIOR Stoves Ltd.
  • Page 28 OTHER PRODUCTS Fluepipe Fireside Accessories Garden Collection To view our full range of products please visit our website at: WWW.WARRIORSTOVES.CO.UK WWW.WARRIORSTOVES.CO.UK WWW.WARRIORSTOVES.CO.UK WWW.WARRIORSTOVES.CO.UK E-mail us to find your nearest stockist at: info@warriorstoves.co.uk info@warriorstoves.co.uk info@warriorstoves.co.uk info@warriorstoves.co.uk...
