Summary of Contents for Astroflex RST-1

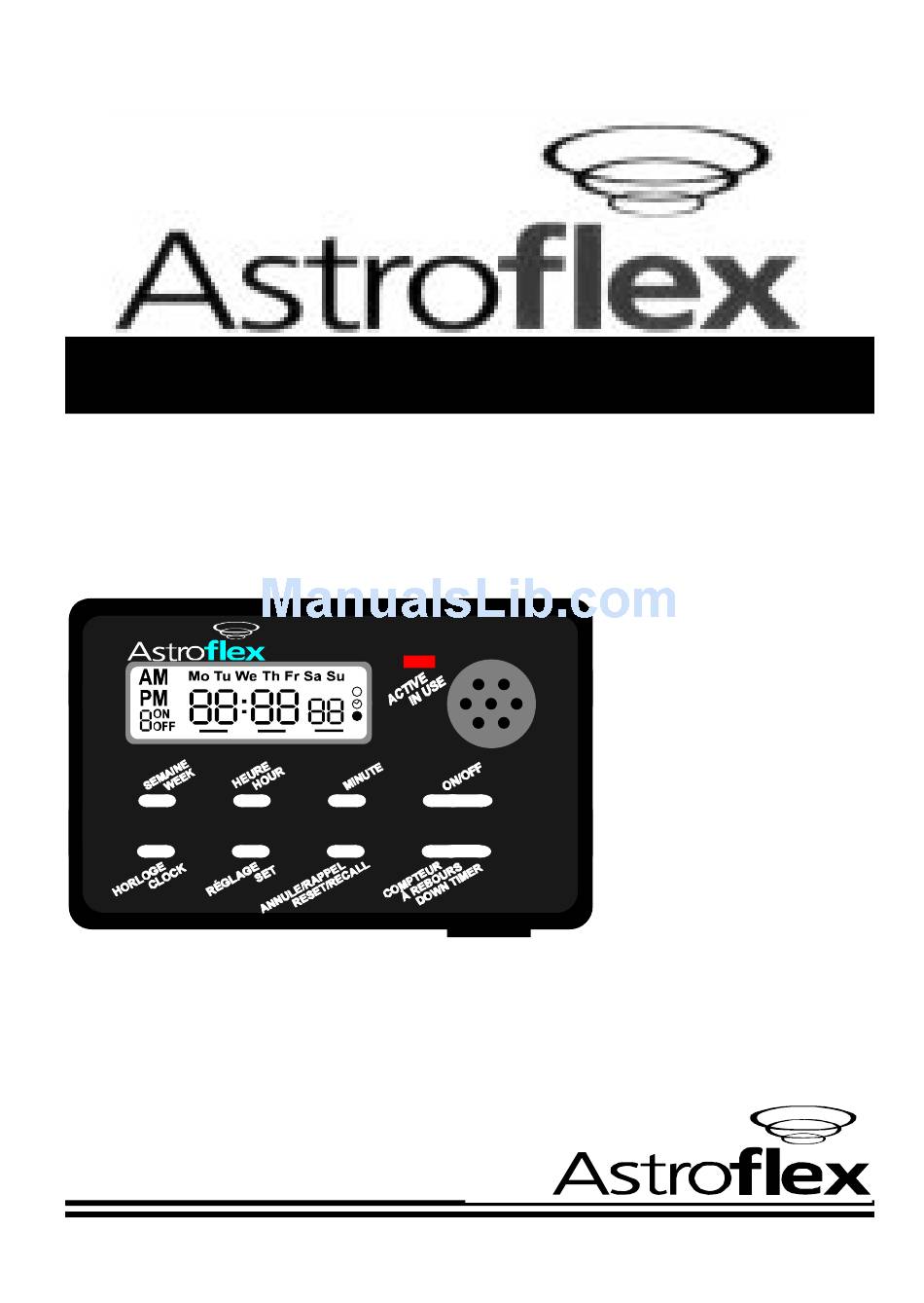

- Page 1 REMOTE STARTER TIMER U S E R M A N U A L Model RST-1 For remote starters equipped with a negative pulse input Manufactured for 193-903-201-02...
- Page 2 SPECIFICATIONS AND FEATURES GENERAL SPECIFICATIONS Power source:................+12 Vdc Consumption: ..............14 milliamps Output signal: ........negative pulse (0,3 - 0,5 seconds) FEATURES • Timer with 12 hour display • Confirmation beep during setting and starting • Eight programmable start groups •...
- Page 3 CLOCK SETTING Press and hold down the “CLOCK” button, then press “WEEK” to set the day of the week, “HOUR” to set the hour, and “MINUTE” to set the minutes. The corresponding selection increases by one unit each time you press the button briefly. If you hold the button down for more than one second, the value increases rapidly.
- Page 4 “DAYS” can be programmed in four different modes, as follows: Daily: each day (individually) Business: Monday to Friday inclusive Weekend: Saturday and Sunday Weekly: Sunday to Saturday inclusive Press the “SET” button again. The display will show the second programming group. The number “2”...
- Page 5 “CANCEL/RECALL” This button temporarily cancels one or more of the eight programming groups. For example, the programming could be as follows: one group to start the engine on business days, another group for the weekend days, and a final group for Fridays only. Suppose that you wish to keep only the programming for group 2 (10:30 am on weekends) for an indefinite period.
- Page 6 WARRANTY...
- Page 7 =>C4...
- Page 8 8]R 4 ; 4 2 C A > = 8 2 2 > A ? ...
