Summary of Contents for Viper WT 3 SPD
-

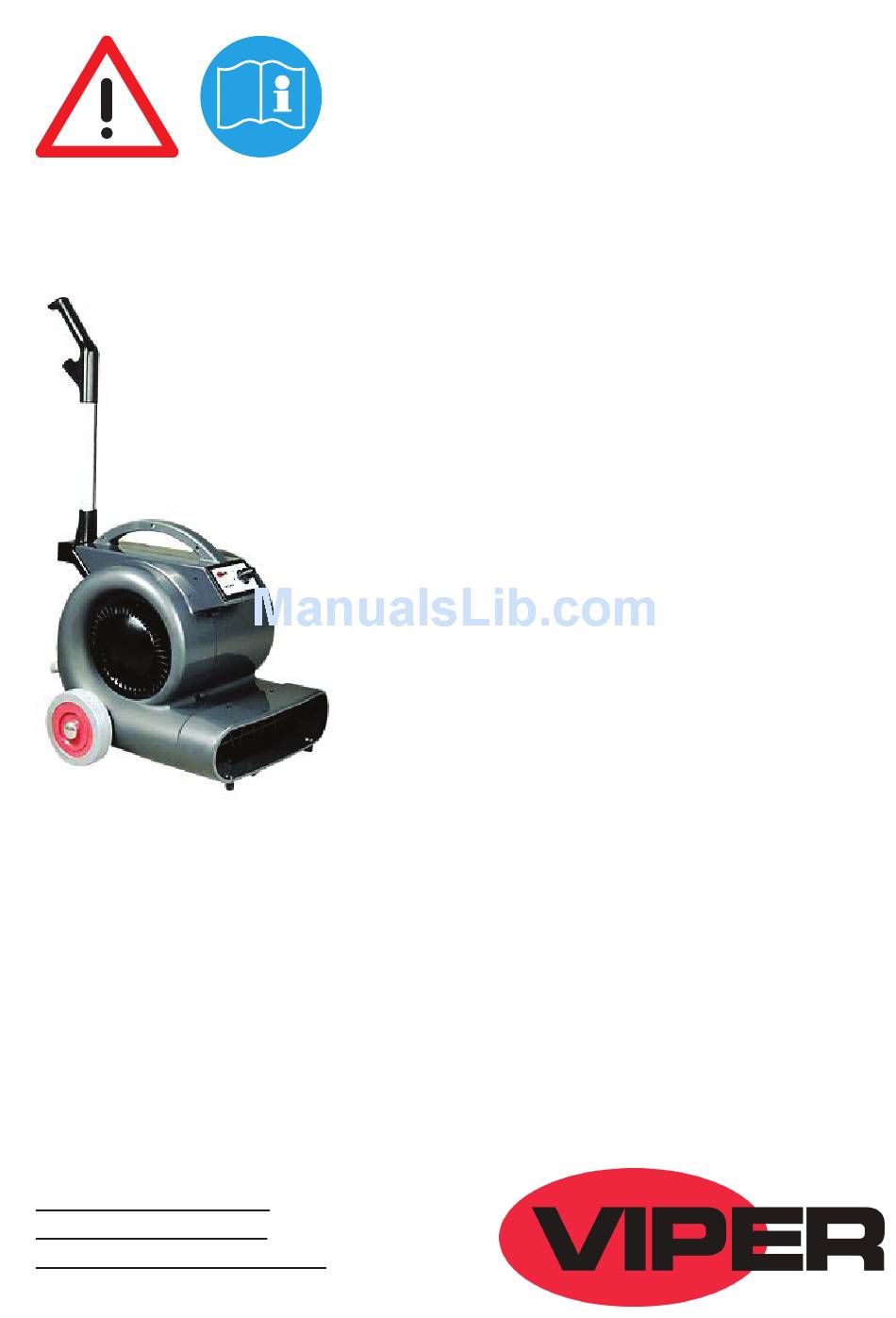

Page 1: User Manual
User Manual Original instructions WT 3 SPD Company information: www.vipercleaning.eu info-eu@vipercleaning.com 30521E(1)2012-04-10 A – 2012-04-10... -
Page 3: Table Of Contents
USER MANUAL ENGLISH TABLE OF CONTENTS INTrODuCTION ................................2 MAnuAl purposE And contEnts ............................2 tArgEt ......................................2 How to kEEp tHis MAnuAl ............................... 2 dEclArAtion of conforMity ..............................2 idEntificAtion dAtA ................................... 2 otHEr rEfErEncE MAnuAls ..............................2 spArE pArts And MAintEnAncE ............................. 2 cHAngEs And iMprovEMEnts .............................. -
Page 4: Introduction
All necessary operating, maintenance and repair procedures must be performed out by qualified personnel or by Viper Service centers. only original spare parts and accessories must be used. contact viper for service or to order spare parts and accessories, specifying the machine model and serial number. -
Page 5: Unpacking/Delivery
USER MANUAL ENGLISH uNPACkINg/DELIvEry to unpack the machine, carefully follow the instructions on the packing. when the machine is delivered, check that the packing and the machine were not damaged during transportation. in case of visible damages, keep the packing and have it checked by the carrier that delivered it. Call the carrier immediately to fill in a damage claim SAFETy the following symbols indicate potentially dangerous situations. - Page 6 (e.g. by driving over it, pulling or crushing it). regularly check whether the power cord is damaged or shows signs of ageing. Have the faulty mains connecting lead replaced by your Viper service representative or a qualified electrician prior to using the machine again.
-
Page 7: Machine Description
USER MANUAL ENGLISH MACHINE DESCrIPTION MACHINE STruCTurE (1) plastic handle (9) wheel (2) tube, handle (10) rubber, block, stand (3) seat, handle (11) rubber, stand, 48mm (4) Housing, left (12) serial tag (5) right net, vent, intake (13) power supply cord (6) net, vent, outlet (14) switch (7) stand... -
Page 8: Technical Data
ENGLISH USER MANUAL TECHNICAL DATA Model WT3SPD voltage 220-240 frequency 50-60 power current fan wheel diameter 241.3 power settings 3-speed fan speed (l) 1200 fan speed (M) 1330 fan speed (H) 1410 flow rate m³/h 5950 / 5440 / 4760 dimension lxwxH 53.3 x 50.8 x 43.2 weight... -
Page 9: Storage
USER MANUAL ENGLISH unplug machine as soon as you are not using it. wrap the power cord around the carrying handle. check machine for loose or missing nuts and bolts, and replace as necessary. clean the outside of the machine with a mild cleaner. STOrAgE switch off the machine. - Page 10 ENGLISH USER MANUAL WT3SPD 30521E(1)2012-04-10 A...
- Page 11 USER MANUAL ENGLISH 30521E(1)2012-04-10 A WT3SPD...
