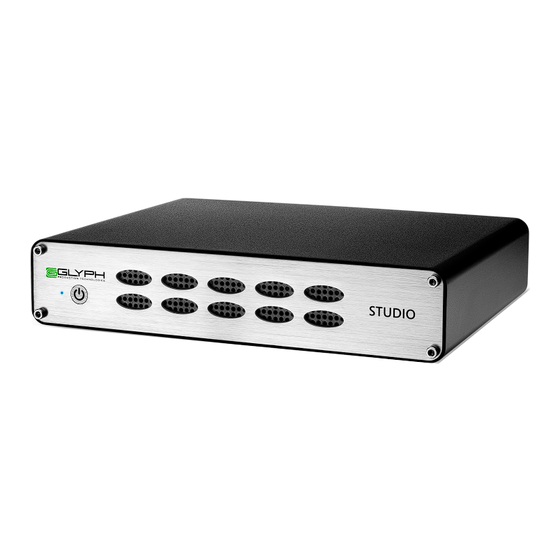

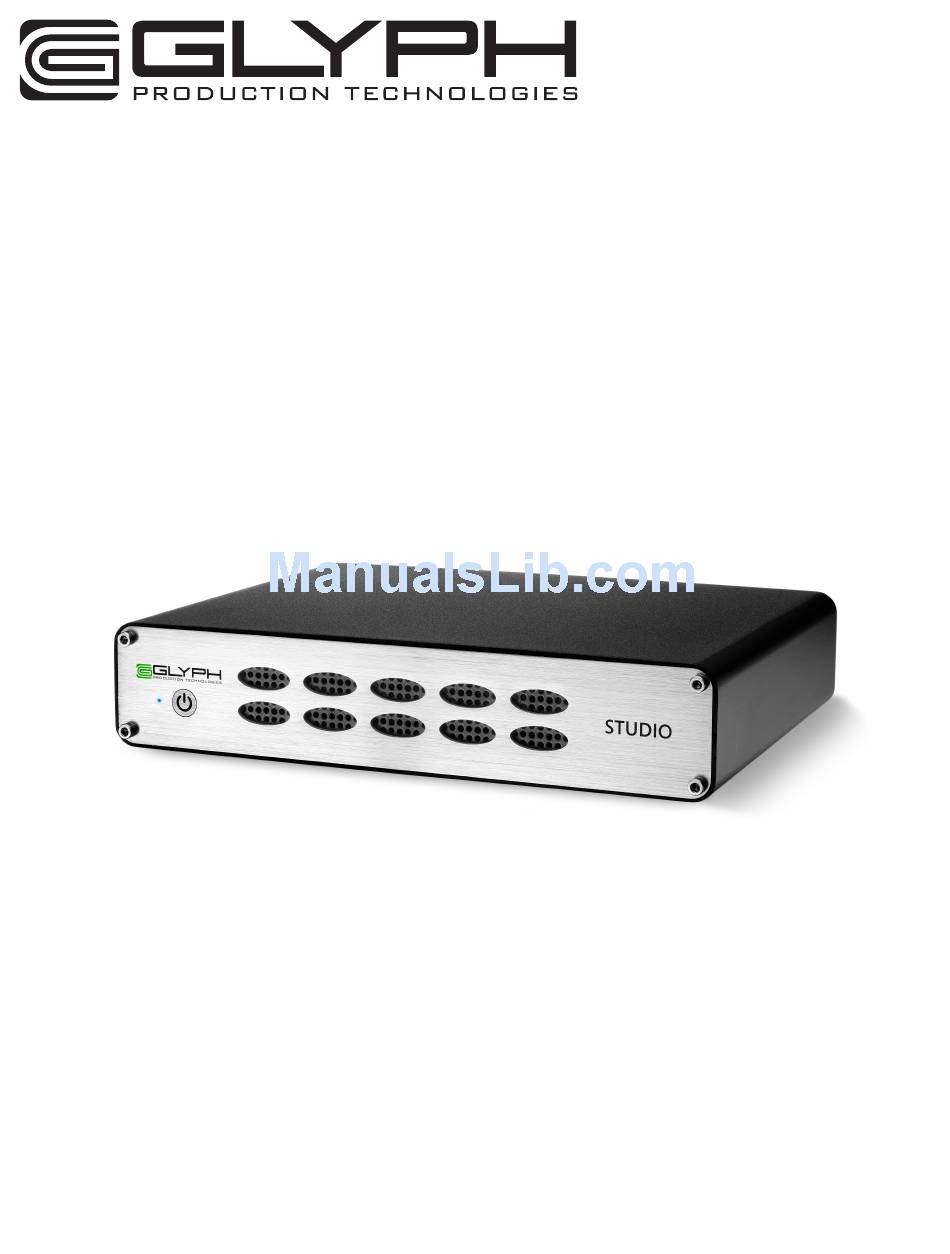

Studio Manual
Fixed-Mount Tabletop Hard Drive
with FireWire 800, USB 3.0 Hi-speed, and eSATA
610036-1.1 Studio Manual.pdf
August 1, 2014
Proprietary Notice and Disclaimer
Unless noted otherwise, this document and the information herein disclosed are proprietary to Glyph Technologies, 3736 Kellogg
Road, Cortland NY 13045 ("GLYPH"). Any person or entity to whom this document is furnished or having possession thereof, by
acceptance, assumes custody thereof and agrees that the document is given in confidence and will not be copied or reproduced
in whole or in part, nor used or revealed to any person in any manner except to meet the purposes for which it was delivered.
Additional rights and obligations regarding this document and its contents may be defined by a separate written agreement with
GLYPH, and if so, such separate written agreement shall be controlling.
The information in this document is subject to change without notice, and should not be construed as a commitment by GLYPH.
Although GLYPH will make every effort to inform users of substantive errors, GLYPH disclaims all liability for any loss or damage
resulting from the use of this manual or any software described herein, including without limitation contingent, special, or inci-
dental liability.
© 2002-2013 Glyph Technologies. All rights reserved. Specifications are subject to change without notice. Glyph and the Glyph
logo are registered trademarks of Glyph Technologies. All other brands and product names mentioned are trademarks of their
respective holders.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Studio and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Glyph Studio

Summary of Contents for Glyph Studio

  • Page 1 GLYPH, and if so, such separate written agreement shall be controlling. The information in this document is subject to change without notice, and should not be construed as a commitment by GLYPH. Although GLYPH will make every effort to inform users of substantive errors, GLYPH disclaims all liability for any loss or damage resulting from the use of this manual or any software described herein, including without limitation contingent, special, or inci- dental liability.
  • Page 2 If the container is damaged, file a report with the carrier or dealer immediately. Do not attempt to unpack and operate your Studio until the carrier or dealer confirms the damage. If the container is in good condition, proceed with unpacking the Studio. Verify that all of the items described in the next section are present and in good condition.
  • Page 3 Depending on which port(s) your computer has, you can connect the Studio in a number of ways. The fastest interface on the Studio is eSATA and the USB 3.0 port. Both are located on the rear panel. The Studio can sustain over 130MB/sec (reads) and over 140MB/s (writes) when connected to a 4-lane PCIe eSATA card such as the Sonnet E4P.
  • Page 4 Transform your Studio into a 1U rack-mount hard drive with the optional Rack Kit (shown below, compatable with both GPT50 and Studio). The rack kit holds one or two drives in a 1U rack space. (Sold separately). Using the Studio with Windows 2000 / XP Older versions of Windows, such as 2000 and XP 32-bit, use Master Boot Record (MBR) which doesn’t...

  • Page 5: System Requirements

    Installing the Hardware 1. Position the Studio by placing the unit on a flat, level surface, or install the unit into a rack with the GPT Rack Kit. Caution: Speakers are magnetic devices; they can harm your data if they’re too close to your hard drives or tapes.
  • Page 6 Installing the Hardware 1. Position the Studio by placing the unit on a flat, level surface, or install the unit into a rack with the GPT Rack Kit. Caution: Speakers are magnetic devices; they can harm your data if they’re too close to your hard drives or tapes.
  • Page 7 3. Connect the FireWire, USB or eSATA cable. Plug one end of the cable into your computer’s port, and the other into the back of the Studio. The two FireWire 800 ports are functionally identical, so it doesn’t matter which one you use.
  • Page 8 2 Years Free Basic Data Recovery* 1 Year Overnight Advance Replacement in USA (Continental 48 states) *While Glyph is not obligated to recover lost data, we always give it our best effort. Nonetheless, we can’t guaran- tee we’ll always be successful.

  • Page 9: Frequently Asked Questions

    About eSATA • eSATA is an external interface technology that grew from the internal SATA I interface. • The Studio’s eSATA port supports speeds up to 1.5 Gb/sec (150 MB/sec), much faster than FireWire 400 or FireWire 800. • Shielded eSATA cables up to 2 meters in length are available.
  • Page 10 Q: My Windows computer doesn’t show the drive in My Computer. What’s up? The default format on the Studio is for the Macintosh, and Windows doesn’t recognize it. Once you have connected the Studio to your Windows PC, you have to re-initialize it for use with Windows. For most ver-sions of Windows, that’s going to be NTFS format;...
